Forsyth Industrial High Bay Lighting

BAY LIGHT

FORSYTH
Series

General Purpose Industrial High Bay Lighting Fixtures

100-450W MULTI-OPTIC VERSATILE LED HIGH BAYS AVAILABLE WITH ECONOMIC IN-BUILT SMART SENSORS

Forsyth Multi Purpose LED High Bays
Ce140lm5yearsIk10Ip66Temp 45cWirelessDimmableLed
  • Technical BrochureForsyth Series Data Sheets
  • Photometric FilesForsyth Series Photometric Files
  • Packaging & DeliveryForsyth Series Packaging & Delivery

The Forsyth Series LED high bay lights are designed to be the consummate industrial lighting solution.

As part of a selection of mid-priced, general purpose light fittings, this family's advanced modular design allows for exceptional product tailoring in power/output selection. Multiple beam angle options and mounting accessories ensure best application of light on-site and fast installs, including optional usage as floodlighting.

With an extensive range of LED light fittings, our team will be delighted to help you find the best product for your LED lighting project. You can enquire about the Forsyth Series via the link above. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds
Light EmissionDirect
CCT3000K, 4000K, 5000K, 6000K
CRI>70, >80
Symmetric Light Distribution90°, 110°, 150°
Asymmetric Light Distribution30/100°, 60/100°, 1S, 2S, 4S, 2M
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-30°C to 45°C
Ambient Humidity Tolerance15% to 95% RH
Ambient Storage Tolerance-40°C to 80°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor>0.95
THD<15%
Physical/Mechanical
Electrical Connection1000mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPainted
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell, Microwave Sensor (Remote Control), PIR Sensor
Options/Accessories
Mounting StylesUniversal Bracket (360° Rotation), Slip Fit, Twin Surface Mount Brackets, Eye Bolt, Twin Eye Bolts, Wall Mount
Available Product ColoursGrey (RAL 7045), Black (RAL 9011)
Miscellaneous AccessoriesCorrosion Resistant Finish, Wire Grill, IP68 13A In-Line Connector
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.8W or 5.6W
HousingExternal Pack
Battery TypeNiCd, or LiFePO4 (2.8W only)
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years
  • Series Wattage Range 100W - 450W
  • Lumen Packages 7,000lm - 63,000lm
  • 7no. Mounting Options
  • 9no. Optic Variants
  • Advanced Intelligent Controls Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

BC

ETL

DLC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeFOR2
Nominal Power (Range)100W to 450W
Luminaire Efficacy @ CRI>70 5000K CCT140 lm/W
Lumen Output @ CRI>70 5000K CCT14,000 to 63,000 lumens
Lumen Maintenance (TM21)L70B50 >82,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

90º Optic 90º Optic
110º Optic 110º Optic
150º Optic 150º Optic
A1 Optic A1 Optic
A2 Optic A2 Optic

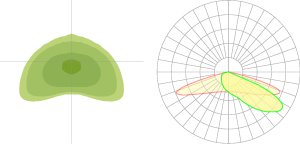

IESNA Type 1 Short IESNA Type 1 Short

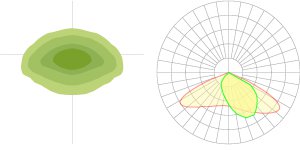

IESNA Type 2 Short IESNA Type 2 Short

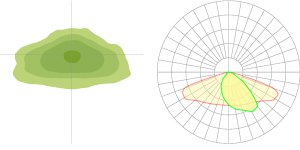

IESNA Type 2 Medium IESNA Type 2 Medium

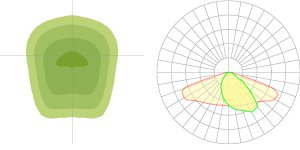

IESNA Type 4 Short IESNA Type 4 Short

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

High Bay lights designed for

PURPOSE

As with all Kellwood's industrial lighting products, environmental challenges are overcome with high IK10 impact resistance and IP66 ingress, dust and water protection.

  1. Optics: Forsyth Series has a flexible range of optics to provide lighting for a wide range of applications: 90°, 110°, 150°, A1 (30X100° Rectangular), A2 (60X100° Rectangular), 1S (IESNA Type I Short), 2S (IESNA Type II Short), 4S (IESNA Type IV Short), 2m (IESNA Type II Medium).

  2. Lumen Maintenance: Through design to lower thermal temperatures with modular light engine, chassis design and premium components contributes to having a long product usage lifetime. Lumen Maintenance is L70B50 >82,000 hours.
  3. Intelligent Lighting Controls: Optional intelligent light controls available are: photocell, microwave sensor (remote control), PIR sensor, emergency packs with remote testing.

  4. Mounting: To provide lighting to a wide range of applications it requires several mounting options: universal bracket (180° rotation optional), slip fit, twin surface mount brackets, eye bolt, twin eye bolts, wall mount.

Forsyth Multi Purpose LED High Bay Designed for Purpose Diagram
