STREET LIGHT

Arrol
Series

Premium LED Street Lights

VIBRATION RESISTANCE, SURGE PROTECTION, MIARINE-GRADE COATINGS, AND MARKET-LEADING CHIPS AND DRIVERS ENSURE STABILITY AND SUSTAINABILITY IN HARSH ENVIRONMENTS

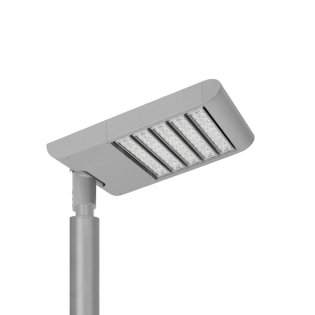

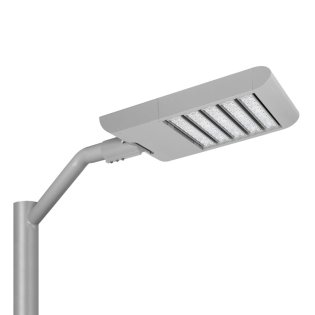

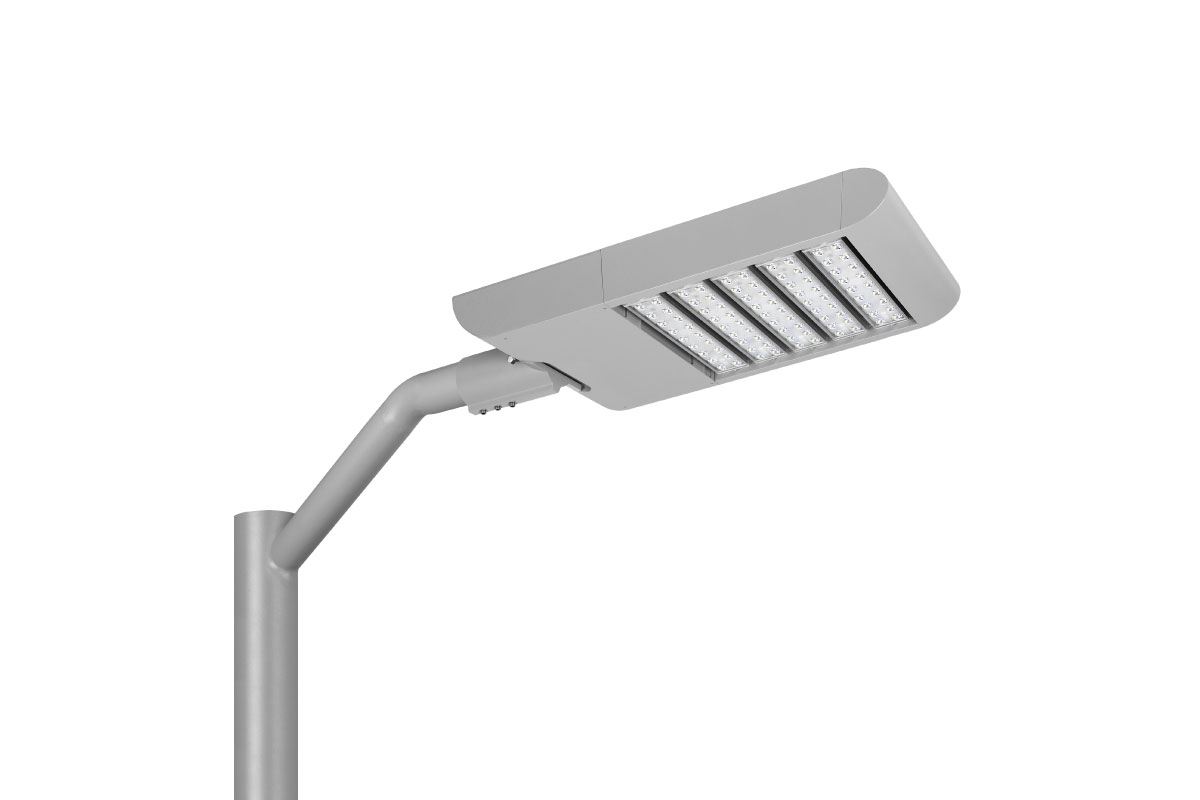

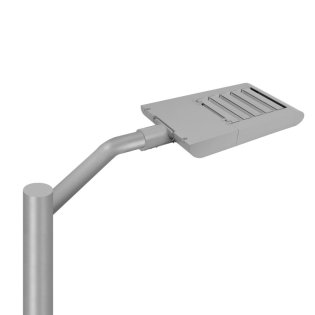

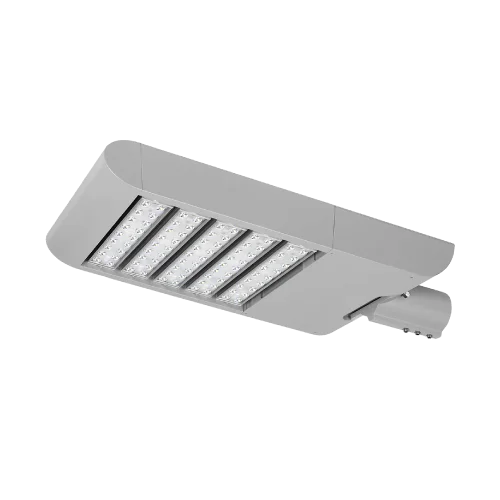

Arrol Street Lights
Ce140lm5yearsIk10Ip67Temp 50cDimmableLedMarine Grade
  • Technical BrochureAroll 3a Series Data Sheets
  • Photometric FilesArrol 3A Series Photometric Files
  • Packaging & DeliveryArrol 3a Series Packaging & Delivery

Key difference: high efficacy, lower drive current (530mA), and slightly more expensive than Arrol 4B Series

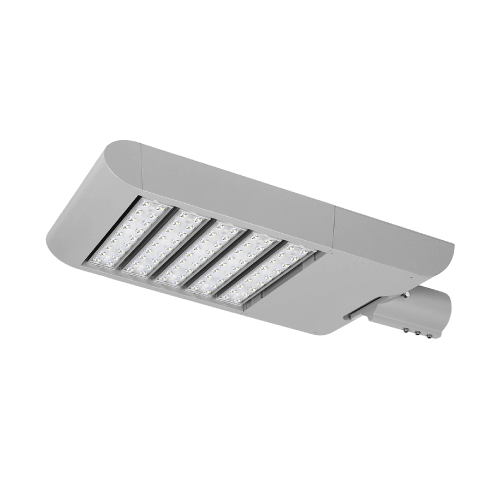

Kellwood's Arrol series are our premium LED street light suitable for large scale, high end or complex installations. A choice of 17 different optical distributions, optional back spill guards and 18 lumen packages provide the ultimate in flexibility, allowing the light to be directed exactly where required. Low colour temperatures are available to meet photobiological requirements where necessary

Our team is here to help you find the most suitable light fitting for your project. You can enquire about the Arrol Series via the "contact us" link. Alternatively feel free to speak to a member of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 NVSL219C
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70
Symmetric Light Distribution10°, 25°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution1M, 2M, 3M, 3L, 4S, 4M
Lens OpacityClear
Optical AccessoriesBackspill Guard
Environmental
Ingress RatingIP67
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage220-240VAC, 120-277VAC
Driver Brand(s)Philips Advance
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD≤20%
Surge Protection10kV, 20kV
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated - AkzoNobel Standard, AkzoNobel Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell, NEMA Socket and Cap
Options/Accessories

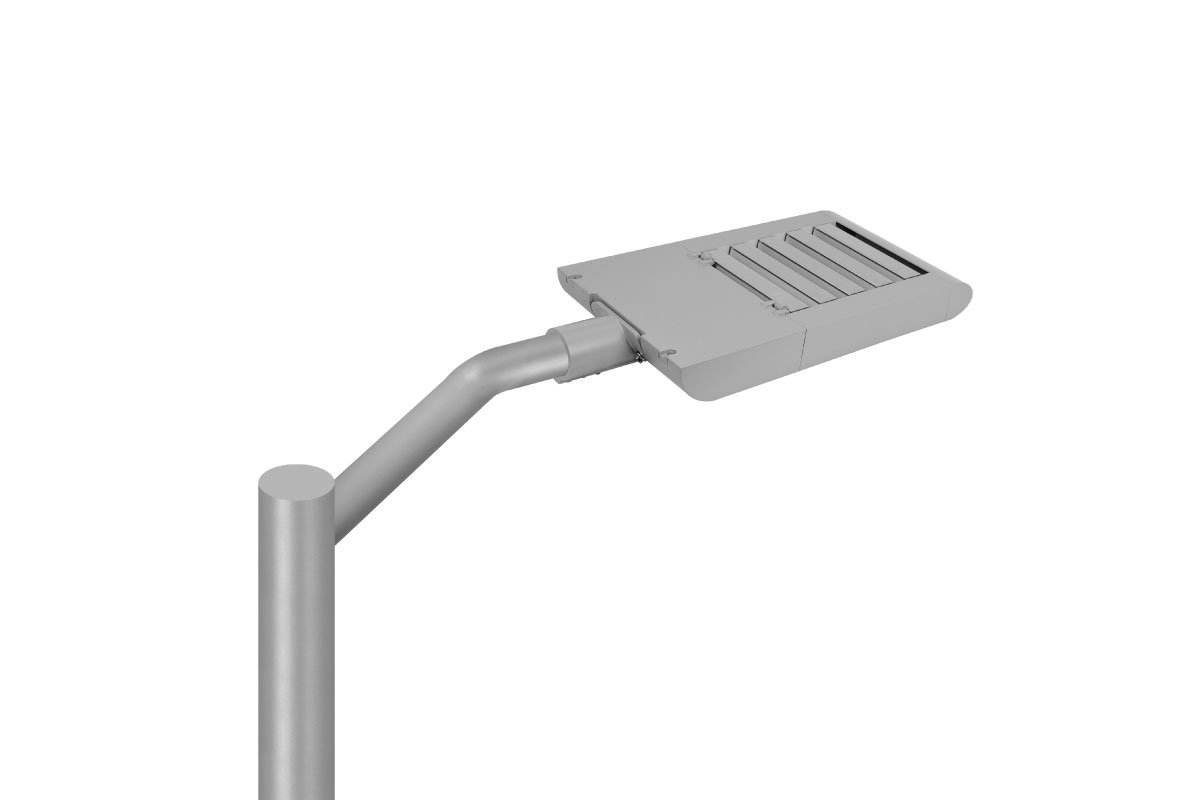

Mounting Styles60mm Slip Fit - Rotatable through ±20°
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), White (RAL (9010)
Miscellaneous AccessoriesBird Spikes, Spigot Reducer/Adapter
  • 30W-280W Wattage Range
  • 530mA Drive Current
  • L90F10 >100,000 Hours
  • 13+ Optical Lens Variations
  • Modular, User Conscious Design For Easy Installation & Maintenance
  • Intelligent Controls Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

UL

DLC

ENEC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

  • Technical BrochureAroll 3b Series Data Sheets
  • Photometric FilesArrol 3B Series Photometric Files
  • Packaging & DeliveryArrol 3b Series Packaging & Delivery

Key difference: higher drive current (700mA), less efficacious, and slightly cheaper than Arrol 4A Series

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 NVSL219C
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70
Symmetric Light Distribution10°, 25°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution1M, 2M, 3M, 3L, 4S, 4M
Lens OpacityClear
Optical AccessoriesBackspill Guard
Environmental
Ingress RatingIP67
Impact ResistanceIK08
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage220-240VAC, 120-277VAC
Driver Brand(s)Philips Advance
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD≤20%
Surge Protection10kV, 20kV
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated - AkzoNobel Standard, AkzoNobel Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell, NEMA Socket and Cap
Options/Accessories
Mounting Styles60mm Slip Fit - Rotatable through ±20°
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), White (RAL (9010)
Miscellaneous AccessoriesBird Spikes, Spigot Reducer/Adapter
  • 40W-310W Wattage Range
  • 700mA Drive Current
  • L90F10 >100,000 Hours
  • 13+ Optical Lens Variations
  • Modular, User Conscious Design For Easy Installation & Maintenance
  • Intelligent Controls Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

UL

DLC

ENEC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeAR4AAR4B
Nominal Power (Range)30W to 280W40W to 310W
Drive Current530mA700mA
Luminaire Efficacy @ CRI>70 5000K CCT129 to 141 lm/W124 to 129 lm/W
Lumen Output @ CRI>70 5000K CCT3,870 to 37,800 lumens4,960 to 39,680 lumens
Lumen Maintenance (TM21 Reported)L90B10 >100,000 hoursL90B10 >100,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)CE (EMC, LVD, RoHS, ErP)
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

10º Optic 10º Optic
25º Optic 25º Optic
40º Optic 40º Optic

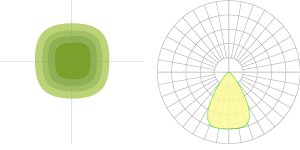

60º Optic 60º Optic

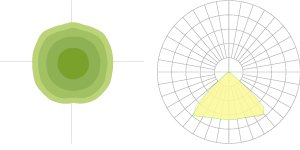

90º Optic 90º Optic

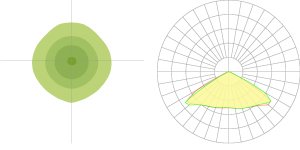

120º Optic 120º Optic

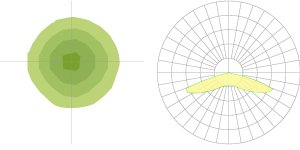

150º Optic 150º Optic
IESNA Type 1 Medium IESNA Type 1 Medium

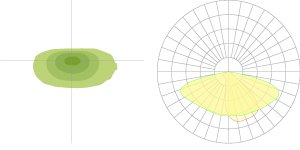

IESNA Type 2 Medium IESNA Type 2 Medium

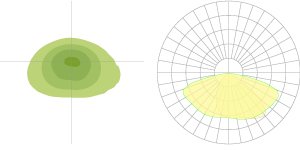

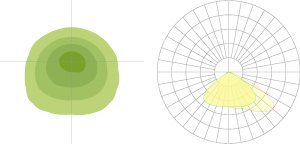

IESNA Type 3 Medium IESNA Type 3 Medium
IESNA Type 3 Long IESNA Type 3 Long

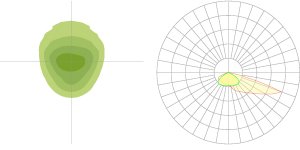

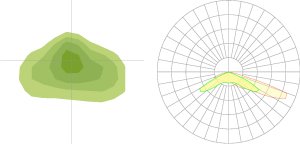

IESNA Type 4 Short IESNA Type 4 Short

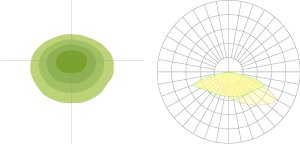

IESNA Type 4 Medium IESNA Type 4 Medium

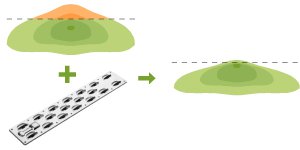

Backspill Guard Backspill Guard

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Street lights designed for

PURPOSE

Premium LED chips, drivers and other components ensure excellent performance to minimise running costs while twin level surge protection, corrosion resistance and low operating currents provide durability and longevity. Smart control options can be provided through photocells and intelligent control systems. Additionally, a range of mounting options and adjustable tilt angle make installation fast and painless.

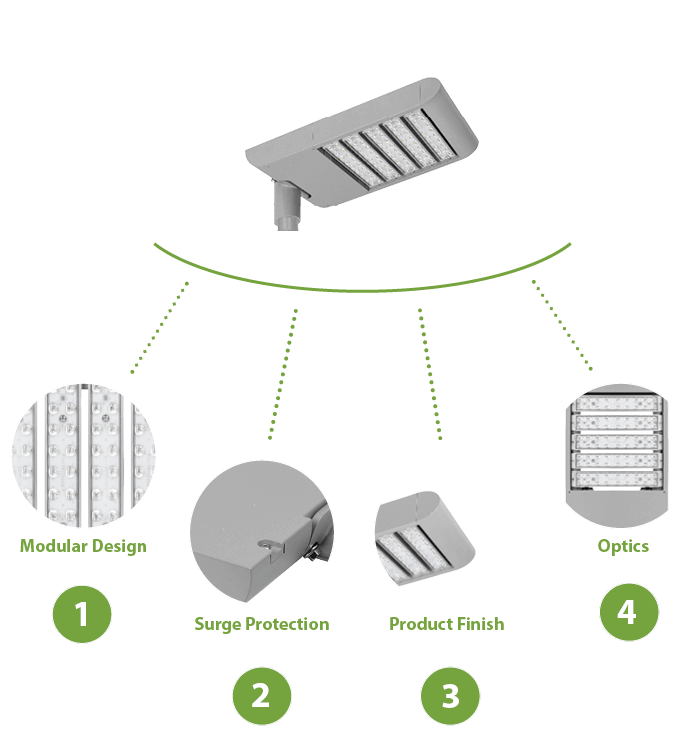

  1. Modular Design - IP67 conformance is ensured by individually pressure testing each LED module prior to assembly with the light's chassis. LED module spacing was assessed to maximise air convection through the fitting; improving thermal management and the product's lifespan.
  2. Surge Protection - The PCB has TVS (Transient Voltage Suppressors) to protect the LED chip from voltage transients induced by lightning. Combining this with independent SPDs provides a surge protection of 20kV/10kA as per ANSI/IEEE C62.41.2-2002.
  3. Product Finish - The light comes with the choice of Grey, Black or White colour finishes. The standard AkzoNobel polyester powder coat can be upgraded for increased salt corrosion resistance.
  4. Optics - 14 varied optics are available which include: 5 asymmetric, 7 symmetric, backspill guard and frosted diffuser (to reduce glare).

Arrol Designed for Purpose Diagram

TYPICAL

APPLICATIONS

  • Streets
  • Motorways
  • Marine environments
  • Environmentally sensitive areas
