COMMERCIAL LINEAR

Blackwell

Series

Direct OR INDirect Linear LED Lighting

DIRECT & INDIRECT INFINITY LINEAR LIGHTING - PERFORMANCE AND FORM-FOCUSED ARCHITECTURAL LIGHTS

Ce5years95lmTemp 40cWirelessDimmableEmergencyLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

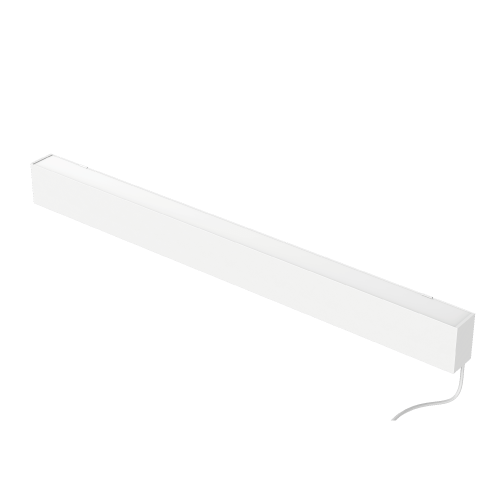

Kellwood's Blackwell Series is a direct-indirect linear lighting system. The 70% downwards and 30% upwards light distribution helps to reduce glare and meet the latest LG05 and LG07 recommendations. This product can be used as standalone linear fittings or can linked for a seamless 'infinity' effect.

Important Note: MOQs may apply - typically >100pcs - please contact our office to discuss your requirements

At Kellwood Lighting we have a wide range of light fittings for your project. You can enquire about the Blackwell series via the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelEpistar 2835
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>80
Lens OpacityFrosted
Environmental
Ingress RatingIP40
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance20% to 80% RH
Ambient Storage Tolerance-30° to 50°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Osram
Input Frequency (VAC)50Hz
Power Factor≥0.95
Physical/Mechanical
Electrical ConnectionCable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodised-Painted
Lens(es) MaterialUV Stabilised PMMA
Dimming/Controls
Dimming OptionsDALI
Options/Accessories
Mounting StylesSurface Mount, Suspended
Miscellaneous AccessoriesIn-Line Connector, 3 Core VAC Input
  • Osram Drivers
  • Seamless "Inifinity" Effect
  • 70% Downwards & 30% Upwards Light
  • 2ft, 4ft & 5ft Luminaires
  • Fast "Plug & Play" Installation

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeBLA
Nominal Power (Range)28W to 75W
Length2ft, 4ft, 5ft
Luminaire Efficacy @ CRI>80 4000K CCT140 lm/W
Lumen Output @ CRI>80 4000K CCT2,688 to 6,600 lumens
Lumen Maintenance (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

110º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear lights designed for

PURPOSE

The Blackwell Series is available in a black, silver or white housing. Supplied with Osram drivers and Epistar LED chips as standard (available in three colour temperatures ranging from 3000K to 6000K) it can also be paired with on/off microwave sensors. The product's styling, while combined with upward lighting, offers a more modern architectural impression than conventional 'downwards only' linear illumination.

TYPICAL

APPLICATIONS

  • Schools & Universities
  • Offices
  • Laboratories
  • Libraries
  • Retail
