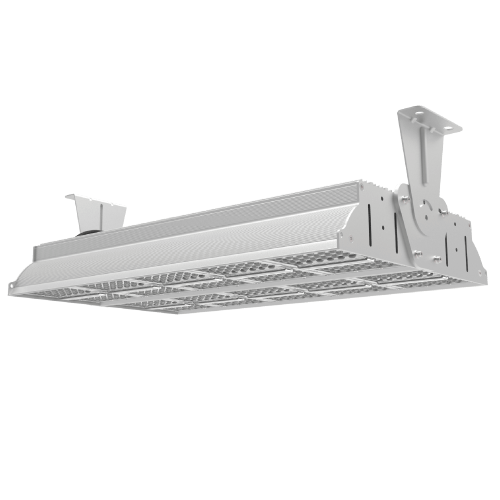

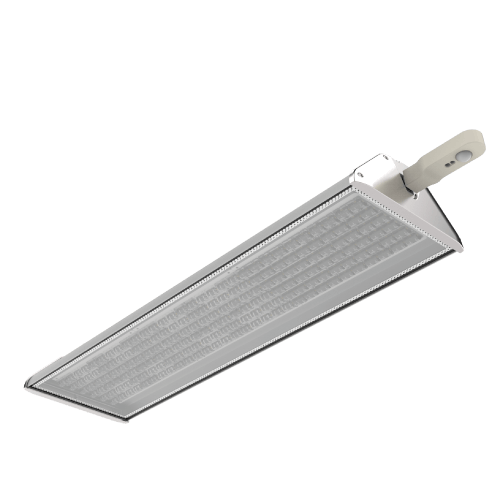

Linear High Bay

Henman
Series

LOW GLARE INDUSTRIAL LED LIGHTING

HIGH PERFORMANCE VERSATILE LED HIGH BAY LIGHT

Ce150lm7yearsIk08Ip65Temp 60cDimmable
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Kellwood's high performance low glare LED high bay light fittings are designed to deliver over 150lm/w whilst offering a reduced glare light output. A versatile solution for industrial uses where low glare lighting is required.

Light distribution is precision tailored through application of interchangeable optical lenses. By casting an oblong distribution pattern, light can be directed exactly where it needs to be at ground level.

Our team here at Kellwood Lighting will be delighted to help you find the best LED light fitting for your project. You can enquire about the Henman Series LED Linear High Bay via the link below. Alternatively feel free to speak to one of our team on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia GRT-V3
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution70°
Asymmetric Light Distribution30x100°, 55x130°, 30x70°
Lens OpacityClear
Environmental
Ingress RatingIP65
Impact ResistanceIK08
Ambient Usage Tolerance-40°C to 60°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40°C to 60°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor>0.95
THD<15%
Physical/Mechanical
Electrical Connection1000mm
Fixture Primary MaterialsAluminium
Fixture FinishAnodised
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsMicrowave Sensor
Options/Accessories

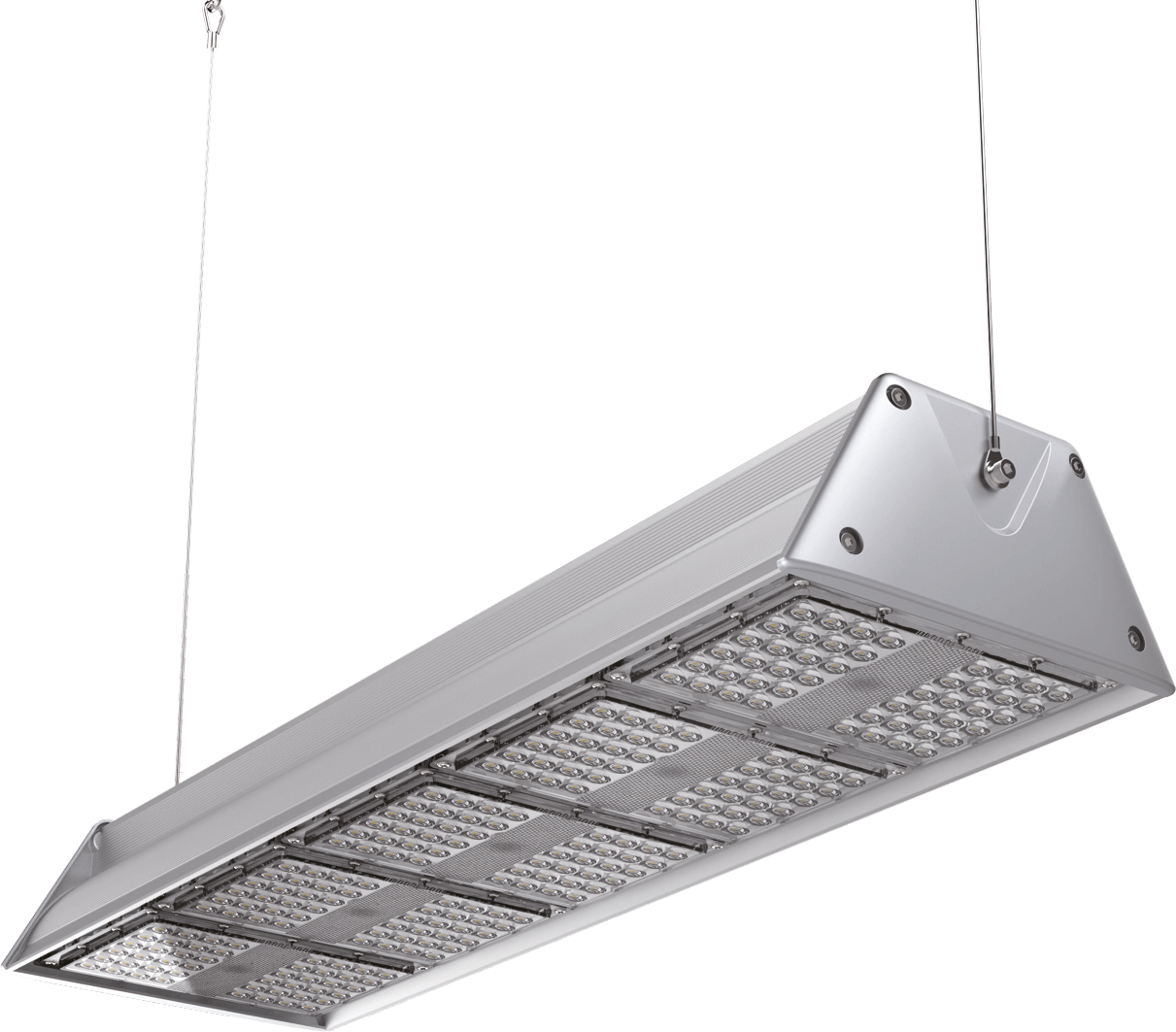

Mounting StylesCable Suspension, Twin Surface Mount Brackets
Available Product ColoursSilver
Miscellaneous AccessoriesMaintained Emergency (Self Test, Remote Test, Wireless)
  • 7 Year Warranty on standard models
  • Luminaire Efficacy >150lm/W on standard CRI>70 5000K porducts
  • High Lumen Maintenance: combining Nichia GRT-V3 LED chips and carefully designed thermal management
  • Industrial Build-Quality: stainless steel fixings, individually sealed optics, and premium Mean-Well or Inventronics drivers, result in IP65 ingress protection
  • Low UGR Optics: an optional 70° narrow beam angle results in reduced glare illumination
  • Asymmetric Optics: rectangular light distributions (narrow, medium and wide) cover the majority of aisle and open area applications.
  • Dimming: available with DALI and 1-10V dimming
  • 3Hr Emergency (IP20), and Microwave Sensors accessories

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

  • Technical Brochure
  • Packaging & Delivery

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia GRT-V3
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution60°, 90°, 100°, 120°
Asymmetric Light Distribution40x100°
Lens OpacityClear
Environmental
Ingress RatingIP65
Impact ResistanceIK08
Ambient Usage Tolerance-40°C to 60°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40°C to 65°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor>0.95
THD<15%
Physical/Mechanical
Electrical Connection1000mm
Fixture Primary MaterialsAluminium
Fixture FinishAnodised
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsMicrowave Sensor
Options/Accessories
Mounting StylesCable Suspension, Twin Surface Mount Brackets
Available Product ColoursSilver

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary

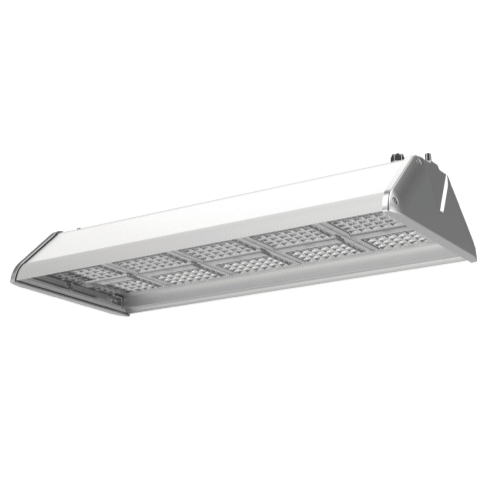

Series CodeHENHEN2
Nominal Power (Range)90W to 480W100W to 240W
Luminaire Efficacy @ CRI>70 5000K CCT140 to 153 lm/W130lm/W
Lumen Output @ CRI>70 5000K CCT13,680 to 72,960 lumens13,000 to 31,200 lumens
Lumen Maintenance (TM21)L70>60,000 hoursL70>100,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)CE (EMC, LVD, RoHS, ErP)
Warranty7 Years

7 Years

Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

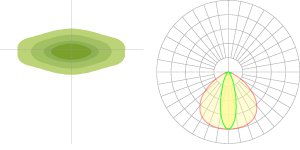

A1 30º x 100º

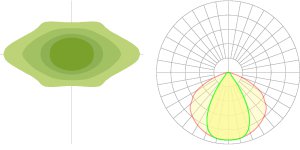

A4 55º x 130º

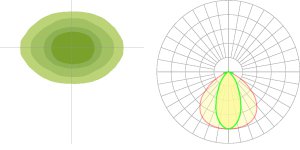

A8 30º x 70º

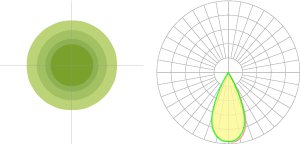

70º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

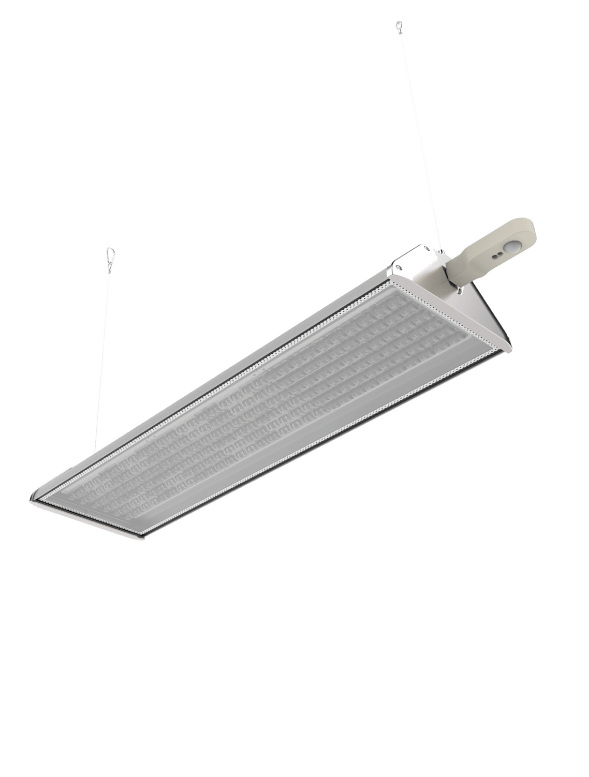

High Bay lights designed for

PURPOSE

The Henman Series was designed to provide a premium high bay lighting solution for projects looking for long-term investment. Priorities were placed on:

  1. Combining market-leading LED packages with careful design of thermal management, resulting in optimised lumen maintenance
  2. Long-life LED drivers (Mean Well HLG as standard)
  3. A selection of optics, each to fulfil a dedicated purpose, from low-glare narrow beam distributions, to oblong asymmetric aisle optics,

The result is a product with a 7 year warranty; contact our team to find out more.

TYPICAL

APPLICATIONS

  • Factories
  • WAREHOUSING
  • AIRCRAFT HANGARS
