COMMERCIAL LINEAR

Nicholson

Series

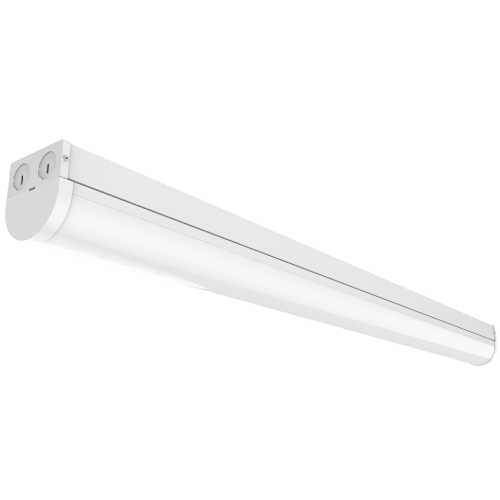

LED Batten Light Fittings

VERSATILE COMMERCIAL BATTEN FITTINGS WITH EMERGENCY, AND INTELLIGENT CONTROL OPTIONS

145lm5yearsIk08Temp 40cDimmableEmergencyLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Note : MOQ>250pcs

A versatile, unintrusive LED batten light fitting, suited for placement throughout commercial offices, educational institutions and retail facilities. Installation time is minimised via the tool-free connection and an innovative 2-piece design. Combining this with multiple wattage availability across the standard 4ft and 5ft lengths, makes the Nicholson-Series a project focussed product.

Our lighting design team is here to help you find the most suitable light fitting for your project. You can enquire about the Nicholson Series product via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSan'an 2835
Light EmissionDirect
CCT3000K, 4000K, 5000K, 6000K
CRI>80, >90
Lens OpacityFrosted
Environmental
Ingress RatingIP20
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance10% to 80% RH
Ambient Storage Tolerance-40° to 85°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Lifud, Osram
Input Frequency (VAC)50-60Hz
Power Factor≥0.93
THD<20%
Physical/Mechanical
Electrical Connection1m Cable, Terminal Block
Fixture Primary MaterialsAluminium, Steel
Fixture FinishPainted
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesTwin Surface/Trunking Brackets, Suspended
Miscellaneous AccessoriesIntegrated Maintained Emergency
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.8W
HousingInternal
Battery TypeNiMH (2.8W)
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years
  • Mounting options: BESA surface mount, wire suspension
  • Frosted, glare reducing polycarbonate diffuser
  • Tool-free connection through innovative 2-piece design allows for rapid, low cost installation
  • CRI>80 or CRI>90
  • 1-10V, or DALI dimming options
  • Occupancy sensor and 3hr emergency variants

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeNIC2
Nominal Power (Range)15W to 54W
Lengths4ft, 5ft
Luminaire Efficacy @ CRI>80 4000K CCT131 to 149 lm/W
Lumen Output @ CRI>80 4000K CCT2,235 to 7,074 lumens
Lumen Maintenance (TM21 Reported)L70B10>78,000hrs
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

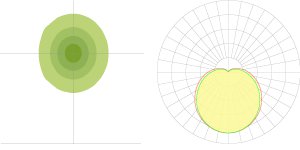

Light Distribution Options

120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

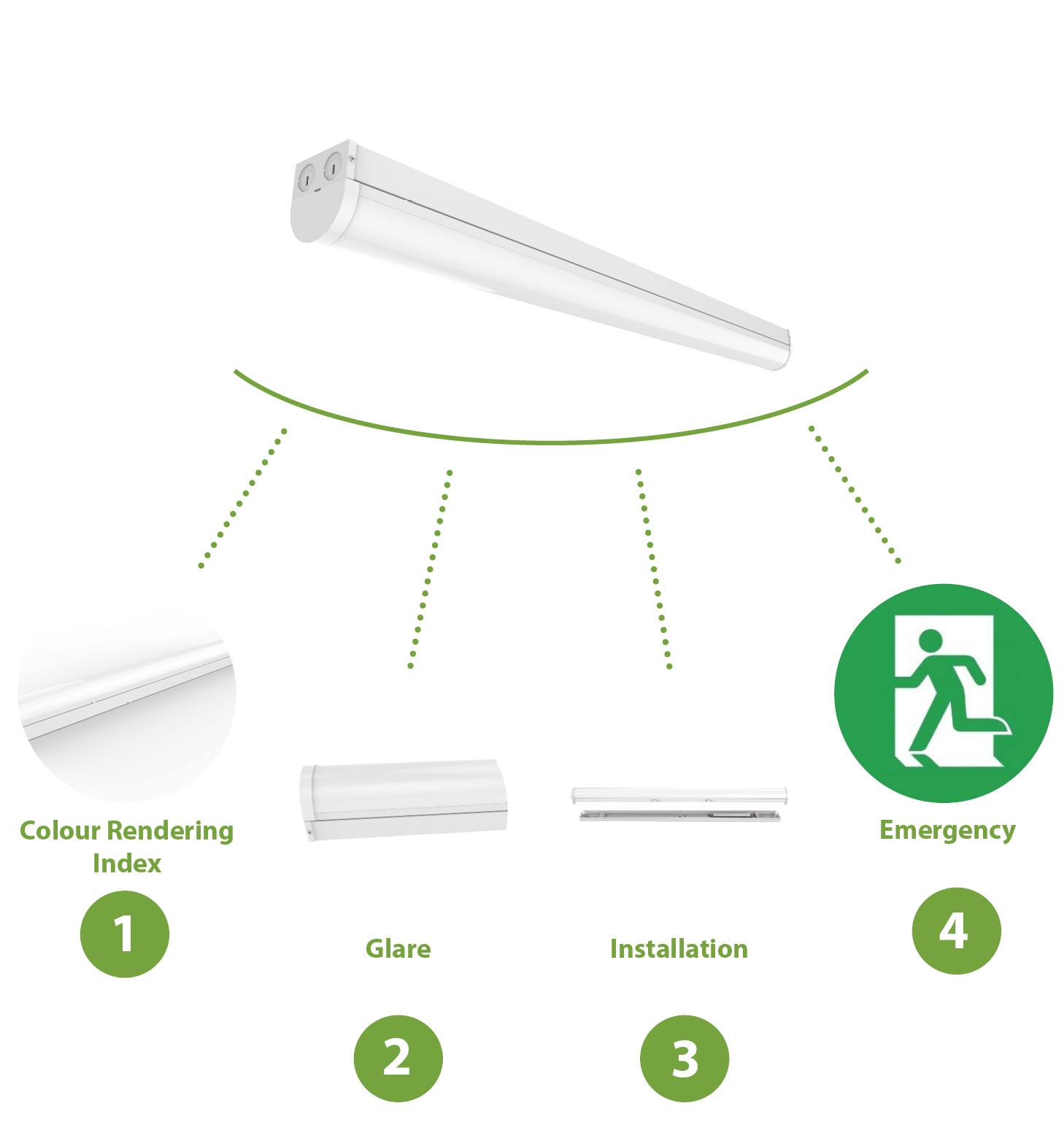

Linear lights designed for

PURPOSE

Wide dispersion optics reduce power consumption over a given area - allowing greater spacing between luminaires, ultimately increasing uniformity over the total project area. Energy consumption is a concern in any project and additional savings are always desirable where possible. Integrated sensors and dimming protocols make the Nicholson a dynamic, reactive product and increases estimated savings by only using the right amount of light at the time.

  1. Colour Rendering Index: The Nicholson Series offers a high CRI of ≥80Ra, ≥90Ra.

  2. Glare: As standard the Nicholson Series uses glare reducing polycarbonate diffuser with a UGR of ≤25. Further glare reduction can be achieved with the use of the frosted diffuser.

  3. Installation: Tool-free connection through innovative 2-piece design allows for rapid, low cost installation.

  4. Emergency: Integrated emergency remote test is available with this product.

TYPICAL

APPLICATIONS

  • Offices
  • meeting rooms
  • corridors
  • receptions
  • changing rooms
