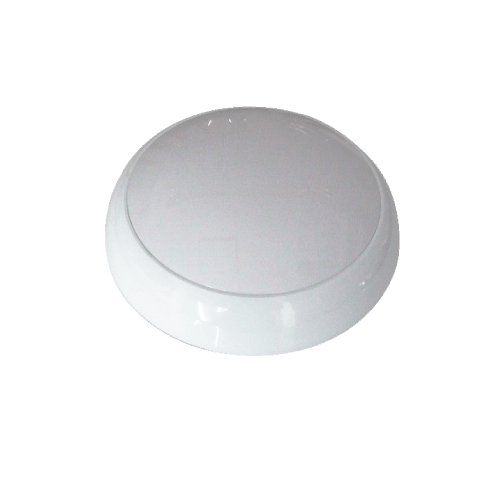

Bulkhead Lights - Circular Polycarbonate LED Bulkhead Light Fittings

FUNCTIONAL AND RELIABLE BULKHEAD WITH INTERNAL METAL CHASSIS FOR IMPROVED HEAT DISSIPATION

Ce3yearsIp54Temp 45cEmergencyLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

As part of our Emergency Lighting range, Kellwood Lighting offer a comprehensive range of LED bulkheads.

Kellwood's Paterson series of polycarbonate circular LED bulkheads focus on functionality and durability, and are suitable for a wide range of environments. High efficacy across the product range ensures the best possible light output.

Here at Kellwood Lighting, our team is here to help you find the best light fittings for your project. You can enquire about the Paterson series using the link below. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelEpistar 2835 SMD
Light EmissionDirect
CCT3000K, 4000K, 5500K
CRI>80
Lens OpacityFrosted Micro-prismatic
Environmental
Ingress RatingIP54
Impact ResistanceN/A
Ambient Usage Tolerance-10° to 45°C
Ambient Humidity Tolerance10% to 80% RH
Ambient Storage Tolerance-40° to 85°C
Electrical
Input Voltage200-240VAC
Driver Brand(s)Own Brand
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<20%
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsABS
Fixture FinishUntreated
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V
Built-in ControlsMulti-step dimming microwave sensor
Options/Accessories
Mounting StylesSurface Mount
Miscellaneous AccessoriesN/A
Emergency
Duration3 Hours
Testing TypeRemote-Test
OperationMaintained or Non-Maintained
Output Wattage4.2W
HousingInternal
Battery TypeNiMH
Temperature Tolerance25°C (unless otherwise agreed)
Warranty1 Years
  • 14W & 18W Power Specifications
  • L70 >50,000 Hours
  • Impact & Ingress Protection
  • 3 Hour Emergency Modifications
  • Intelligent Controls Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodePAT
Nominal Power (Range)14W or 18W
Size325mm Diameter
Luminaire Efficacy @ CRI>80 4000K CCT70-80 lm/W
Lumen Output @ CRI>80 4000K CCT1,200 to 1,550 lumens
Lumen Maintenance (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

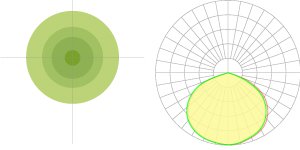

135º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Bulkhead lights designed for

PURPOSE

A wide beam angle diffuser gives an even light distribution. Lightweight, with ingress protection and optional emergency modifications, the Paterson Series is a great light fitting for circulation areas like corridors and stairwells.

In instances where you require IP65 & IK10 resistance, you may consider our Blair Series LED Bulkhead which is suitable for internal and external use.

TYPICAL

APPLICATIONS

  • Storerooms
  • Toilets
  • Corridors
  • Receptions
  • Waiting Rooms
