LED TRACKLIGHT

WESTON

Series

high CRI and lumen output led tracklights

A STYLISH TRACKLIGHT WITH MULTIPLE OPTIC VARIATIONS AND RECESSED REDUCED GLARE DIFFUSER

Ce5years95lmTemp 45cUgr 19DimmableLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

The Weston Series LED tracklight is perfectly suited for museum, gallery and general retail lighting applications.

The recessed light engines ensure that glare is minimised where directional lighting is required, while a selection of paint finishes ensures it can compliment internal architectural and aesthetic focal points.

We are here to help you find the best Commercial LED Light for your project. You can enquire about this specific product via the on-page link. Alternatively feel free to speak to a member of our technical team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelCitizen 711/1208
Light EmissionDirect
CCT3000K, 3500K, 4000K
CRI≥90
Lens OpacityFrosted, Clear
UGR<19
Environmental
Ingress RatingIP20
Impact ResistanceIK05
Ambient Usage Tolerance-20° to 45°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-20° to 60°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Philips, RX-Power, Osram
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<15%
Physical/Mechanical
Electrical ConnectionN/A
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPainted
Lens(es) MaterialUV Stabilised PMMA
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesTrack Rail
Available Product ColoursWhite, Black
Miscellaneous AccessoriesN/A
  • 28W - 50W Models
  • L70 >50,000 Hours
  • UGR<19
  • Clear/Frosted Lenses
  • 360° adjutable

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeWES
Nominal Power (Range)28W to 50W
Luminaire Efficacy @ CRI>80 4000K CCT90 to 95 lm/W
Lumen Output @ CRI>80 4000K CCT2,660 to 4,500 lumens
Lumen Maintenance (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

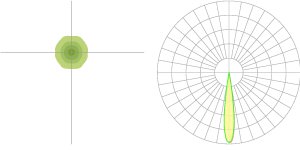

15º Optic

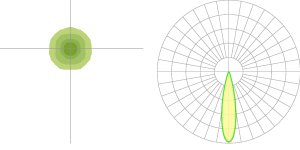

20º Optic

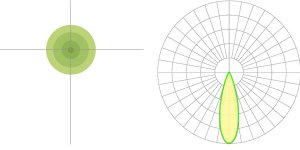

30º Optic

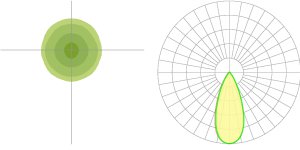

36º Optic

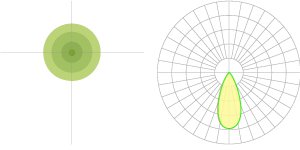

45º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

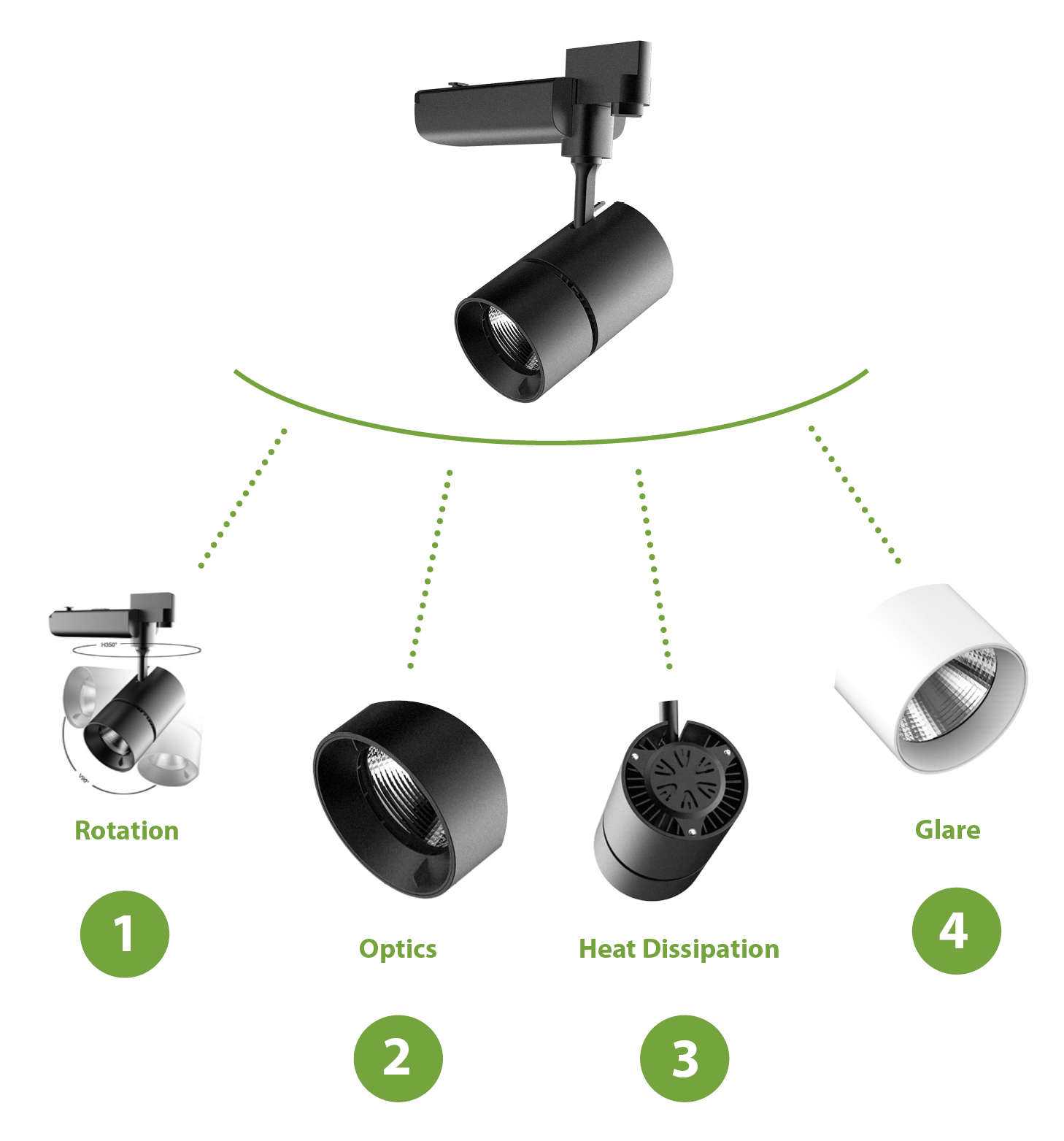

TRACKlights designed for

PURPOSE

  1. Rotation: The Weston Series track light offers 350° rotation and 90° horizontal adjustment. Providing a large amount of flexibility of lighting desired locations.
  2. Optics: There is a range of variety of beam angles to choose from: 15°, 20°, 30°, 36°, 45°.
  3. Heat Dissipation: The tracklight is assembled with premium components including Citizen LED chips and Philips Xitanium drivers. With the added heat dissipation system using high quality die-casting heat sink benefits the light fittings lifespan and has a lumen maintenance rating of L70B50 ≥50,000 hours.
  4. Glare: UGR<19 through frosted diffuser and recessed light source using an inner reflector module provides minimal glare.

TYPICAL

APPLICATIONS

  • high street Retail
  • Museums
  • art galleries
  • fashion
  • big-box retail
