Bollard

Bradley
Series

Dark-Skies Bollard

LED BOLLARD LIGHT IS AN ECO-SENSITIVE LIGHTING SOLUTIONS DESIGNED FOR A VARIETY OF OUTDOOR APPLICATIONS.

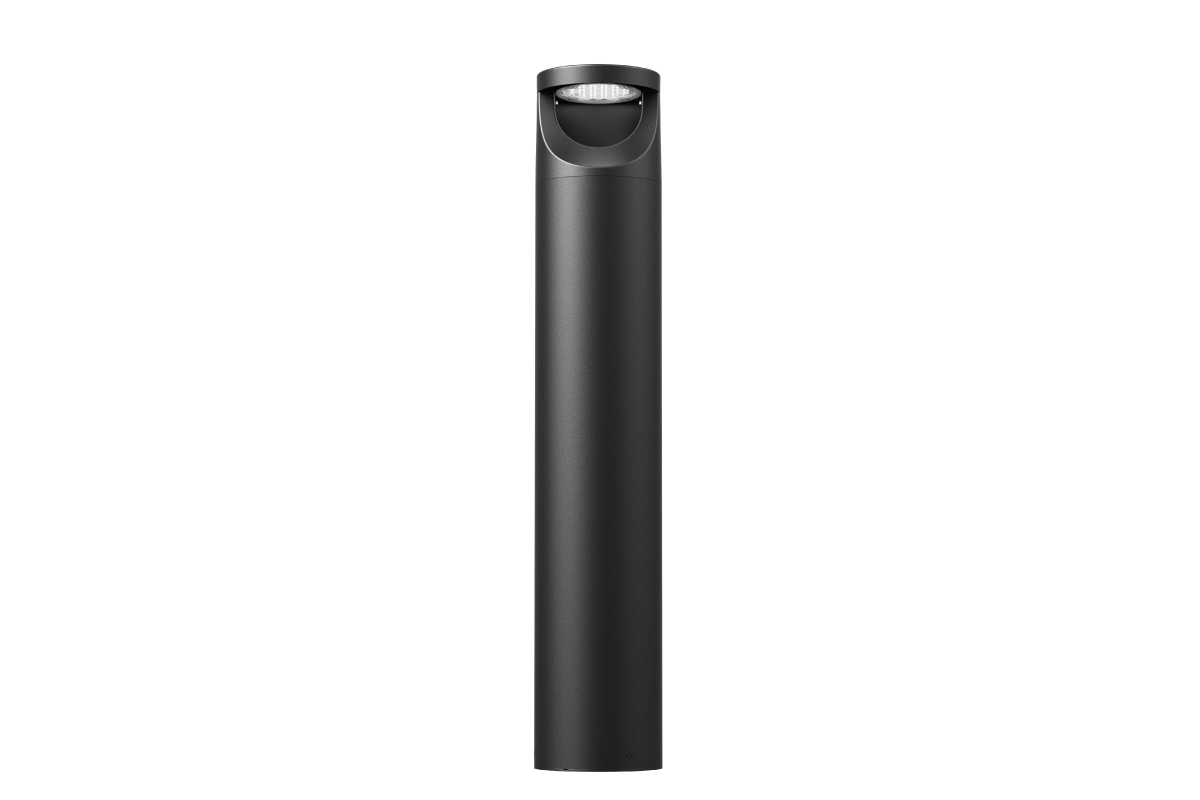

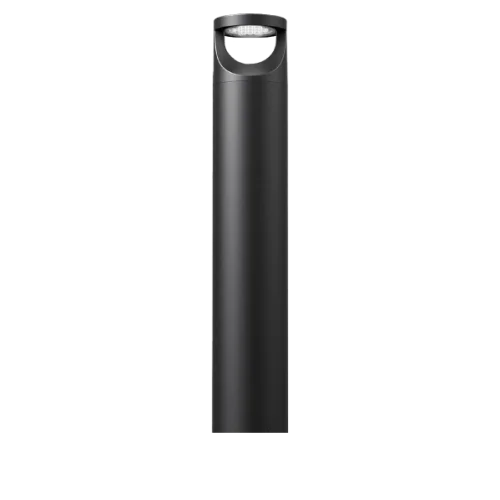

The Bradley Series LED Bollard Light is an eco-sensitive lighting solution designed for a variety of outdoor applications.

The fixture is designed with 0% Upward Light Output Ratio (ULOR), ensuring full compliance with dark sky standards and minimising light pollution that can disrupt nocturnal animals, including bats. It features specialist forward-throw optics that provide uniform pathway coverage with minimal light trespass, directing light precisely where it is needed. Additionally, the bollard is available with a warm 2700K correlated colour temperature (CCT) option, which supports visual comfort and low-impact lighting in eco-sensitive environments.

Our team is here to help you find the best product for your project. You can enquire about the Bradley Series Low-Impact LED Bollard via the link above the Performance Summary Table. Alternatively feel free to speak to one of the team at Kellwood Lighting on +44 (0)1387 255816.

Performance Summary
Series Code	BRA
Nominal Power (Range)	14 - 24W
Luminaire Efficacy @ CRI>80 4000K CCT	76 - 73lm/W
Lumen Output @ CRI>80 4000K CCT	1,064 - 1,752lm
Key Options	0% Upward Light, IESNA Optics, Low CCT
Optical Accessories	Light Cover
Warranty	5 Years

Downloads

Optic Distribution Design Features Typical Applications Case Studies Gallery Related Products

LIGHT DISTRIBUTION OPTIONS

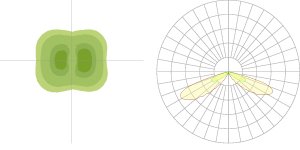

IESNA Type 4 Short

IESNA Type 4 Very Short

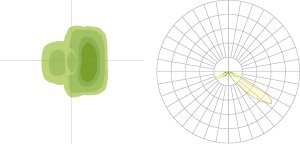

IESNA Type 4 Medium

Post-top street lights designed for
Purpose

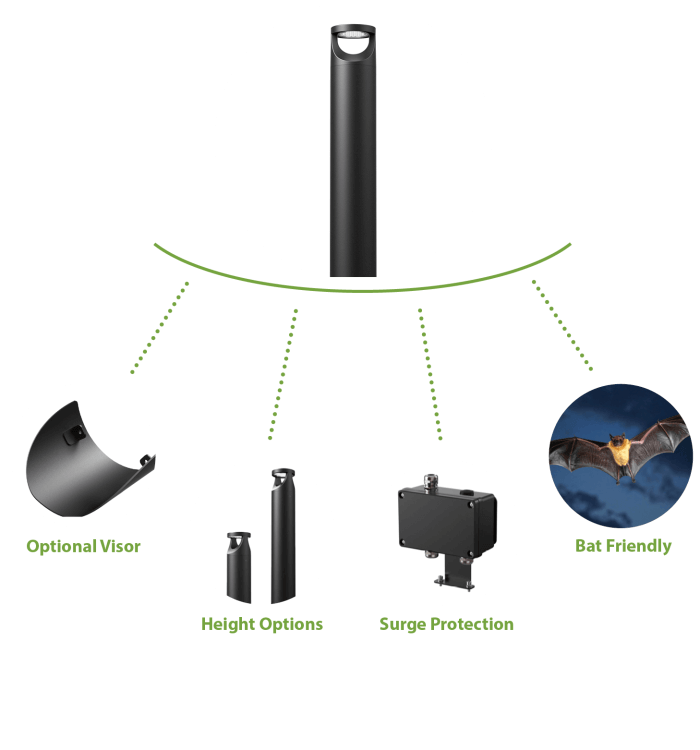

Consideration has been given to a range of features, including:

1. Design and Aesthetic

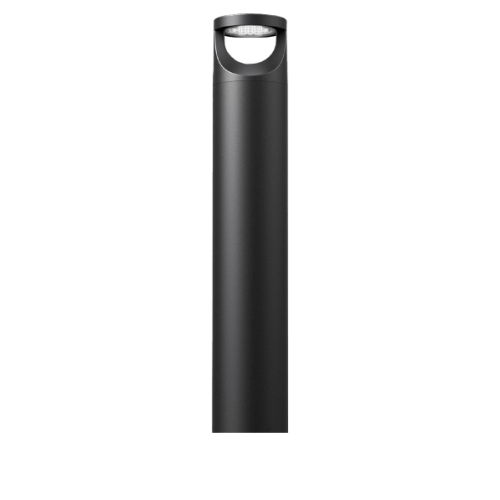

Sleek and discrete design with a black powder-coated finish.
The product dimensions are 165mm in diameter with two height options: 500mm and 900mm. Available with a warm 2700K correlated colour temperature (CCT) option for visually comfortable lighting.

2. Durability and Build Quality

Constructed from a durable aluminium alloy with a powder-coated finish, the fixture is designed for longevity and resistance to environmental elements.
IP66 rating, indicating its high resistance to dust and powerful water jets.
IK10 rating, meaning it has a high degree of protection against external mechanical impact.

3. Energy Efficiency and Controls

The fixture is available with 1-10V and DALI dimming options to further support energy savings and sustainable lighting.

TYPICAL
APPLICATIONS

Bat Friendly
Car Park
Urban
Dark sky friendly

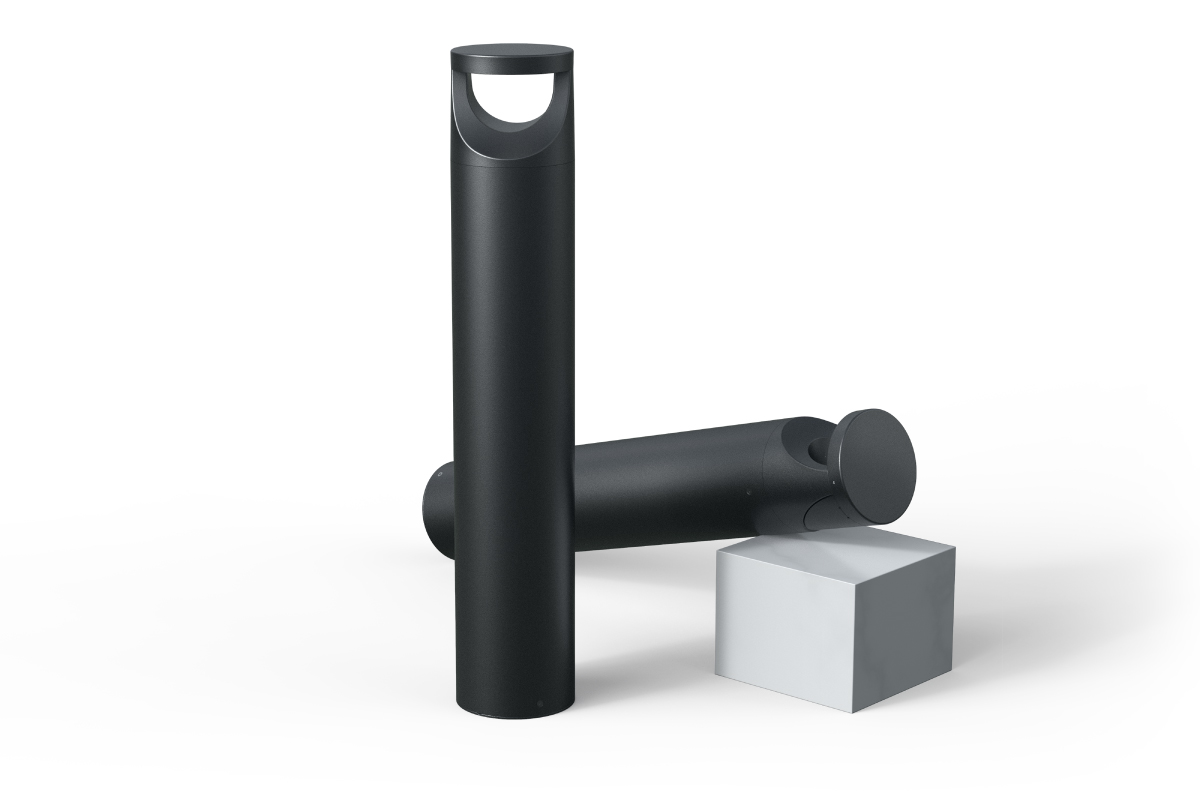

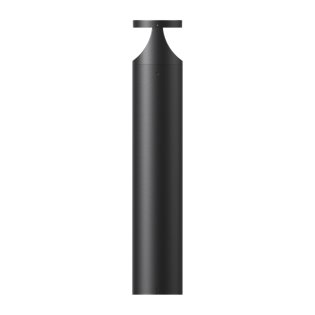

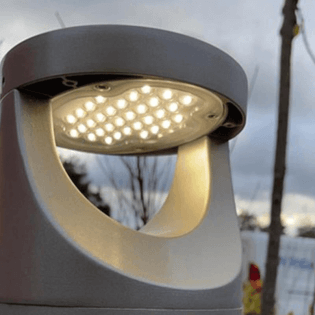

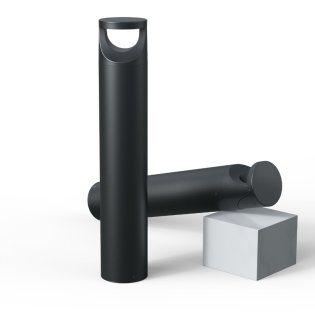

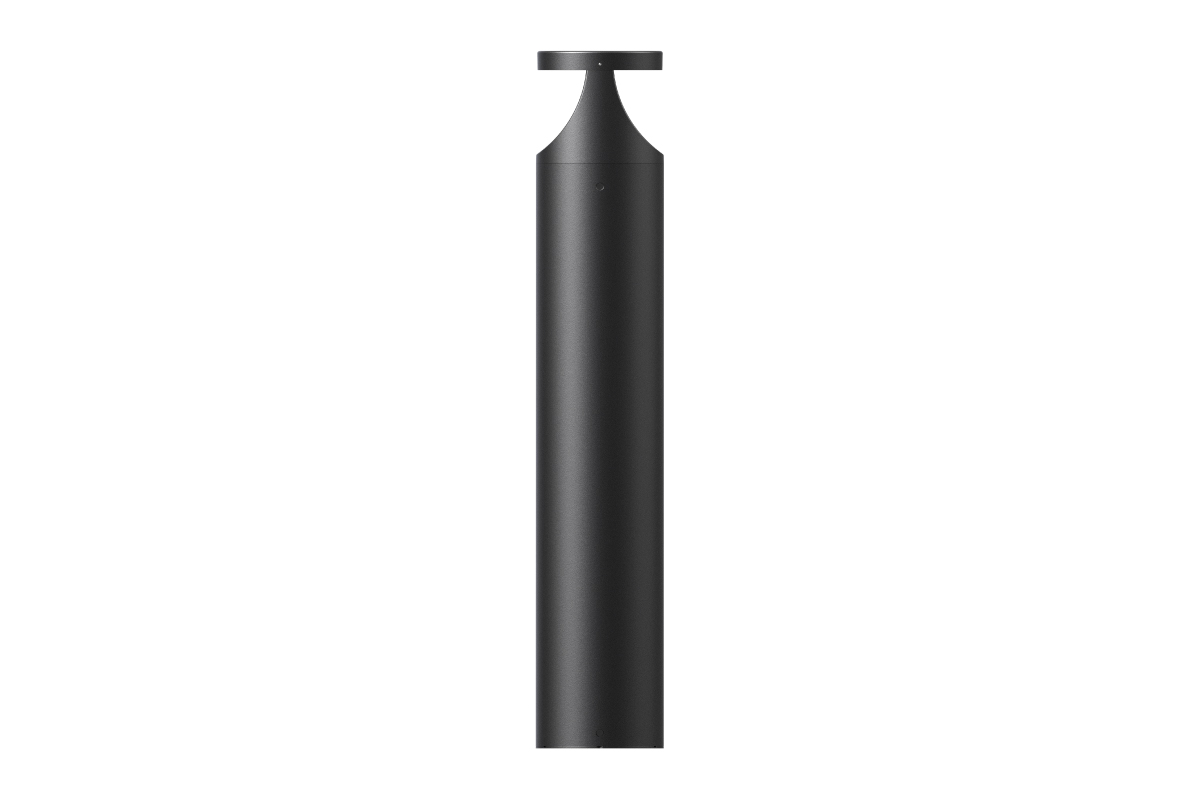

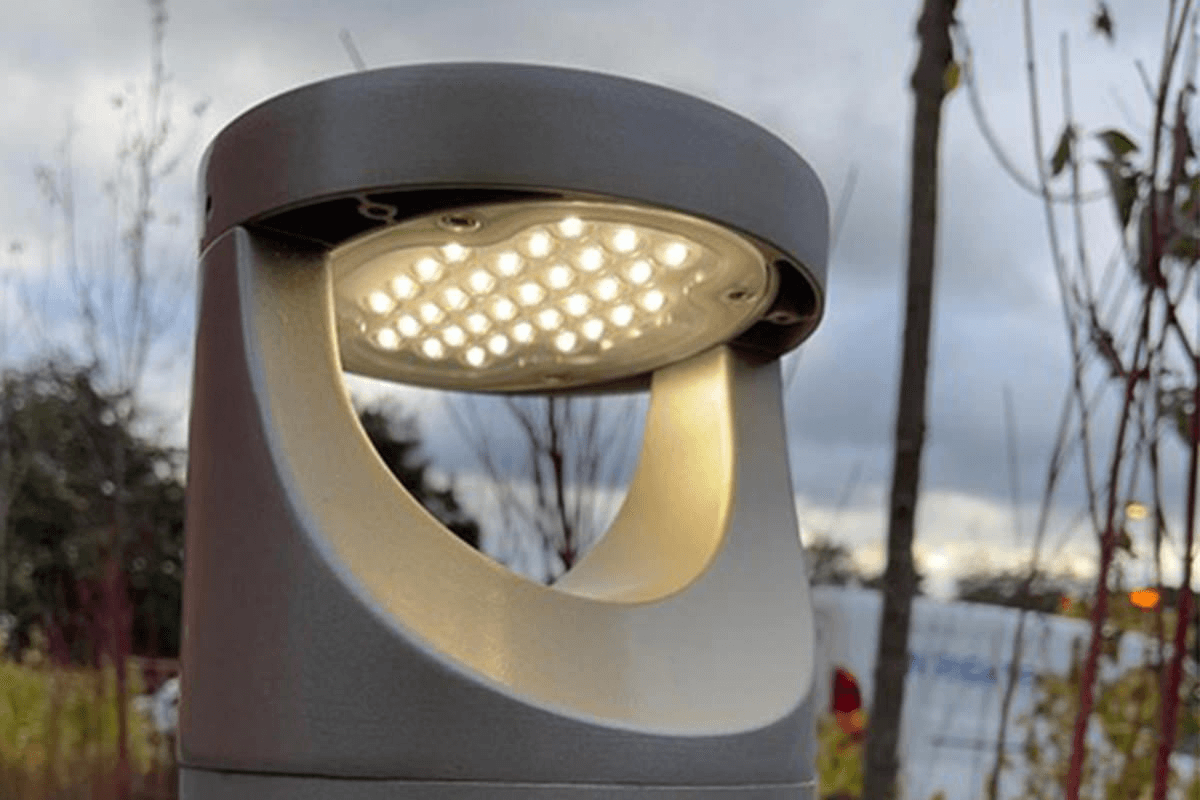

Gallery

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads Section) for further details.

Light Source and Photometric Parameters
Chip Brand, & Model	BMTC, ML3xM-Fx, 3030
Light Emission	Direct
CCT	4000K (2700K, 3000K, 5000K optional)
CRI	≥80 (≥70 optional)
Asymmetric Light Distribution	IESNA Type 4S, 4VS, 4M
Lens Opacity	Clear

Environmental
Ingress Rating	IP66
Impact Protection	IK10
Ambient Usage Tolerance	-30°C to 50°C
Ambient Storage Tolerance	-30°C to 50°C

Electrical
Input Voltage	220-240 VAC
Input Frequency (VAC)	50-60Hz
Power Factor	>0.95
THD	<15%
Surge Protection	2Kv

Physical/Mechanical
Electrical Connection	1,000mm Cable
Fixture Primary Materials	Aluminium Alloy
Fixture Finish	Powder Coating
Lens(es) Material	Polycarbonate

Dimming/Controls
Dimming Options	1-10V, DALI

Options/Accessories
Available Product Colours	Black (RAL 9017)
