BAY LIGHT

PARKER
SERIES

Heat Resistant Lights (High Temperature Resistant Light Fittings)

HIGH BAYS AND FLOOD LIGHTS DESIGNED TO FUNCTION IN EXTREME TEMPERATURE ENVIRONMENTS UP TO 80°C/90°C

Hosting an enhanced thermal management system, the Parker Series is designed to provide safe and efficient lighting for hot environments.

With an operational temperature range of -30°C to 80°C (or 90° with a remote driver and glass optics), the Parker Series LED high bay is one of the most durable products in Kellwood's selection of Industrial Lighting. Power options from 50W ro 450W ensures it can be used in low, mid, and high mounting positions.

A variety of symmetric and asymmetric optics make this a particularly versatile solution for high-temperature LED floodlight applications too.

At Kellwood Lighting we have a wide selection of lighting to meet the various requirements for your project. You can enquire about this specific heat resistant lighting series via the link on this page. Alternatively, feel free to speak to one of our team on +44 (0)1387 255816:

Performance Summary
Series Code	PAR3
Nominal Power (Range)	100W to 450W
Temperature Tolerance	80°C/90°C* (*integrated/remote driver and glass optics)
Luminaire Efficacy @ CRI>70 5000K CCT	140 lm/W
Lumen Output @ CRI>70 5000K CCT	14,000lm to 63,000lm
Lumen Maintenance (TM21 Reported)	L70B50 ≥82,000 hours
Warranty	5 Years
Typically Stocked Items	PAR3-100-750-110-D1-UB-GR PAR3-200-750-110-D1-UB-GR
MOQs For Non-Stock Items	10pcs

Downloads

Optic Distribution Design Features Typical Applications Case Studies Gallery Related Products

Light Distribution Options

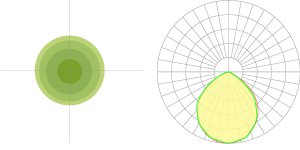

90º Optic

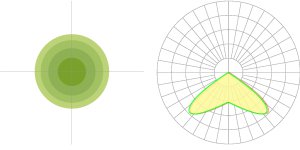

110º Optic

150º Optic

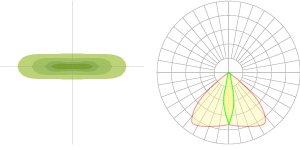

A1 Optic

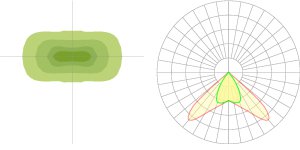

A2 Optic

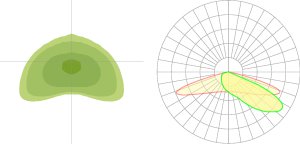

IESNA Type 1 Short

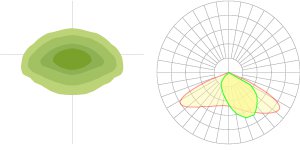

IESNA Type 2 Short

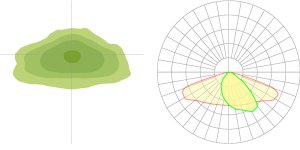

IESNA Type 2 Medium

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

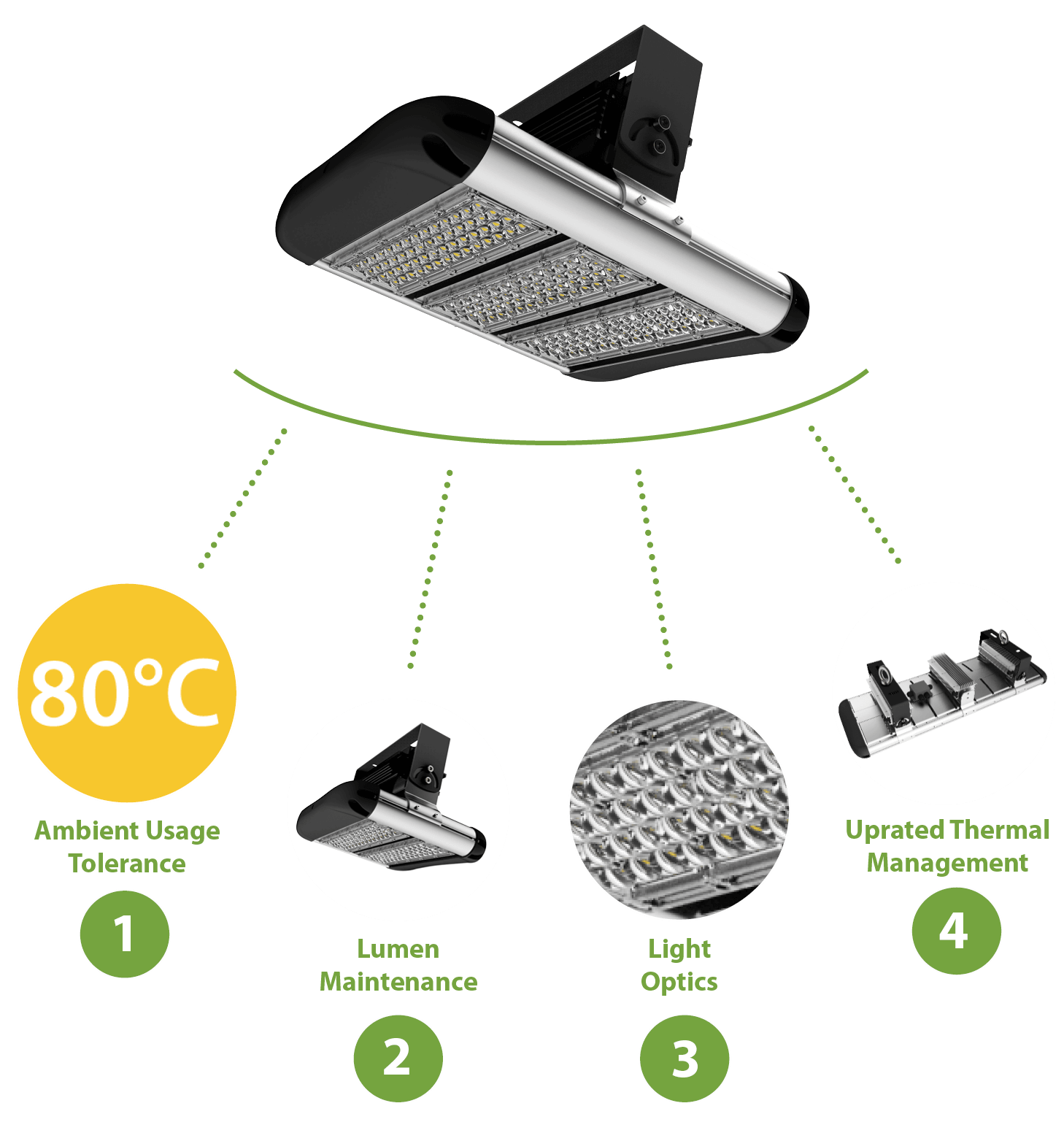

Heat resistant LED LightS - what'S special?

The Parker Series LED floodlights and bay lights were specifically designed to provide a flexible, fit-for-purpose lighting solution for hostile, atmospheres with high ambient temperatures. Design considerations included and resulted in:

3-Party Temperature Tested Ambient Usage Tolerance - Tested by Anbotek Laboratories, the Parker Series has an operational temperature range of -30°C to 80°C (or 90°C with a remote driver). This product is perfect to be used in high temperature environments.
Lumen Maintenance - From the TM21 report:
L80B10 @ 25°C = >82,000hrs
L80B10 @ 70°C = >67,000hrs
L80B10 @ 80°C = >63,000hrs

Driver lifetime (HLG-240H) @ 70°C ambient = 80,000hrs
Driver lifetime (HLG-240H) @ 80°C ambient = 43,800hrs
Lower wattage Parker Series Lights (using HLG-150H and HLG-185H drivers) have a longer driver lifetimes.
Note : The upper temperature limit (Tj) for the chip = 125 °C
Optics - 8 varied optics available for this product (circular, flood and aisle/asymmetric light distributions) makes the Parker Series very adaptable light for your project.
Uprated Thermal Management and Protected Electronics - Driver electronics are thermally protected by dedicated aluminium heat sinks and reduced drive-currents.
Drivers include a thermal cut-out at 90°C (Case Temperature) to protect the PSU and Light Engine(s) from over-heating
Industrial design: high Impact, Ingress, & Corrosion Resistance
Various mounting options; including universal bracket, extended universal bracket with 360º rotation, slip fit, twin surface mount brackets, eye bolt, twin eye bolts and wall mounts

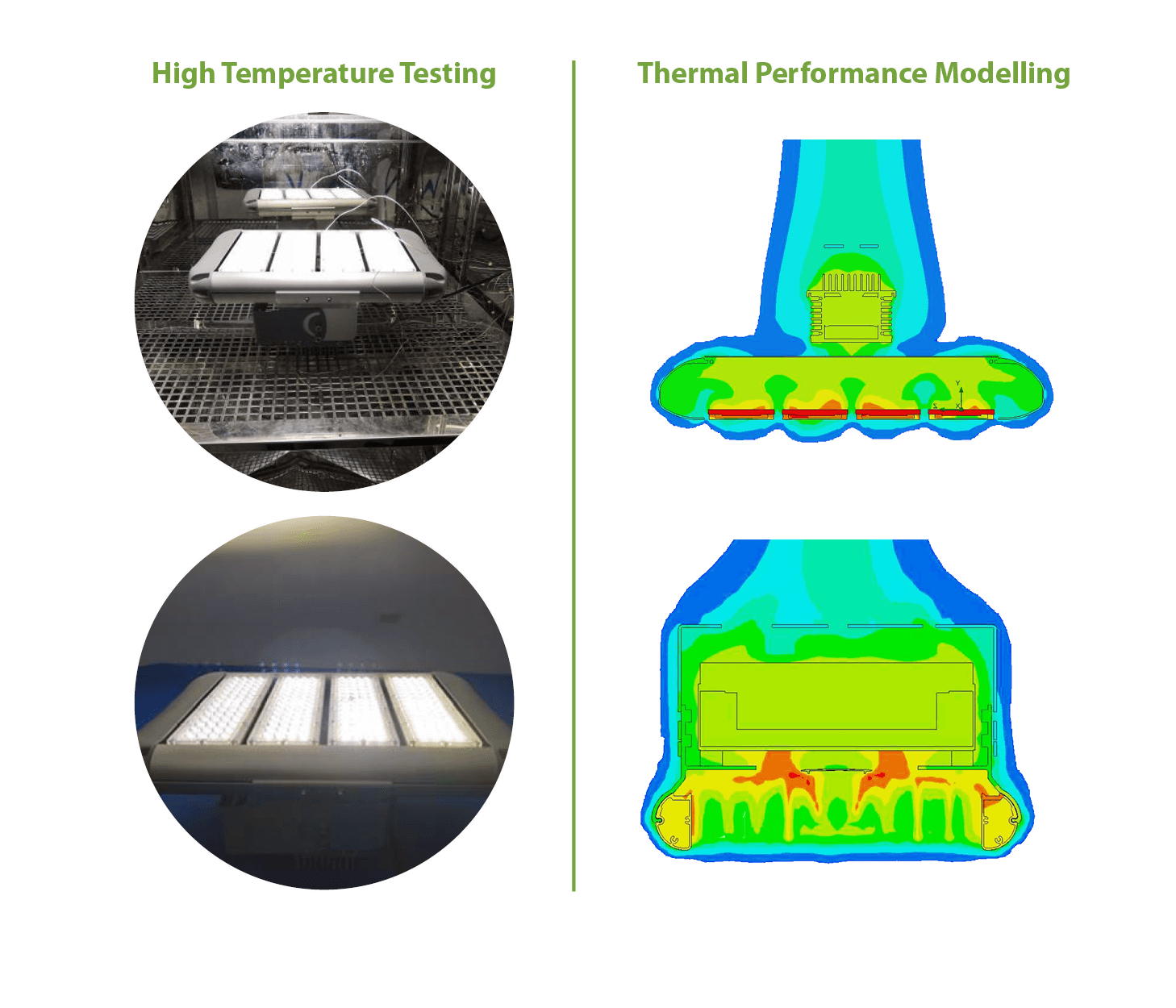

High temperature testing

The Parker Series was independently tested by Anbotek Laboratories. Test conditions were carefully managed within a temperature and humidity chamber; samples were left operating at regulated ambient temperatures of up to 80°C for period of 72 hours.

Eight critical sample points on each light fitting were constantly monitored during these tests. The data generated confirmed that the 3D thermal performance modelling (finite element analysis) was also correct. Product longevity can be conservatively assessed by extrapolating from key components within the design. These include, but are not limited to the LED chip, Driver, Cables, Electrical Connections, Housing, and Surface-Finish.

Samples continue to be monitored and inspected in the factory ageing room, with periodic lumen maintenance tests to ensure compliance.

Parker Series High Temperature Performance

TYPICAL
APPLICATIONS

Furnaces
Test Cells

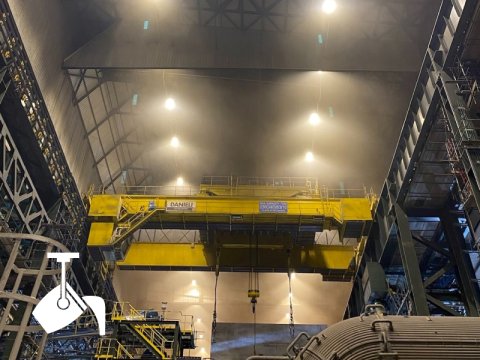

Smelting
Chemical Plants
Industrial Ovens

Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads Section) for further details.

Light Source and Photometric Parameters
Chip Brand, & Model	Philips/Lumileds Luxeon 3030
Light Emission	Direct
CCT	3000K, 4000K, 5000K, 6000K
CRI	>70, >80
Symmetric Light Distribution	90°, 110°, 150°
Asymmetric Light Distribution	30/100°, 60/100°, 1S, 2S, 2M
Lens Opacity	Clear

Environmental
Ingress Rating	IP66
Impact Resistance	IK10
Ambient Usage Tolerance	-30° to 80°C
Automatic Driver Turn-Off Temperature	90°C
Ambient Humidity Tolerance	15% to 90% RH
Ambient Storage Tolerance	-40° to 80°C

Electrical
Input Voltage	220-240VAC, 90-270VAC (US)
Driver Brand(s)	Mean Well, Inventronics
Input Frequency (VAC)	50-60Hz
Power Factor	≥0.95
THD	<15%

Physical/Mechanical
Electrical Connection	1000mm Cable
Fixture Primary Materials	Aluminium Alloy
Fixture Finish	Painted
Lens(es) Material	UV Stabilised Polycarbonate, Tempered Glass

Options/Accessories
Mounting Styles	Universal Bracket, 360° Rotation Universal Bracket, Slip Fit, Twin Surface Mount, Eyebolt, Twin Eyebolt, Wall Mount
Available Product Colours	Grey (RAL 7045), Black (RAL 9011)
Miscellaneous Accessories	Wire Grill

Standards

LVD (Directive 2014/35/EU)
EMC (Directive 2014/30/EU)
RoHS (Directive 2011/65/EU)
ErP (Directive 2009/125/EC)

DLC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
