Low glare linear Tennis Court Light
Diamond Series

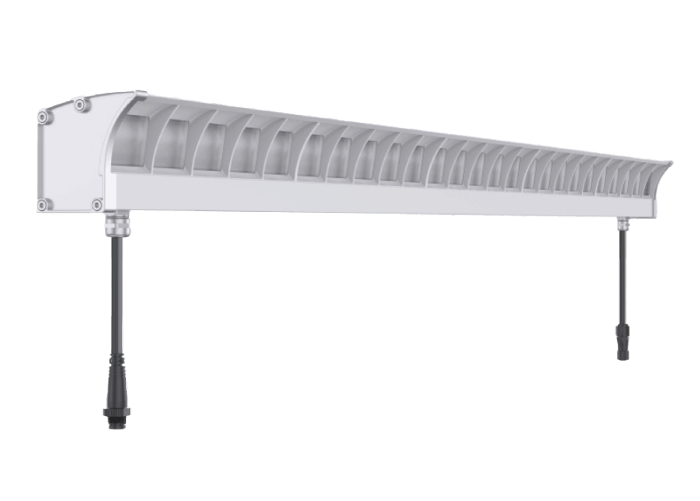

Kellwood's Diamond Series Linear LED Tennis lights are designed primarily for illuminating outdoor Tennis Courts where column-mounted lighting may not be a suitable.
Within our range of specialist Sports LED light fittings, the Diamond Series features dedicated lateral-throw optics to provide low glare and uniform light coverage when installed on walls, fences, and other structures.
You can enquire about the Diamond Series Linear LED Tennis light fitting using the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816: The team at Kellwood Lighting is here to help you find the most suitable product for your project and budget.
| Series Code | DIA |
|---|---|
| Nominal Power (Range) | 30W-90W |
| Installation | Linkable plug-and-play (max. 4,800W per run c/w 300mm Links) |
| Luminaire Efficacy @ CRI>70 3000K CCT | 150-167lm/W |
| Lumen Output @ CRI>70 3000K CCT | 4,500 to 13,860 lumens |
| Lumen Maintenance | L90B10 ≥50,000 hours |
| Primary Conformities | CE(EMC, LVD, RoHS) |
| Warranty | 5 Years |
Downloads
LIGHT DISTRIBUTION OPTIONS
Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.
The Diamond Series linear Tennis LED luminaire provides LTA and CIBSE compliant illumination for both private and club-level courts where columns cannot be installed.
With a far-reaching light output, the Diamond Series provides excellent coverage when mounted on walls/fences as low as 4m. The products low profile design and discrete installation requirements reduce visual obstructions that may otherwise raise concerns with neighbours when compared to traditional column-based tennis court lighting solutions.
Optional Intelligent lighting controls like DALI Dimming make the potential energy savings even greater and create the possibility of pre-defined lighting zones or scenes, and automatic dimming in accordance with ambient light levels.
Specifications
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.
| Chip Brand, & Model | Philips |
|---|---|
| Light Emission | Direct |
| CCT | 3000K |
| CRI | >70 |
| Lens Opacity | Clear |
| Ingress Rating | IP65 |
|---|---|
| Impact Resistance | IK08 |
| Ambient Usage Tolerance | -40°C to 50°C |
| Ambient Storage Tolerance | -40°C to 50°C |
| Input Voltage | 220-240VAC |
|---|---|
| Driver Brand(s) | Osram |
| Input Frequency (VAC) | 50-60Hz |
| Power Factor | >0.95 |
| THD | <15% |
| Dimming Options | 1-10V, DALI |
|---|
| Mounting Styles | Surface Mounted |
|---|
Standards
CE
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
