marine grade lights with c5 corrosion resistance for docks, ports, and projects in exposed coastal areas
Powerful high mast lights and floodlights with advanced optics - IP66 and 4000Hrs salt-spray tested

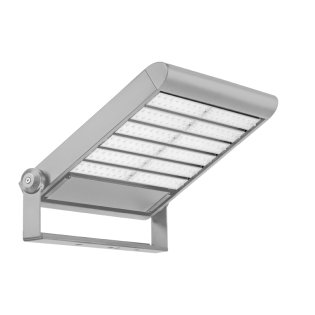

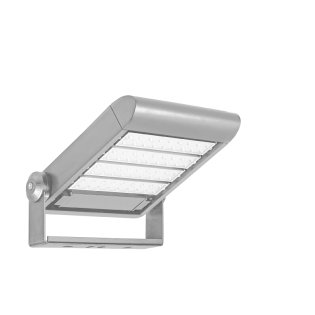

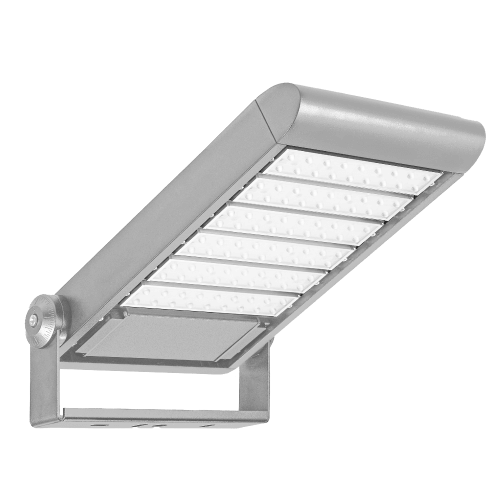

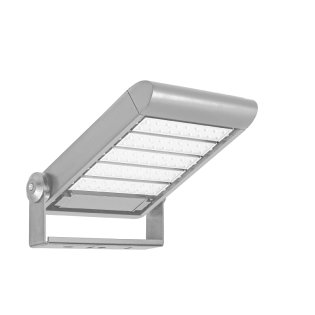

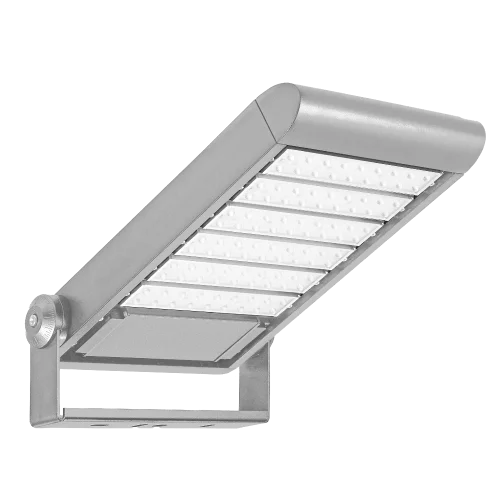

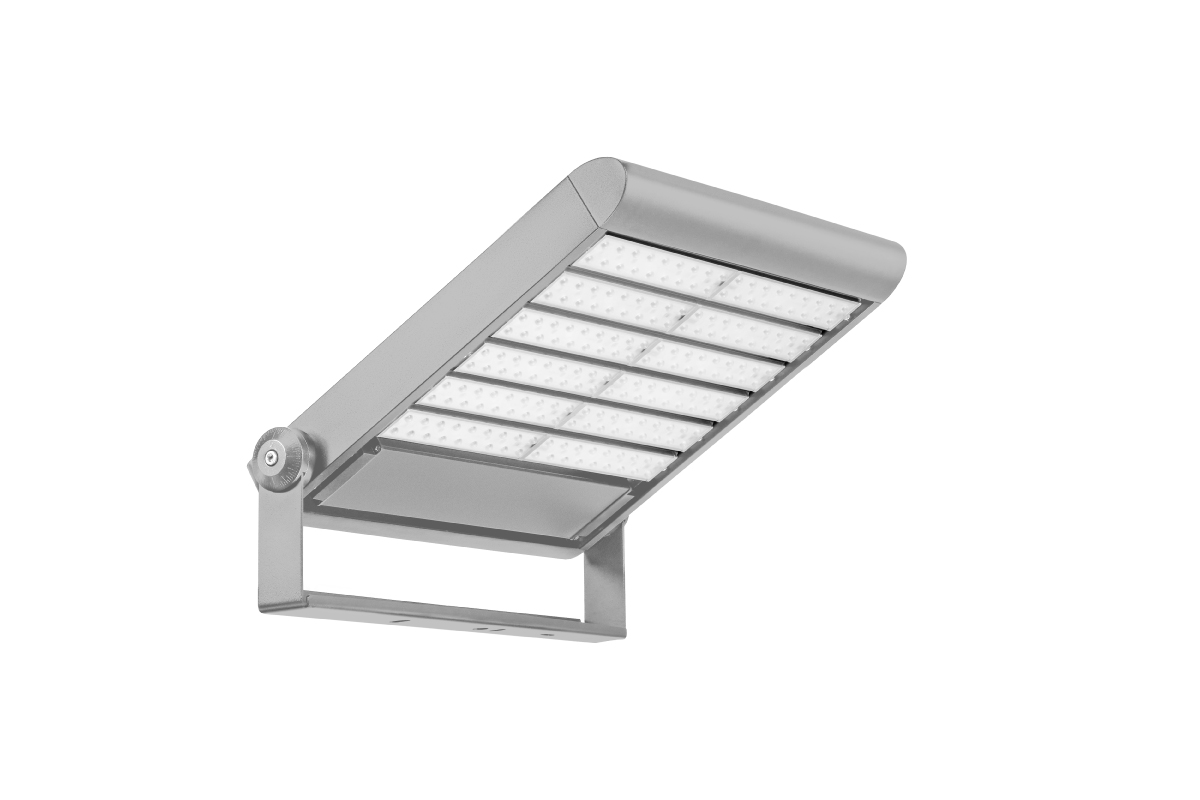

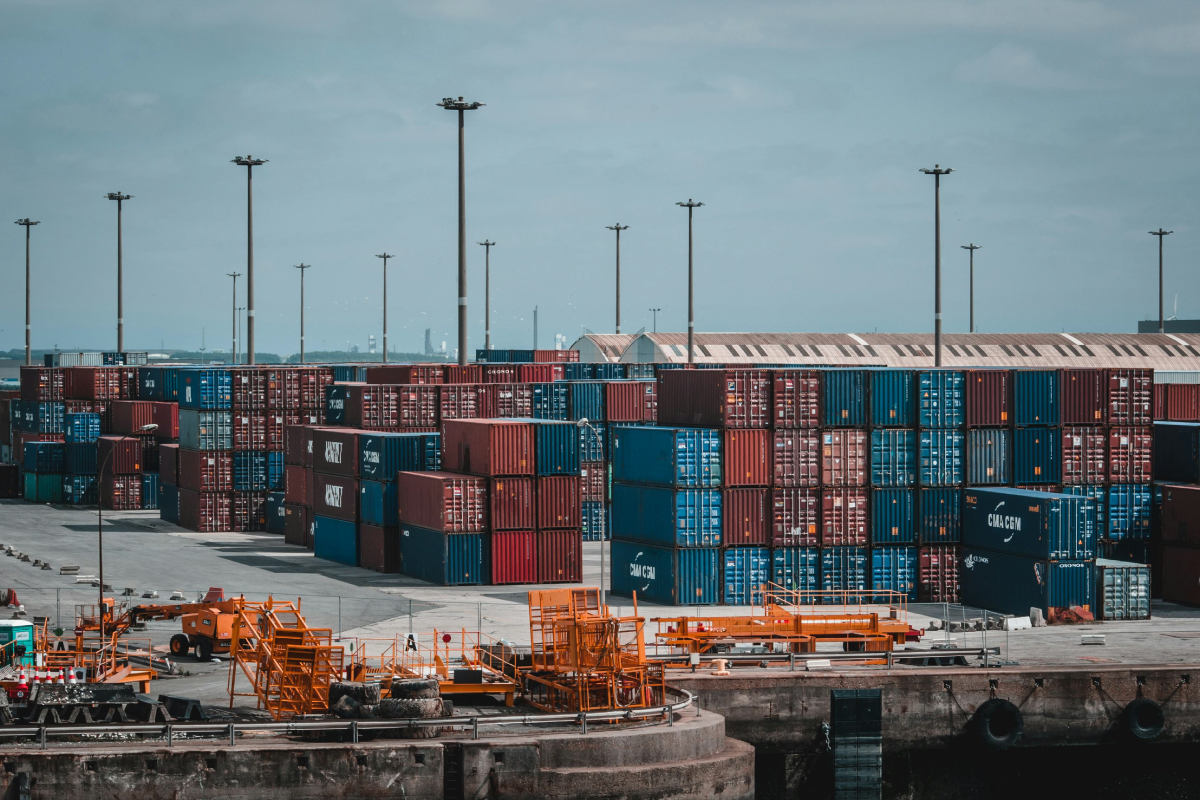

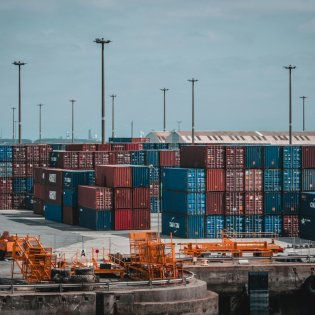

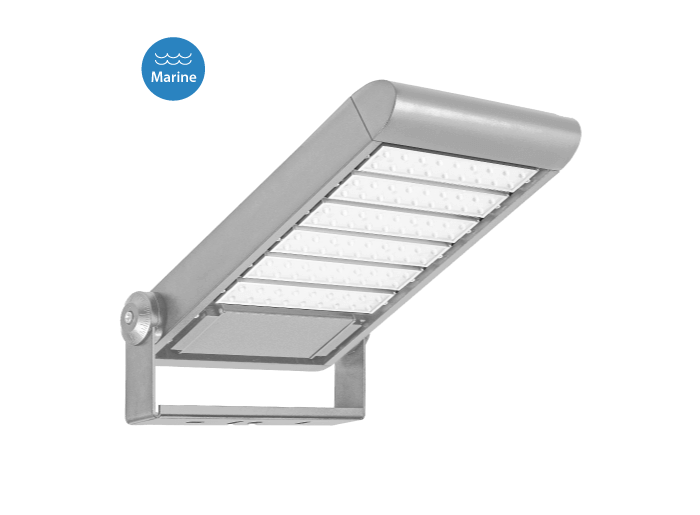

The Ayrton Series Marine-Grade variant is purpose-built for exposed coastal environments, making it ideal for ports, docks, and seaside infrastructure. With a C5-rated marine grade finish, IP66 protection, and 4000-hour salt spray testing, it offers proven durability in harsh maritime conditions.

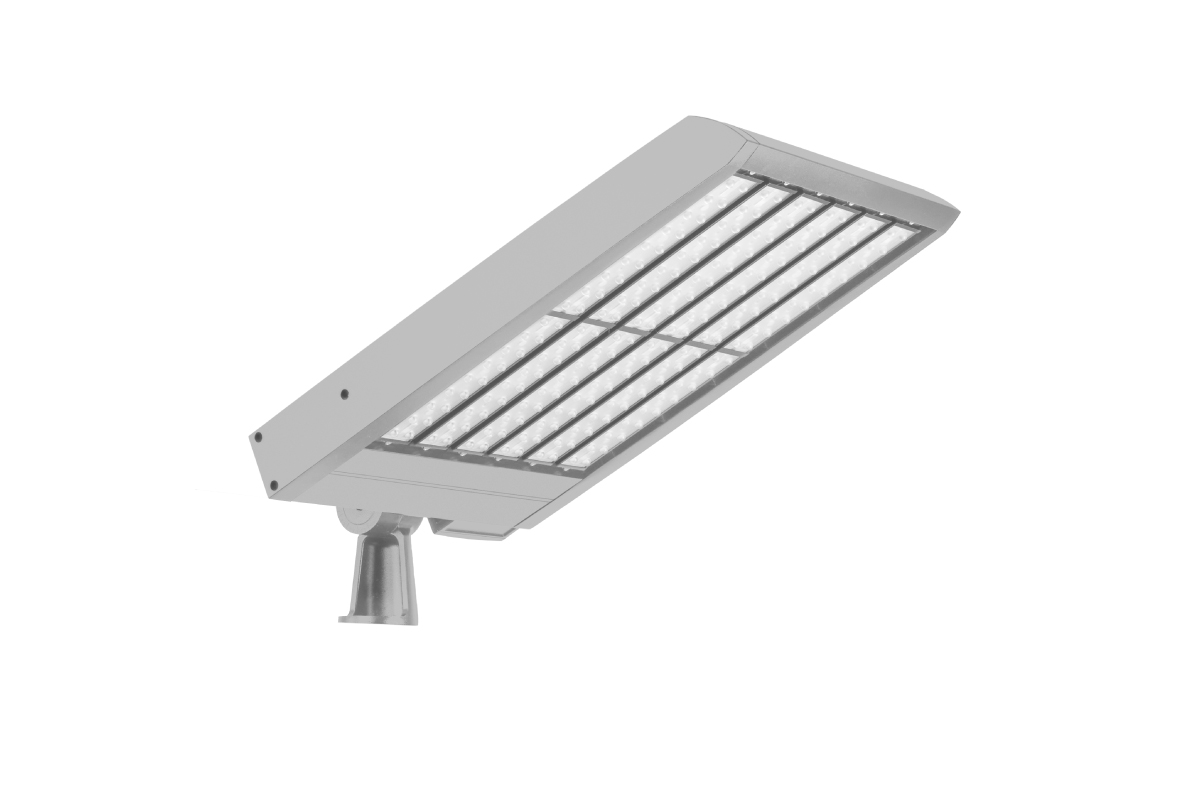

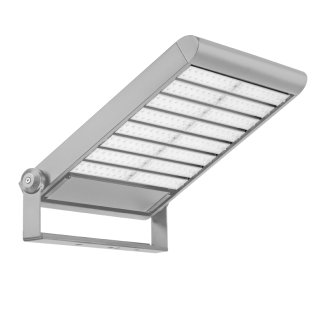

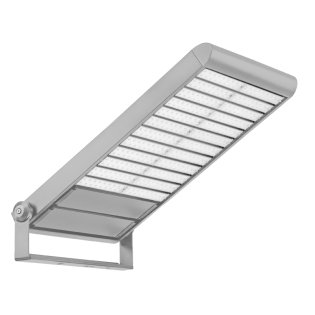

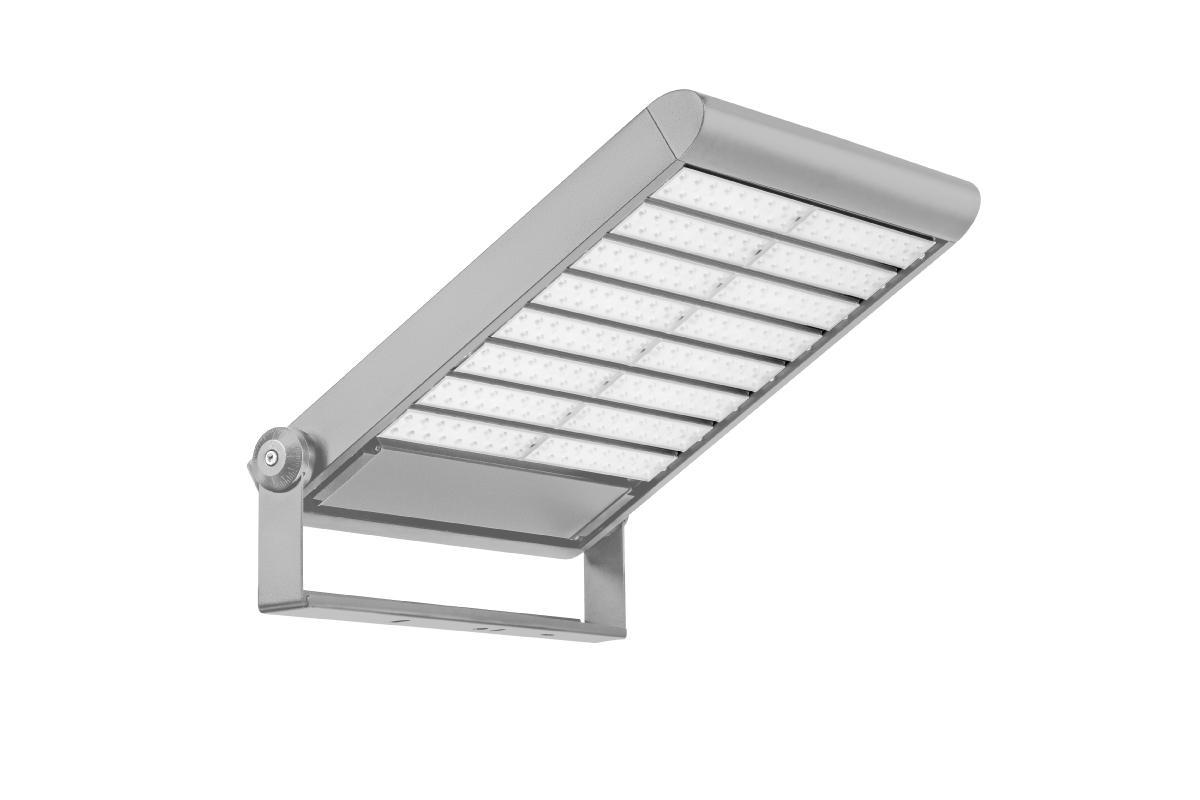

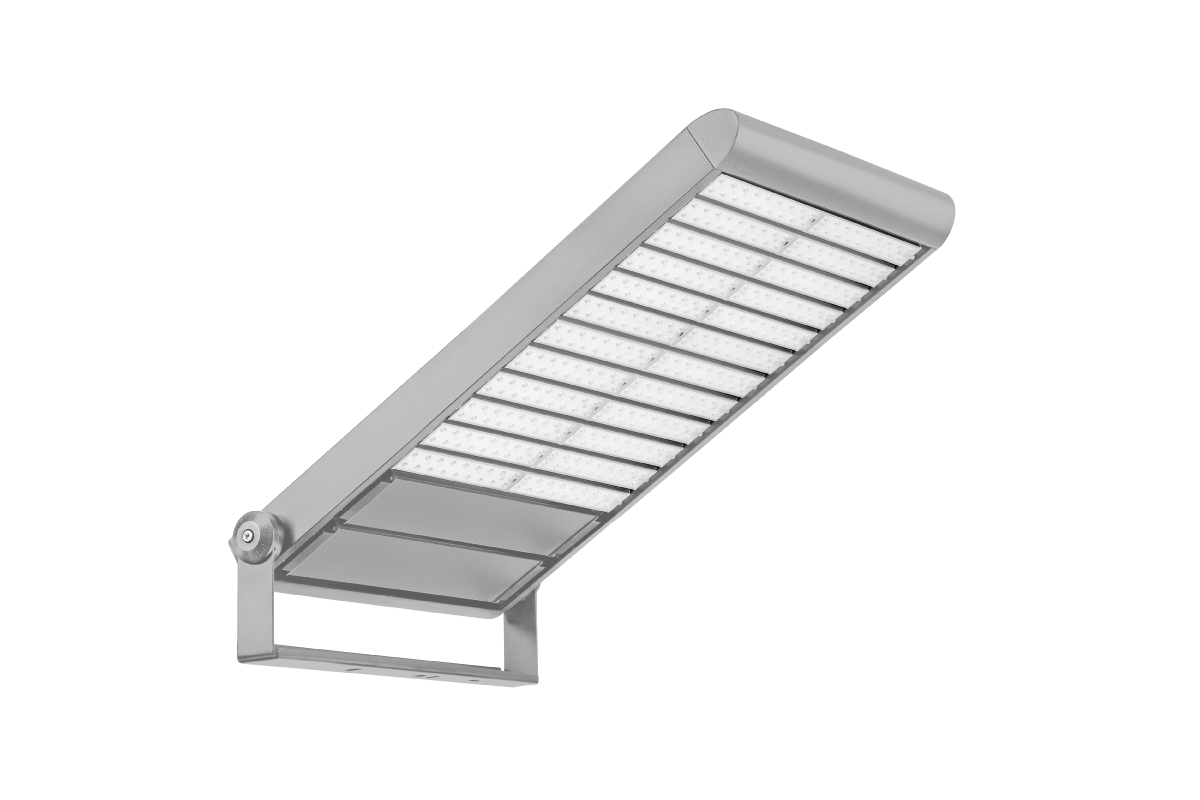

Forward-throw optics enable low tilt angles and a compact profile, reducing wind load on masts - crucial in windy coastal areas. Available in high-mast and floodlight configurations, with custom optics and smart control options, it delivers reliable, efficient lighting for demanding coastal projects.
Kellwood also offers a full high mast lighting package, including marine-grade base-hinged columns for easy installation and maintenance.
The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Ayrton Series LED High Mast Floodlight via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816:
Please note - images shown are intended to be illustrative only. For exact data, please refer to specific product photometry, available in the above download section.

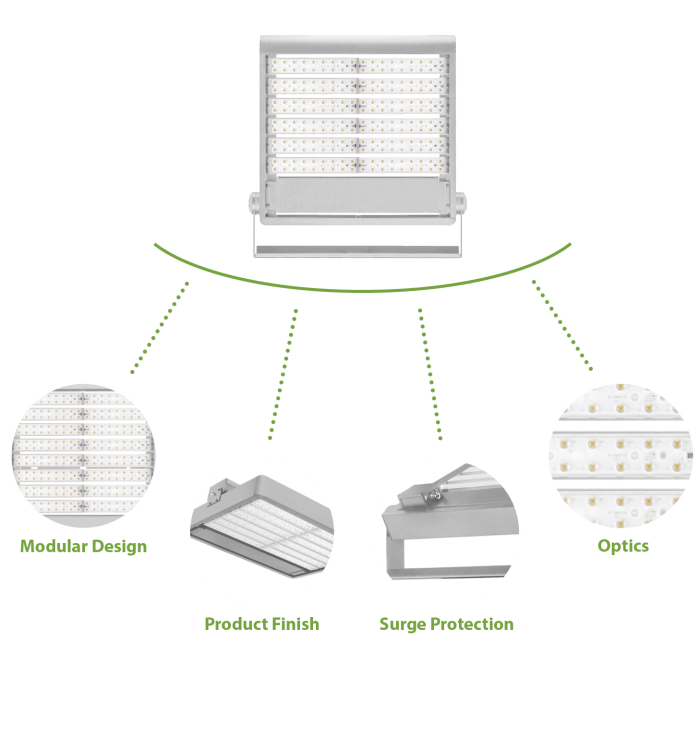

Marine-grade lights designed for PURPOSE
The Ayrton Series Marine‑Grade variant has a range of features that ensure it is suitable for exposed coastal and windy environments, particularly where resistance to salt spray is critical:
C5 corrosion-resistant finish (marine-grade powder coating): This upgrade offers superior protection in coastal zones frequently exposed to salt-laden air. The durable polyester coating (100 μm thick) is tested to 5,000 hours of salt spray (ASTM B117/ISO 9227), ensuring long-term resistance to corrosion.

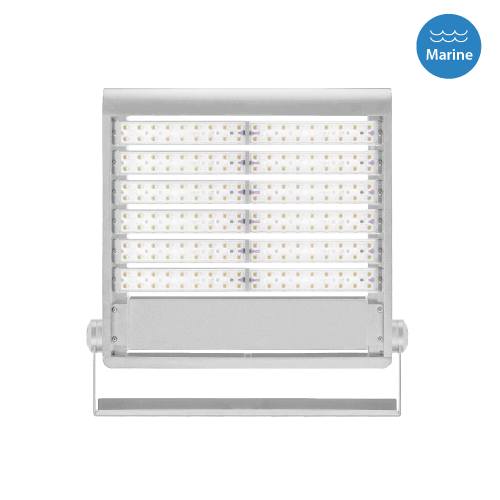

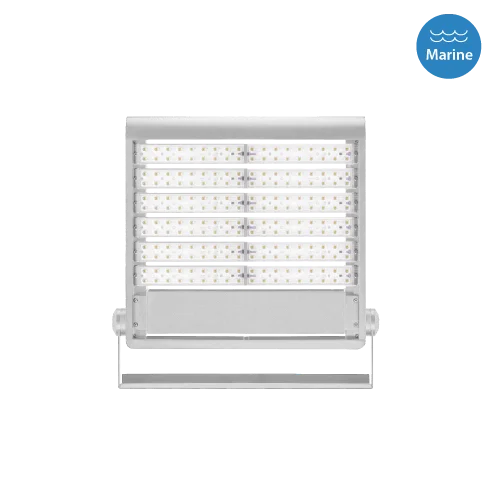

IP66-rated, pressure-tested modular LED modules: Each LED module is individually pressure-tested and sealed to IP66 standards. The modular “chimney” layout improves thermal dissipation and reliability, even in humid, salty, or rain-prone coastal environments.
Engineered for high-wind areas: The compact, aerodynamic design minimizes wind resistance and structural stress, making it ideal for tall masts and exposed coastal installations that frequently experience strong winds.
Heavy-duty aluminium alloy housing: Constructed from marine-grade aluminium alloy, the housing offers both mechanical strength and corrosion resistance—key for coastal locations prone to high winds and airborne salt.
Integrated surge protection (TVS + optional SPD): Transient Voltage Suppressors (TVS) and optional Surge Protection Devices (SPD) rated up to 20 kV/10 kA protect against power surges and lightning strikes common in coastal storms.
Precision optics with environmental control: With over 30 optical configurations (e.g., asymmetric, symmetric, back-spill guards), the light can be tailored to reduce glare, light pollution, and light spill—important in environmentally sensitive marine settings.
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.
Universal Bracket, Surface Mount Bracket, Wall Mount
Available Product Colours
Grey (RAL 7004), Black (RAL 9011), White (RAL (9010), Customised
Miscellaneous Accessories
Bird Spikes, Safety Cable
Standards
CE
LVD (Directive 2014/35/EU)
EMC (Directive 2014/30/EU)
RoHS (Directive 2011/65/EU)
DCL
UL
CB
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
