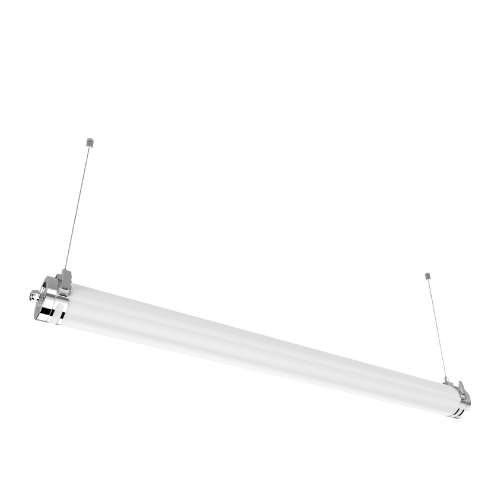

Cameron 2 Linear lighting

Industrial Linear

Crawford
Series

Corrosion-Proof Linear Fittings for Laboratories & Food Processing

CYLINDRICAL LINEAR FITTING FACILITATES SIMPLE WASH DOWNS IN AREAS WHERE HYGIENE IS PARAMOUNT

Cameron 2 Linear lighting
Ce140lm5yearsIk08Ik10Ip69Temp 40cDimmableLedMarine Grade
  • Technical BrochureCrawford Series Data Sheets
  • Photometric FilesCrawford Series Photometric Files

Originally developed for spray-down use in caustic chemical rooms and clean-areas, the Crawford Series is corrosion-proof and durable, thus is effective in a far wider range of applications, including schools and sports complexes. Built to last, the technical standards and available modifications the Crawford family offers make for very impressive reading.

At Kellwood Lighting, we can find the best light fitting for your project. You can enquire about this specific product via the link above the performance summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSmalite 2835
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80, >90
Lens OpacityFrosted, Clear
Environmental
Ingress RatingIP69K, IP66
Impact ResistanceIK10/IK06
Ambient Usage Tolerance-30° to 40°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Philips, Lifud
Input Frequency (VAC)50-60Hz
Power Factor≥0.9
THD<20%
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate, PMMA, Tempered Glass
Lens(es) MaterialPolycarbonate, PMMA, Tempered Glass
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Cable Suspension
Miscellaneous AccessoriesLinkable Variant
  • PMMA, GLASS, or polycarbonate housings, with stainless steel fixtures and fittings, provide a product capable of performing in various levels of corrosive environments.
  • IK10 or IK08
  • IP69K
  • 28W, 36W, & 48W
  • 2ft, 4ft, & 5ft
  • Efficacies >140lm/W
  • Standard, 1-10V, & DALI Options

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeCRA
Nominal Power (Range)20W to 50W
Luminaire Efficacy @ CRI>80 4000K CCT141 to 148 lm/W
Lumen Output @ CRI>80 4000K CCT2,820 to 7,400 lumens
Lumen Maintenance (TM21)L70B50 >54,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

60º Optic 60º Optic
90° Optic 90° Optic

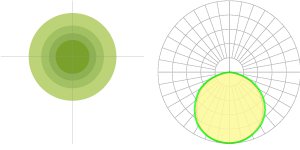

120° Optic 120° Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear lights designed for

PURPOSE

  1. Impact Protection: Polycarbonate diffuser provides an impact protection score of IK10 proving it to be a durable product.

  2. Cable Wiring: Cable entry uses a quick connector system. Parallel and series installation is possible with the Crawford Series.

  3. Ingress Rating: IP69K corrosion resistant provides a product capable of performing in various corrosive environments.

  4. Lumens: Across all three fitting lengths the Crawford Series has lumen output of 141lm/W to 148lm/W.

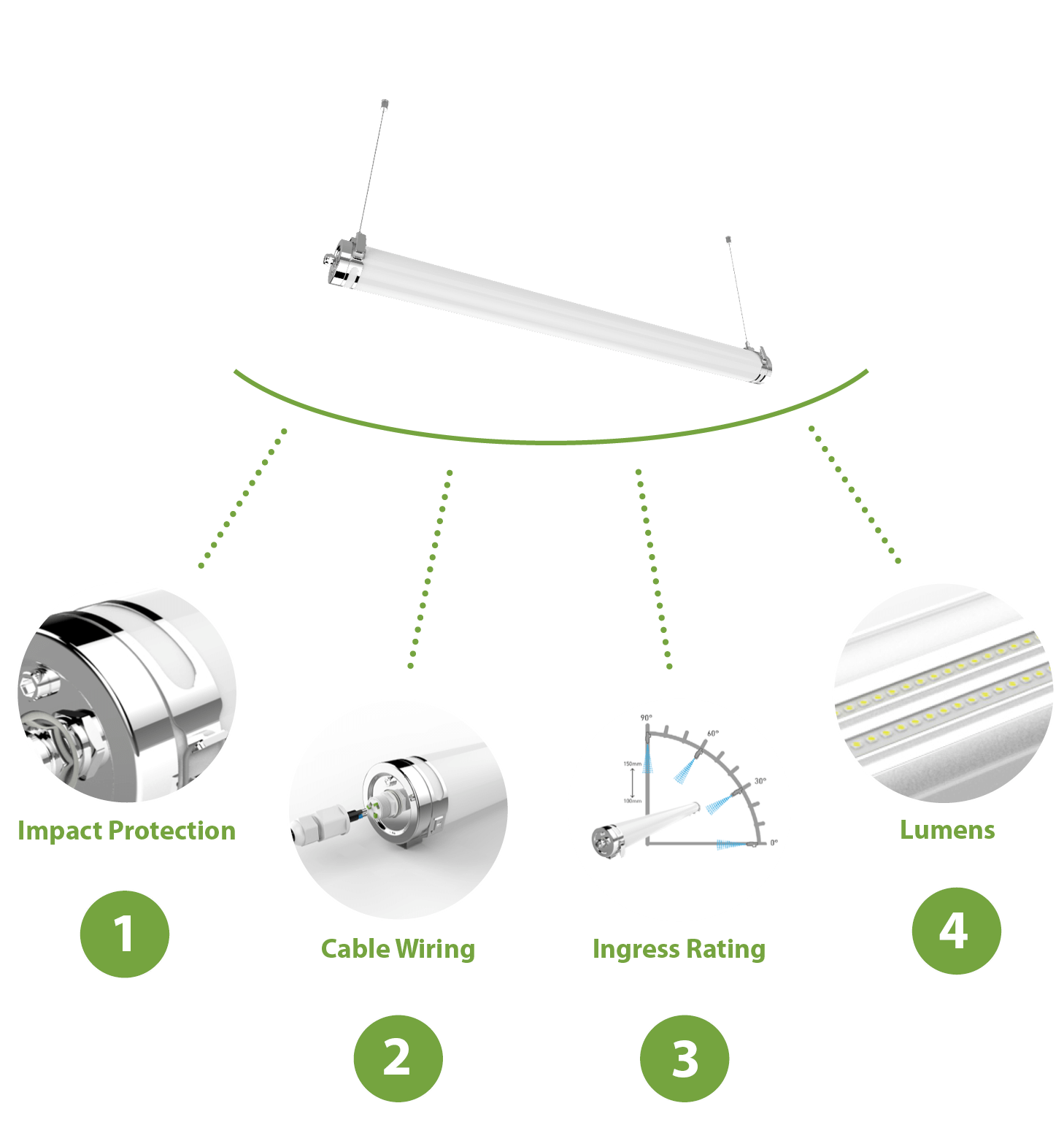

Crawford Series Clean Area Linear Luminaire Designed for Purpose Diagram

TYPICAL

APPLICATIONS

  • Laboratories & Clean Rooms
  • Factories & Production
  • WATER MANAGEMENT Utilities
  • Healthcare
