LED Ceiling Panels

Mackenzie
Series

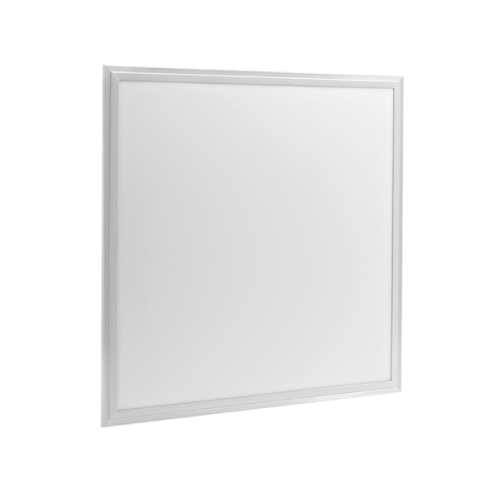

High Efficacy LED Ceiling Panel Lights

SDCM<4 Slimline solution for commercial office areas

The Mackenzie Series LED panel is an efficient, low glare commercial light fitting, designed for use in offices, education, retail, and healthcare facilities.

Low SDCM chip selection ensures luminaires remain a visually consistent colour temperature out of the box, as is particularly advisable for open-plan spaces.

This product can be supplied with a range of accessories including 3hr emergency (remote-test or DALI-Self-Test), wire suspension kits, and is compatible with Kellwood's range of Wireless Pro energy monitoring and emergency reporting wireless lighting controls.

Our team is here to help you find the best product for your project from our extensive range of LED lighting products. You can enquire about this specific product via the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series Code	MAC2
Nominal Power (Range)	26W to 56W
Size	595x595mm (A), 295x1195mm (B), 1195x595mm (C)
Luminaire Efficacy @ CRI>80 4000K CCT	110 to 125 lm/W
Lumen Output @ CRI>80 4000K CCT	3,250 to 6,608 lumens
Lumen Maintenance (TM21)	L70B50 >80,000 hours
Primary Conformities	CE (EMC, LVD, RoHS, ErP)
Warranty	5 Years

Downloads

Optic Distribution Design Features Typical Applications Case Studies Gallery Related Products

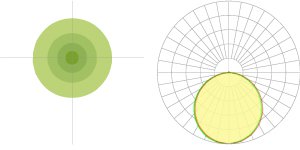

LIGHT DISTRIBUTION OPTIONS

115º Optic

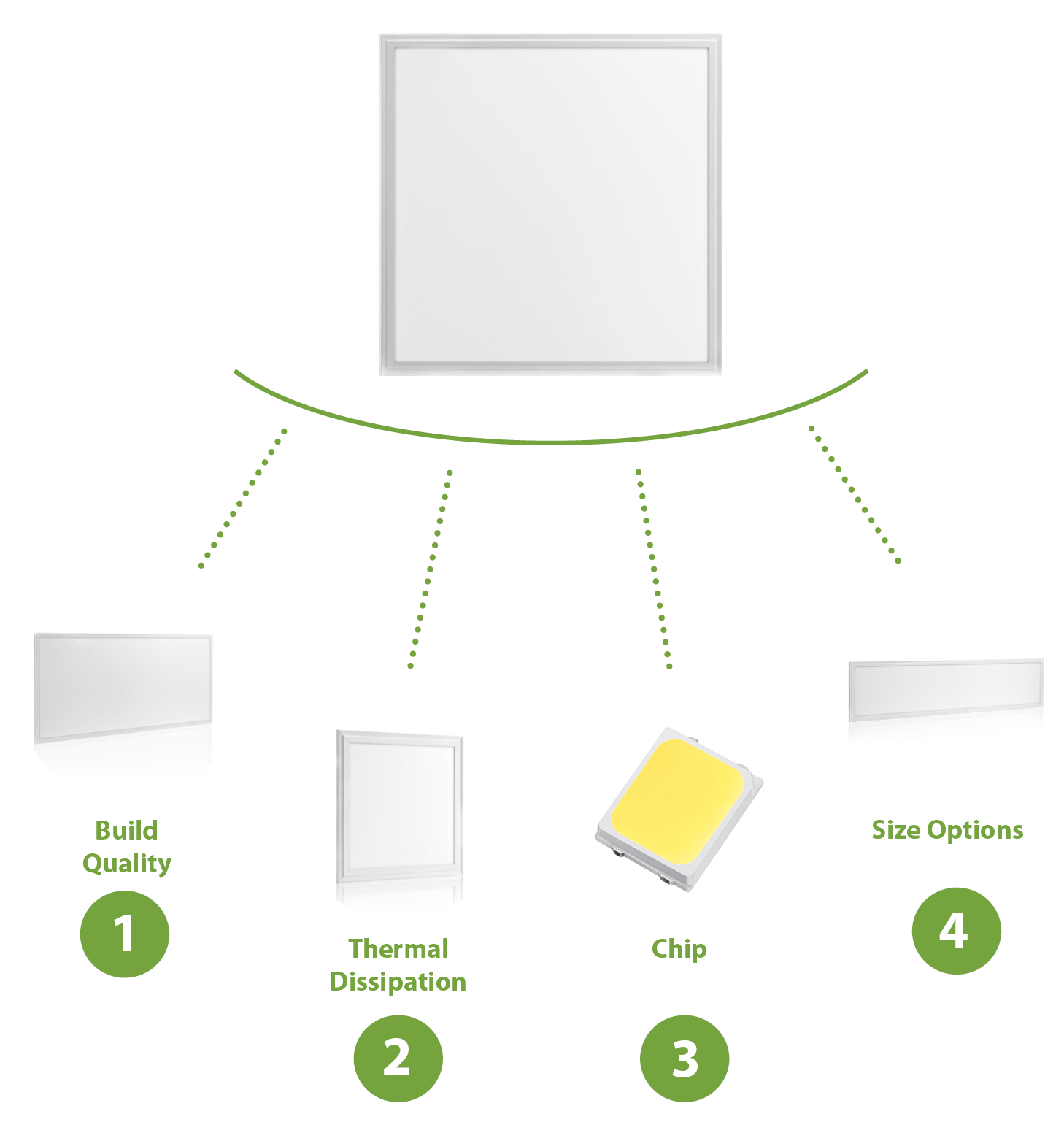

Panel lights designed for
PURPOSE

Though LED ceiling panels are visually hard to differentiate, quality varies dramatically based on components, thermal regulation, build-quality and efficacy.

These elements determine product longevity and energy savings. Kellwood's premium edge lit LED panel family is aimed at high quality facilities where long term gains are as important as the initial capital expenditure.

Build Quality - The frame has white coating finish with electrophoresis technology, this is to minimise risk of scratching the surface. Aluminium back plate is lightweight and suitable for thermal regulation. A silver light reflector and LGP (Light Guide Plate) is used to minimise lumen wastage and to direct light to the desired location. It also uses a polycarbonate diffuser that produces a uniformity of >90% from the light emitting surface.
Thermal Dissipation -The Mackenzie Series has a raised diffuser from the edge lit chips to improve thermal dissipation which will improve the products lifespan and performance.
Chip - Including Samsung 2835 LED chips to produce high lumen efficacy and uses a 2.9V Tridonic driver which extends the products life time.
Sizes Options - It comes in three different sizes: 600x600mm, 1200x300mm, 1200x600mm
DALI dimmable - Available with DALI drivers for integration with compatible control systems to tailor lux levels and minimise running costs.]
Emergency - Remote-Test and DALI-Self-Test emergency packs provide a 3hr maintained emergnecy option.

TYPICAL
APPLICATIONS

Offices
Receptions
Conference Rooms
Bathrooms
Canteens

Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters
Chip Brand, & Model	Samsung 2835
Light Emission	Direct
CCT	3000K, 4000K, 6000K
CRI	>80
Lens Opacity	Micro-prismatic
SDCM	≤3, ≤4
UGR	<21

Environmental
Ingress Rating	IP20, IP65
Impact Resistance	IK06
Ambient Usage Tolerance	-30° to 40°C
Ambient Humidity Tolerance	10% to 65% RH
Ambient Storage Tolerance	-30° to 60°C

Electrical
Input Voltage	220-240VAC
Driver Brand(s)	Tridonic, Mean Well
Input Frequency (VAC)	50-60Hz
Power Factor	≥0.90
THD	<20%

Physical/Mechanical
Electrical Connection	350mm Cable
Fixture Primary Materials	Aluminium
Fixture Finish	White Powder Coated
Lens(es) Material	PMMA

Dimming/Controls
Dimming Options	1-10V, DALI

Options/Accessories
Mounting Styles	Suspended Ceiling, Surface Mount Kit
Miscellaneous Accessories	Emergency Maintained Pack/Kit

Emergency
Duration	3 Hours
Testing Type	Remote-Test, DALI Self-Test
Operation	Maintained
Output Wattage	2.8W or 5.6W
Housing	External pack
Battery Type	NiCd (2.8W or 5.6W) or LiFePO4 (2.8W)
Temperature Tolerance	25°C (unless otherwise agreed)
Warranty	3 Years

Standards

LVD (Directive 2014/35/EU)
EMC (Directive 2014/30/EU)
RoHS (Directive 2011/65/EU)
ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
