Raeburn

Series

Premium Industrial Lighting LED High Bay Lights

SIMPLE SINGLE POINT INSTALLATION LUMINAIRES WITH HIGH OUTPUT AND HEAVY DUTY DESIGN

Ce155lm5yearsIk10 Ik08Ip65Temp 50cDimmableLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

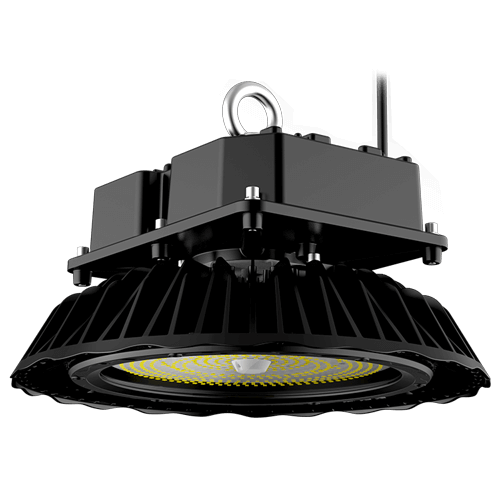

Kellwood's Raeburn Series is a family of premium-grade, high-output industrial LED high bay lights offering best-in-class performance, multiple optic variants, and optional, remote-operated, intelligent lighting controls.

A strong build and heavy-duty hardware make the Raeburn Series a first-rate choice for tough industrial lighting applications.

Our aim is to help you find the best product for your project. You can enquire about Raeburn high output LED High Bay series by using the link on the page. Alternatively feel free to speak to one o the team at Kellwood Lighting on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3030, 757 SMD
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution50°, 90°, 120°
Lens OpacityClear
Optical AccessoriesEnclosed & Semi Enclosed Diffuser
Environmental
Ingress RatingIP65
Impact ResistanceIK08, IK10
Ambient Usage Tolerance-30°C to 50°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40°C to 70°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)47-63Hz
Power Factor>0.93
THD<15%
Physical/Mechanical
Electrical Connection300mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass, Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsMicrowave Sensor (Remote Control), Maintained Emergency (Remote Test)
Options/Accessories
Mounting StylesEye Bolt, Universal Bracket
Available Product ColoursBlack, White, Grey
Miscellaneous AccessoriesDaylight Harvesting, IP68 13A In-Line Connector
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.8W or 5.6W, or 8W (Remote-Test Only)
HousingIn-built (subject to MOQs), or external pack
Battery TypeNiCd (2.8W or 5.6W), LiFePO4 (2.8W), NiMH (8W)
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years (2.8W and 5.6W), 1 Year (8W)
  • Series Wattage Range 100W - 300W
  • Lumen Packages 15,100lm - 42,900lm
  • 4no. Optic Variants
  • 2no. Mounting Options
  • Advanced Intelligent Controls Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

SAA

UL

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeRAE2
Nominal Power (Range)100W to 300W
Luminaire Efficacy @ CRI>70 5000K CCT143 to 157 lm/W
Lumen Output @ CRI>70 5000K CCT15,100 to 42,900 lumens
Lumen Maintenance (TM21)L80B10 >96,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

60º Optic

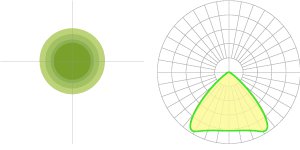

90º Optic

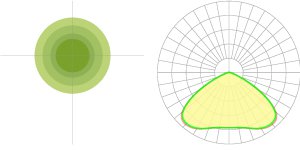

120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

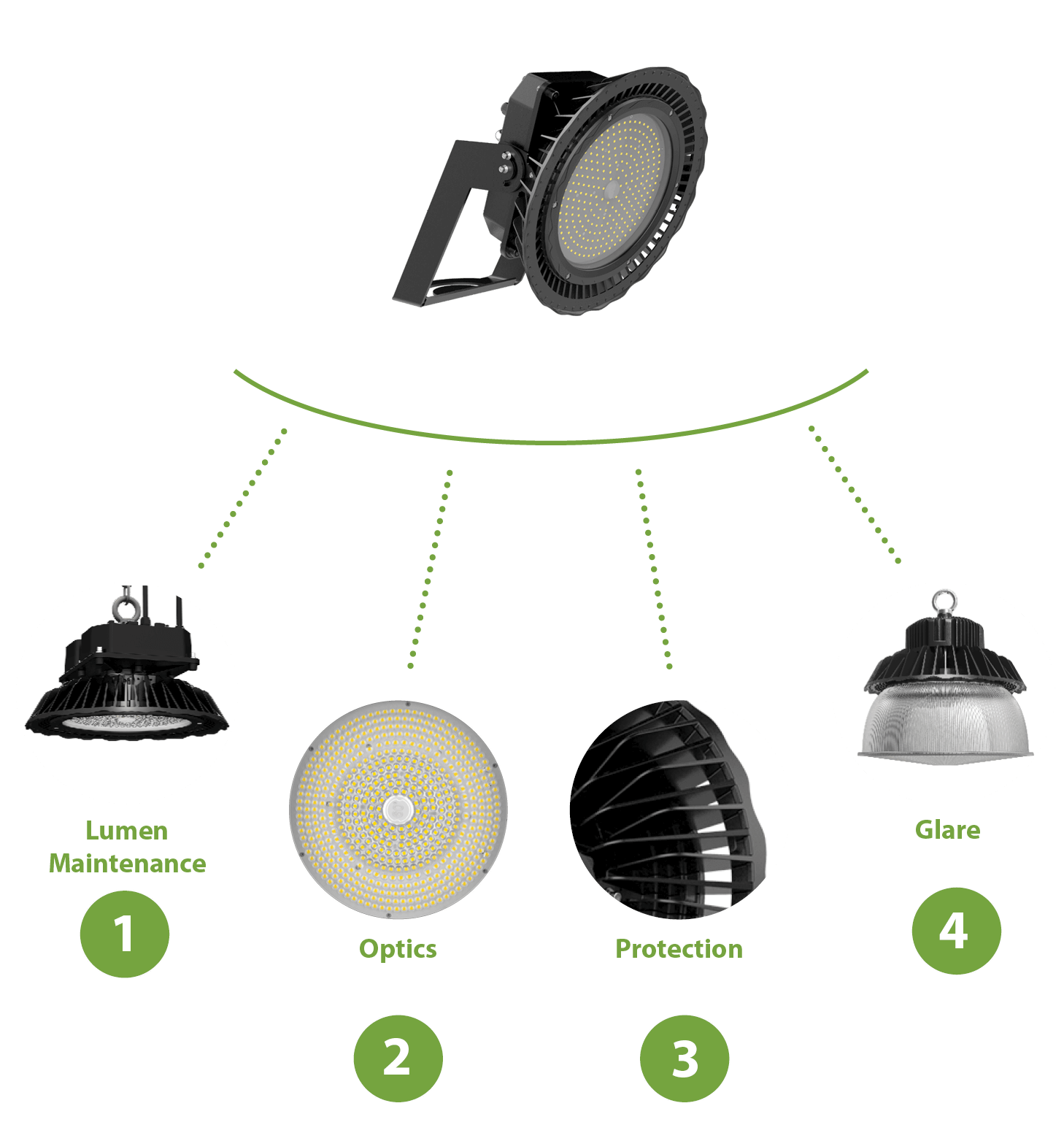

High Bay lights designed for

PURPOSE

  1. Lumen Maintenance: Raeburn Series high bays are built around a custom-designed, die-cast heat sink and thermo-isolated PSU which provides a long lifespan. Lumen maintenance of L80B10 (Ta 30°C) >96,000 hours.
  2. Optics: The availability of narrow and wide-beamed optics makes the Raeburn Series suitable for both general area lighting and task lighting. Utilising Raeburn’s with both narrow and wide-beamed optics in one area will effectively provide area specific lighting in multi-operational facilities where space is restricted.
  3. Protection: The Raeburn Series is a robust product with an impact resistance of IK08 to IK10, making it suitable in industrial environments like warehousing, workshops, production lines, distribution centres and loading bays.
  4. Glare Diffusers: Further glare reduction can be provided through lateral and vertical perspective glare-reducers.

TYPICAL

APPLICATIONS

  • Warehousing
  • Workshops
  • Production
  • Distribution
  • Loading Areas
