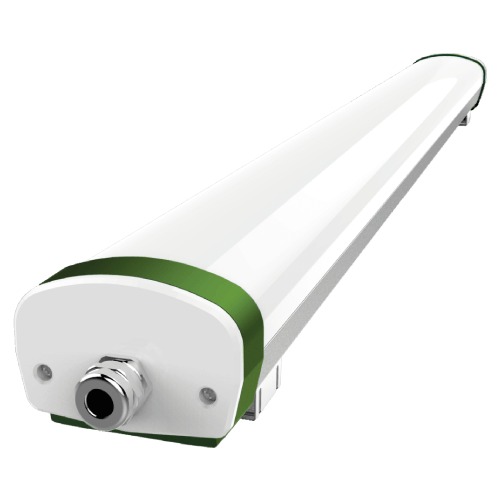

Nasmyth IP65 Rated Light Fitting

industrial linear



LED Batten Lights - IP65 Rated Light Fittings


Nasmyth Vapour Proof LED Linear Lighting
Ce140lm5yearsIk08Ip65Temp 40cDimmableEmergencyLed
  • Technical BrochureNasmyth Series Data Sheets
  • Photometric FilesNasmyth Series Photometric Files
  • Packaging & DeliveryNasmyth Series Packaging & Delivery

The Nasmyth Series are an installation friendly and budget conscious alternative to Kellwood's Nitsch Series Vapour-proof linear LED light fittings.

In the Nasmyth light fitting, an innovative end cap design provides access to wire-in terminal blocks whilst allowing for an IP65 rating. These features make this luminaire ideal, not only as task lighting in industrial lighting applications but also in external applications including car park lighting.

Our team is here to help you find the best product for your project. You can enquire about this specific product via the on the page. Alternatively feel free to speak to one of our team here at Kellwood Lighting on
+44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelJufei-Epistar SMD2835
Light EmissionDirect
CCT3000K, 4000K, 5000K, 6000K
CRI>80, >90
Lens OpacityFrosted, Clear, Striped
Ingress RatingIP65
Impact ResistanceIK08
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance10% to 80% RH
Ambient Storage Tolerance-40° to 8°C
Input Voltage220-240VAC
Driver Brand(s)Lifud, Osram
Input Frequency (VAC)50-60Hz
Power Factor≥0.9
Electrical ConnectionTerminal Block
Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodies
Lens(es) MaterialPolycarbonate
Dimming Options1-10V, DALI
Mounting StylesTwin Surface/Trunking Brackets, Cable Suspension
Miscellaneous AccessoriesLinkable Variant, IP68 In-Line Connector
  • 25W - 50W Specifications
  • L70 >50,000 Hours
  • Ingress & Corrosion Protection
  • Quick Install Wire-In Design
  • Optional Linkable Variant


  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeNAS
Nominal Power (Range)25W to 65W
Luminaire Efficacy @ CRI>80 5000K CCT136 to 140 lm/W
Lumen Output @ CRI>80 5000K CCT7,000 to 42,000 lumens
Lumen Maintenance (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

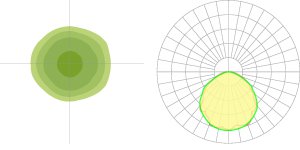

120º Optic 120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Linear lights designed for


The lightweight design and high efficacy allow for high lux levels with minimal load requirements. A choice of mounting styles and optional linkable configuration provide further flexibility, making the Nasmyth Series an obvious replacement for traditional batten and anti-corrosive fittings.

  1. Ingress protection: Anodised aluminium provides environmental protection rating at IP65. Easy access to terminal blocks ensures fast and flexible installation whilst maintaining IP65 rating
  2. Series Mounting: Dual end terminal block modification allows daisy-chain connection up to 12no. light fittings.
  3. Emergency: Nasmyth is compatible with the Elgin series, which is a plug and play 3W non-maintained, self test - 3 hour integrated emergency module. Remote testing functionality can also be achieved by installing an emergency key switch on the permanent live
  4. Sensor: The Nasmyth Series has optional modification to provide microwave sensor controls. The microwave sensor it provides control over the settings: detection range, delay time, waiting time, waiting brightness and light sensor value. These can be configured and applied to up to 4 individual scene modes.

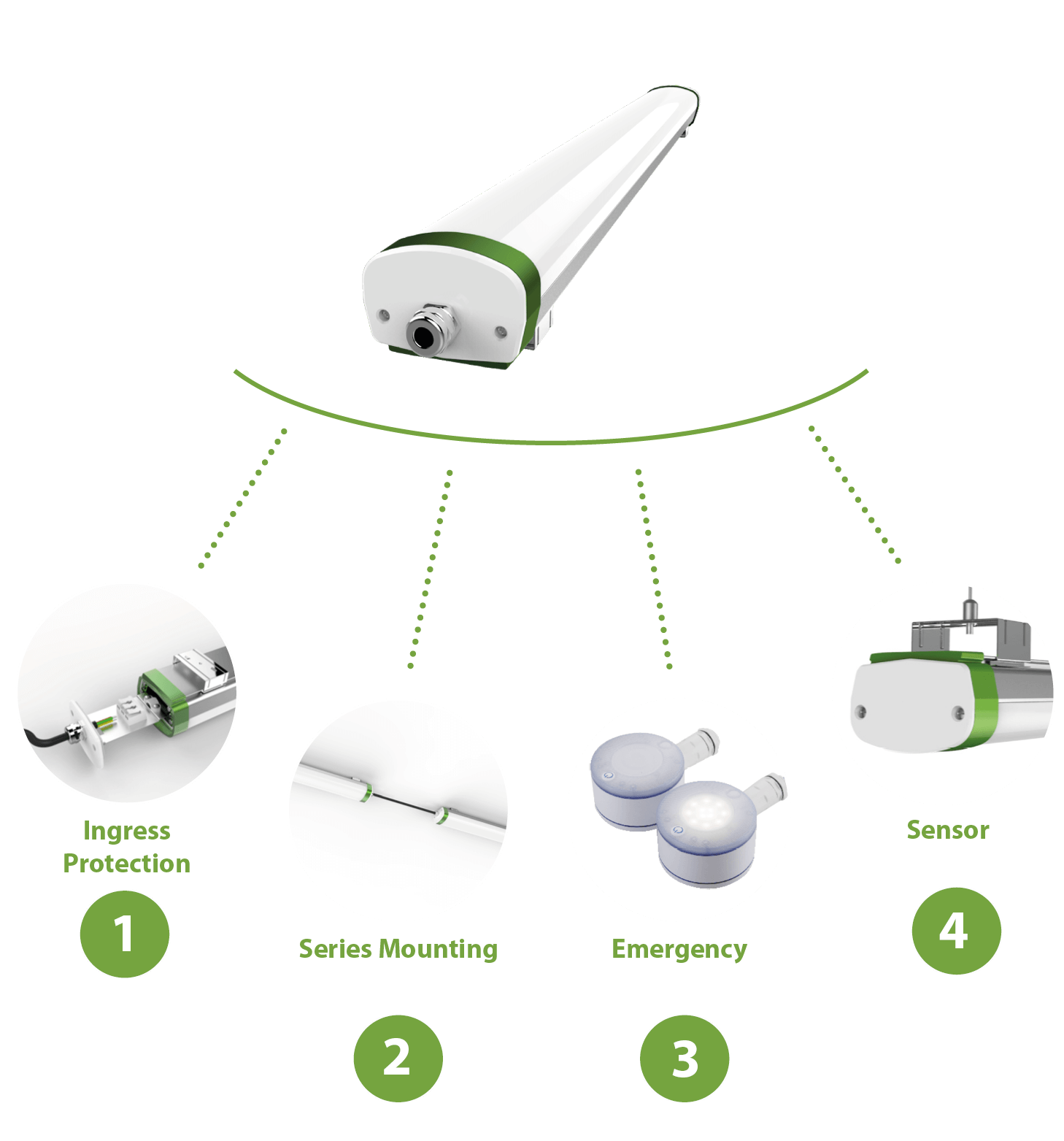

Nasmyth IP65 Linear Vapour Proof Designed for Purpose Diagram



  • Production
  • Warehouses
  • Workshops
  • Task Lighting
  • External Areas
