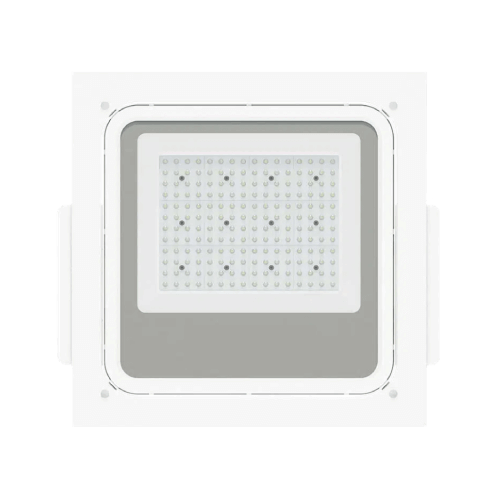

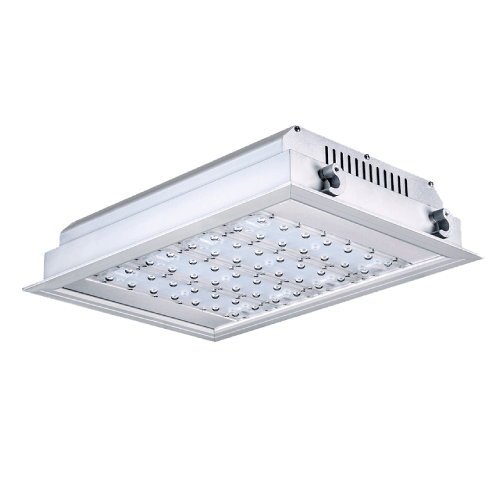

canopy light

ARMITAGE

SERIES

LED Canopy Lights

PREMIUM CANOPY LIGHTS WITH INSTALL FRIENDLY CHASSIS FOR APPLICATION IN PETROL STATIONS AND TRANSPORT HUBS

Ce125lm5yearsIk10Ip66Temp 50cLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Key difference: slightly more expensive and lower efficacy than the Armitage 2 Series but has superior lumen degradation - most suitable for long operating hours in hot environments.

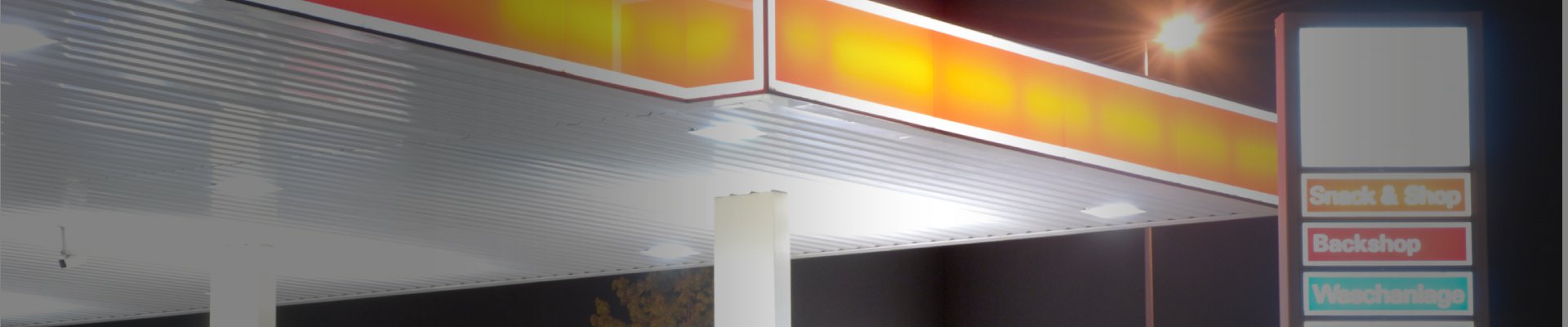

The Armitage Series is perfectly suited for LED canopy lighting in garages, petrol station forecourts and other industrial lighting applications.

Solid build quality, heavy duty thermal management and IP66 ingress protection provide long-lasting zero maintenance durability. Superior Philips Luxeon chips and Mean Well drivers ensure optimal performance.

Kellwood Lighting is committed to help you find the best products for your lighting project. You can enquire about this LED canopy light via the "Request a Quote" link. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Luxeon TX
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70
Symmetric Light Distribution60°, 90°, 110°
Asymmetric Light DistributionN/A
Lens OpacityClear
Optical AccessoriesN/A
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 95% RH
Ambient Storage Tolerance-40° to 80°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD<20%
Physical/Mechanical
Electrical Connection200mm Cable
Cut-out size

40W = 202 x 285mm

80W = 275 x 285mm

120W = 348 x 285mm

160W = 421 x 285mm

Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodised
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V
Built-in ControlsMicrowave Sensor
Options/Accessories
Mounting StylesRecessed Frame
Available Product ColoursSilver, White

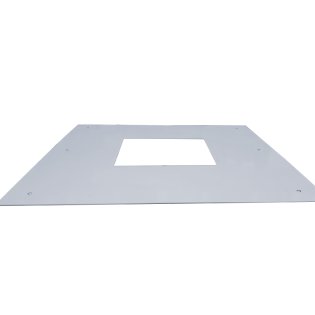

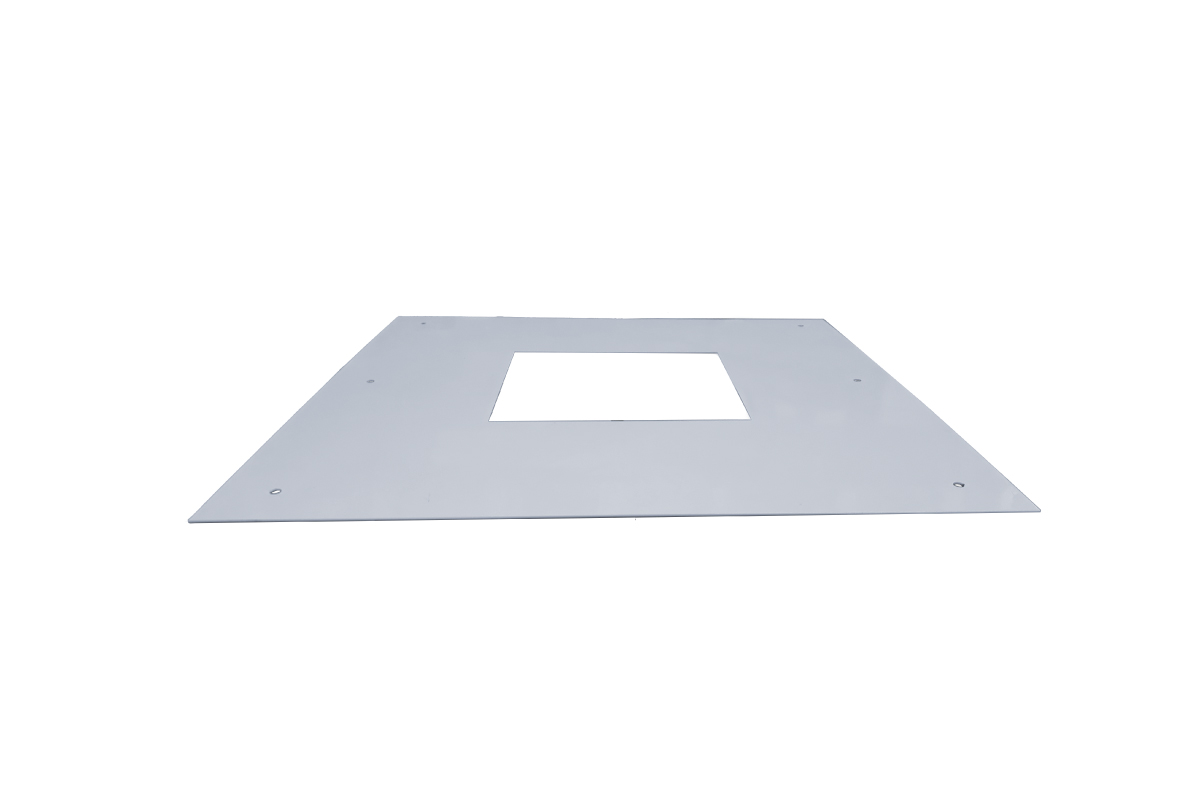

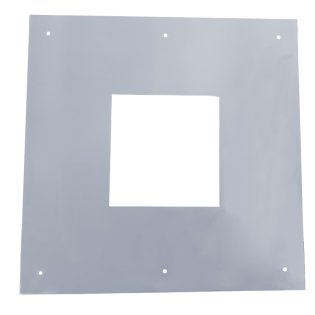

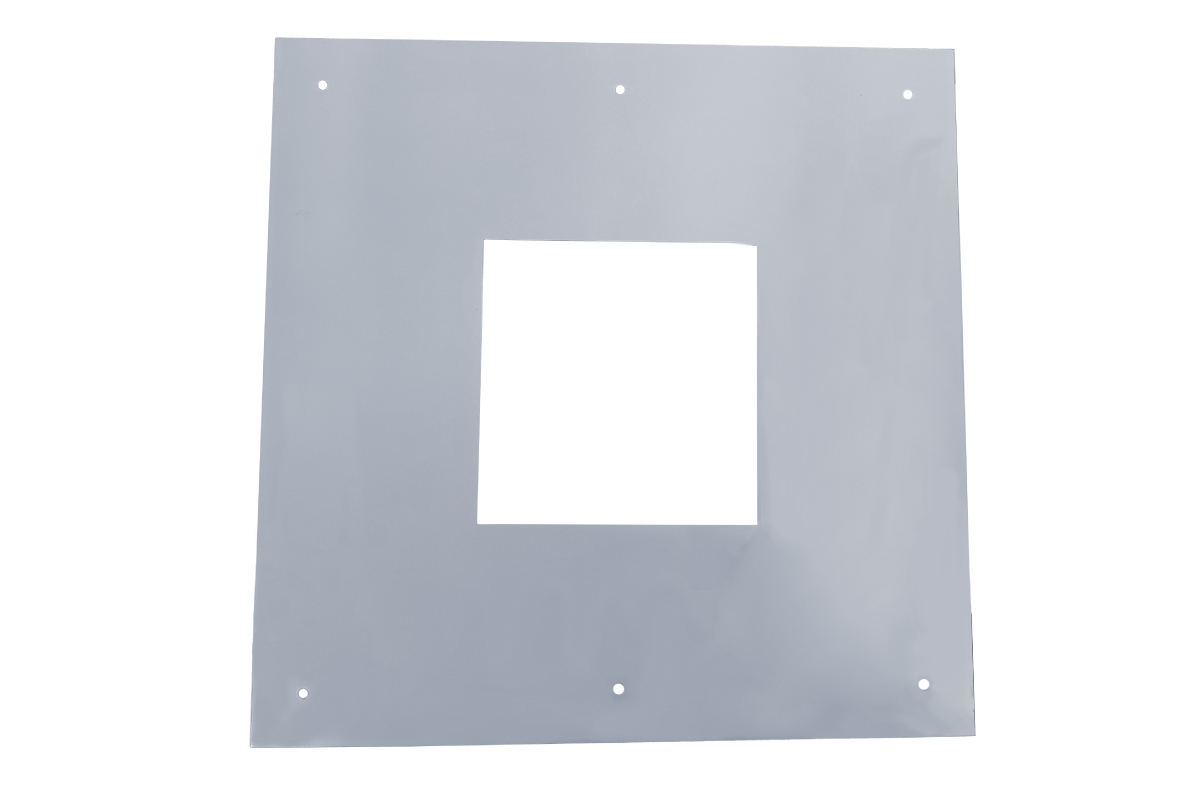

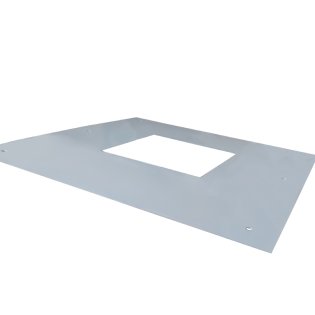

Miscellaneous AccessoriesMounting Plates - customised sizes, e.g. 620mm x 620mm
  • 40W, 80W, 120W, & 160W Models
  • L70 >60,000 Hours
  • IP66 Ingress Protection Rating
  • 3 Optical Lens Variations
  • Dimmable Options Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Key difference: slightly less expensive and higher efficacy than the Armitage Series but has lower lumen maintenance

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds 3030
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70
Symmetric Light Distribution60°, 90°, 110°
Asymmetric Light DistributionN/A
Lens OpacityClear
Optical AccessoriesN/A
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 95% RH
Ambient Storage Tolerance-40° to 80°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD<20%
Physical/Mechanical
Electrical Connection200mm Cable
Cut-out size

50W = 202 x 285mm

100W = 275 x 285mm

150W = 348 x 285mm

200W = 421 x 285mm

Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodised
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V
Built-in ControlsMicrowave Sensor
Options/Accessories
Mounting StylesRecessed Frame
Available Product ColoursSilver, White
Miscellaneous AccessoriesMounting Plates - customised sizes, e.g. 620mm x 620mm
  • 50W, 100W, 150, & 200W Models
  • L70 >60,000 Hours
  • IP66 Ingress Protection Rating
  • 3 Optical Lens Variations
  • Dimmable Options Available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeARMARM2
Nominal Power (Range)40W to 160W50W to 200W
Luminaire Efficacy @ CRI>70 6000K CCT110 lm/W125 to 128 lm/W
Lumen Output @ CRI>70 6000K CCT4,400 to 17,600 lm6,300 to 25,600 lm
Lumen Maintenance (TM21 Reported)L70B50 ≥60,000 hoursL70B50 ≥60,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)CE (EMC, LVD, RoHS, ErP)
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

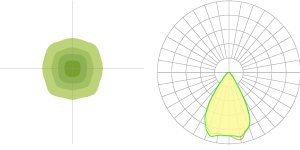

60º Optic

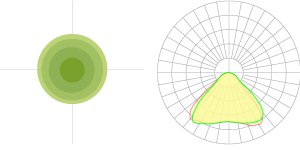

90º Optic

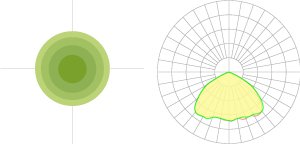

110º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

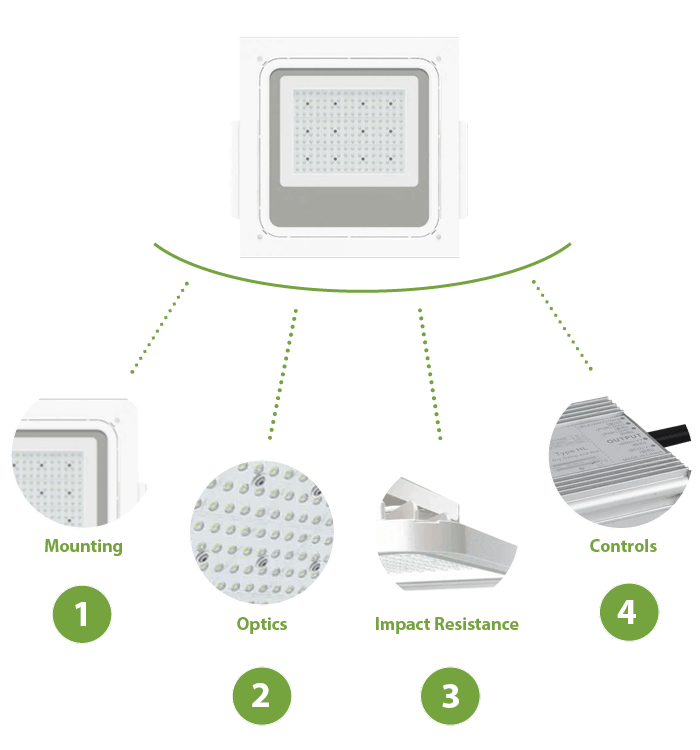

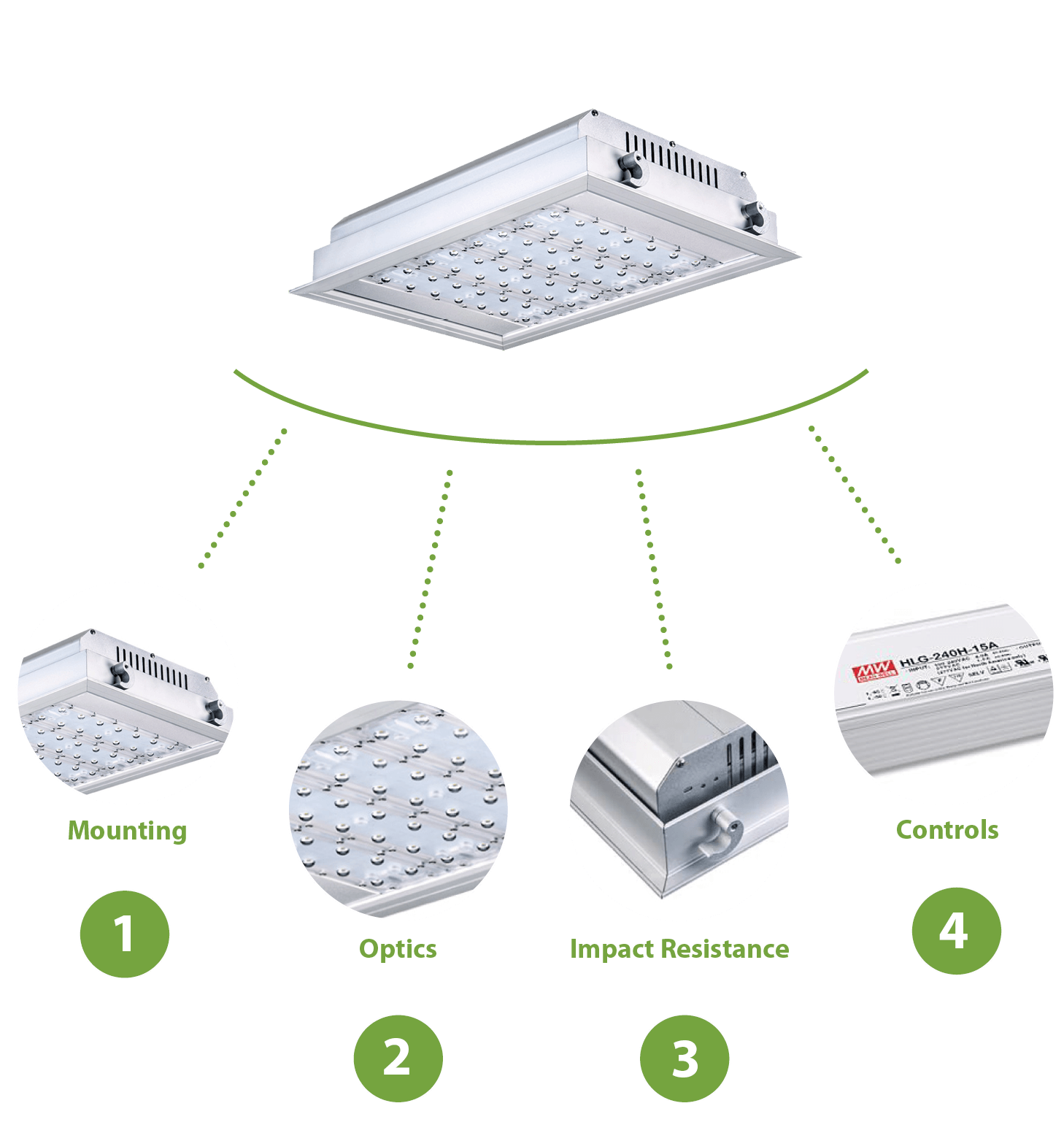

Canopy lights designed for

PURPOSE

Replacing traditional fittings with Kellwood's Armitage Series LED Canopy Lights provides an easy way to improve Lux levels in your facility while reducing energy and maintenance costs, allowing fast recoupment of the initial investment.

  1. Mounting: The Armitage is designed with a recessed mount frame. The frame holder makes the installation simple with convenient and secure locking clamps.
  2. Optics: There is three light distributions options allowing product flexibility: 60º, 90º, 110º.
  3. Impact Resistance: Through robust design of the Armitage frame construction, Non-corrosive materials and compact body provides it with a rating of IK10.
  4. Controls: A motion sensor can be integrated for stand-alone automation. Dimming controls available.

TYPICAL

APPLICATIONS

  • Airports
  • Transport Hubs
  • PETROL STATIon FORECOURTS
