Canopy Light
Broxburn Series

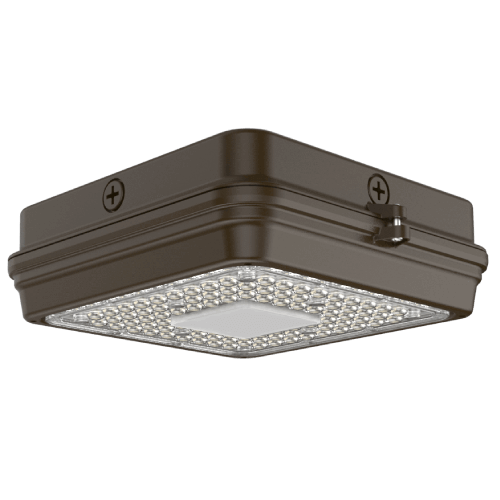

LED surface-mount canopy light, designed for installation in car parks and suitable for chiller rooms
The Broxburn Series of LED car park canopy lights are designed to be a compact alternative to traditional linear fittings; capable of delivering required lux levels, while maximising vehicle head-room.
Supplied with a 120° or 140° optic, and available in outputs from 40W to 100W (lumen output up to approximately 14,400lm), it can deliver high levels of uniformity from low mounting heights, as are typically found in multi-storey and underground car parks.
The Broxburn series is available with 3 hour maintained emergency, ensuring the car park remains appropriately illuminated for safe exit in the event of a power cut.
Additional safety and energy-saving options include the multi-step dimming sensors which can be set to always provide a minimum light level, e.g. 10% at all times, lowering running costs, while recognising the benefit of constant illuminance.
The Broxburn Series is also well-suited for chiller rooms and cold stores. An emergency variant is available as a remote battery pack, where the batteries can be housed outside the chilled environment, maximising product longevity, and minimising maintenance costs.
Our team at Kellwood Lighting is here to help you find the best product for your project. You can enquire about this specific product via the link below. Alternatively feel free to speak to one of our lighting design consultants on +44 (0)1387 255816:
| Series Code | BRX3 |
|---|---|
| Nominal Power | 40W, 60W, 80W, 100W |
| Popular Options | 3Hr Emergency, Multi-step Dimming Occupancy Sensor |
| Impact Resistance | IK08 |
| Wiring Configurations | 4 x Side + 1 x Rear Conduit Entries - wire-in-wire-out-ready |
| Luminaire Efficacy @ CRI>70 5000K CCT | 141lm/W to 154lm/W |
| Lumen Output @ CRI>70 5000K CCT | 6,160lm to 14,400lm |
| Primary Conformities | CE, ETL, DLC |
| Warranty | 5 Years |

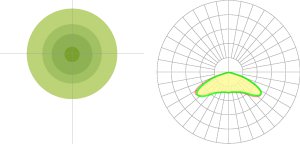

LIGHT DISTRIBUTION OPTIONS
Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

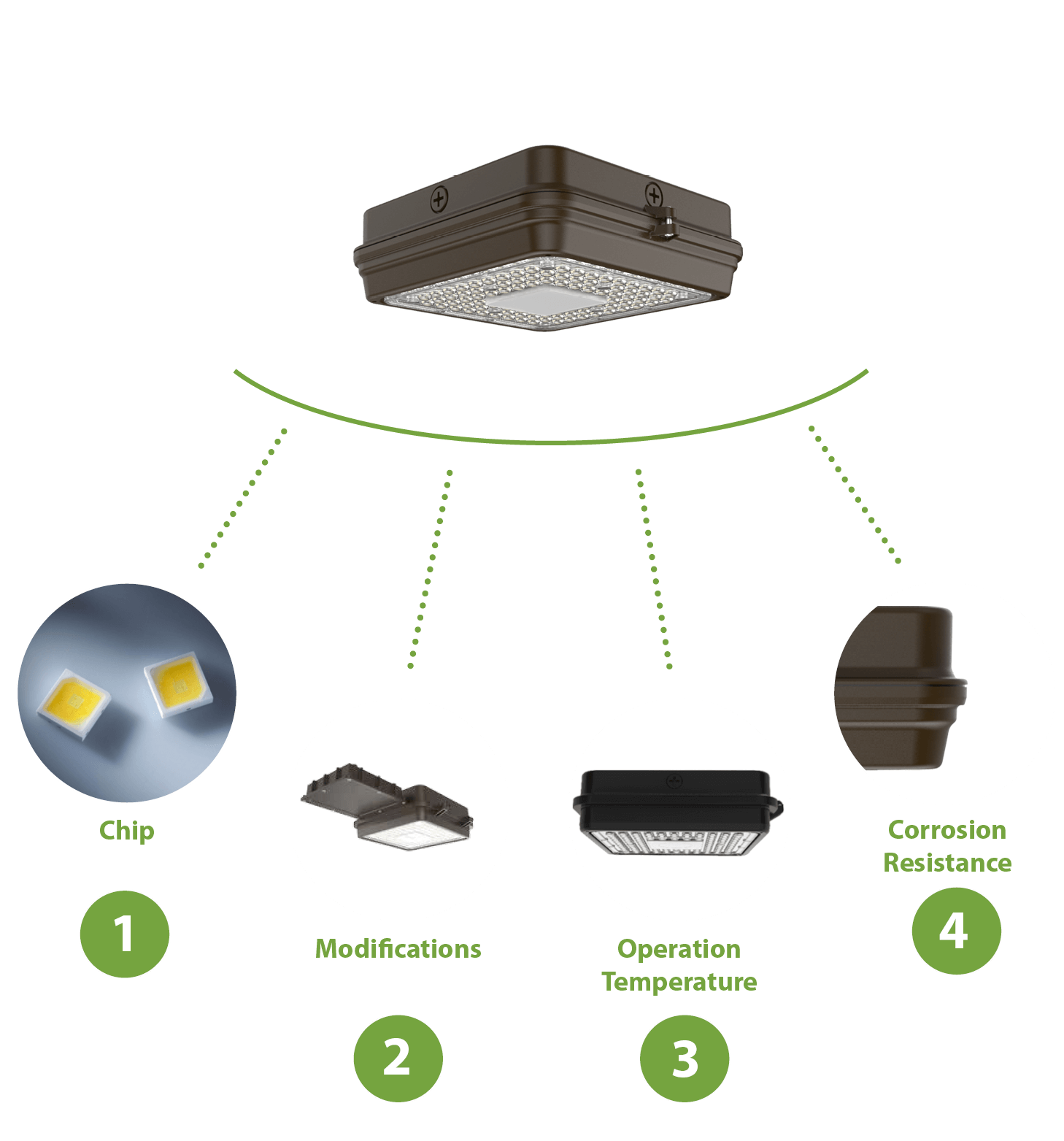

Compact maintenance-friendly housing, surge protection, and corrosion-resistant surface-finish, ensures product longevity. High efficacy and emergency compatibility reduces total project costs by reducing the number of fittings required and avoiding the need for non-maintained emergency lights.
Operations temperature: It has an operational temperature of -30°C to 50°C, ensuring suitability for both internal, external, and a wide range of temperature-controlled facilities such as chiller rooms.
Corrosion resistance: IP65 fitting and comes with corrosion resistant powder coated finish.
User Friendly Design: Supplied with a neoprene backing bad for direct-mounting onto rough surfaces, and rear threaded cable entry for conduit or pole mount. Easy access to internal components via hinged front face, makes installation efficient and easy.
Specifications
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.
| Light Emission | Direct |
|---|---|
| CCT | 3000K, 4000K, 5000K |
| CRI | ≥70 |
| Symmetric Light Distribution | 140°, 120° (With Polycarbonate Reflector) |
| Lens Opacity | Clear |
| Ingress Rating | IP65 |
|---|---|
| Impact Resistance | IK08 |
| Ambient Usage Tolerance | -30°C to 50°C |
| Ambient Storage Tolerance | -30°C to 50°C |
| Driver Brand(s) | Sosen |
|---|---|
| Input Frequency (VAC) | 50-60Hz |
| Power Factor | ≥0.93 |
| THD | <15% @ 120-277V |
| Surge Protection/Fusing | 6kV line-line, 6kV line-earth |
| Electrical Connection | Terminal Block |
|---|---|
| Fixture Primary Materials | Aluminium Alloy |
| Fixture Finish | Powder Coating |
| Lens(es) Material | UV Stabilised Polycarbonate |
| Dimming Options | 1-10V, DALI |
|---|---|
| Plug-and-Play Controls | PIR Sensor, Microwave Sensor |
| Mounting Styles | Surface Mount |
|---|---|
| Available Product Colours | Dark Bronze |
| Miscellaneous Accessories | Glare Hood |
Standards
CE
cETLus
SAA
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
