Bell 3 Series

Corrosion-Resistant Die-Cast LED circular Bulkhead

Robust weather proof & corrosion resistant bulkhead, for use in general and extreme environments

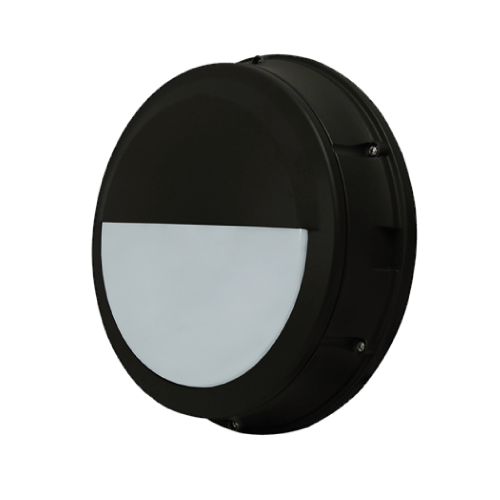

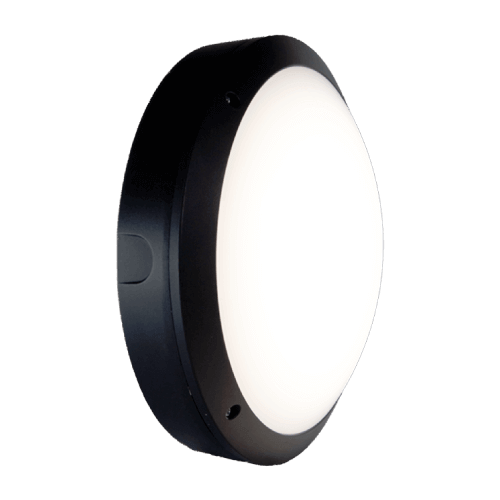

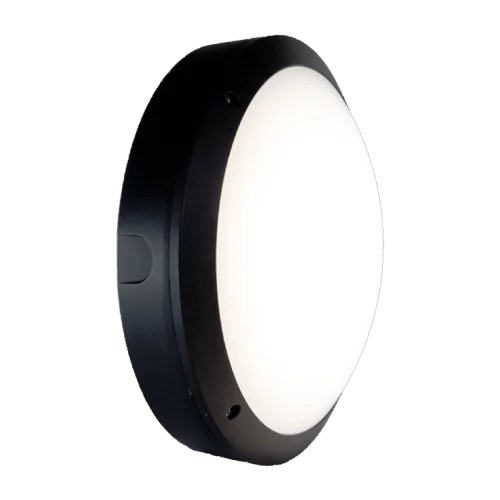

Bell 3 Series Product Image
Ce130lm5yearsIk10Ip65Temp 50cDimmableEmergency

The Bell 3 Series is a circular LED Bulkhead with a focus on functionality and durability. Robust housing and corrosion resistant powder-coat finish makes it ideal for swimming pools, outdoor stairwells, and external security lighting applications. Rear cable access and four perimeter conduit entries allows ease of cable entry and installation. Two aesthetically designed and functional cover options are available.

Further options include 3hr emergency (remote-test or DALI self-test), and/or microwave sensors, offering additional safety and energy saving benefits.

Here at Kellwood Lighting, our team is here to help you find the best light fittings for your project. You can enquire about the Bell 3 Series using the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series CodeBEL3
Nominal Power (Range)11W, 14W, 19W
SizeØ368mm
Environmental ProtectionIP65, IK10
Cable EntriesWire-in-wire-out (1/2x Rear, 4x Side Entries)
Luminaire Efficacy @ CRI>80 5000K CCT (Open Face)132lm/W
Lumen Output @ CRI>80 5000K CCT (Open Face)2,508lm (19W)
Lumen Maintenance (TM21 Reported)L70B10>50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS)
Warranty5 Years (Emergency 3 Years)
Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

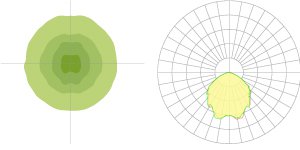

LIGHT DISTRIBUTION OPTIONS

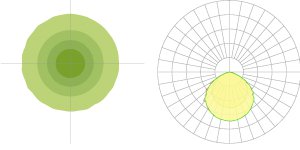

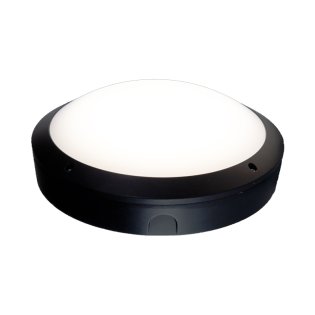

Open Frame Optic Open Frame Optic

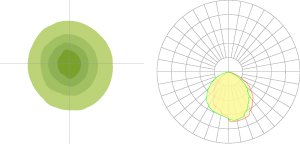

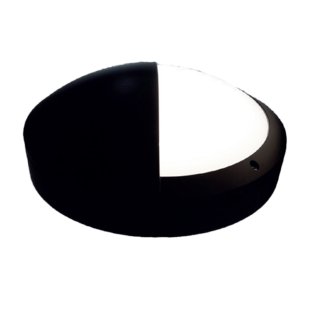

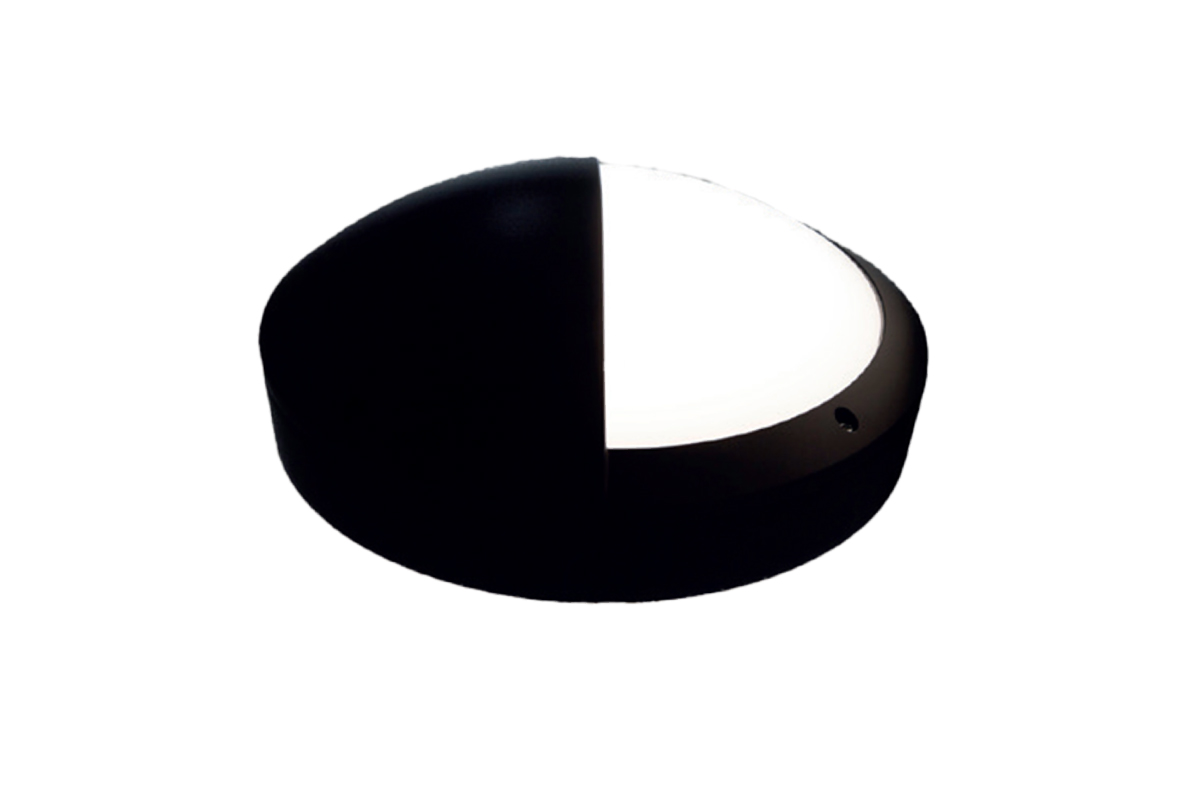

Eyelid Frame Optic Eyelid Frame Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Bulkhead lights designed for
PURPOSE

The Bell 3 Series provides excellent protection in harsh environments, with corrosion-resistance treatment applied as standard. It is designed for internal and external applications, including stairwells, security zone, underpasses, swimming pool and circulation areas.

Other technical advantages include a four-way perimeter conduit entry, and rear cable entries offers complete installation flexibility.

Powder-coat finish: a treatment process which provides protection to corrosion, prolongs product finish and luminaire chassis lifetime - available in black and white as standard. Other colours available on request.

Cable entry; one or two rear cable entry and four permitter conduit entry points to allow installation with flexibility and ease.

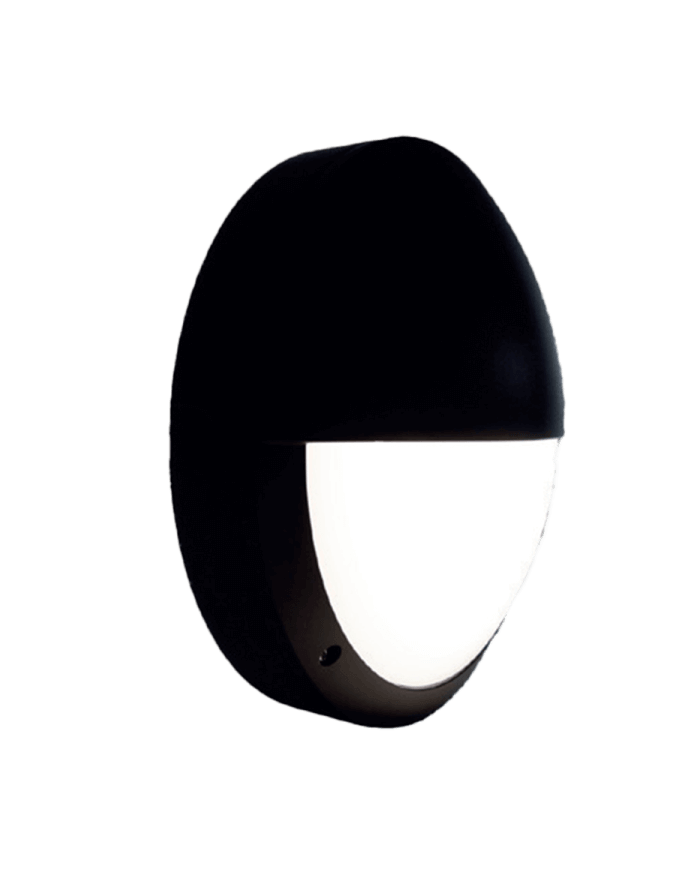

Covers; open cover, and eyelid cover to minimise upward light spill are available.

Wire-in Wire-Out: comes as standard.

Emergency: integrated 3hr Remote-Test or DALI-Self-Test provide a maintained emergency solution, ideal for escape route lighting down stairwells and similar applications.

Occupancy Control: available with microwave sensors to save energy and money in areas with low or medium foot-traffic.

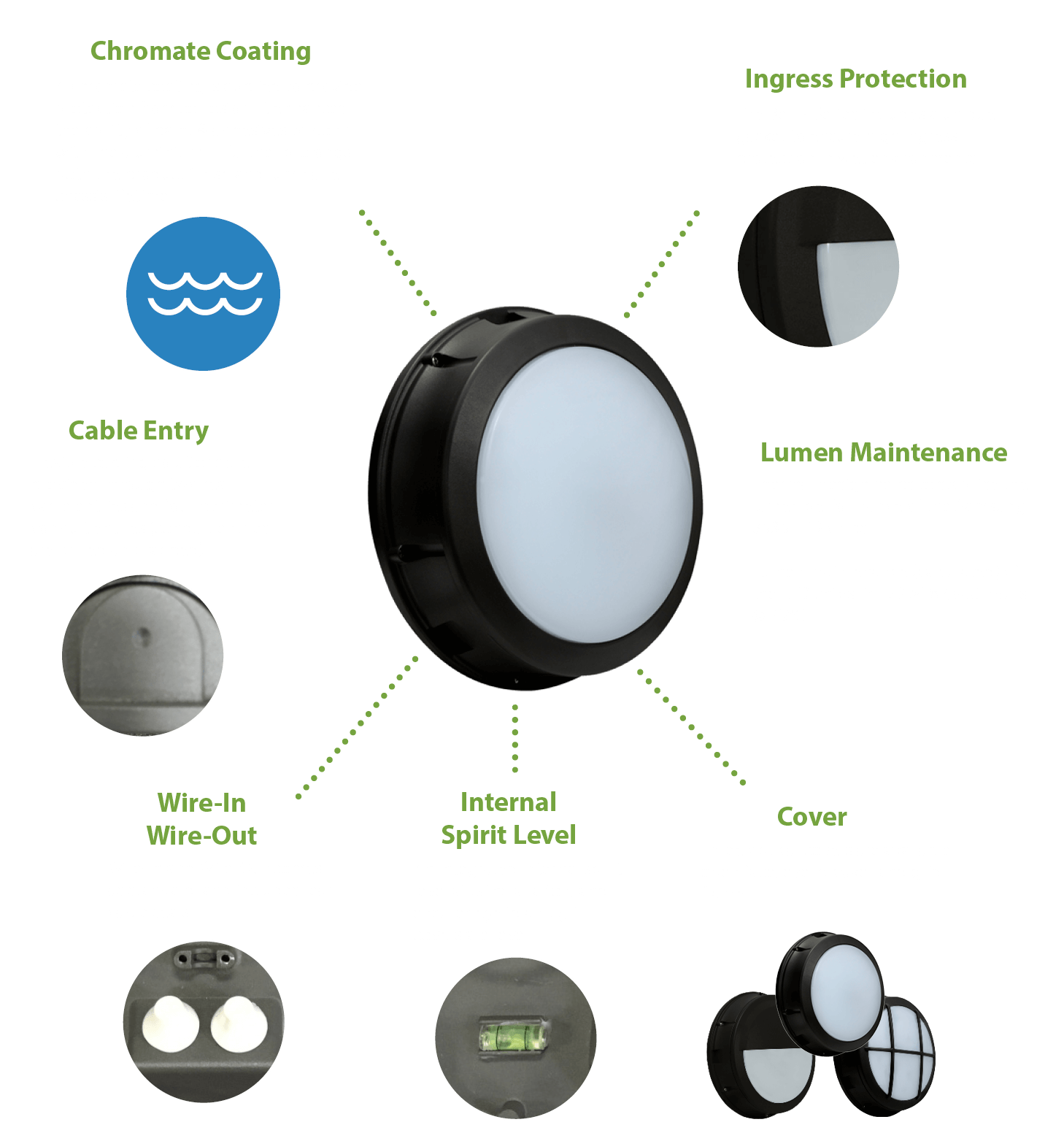

Bell Series Designed for Purpose Diagram

TYPICAL
APPLICATIONS

  • Stairwells
  • Security Zones
  • Underpasses
  • Swimming pools
  • Logistics Areas

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Performance Summary
Series CodeBEL3
Nominal Power (Range)11W, 14W, 19W
SizeØ368mm
Cable EntriesWire-in-wire-out (1/2x Rear, 4x Side Entries)
Luminaire Efficacy @ CRI>80 5000K CCT (Open Face)132lm/W
Lumen Output @ CRI>80 5000K CCT (Open Face)2,508lm (19W)
Lumen Maintenance (TM21 Reported)L70B10>50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS)
Warranty5 Years (Emergency 3 Years)

Light Source and Photometric Parameters

Light EmissionDirect
CCT3000K, 4000K
CRI>80
Lens OpacityOpal
Environmental
Ingress RatingIP65
Impact ResistanceIK10
Physical/Mechanical
Electrical ConnectionInternal Electrical Connection
Fixture Primary MaterialsDie Cast Aluminium Alloy
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming OptionsDALI
Built-in ControlsMulti-step dimming microwave sensor, Integrated Maintained Emergency (Self/Remote Test)
Options/Accessories
Mounting StylesSurface Mount
Available Product ColoursBlack, White
Miscellaneous AccessoriesEyelid Cover

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
