LED Wall Packs - Downwards Facing Wall-Mounted Lights

FUNCTIONAL AND RELIABLE LED WALL LIGHTS WITH IP65 BRONZE OR BLACK POWDERCOATED FINISH

Ce120lm5yearsIk10Ip65Temp 50cLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

As part of our External Lighting range, Kellwood Lighting offer a comprehensive range of LED fittings suitable for perimeter and security purposes.

Kellwood's Beattie series of LED wall packs boast excellent corrosion resistance due to a aluminium powder-coated chassis. A forward throw optic gives focused light distribution allowing a greater project area to be covered by fewer units which additionally reduces maintenance requirements. Minimal upward light is lost due to a asymmetric downward facing optic.

Here at Kellwood Lighting, our team is keen to help you find the best light fittings for your project. You can enquire about the Beattie Series using the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia GRT-V3
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light DistributionN/A
Asymmetric Light Distribution4M
Lens OpacityClear
Environmental
Ingress RatingIP65
Impact ResistanceIK10
Ambient Usage Tolerance-30° to 50°C
Ambient Humidity Tolerance0% to 95% RH
Ambient Storage Tolerance-40° to 70°C
Electrical
Input Voltage100-240VAC
Driver Brand(s)Sosen
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<20%
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSurface Mount
Available Product ColoursBronze, Black
Miscellaneous AccessoriesN/A
  • 40W & 70W Power Specifications
  • L70 >180,000 Hours
  • High Impact & Ingress Protection
  • 0% UpWARD LIGHT RATIO
  • Forward throw optic

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeBEA2
Nominal Power (Range)40W or 70W
Luminaire Efficacy @ CRI>70 5000K CCT139lm/W
Lumen Output @ CRI>70 5000K CCT5,560 to 9,660lm
Lumen Maintenance (TM21)L70B50 >180,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

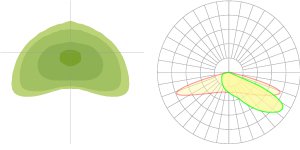

4M Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

WALL PACK lights designed for

PURPOSE

A forward throw optic gives an additional boost to the light dispersion. Lightweight, with high impact resistance and ingress protection, the Beattie Series is a great light fitting for perimeter and pathway lighting.

In instances where you require a more traditional looking fitting, you may consider our Blair Series LED Bulkhead which is suitable for internal and external use.

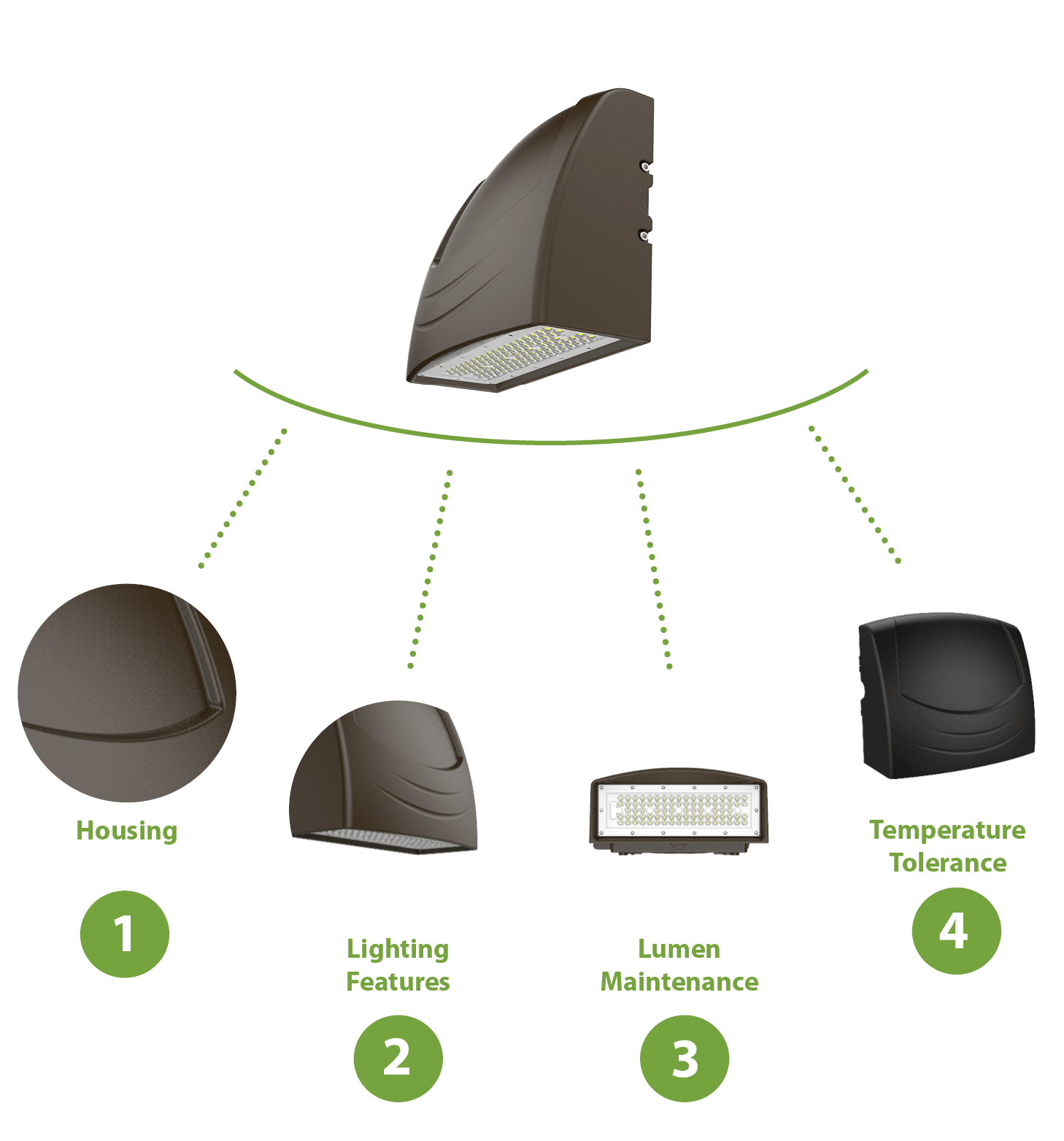

  1. Housing: The Beattie Series housing is designed to withstand tough environments, it has proven to provide corrosion resistance after passing a 500 hours acid-salt spray test. Powder coated Aluminium housing and polycarbonate diffuser provide an excellent IK10 impact rating for durability and toughness. Also with an ingress protection of IP65 gives excellent weather protection.
  2. Lighting Features: With the focused forward throw optic it has 0% upward light ratio, increasing task area illumination and reduces unnecessary light loss.
  3. Lumen Maintenance: Through housing design and premium components it produces a lumen maintenance of (Ta @ 30°C) L70≥180,000hrs.
  4. Temperature Tolerance: Thorough temperature testing has been performed on the Beattie Series. This has proven it is comfortable operating within -30°C to 50°C.

TYPICAL

APPLICATIONS

  • Pathways
  • Entrances
  • Doorways
  • Disposal Areas
  • Security
