ACTON

SERIES

Dark SkY LED Wall Lights - Wall Packs

PREMIUM WALL PACK SERIES WITH 13+ OPTIC VARIANTS, HARSH WEATHER PROOFING, AND SALT WATER RESISTANCE

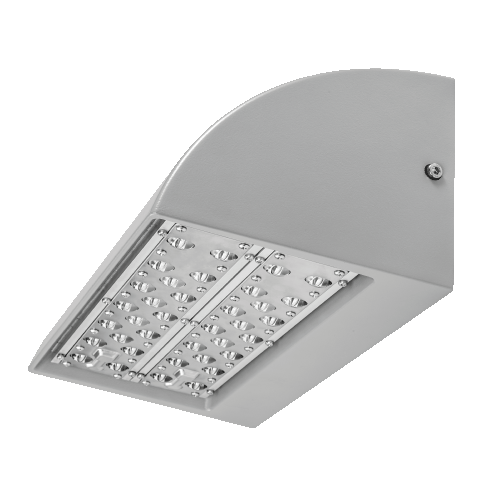

Acton Wall Light Packs
125lm140lm5yearsIk10Ip65Ip66DimmableEmergencyLedMarine Grade
  • Technical BrochureActon 3A Series Data Sheets
  • Photometric FilesActon 3A Series Photometric Files
  • Packaging & DeliveryActon 3A Series Packaging & Delivery

Key difference: 32W and 60W variants

The Acton Series LED wall pack is suitable for a wide range of environments and applications. Featuring a corrosive resistant finish, premium CREE and Philips components and up to IP66 ingress protection, it is particularly suited for areas where product longevity is prioritised and minimal maintenance costs are required.

Our team is here to help you find the most suitable light fitting for your project. You can enquire about the Acton Series Wall Pack via the link on this page. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 NVSL219C
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70, >80
Symmetric Light Distribution10°, 25°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution2M, 3M, 3L, 4S, 4M
Lens OpacityClear, Frosted
Environmental
Ingress RatingIP65, IP66
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Philips
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<15%
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsDiecast Aluminium
Fixture FinishPowder Coated, Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSurface Mount
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), Marine Grade Variations Available
Miscellaneous AccessoriesIP66 Variant, Backspill Guard, Integrated Maintained Emergency (Remote Test)
Emergency
Duration3 Hours
Testing TypeRemote-Test
OperationMaintained or Non-Maintained
Output Wattage4.2W
HousingInternal
Battery TypeNiMH
Temperature Tolerance25°C (unless otherwise agreed)
Warranty1 Years
  • Salt water resistant
  • Philips PSUs and CREE LED chips
  • Wide range of optics (IES files available)
  • IP65 or IP66
  • Back-spill lens guard accessory

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

UL

CUL

DLC

CB

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

  • Technical BrochureActon 3B Series Data Sheets
  • Photometric FilesActon 3B Series Photometric Files
  • Packaging & DeliveryActon 3B Series Packaging & Delivery

Key difference: 40W and 78W variants

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 NVSL219C
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70, >80
Symmetric Light Distribution10°, 25°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution2M, 3M, 3L, 4S, 4M
Lens OpacityClear, Frosted
Environmental
Ingress RatingIP65, IP66
Impact ResistanceIK08
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Philips
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<15%
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsDiecast Aluminium
Fixture FinishPowder Coated, Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSurface Mount
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), Marine Grade Variations Available
Miscellaneous AccessoriesIP66 Variant, Backspill Guard, Integrated Maintained Emergency (Remote Test)
Emergency
Duration3 Hours
Testing TypeRemote-Test
OperationMaintained or Non-Maintained
Output Wattage4.2W
HousingInternal
Battery TypeNiMH
Temperature Tolerance25°C (unless otherwise agreed)
Warranty1 Years
  • Salt water resistant
  • Philips PSUs and CREE LED chips
  • Wide range of optics (IES files available)
  • IP65 or IP66
  • Back-spill lens guard accessory

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

UL

CUL

DLC

CB

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeACT3AACT3B
Nominal Power (Range)32W or 60W40W or 78W
Drive Current530mA700mA
Luminaire Efficacy @ CRI>70 5000K CCT136 to 141 lm/W122 to 125 lm/W
Lumen Output @ CRI>70 5000K CCT4,128 to 7,800 lumens4,920 to 9,750 lumens
Lumen Maintenance (TM21 Reported)L90B10 >80,000 hoursL90B10 >80,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)CE (EMC, LVD, RoHS, ErP)
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

10º Optic 10º Optic
25º Optic 25º Optic
40º Optic 40º Optic
60º Optic 60º Optic
90º Optic 90º Optic
120º Optic 120º Optic
150º Optic 150º Optic
IESNA Type 1 Medium IESNA Type 1 Medium
IESNA Type 2 Medium IESNA Type 2 Medium
IESNA Type 3 Medium IESNA Type 3 Medium
IESNA Type 3 Long IESNA Type 3 Long
IESNA Type 4 Short IESNA Type 4 Short
IESNA Type 4 Medium IESNA Type 4 Medium
Backspill Guard Backspill Guard

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Bulkhead lights designed for

PURPOSE

This LED wall pack includes the same light modules as Kellwood's Arrol Series LED street lights. These products are naturally well suited to be specified together. 15 optics and associated photometric files available across these ranges allow for lighting design and cost-effective product specification.

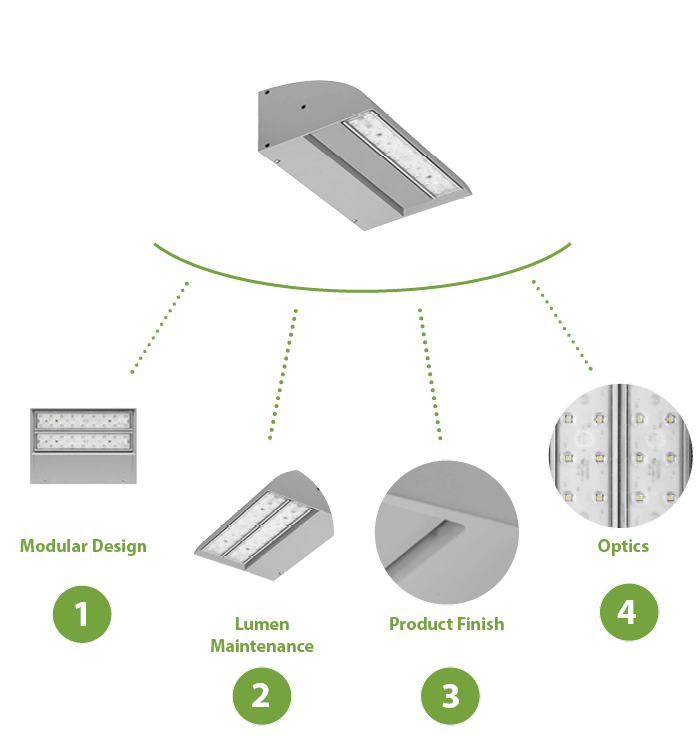

  1. Modular Design - Every LED module is rigorously tested prior to assembly ensuring it conforms to IP67 rating. Each PCB are mounted with a TVS (Transient Voltage Suppressors) to protect the LEDs from voltage transients induced by lightning and other transient voltage events.

  2. Lumen Maintenance - Combining UV resistant polycarbonate optics, rugged aluminium chassis and Nichia chips, lumen degradation is minimised. The Acton Series has a;

    Reported lumen maintenance of L90B10>80,000 hours
    Calculated lumen maintenance of L80B10>160,000 hours
  3. Product Finish - It has three colour options of grey, black and white. Which can be upgraded to Akzonobel corrosion resistant polyester powder painted at 100μm thickness. It meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.

  4. Optics - High-uniformity LED optics are constructed of durable optical polycarbonate that improves impact and UV resistant. There are 13 varied optics which include 6 asymmetric, 7 symmetric optics, frosted diffuser to reduce glare and a backspill guard to reduce/eliminate backward light trespass.

Acton Designed For Purpose

TYPICAL

APPLICATIONS

  • Road and pedestrian underpasses
  • Factory and distribution centre facades
  • Ports and harbours
  • Car parking

  • General Security
