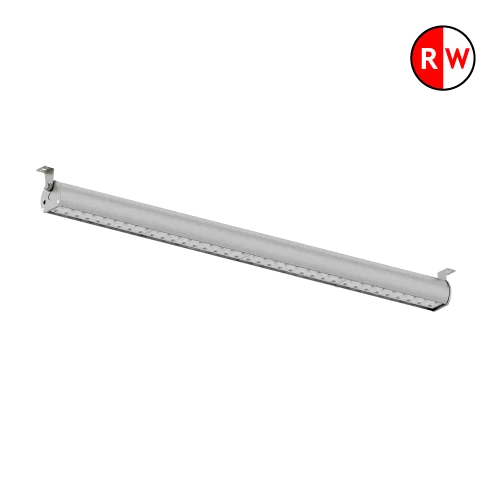

Red and white dairy Lights

Drummond
Series DAIRY

Precision lighting for healthier, more productive herds

Drummond Series Agriculture Profile Image
Ce150lm5 10yearsIk10Ip66Temp 50cDimmable

The Drummond Series Dairy Light is purpose-built to help dairy farmers enhance herd welfare, increase milk yields, reduce energy costs, and ultimately drive farm profitability.

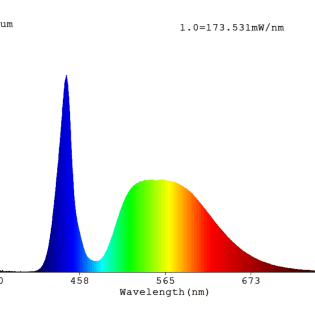

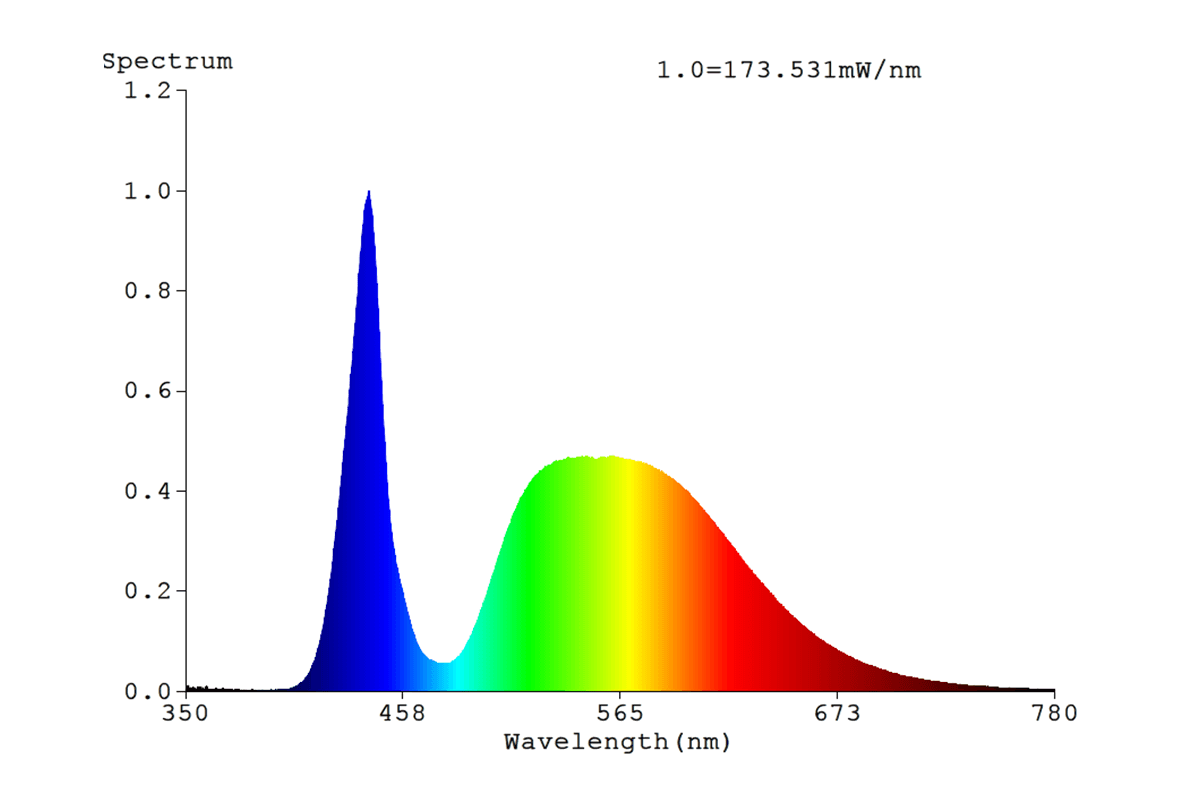

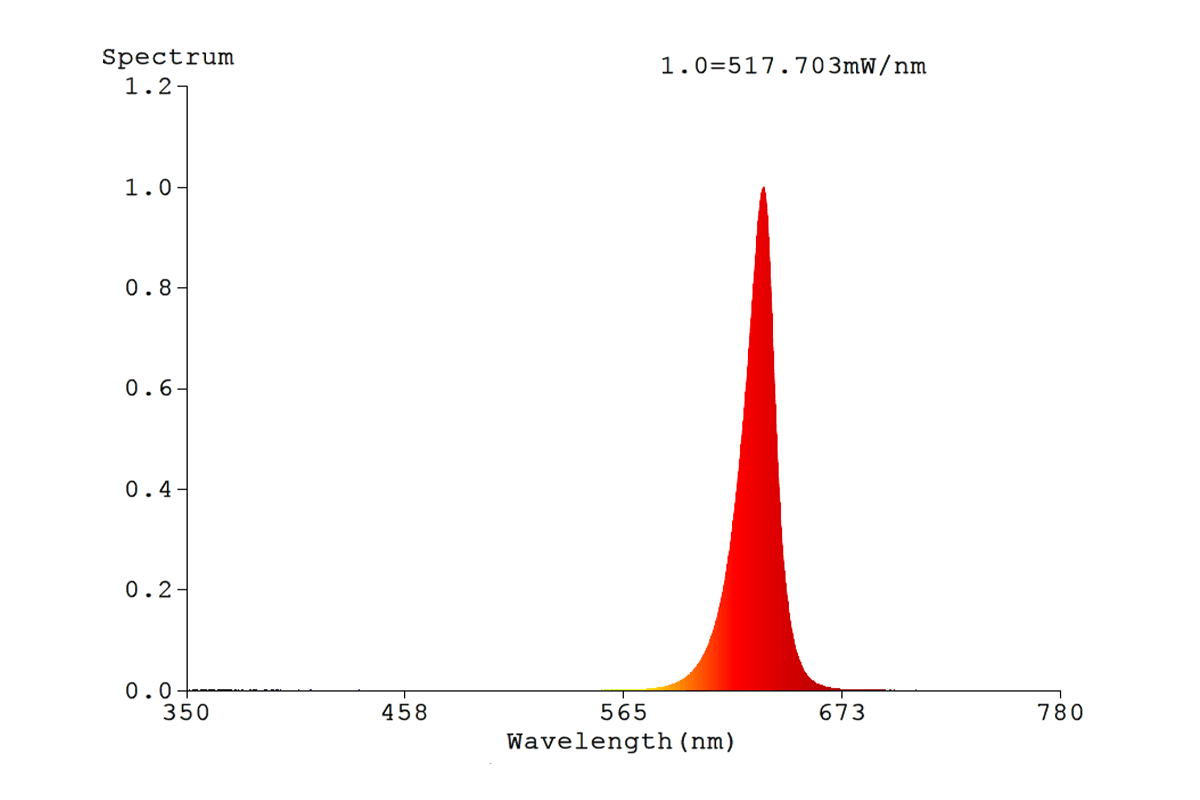

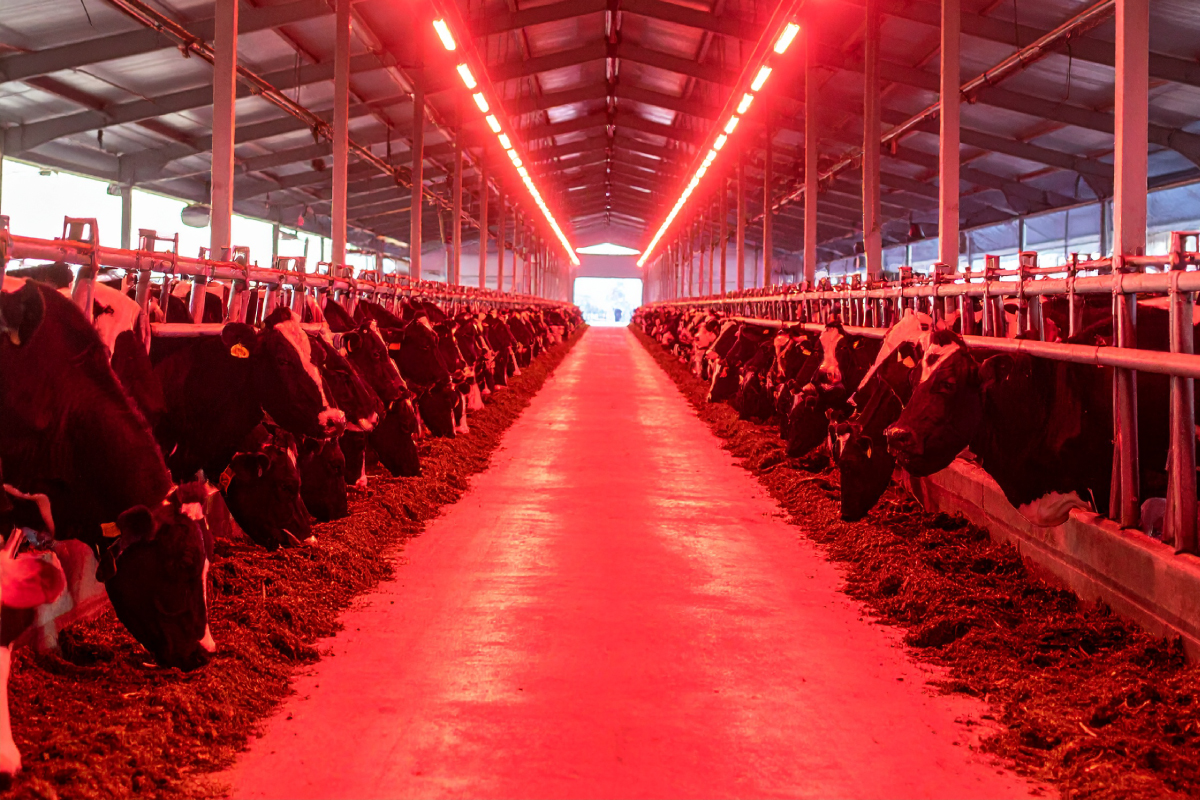

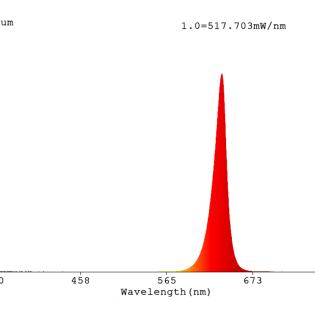

Each fitting features two distinct output modes: white and red. The white light uses specialist LED chips designed to closely replicate the natural daylight spectrum, supporting cow productivity and well-being during daylight hours. The red light enables effective night-time monitoring without disrupting the animals’ circadian rhythm, maintaining a calm and stress-free environment.

The combination of both light modes within a single unit, along with dual individually controllable circuits, allows for straightforward installation and flexible operation via time-clock, photocell, or a combination of the two. The Drummond Series is available in four carefully engineered light distributions, ensuring efficient and effective illumination tailored to a range of shed configurations, mounting heights, and spacing.

A rugged, shock-resistant aluminium housing with a marine-grade powder-coated finish ensures durability in demanding agricultural environments. With a 10-year warranty, the Drummond Series delivers long-lasting performance, reliability, and energy efficiency for the modern dairy operation.

Our team at Kellwood Lighting is here to help you find the best light fitting for your project. You can enquire about the Drummond Red and White Dairy Light via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series CodeDRU5-AG1
Colour (Brand)White LED (Nichia 3535) + Red LED (Cree XP-E2)
Colour ConfigurationCombined in a Single Fitting (One Red Module)
Nominal Power (Range)80W or 120W White + 10W Red
Input2 Separate 230VAC Inputs (White + Red)
Luminaire Efficacy @ CRI>70 5000K CCT150 lm/W (White)
Lumen Output @ CRI>70 5000K CCT11,760 to 18,000 lumens
Environmental ProtectionIP66 and Corrosion-Resistant Spray-Proof Finish
Warranty10 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

90° Optic 90° Optic
120° Optic 120° Optic
150° Optic 150° Optic
Rectangular Optic Rectangular Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Dairy lights designed for
Purpose

The Drummond Series Dairy Light has several features uniquely tailored to dairy environments, including:

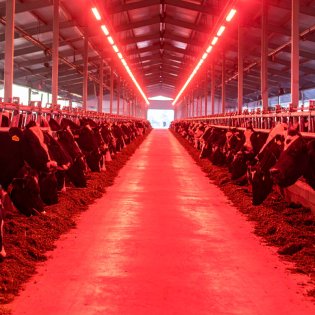

  1. Integrated Red + White LED Output: Combines high-efficacy white lighting (cost-effectively delivering 200 lux) with red night-mode LEDs - supporting cow circadian rhythms. Red lighting allows night-time checks without disrupting melatonin cycles, aiding fertility and milk yield.

  2. Precision Photobiological Light Control: Paired with time clocks, the lighting system can provide consistent photoperiod lighting, supporting long-day photoperiod management (e.g. 16 hours light / 8 hours dark) to boost milk production.

  3. Uniform, Glare-Free Illumination: Special optics provide uniform distribution across stalls and feed alleys with reduced glare, improving cow comfort and visibility for farm staff.

  4. Rugged and Waterproof for Washdowns: Dairy barns require regular pressure washing. The Drummond light is fully sealed to IP66 with corrosion-resistant construction, tolerating wet, ammonia-rich environments.

  5. Plug-and-Play Control Options: Available with integrated controls like daylight sensors, dimming protocols, and timing systems—making it easy to implement lighting regimes specific to different herd stages (e.g. lactation vs dry cows).

  6. Smooth, Hygienic Design: Designed with a cleanable, smooth housing—no fins or crevices—minimising dust, insect, and bacterial build-up. This makes it ideal for hygiene-sensitive areas like milking parlours and calf housing.

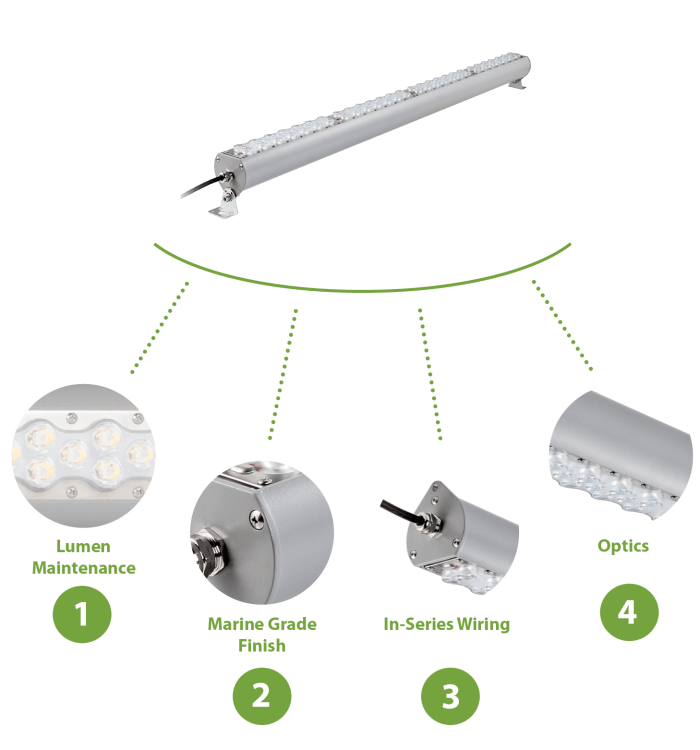

Drummond Dairy Designed for Purpose

TYPICAL
APPLICATIONS

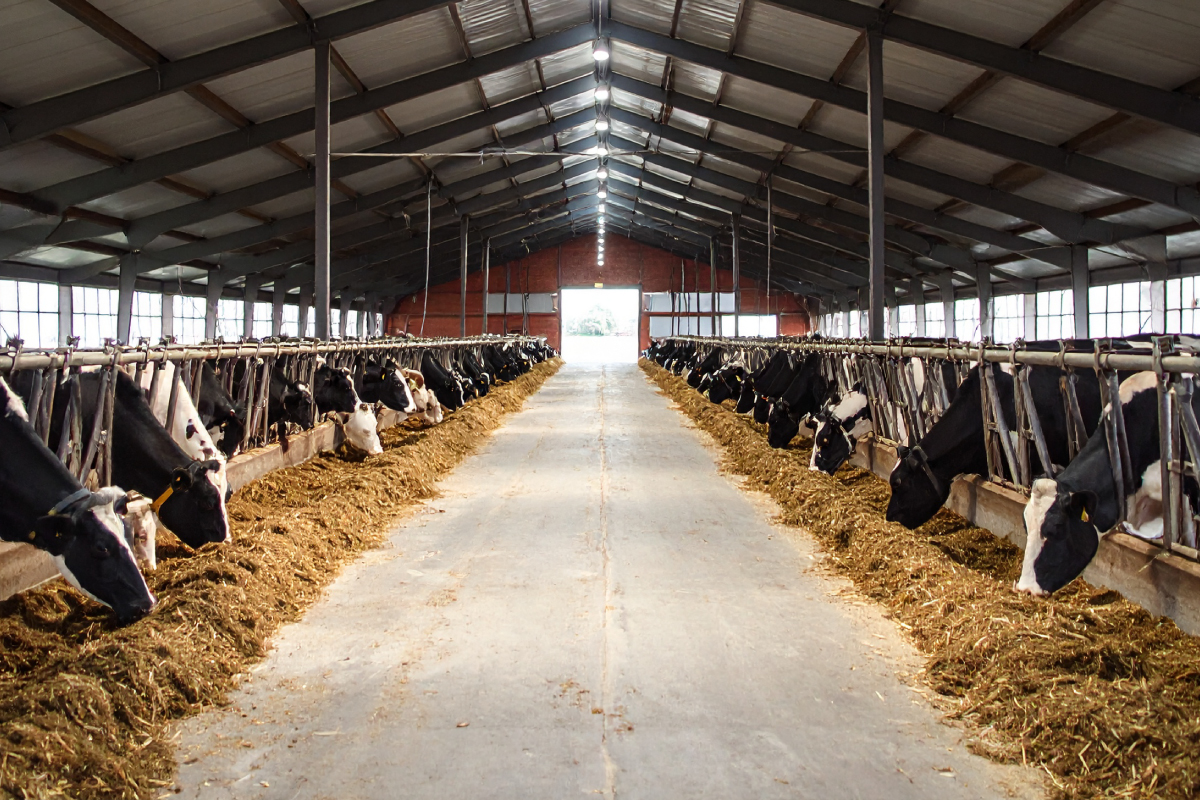

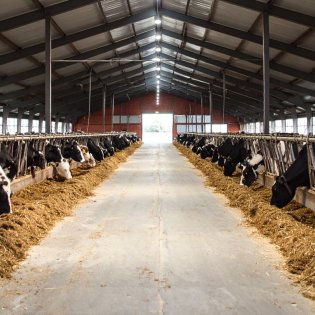

  • Dairies

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 219F
Light EmissionDirect
Colour (CCT)White (5700K) + Red
CRI>80
Symmetric Light Distribution90°, 120°, 150°, Rectangular
Lens OpacityClear, Diffused
Environmental
Ingress RatingIP66
Impact ResistanceIK10
Chilled Environment Usage Tolerance-40° to 25°C
Chilled Environment Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage120-277VAC
Driver Brand(s)Inventronics
Input Frequency (VAC)50-60Hz
Power Factor≥0.9
THD<20%
Surge Protection10kV, 20kV
Physical/Mechanical
Electrical Connection800mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated - AkzoNobel Standard, AkzoNobel Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI2 D4i
Options/Accessories
Mounting StylesSurface Mount Bracket, Cable Suspension
Available Product ColoursGrey (RAL 7004), Customised

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
