Low glare linear lights

Lennox Series

Versatile low glare linear high bays and low bays - 100-480W | emergency | controls

Lennox Series Profile Image
Ce155lm5yearsIk10Ip66Temp 50cWirelessDimmableEmergencyLifepo4
  • Technical BrochureLennox Data Sheet
  • Photometric FilesLennox Photometric Files
  • Packaging & DeliveryLennox Weights and Packaging

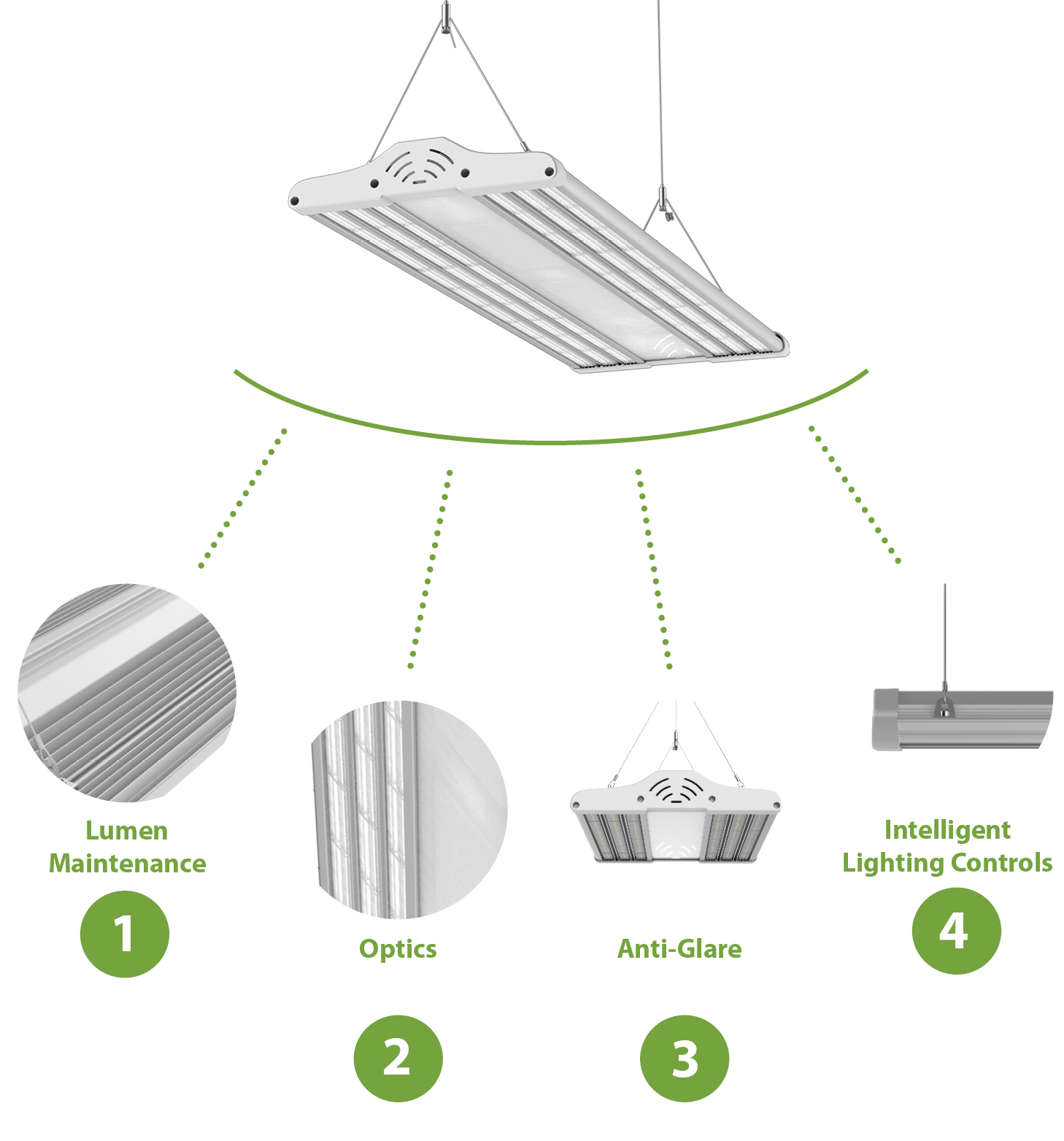

The Lennox Series is a highly versatile bay light, designed with specifiers in mind. A range of lumen outputs (15,500-74,000lm) and circular or asymmetrical low-glare optics, ensure that it can be used for typical low bay or high bay applications.

Options include integrated emergency (remote-test or self-test) and integrated sensors.

Cable suspension, chain suspension, and fixed or rotatable bracket mounting options, ensure the Lennox Series can be installed on busbar, and angled structures.

Electrical components are easily reached via dedicated access panels on the underside of the light, ensuring easy access, and long-term maintenance costs are minimised.

Also available with Kellwood's wireless control system for occupancy control, scene setting, daylight harvesting, and cloud-based energy and emergency monitoring.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSeoul
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution60°, 90°, 110°
Asymmetric Light Distribution25x85°, 60x100°, 80x100°
Lens OpacityLow Glare Dotted Clear
Optical AccessoriesLow Glare Dotted Striped Diffuser
Environmental
Ingress RatingIP66
Impact ResistanceIK08/IK10
Ambient Usage Tolerance-30 to 50­°C
Ambient Humidity Tolerance15 to 90% RH
Ambient Storage Tolerance-30 to 50­°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Sosen, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor>0.9
Physical/Mechanical
Electrical Connection1500mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI, DALI2 D4i
Built-in ControlsMicrowave Sensor, PIR Sensor, Photocell, Emergency
Options/Accessories
Mounting StylesCable Suspension, Twin Surface Mount Brackets, Twin Adjustable Angled Brackets.
Available Product ColoursGrey
Miscellaneous AccessoriesWire Grill

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeLEN
Nominal Power (Range)100W to 480W
Luminaire Efficacy @ CRI>70 5000K CCT150-165lm/W
Lumen Output @ CRI>70 5000K CCT15,500lm to 74,400lm
Chip Lumen MaintenanceL80B50 ≥82,000 hours @ Ta 25°C
Primary ConformitiesCE, RoHS
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

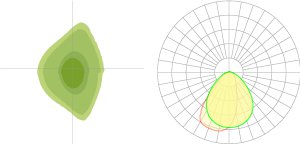

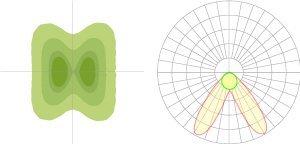

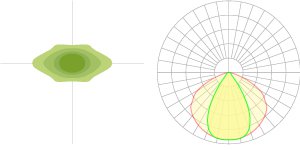

LIGHT DISTRIBUTION OPTIONS

60° Optic 60° Optic
90° Optic 90° Optic
110° Optic 110° Optic

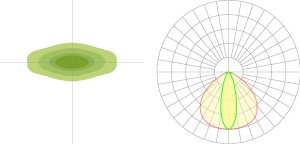

A1 Optic A1 Optic
A2 Optic A2 Optic

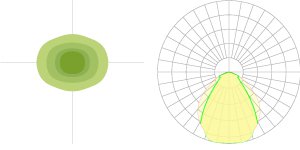

A3 Optic A3 Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.
