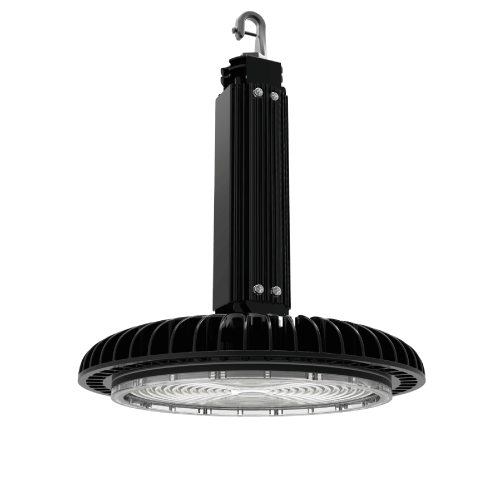

Hutton

Series

Affordable Utility High Bay Luminaires

COMPACT AND COST EFFECTIVE INDUSTRIAL LUMINAIRE WITH MAGNESIUM ALLOY HEAT SINK

Ce155lm5yearsIp65Temp 50cDimmableLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

When your project demands high lux levels with minimal costs, the Hutton Series of LED High Bay Lights is the ideal solution.

Within our range of economy LED light fittings and with premium branded components from names like Philips, condensed into a compact magnesium alloy housing, this light fitting allows for cost effective bulk shipping due to smaller gross volumes.

Here at Kellwood Lighting we want to help you find the best product for your project. You can enquire about this affordable high bay light fitting using the above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia GRT-V3
Light EmissionDirect
CCT3000K, 4000K, 5000K
CRI>70, >80
Symmetric Light Distribution60°, 90°, 120°
Asymmetric Light DistributionN/A
Lens OpacityFrosted, Clear, Milky
Optical AccessoriesArc Lens
Environmental
Ingress RatingIP65
Impact ResistanceIK05
Ambient Usage Tolerance-40°C to 50°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40°C to 65°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Philips Xitanium, Mean Well HBG
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<15%
Physical/Mechanical
Electrical Connection450mm
Fixture Primary MaterialsAluminium Magnesium Alloy
Fixture FinishElectrophoresis
Lens(es) MaterialPMMA, Polycarbonate
Dimming/Controls
Dimming OptionsDALI
Options/Accessories
Mounting StylesEye Bolt, Universal Bracket
Available Product ColoursBlack, White
  • 100W, 120W, 150W, 200W, and 240W
  • L80 ≥ 100,000 Hrs
  • IP65
  • Philips Xitanium or Mean Well HBG PSU
  • Magnesium alloy Heatsink

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeHUT3
Nominal Power (Range)100W to 240W
Luminaire Efficacy @ CRI>80 5000K CCT146 to 150 lm/W
Lumen Output @ CRI>80 5000K CCT15,000 to 35,040 lm
Lumen Maintenance (TM21 Calculated)L70B50 ≥195,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

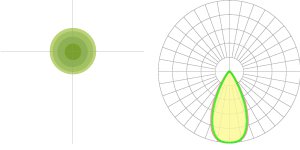

60º Optic

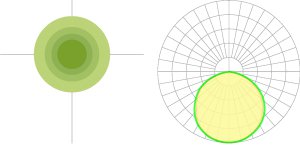

90º Optic

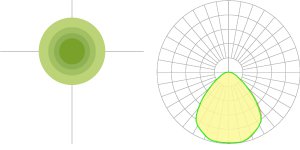

120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

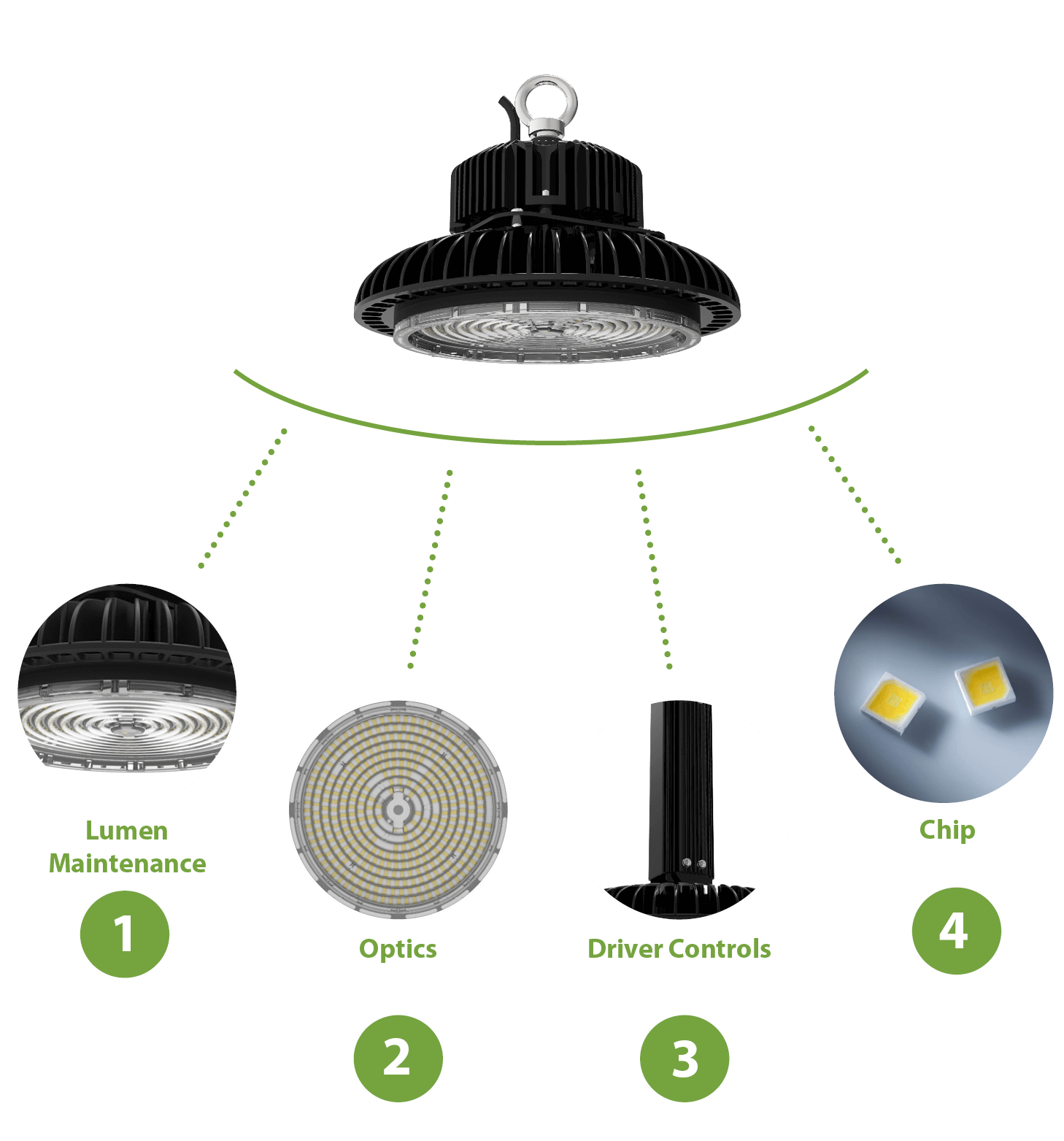

High Bay lights designed for

PURPOSE

Smaller heat sinks can perform as well as larger die cast equivalents. The Hutton Series uses premium branded components. With this you can expect a product of high quality, unquestionable performance and lasting longevity.

  1. Lumen maintenance: The Hutton Series utilises a magnesium alloy heatsink to provide:
    Reported Lumen Maintenance = L70B50 ≥60,000 hours
    Calculated Lumen Maintenance = L70B50 ≥195,000 hours
  2. Optics: 60° & 90° optional lenses feature advanced, ultra-efficient, annular designs, technology that reduces light-loss and glare. Optional frosted diffuser further reduces glare
  3. Driver Controls: Non-dimming, 1-10V and DALI is available. DALI allows for intelligent lighting controls.
  4. Chip: Nichia GRT-V3 produces a minimum of 146lm/W for all wattages from 100 to 240W.

TYPICAL

APPLICATIONS

  • Warehouses
  • Factories
  • Fabrication
  • Engineering
  • Workshops
