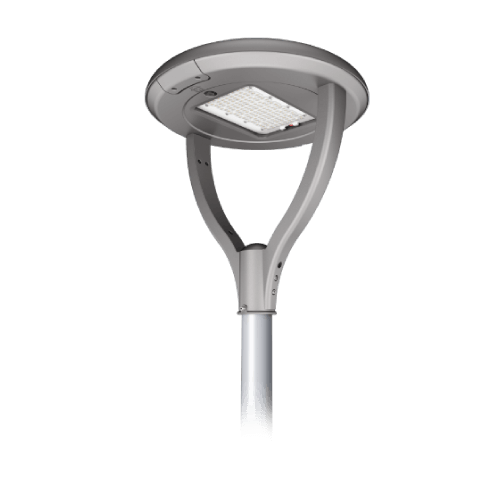

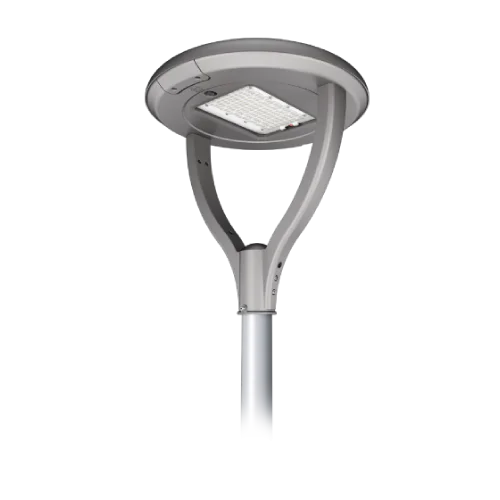

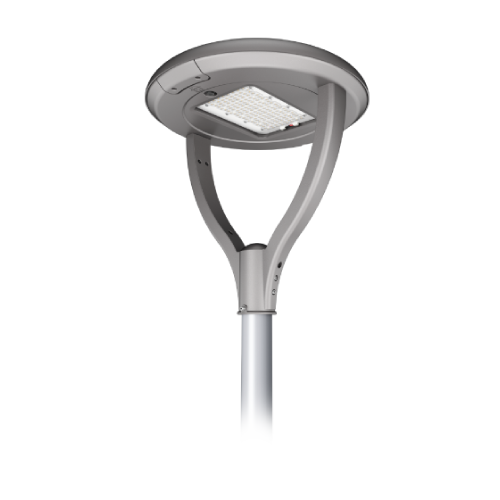

Arbuthnot Amenity Street Light

Post top street light

Arbuthnot
Series

Post Top Amenity LED Lighting for Car Parks & Pedestrian Areas

Multi-purpose amenity street lights with tool-less entry and auto-switch disconnect for easy install

Arbuthnot Amenity Street Light
Ce115lm5yearsIk08Ip66Temp 50cLed

The Arbuthnot Series post-top street light is designed to enhance contemporary, architecturally-driven urban landscapes while delivering efficient, high-performance illumination.

Available in a variety of lumen outputs, colour temperatures, and optical configurations, it suits a broad range of applications.

Lower wattage and warm colour temperature models are ideal for pedestrian walkways and amenity spaces, while higher-output, cooler colour options are better suited to car parks and open areas where a modern aesthetic is desired.

Energy usage is minimised with optional Wireless Pro control for networked lighting management or traditional standalone photocell control, enabling automatic operation from dusk to dawn.

Our team is here to help you find the best product for your project. You can enquire about the Arbuthnot series LED Amenity Street light & path light via the link above the Performance Summary Table. Alternatively feel free to speak to one of the team at Kellwood Lighting on +44 (0)1387 255816.

Performance Summary
Series CodeARB
Nominal Power (Range)27W to 120W
Control Hardware InterfaceZhaga Book 18, NEMA
Control OptionsPhotocell, Wireless Pro
Lumen Output @ CRI>70 5000K CCT3,105 to 13,200 lumens
Lumen Maintenance (TM21)L70B50 >100,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP), ENEC
Warranty5 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

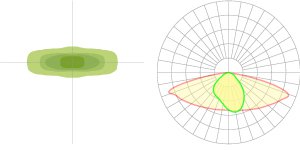

IESNA Type 1 Medium IESNA Type 1 Medium

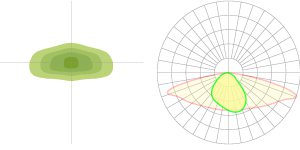

IESNA Type 2 Medium IESNA Type 2 Medium

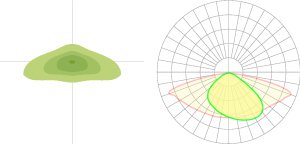

IESNA Type 3 Medium IESNA Type 3 Medium

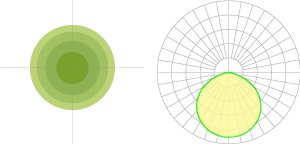

Type 5 - 120º Optic Type 5 - 120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Post-top street lights designed for
Purpose

Consideration has been given to a range of features, including:

  1. Contemporary Housing Design: A smooth housing with a modern style, ensures that the light complements architecturally-focused urban landscapes.
  2. Corrosion-resistant to Maintain Visual Appeal: The paint finish and stainless steel fixings ensure the product remains looking its best for it's entire lifetime.
  3. Quick Installation and Maintenance: Tool-less entry and auto switch disconnect promote quick installation and easy maintenance. Additional installation efficiency is provided by Zhaga Book 18 or NEMA socket.
  4. Increased longevity: integrated 10kV surge protection, IK08 impact rating, and internal uninterrupted gasket providing IP66 ingress resistance minimise maintenance requirements.
  5. Outputs, Colour Temperature and Optics for all applications: 27W - 120W, four different light distributions, and CCT (including 2700K) ensure that the Arbuthnot Series can be tailored to the individual project.
  • Energy-Saving Controls: DALI Dimming, Wireless Pro network lighting, contols, or standard photocells are all available (with Zhaga Book 18 or NEMA interface)

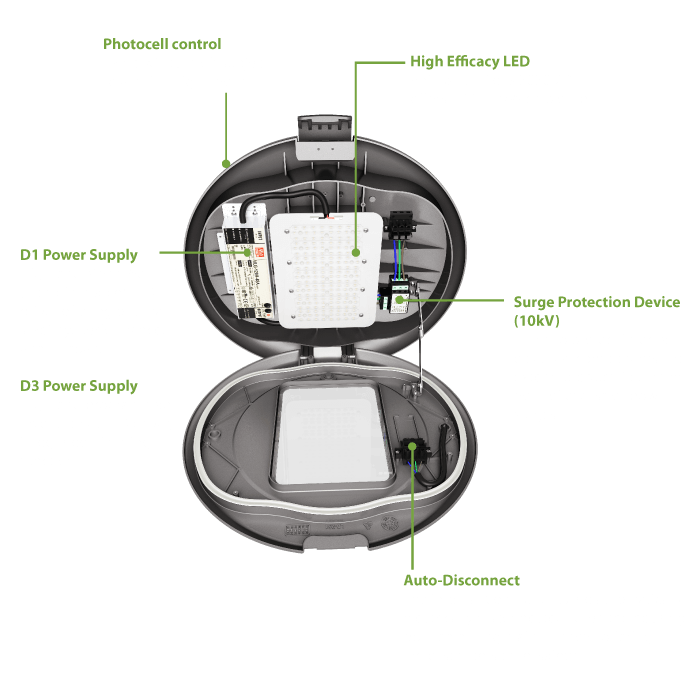

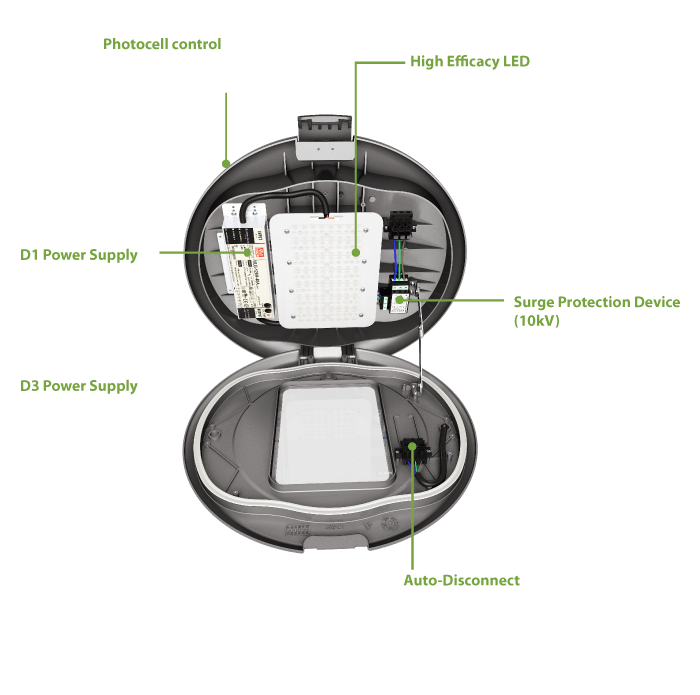

Arbuthnot Designed for Purpose Diagram

TYPICAL
APPLICATIONS


  • Car Parks
  • Plazas
  • Pedestrianised Zones
  • Paths and Walkways
  • Campuses

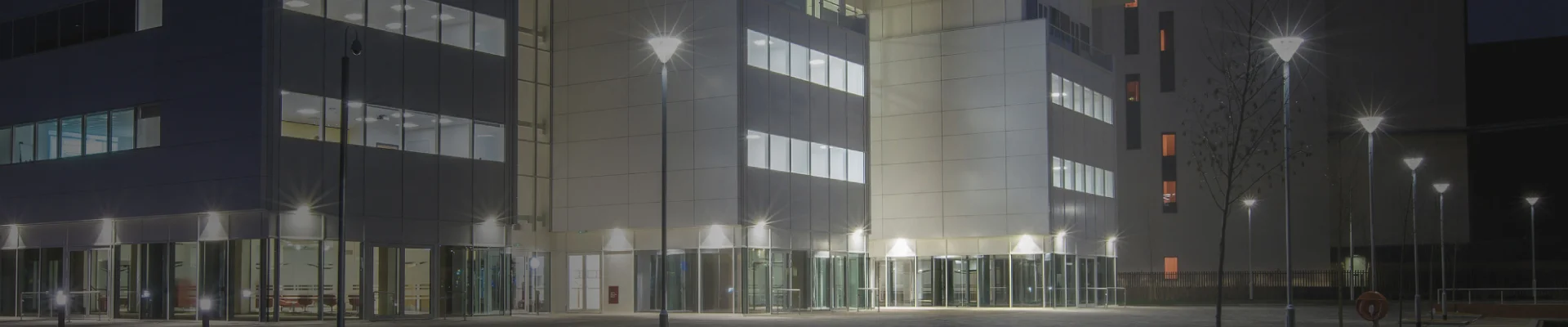

Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds 3030
Light EmissionDirect
CCT3000K, 4000K, 5000K, 6500K
CRI>70
Symmetric Light Distribution120°
Asymmetric Light Distribution1M, 2M, 3M
Lens OpacityClear
Optical AccessoriesN/A
Environmental
Ingress RatingIP66
Impact ResistanceIK08
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage100-240VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD≤20%
Surge Protection10kV
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialUV Stabilised Polycarbonate, Tempered Glass
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSide Entry, Post Top
Available Product ColoursGrey
Miscellaneous AccessoriesN/A

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

ENEC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
