STREET LIGHT

MCALPINE

SERIES

Utility LED Street Lights / Street Lamps

GENERAL PUROSE STREET LIGHT WITH INDEXABLE SIX POSITION QUICK SELECT POSITIOINING SYSTEM

Ce160lm5yearsIk08Ip66Temp 50cDimmableLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

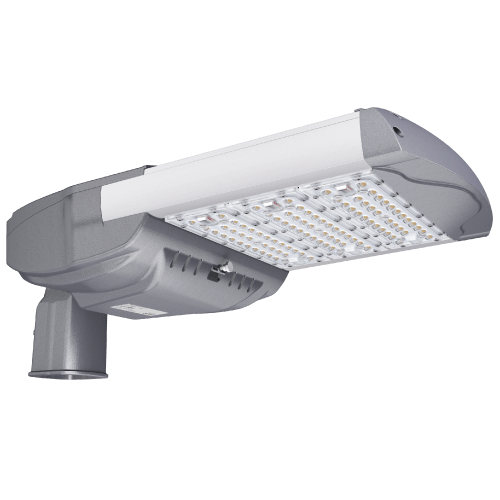

Kellwood's McAlpine series utility LED street lights are an excellent replacement for outdated existing SON, fluorescent and MH street lamps. Industry leading components, solid build quality and anti-surge protection ensure solid performance and zero maintenance while an indexed rotation selector ensures aiming adjustment is simple and straightforward.

Our light design team is here to help you find the best product for your project. You can enquire about this specific product via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds 5050
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70
Symmetric Light DistributionN/A
Asymmetric Light Distribution1M, 2M, 3M, 4S
Lens OpacityClear, Clear (Various Beam Angles)
Optical AccessoriesN/A
Environmental
Ingress RatingIP66
Impact ResistanceIK08
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 80°C
Electrical
Input Voltage100-277VAC
Driver Brand(s)Mean Well, Inventronics
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD≤20%
Surge Protection10kV
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsAluminium Alloy
Fixture FinishAnodised, Powder Coated
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsPhotocell
Options/Accessories
Mounting Styles60mm Slip Fit - Rotatable through ±20°
Available Product ColoursGrey, Black
Miscellaneous AccessoriesN/A
  • 40W-280W available wattages
  • L70 >100,000 Hours
  • 4 Optical Lens Variations
  • Impact, Ingress, & Surge Protection

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

CB

UL

DLC

SAA

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeMCA3
Nominal Power (Range)40W to 240W
Drive Current...mA (A), ...mA (B), ...mA(C)
Luminaire Efficacy @ CRI>70 5000K CCT155 to 165 lm/W
Lumen Output @ CRI>70 5000K CCT6,560 to 37,200 lumens
Lumen Maintenance (TM21)L70B50 >100,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years (7 Ext.)
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

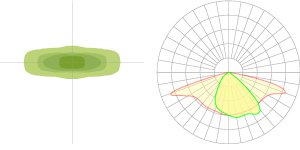

IESNA Type 1 Medium

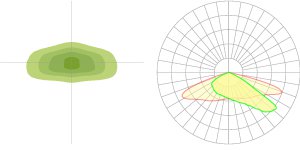

IESNA Type 2 Medium

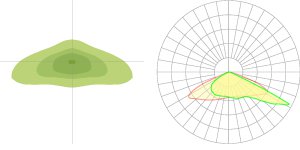

IESNA Type 3 Medium
IESNA Type 4 Short

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

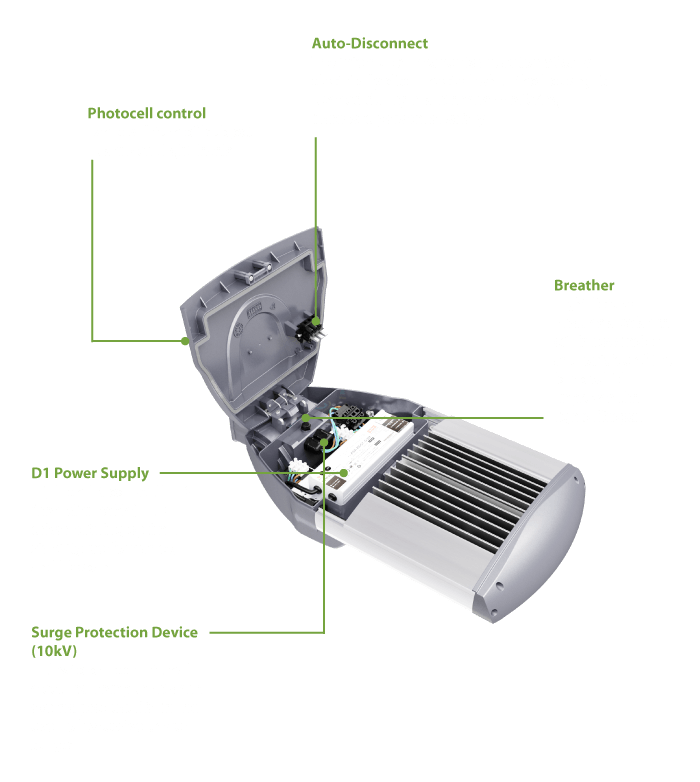

Street lights designed for

PURPOSE

A range of optics and power outputs make the McAlpine Series suitable for most street lighting applications where the ultimate flexibility and premium performance of the Arrol Series (often requested by public sector or large contracts) are not required. Further flexibility is added by an optional photocell and range of available colour temperatures while a modular design ensures consistent aesthetics across the range.

TYPICAL

APPLICATIONS

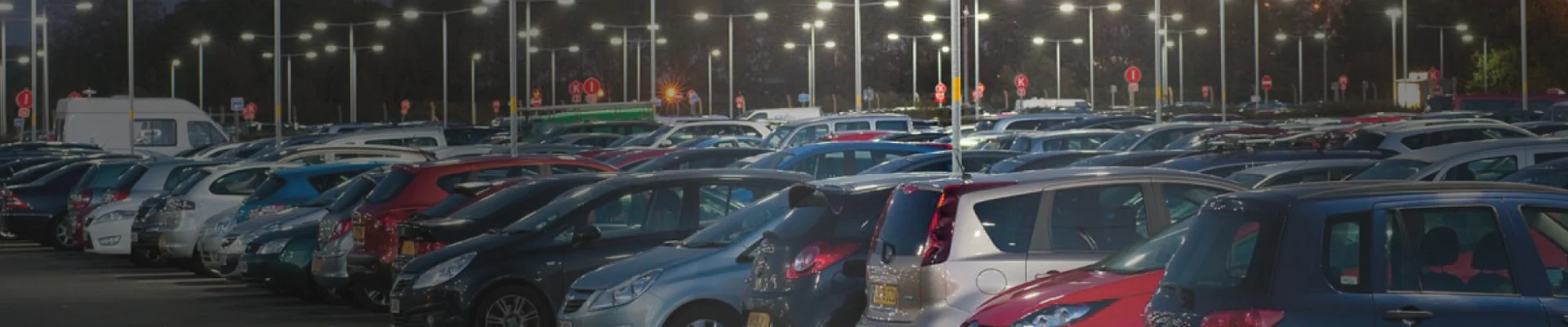

  • Car parks
  • residential areas
  • education campuses
  • security
