ANDERSON
Series

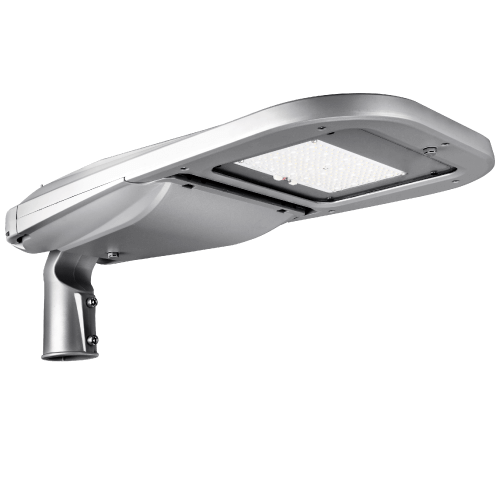

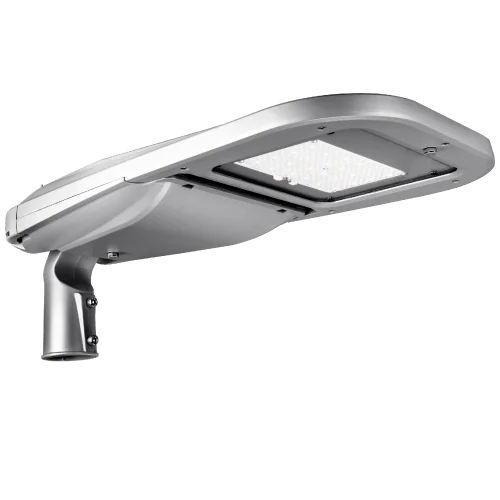

LED DIE CAST STREET LIGHT

GENERAL PURPOSE STREET LIGHT WITH TOOLLESS ENTRY AND ADJUSTABLE MOUNTING

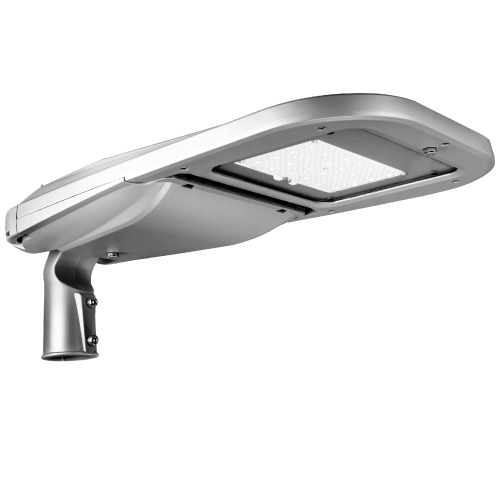

Anderson Pi
Ce125lm5yearsIk08Ip66Temp 50cLed
Anderson Ti

AND

Anderson Ti

AND2

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochurePdf Icon 1
  • Photometric FilesWebsite Table Ies File Icon
  • Packaging & DeliveryAnderson Series Weights and Packaging

Key difference: lower efficacy (>125lm/W) than the Anderson 2 Series (>145lm/W), however, slightly less expensive

Kellwood's Anderson series LED street lights are an excellent replacement for outdated existing SON, fluorescent and MH street lamps. A Die Cast Aluminium casing combines finesse and functionality to improve thermal performance and product longevity while attenuating the aesthetics of the area. Toolless entry ensures that installation and maintenance works are simple and time effective.

At Kellwood Lighting our lighting design consultants are here to help you find the best product for your project. You can enquire about this specific product via the link below. Alternatively feel free to speak to one of our team on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds 3030 2D
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70
Symmetric Light DistributionN/A
Asymmetric Light Distribution1M, 2M, 2M (Reduced Back Spill) 3M
Lens OpacityClear
Optical AccessoriesBackspill Guard
Environmental
Ingress RatingIP66
Impact ResistanceIK08
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage100-240VAC, 100-277VAC
Driver Brand(s)Inventronics, Mean Well
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD≤20%
Surge Protection10kV
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsDiecast Aluminium
Fixture FinishAnti-Corrosion
Lens(es) MaterialUV Stabilised Polycarbonate, Tempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSlip Fit
Available Product ColoursDark Grey, Light Grey
Miscellaneous AccessoriesN/A
  • 25W-200W available wattages
  • L70 >100,000 Hours
  • 4 Optical Lens Variations
  • Impact, Ingress, & Surge Protection

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

ENEC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochurePdf Icon 2
  • Photometric FilesWebsite Table Ies File Icon
  • Packaging & DeliveryAnderson 2 Series Weights & Packaging

Key difference: higher efficacy (>145lm/W) than the Anderson Series (>125lm/W), however, slightly more expensive

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelPhilips Lumileds 5050
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70
Symmetric Light DistributionN/A
Asymmetric Light Distribution2M, 3M
Lens OpacityClear
Optical AccessoriesN/A
Environmental
Ingress RatingIP66
Impact ResistanceIK08
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-40° to 50°C
Electrical
Input Voltage100-240VAC, 100-277VAC
Driver Brand(s)Inventronics, Mean Well
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD≤20%
Surge Protection10kV
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsDiecast Aluminium
Fixture FinishAnti-Corrosion
Lens(es) MaterialUV Stabilised Polycarbonate, Tempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsPhotocell
Options/Accessories
Mounting StylesSlip Fit
Available Product ColoursDark Grey, Light Grey
Miscellaneous AccessoriesN/A
  • 25W-200W available wattages
  • L70 >100,000 Hours
  • 4 Optical Lens Variations
  • Impact, Ingress, & Surge Protection

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

ENEC

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeANDAND2
Nominal Power (Range)25W to 200W25W to 200W
Luminaire Efficacy @ CRI>70 4000K CCT125 to 130 lm/W145 to 150 lm/W
Lumen Output @ CRI>70 4000K CCT3,125 to 26,000 lumens3,625 to 30,000 lumens
Lumen Maintenance (TM21)L70B50 >100,000 hoursL70B50 >100,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)CE (EMC, LVD, RoHS, ErP)
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

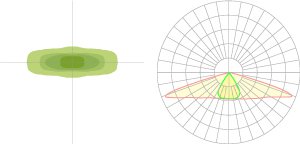

IESNA Type 1 Medium IESNA Type 1 Medium

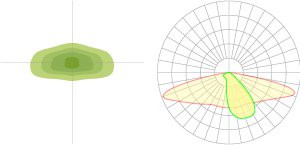

IESNA Type 2 Medium IESNA Type 2 Medium

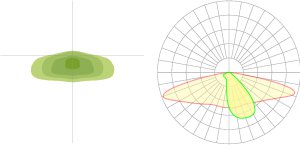

IESNA Type 2M Reduced Backspill IESNA Type 2M Reduced Backspill

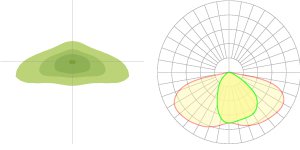

IESNA Type 3 Medium IESNA Type 3 Medium

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Street lights designed for
PURPOSE

A range of optics and power outputs make the Anderson Series suitable for most street lighting applications where a more aesthetic unit than the McAlpine Series is desired. Further flexibility is added by an optional photocell and range of available colour temperatures while a Die Cast Aluminium casing combines moulds style and reliability.

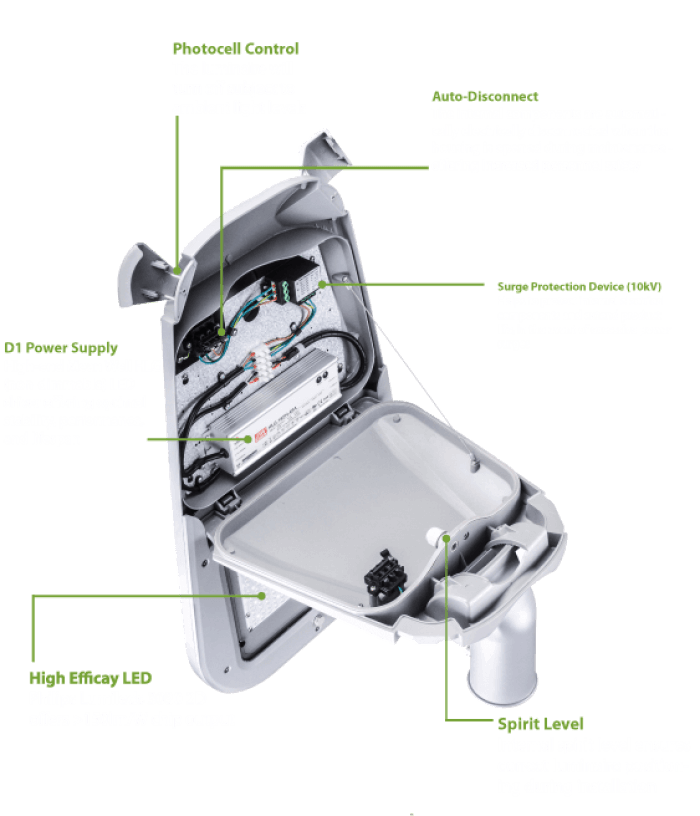

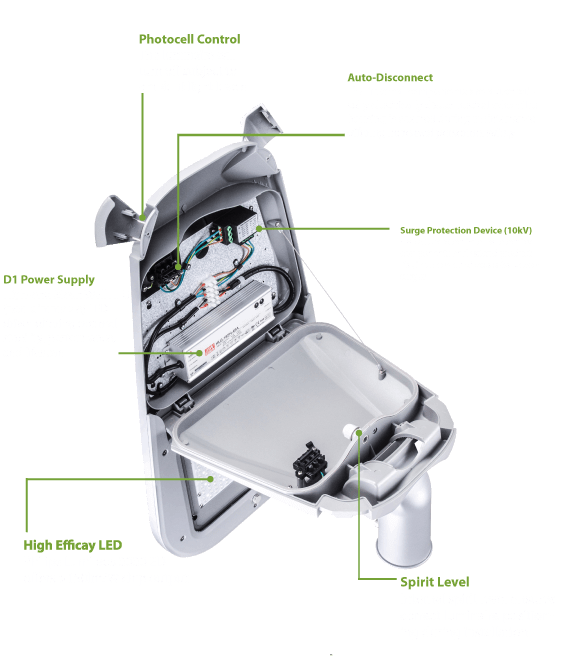

Anderson Special Features2

TYPICAL

APPLICATIONS

  • Car parks
  • residential areas
  • education campuses
  • security
