emergency

eliott

series

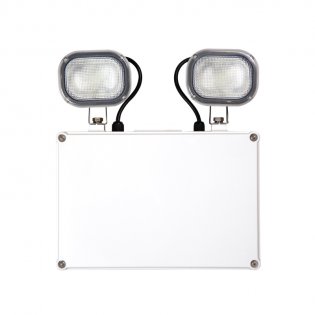

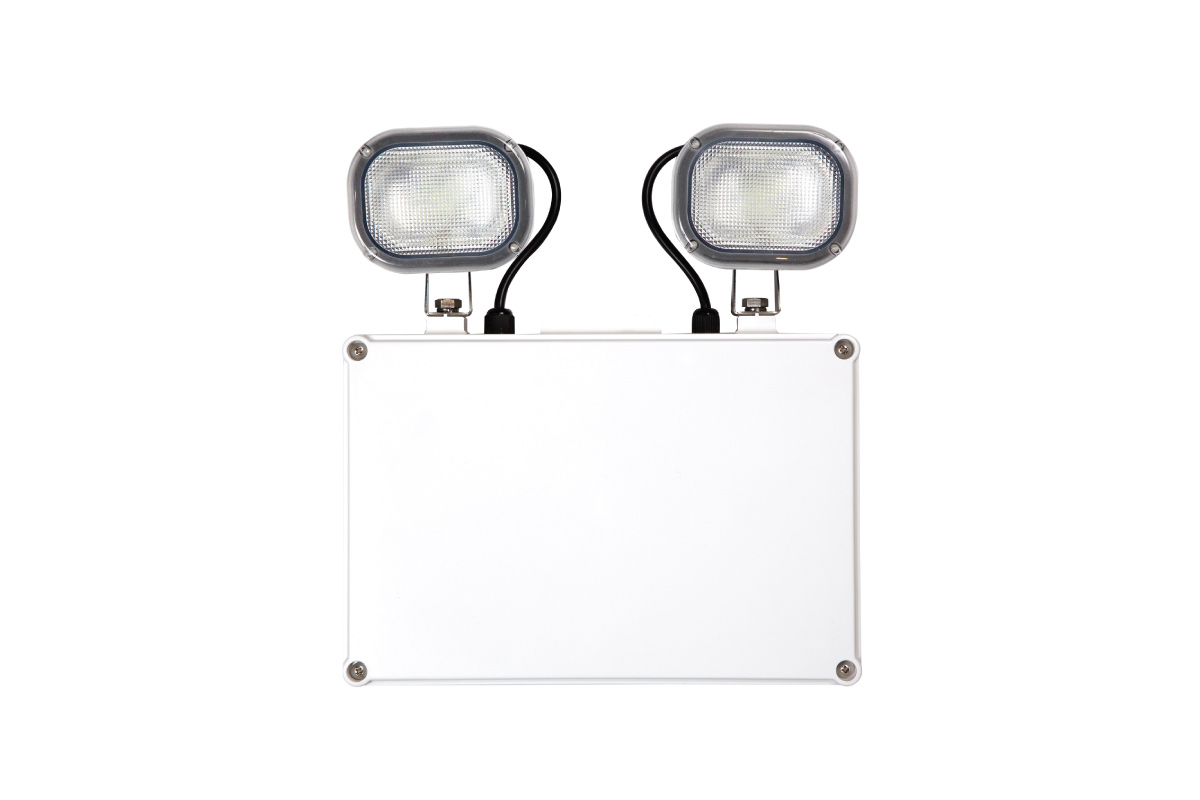

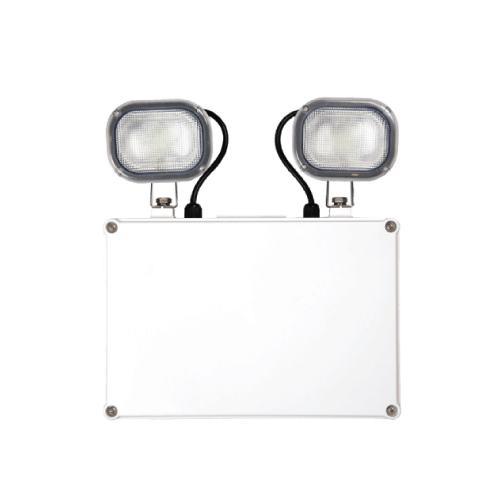

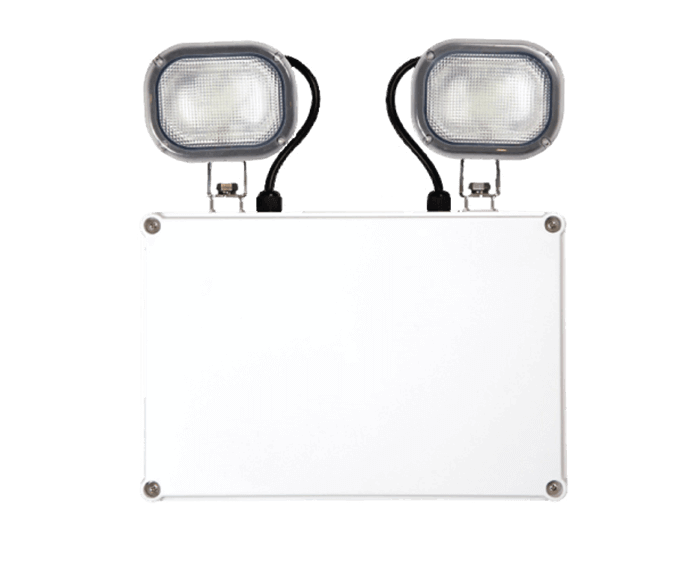

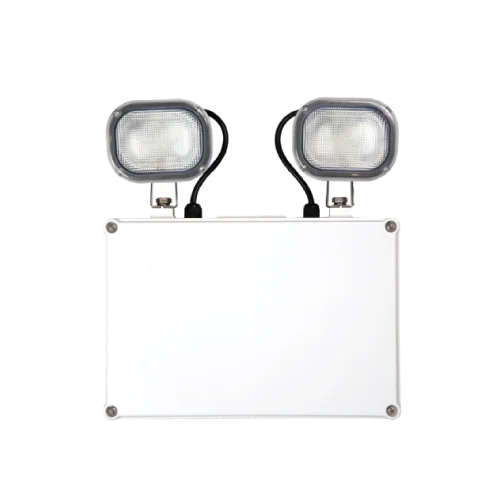

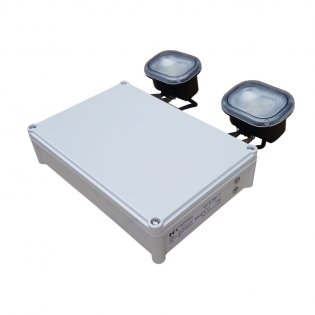

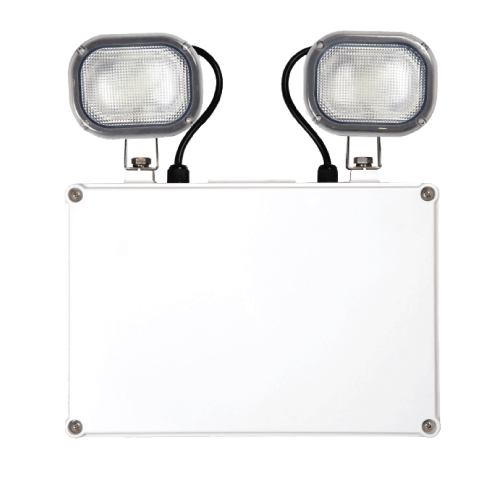

LED Emergency Twin Spots

DALI SELF-TEST VERSIONS AVAILABLE WITH THE 6W UNIT. EACH HEAD AVAILABLE IN 2W OR 4W

Ce3yearsIp65Temp 35cLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

MOQs may apply: please contact our office.

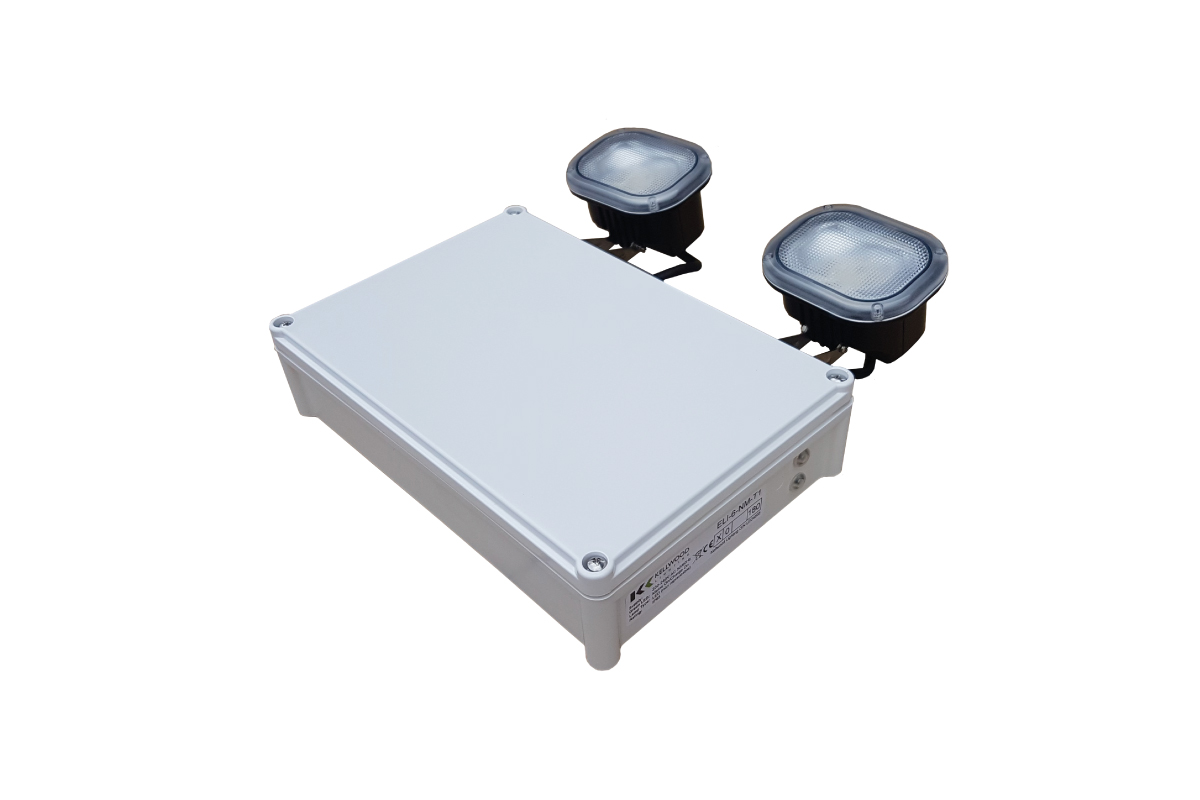

Within our range of LED Emergency Lighting, the Eliott Series is an LED twin spot emergency light, designed to supersede traditional 3hr non-maintained emergency "frog eye" luminaires.

It is typically used in industrial lighting applications, for emergency lighting in sports and leisure buildings and in retail park applications; the luminaire includes a factory fitted waterproof gasket giving the product a high IP65 ingress protection rating. It features adjustable heads (2W or 3W each) and is available in remote test or DALI self-test versions.

At Kellwood Lighting we would be delighted to help you find the best light fitting for your project. You can enquire about this specific product via the link below. Alternatively feel free to speak to one of our team here on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
Lens OpacityClear Striped
Environmental
Ingress RatingIP65
Ambient Usage Tolerance-0° to 35°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Deep Discharge Protection (DDP)Yes
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesWall Mount
Miscellaneous AccessoriesN/A
  • 4W or 6W
  • Wall Mount
  • Directional LED Heads
  • Deep Discharge Protection
  • NiCd Batteries
  • Non-Maintained Operation (4W & 6W)
  • DALI Self-Test (6W)
  • Simple Installation
  • Cost-Effective Solution

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance

Performance Summary
Series CodeELI
Duration3 Hours
Test-TypeRemote-Test or DALI Self-Test
OperationNon-Maintained
Power4W or 6W (2x2W or 2x3W Heads)

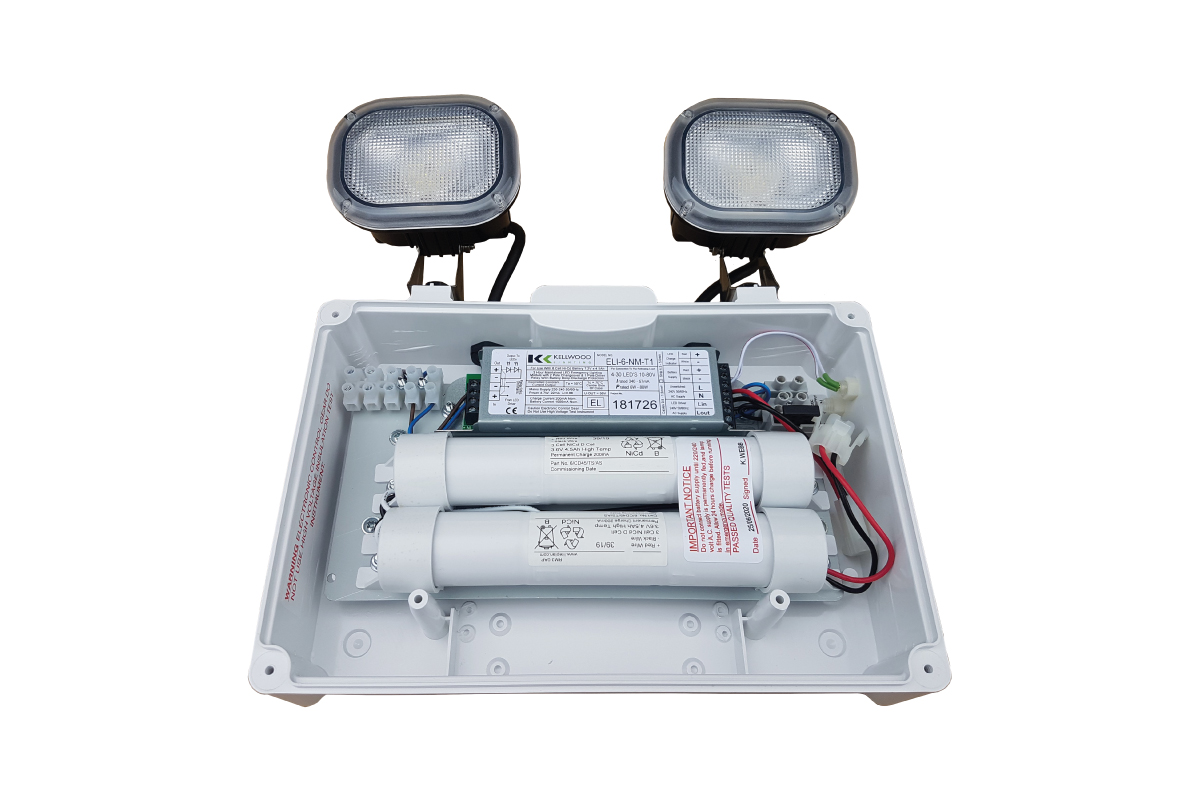

Battery9.6V 2.2Ah NiCd or 7.2V 4.5Ah NiCd
Warranty3 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

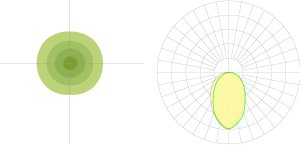

Eliott Series Photometrics

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Emergency light designed for

PURPOSE

Often used in conjunction with our Ewing Series Illuminated Emergency Exit Signage which can be recessed or surface mounted the Eliott series has been designed to be surface mounted and can provide a very cost effective emergency lighting solution for large areas.

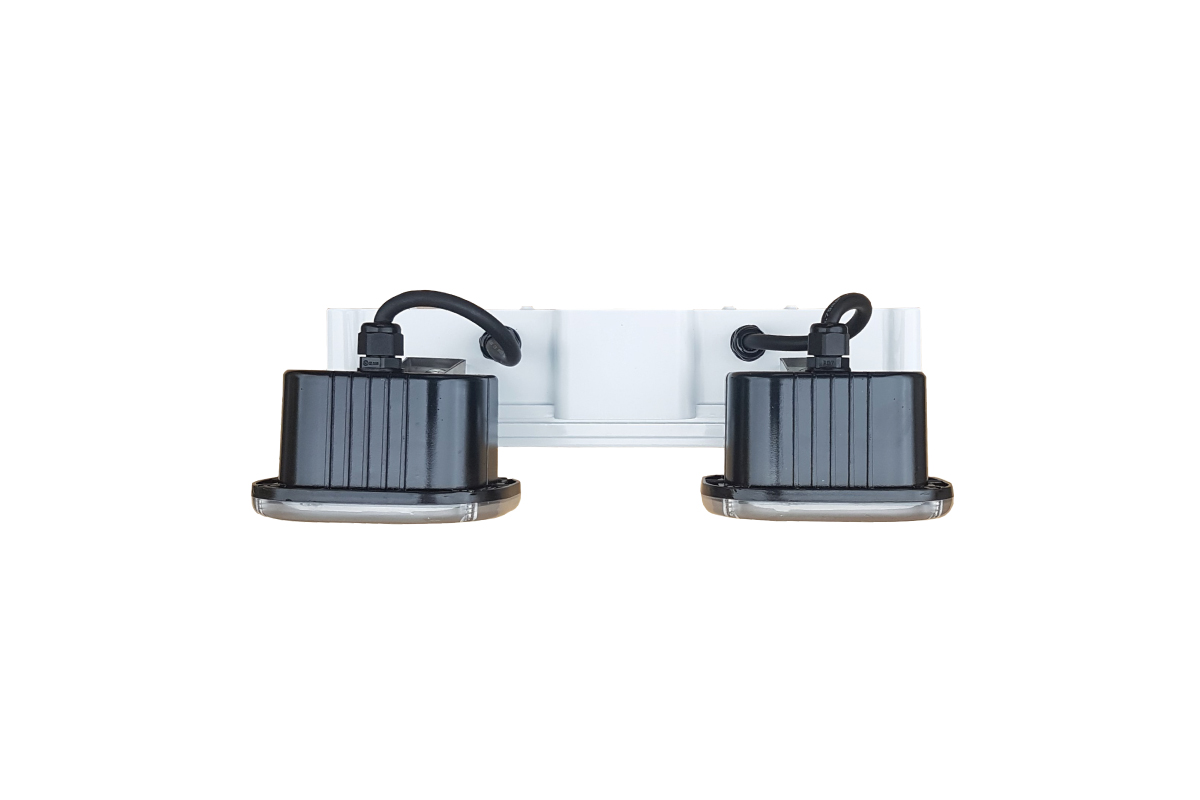

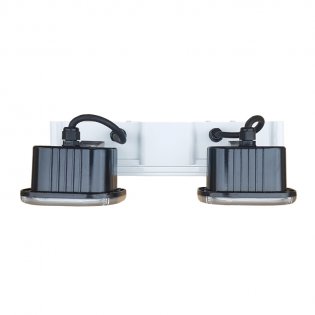

Each twin spot emergency light can either be fixed directly to walls or mounted individually and back-to-back on suspended plates mid room. This allows for complete open area coverage with ease, while minimising wiring points and installation costs. Photometrics (IES files) are available for individual emergency spots, allowing a very flexible design approach.

TYPICAL

APPLICATIONS

  • Factories
  • BIG BOX RETAIL
  • Sports Halls
  • Storage Areas
  • Hangars
