Low profile Emergency bulkhead
Erskine
Series
IP65 3W emergency luminaire, available in switchable maintained/non-maintained or DALI self-test

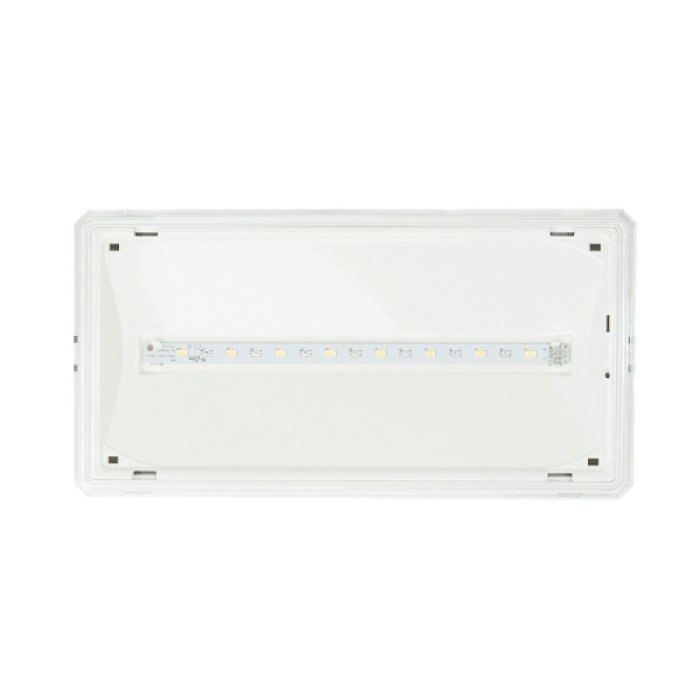

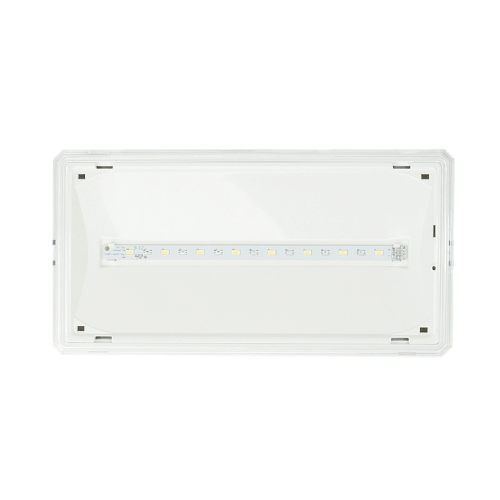

The Erskine Series is a compact, surface-mounted emergency bulkhead light designed for discreet installation. It has a high lumen output, and is available with an optional integrated driver, supporting 3-hour non-maintained or 3-hour maintained operation modes.
Powered by dependable lithium iron phosphate (LiFePO₄) batteries, the Erskine ensures long-term performance with low maintenance costs. Its durable polycarbonate construction and IP65 rating make it suitable for a variety of environments.
Optional ISO-standard adhesive legends and DALI-2 compatibility enable seamless adaptation between general emergency lighting and emergency exit signage, while ensuring integration with a wide range of control systems.
At Kellwood Light we are here to help you find the best product for your project. You can enquire about the Erskine series via the link below. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.
| Series Code | ERS |
|---|---|
| Duration | 3 Hours |
| Test-Type | Remote-Test, DALI Self-Test |
| Operation | Maintained or Non-Maintained |
| Power | 3W |
| Battery | 6.4V 3.0Ah LiFePO4 Cells |
| Warranty | 4 Years |

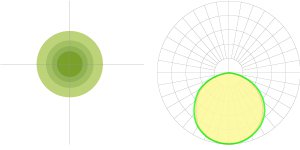

LIGHT DISTRIBUTION OPTIONS
Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.
A discreet, modern polycarbonate housing (IP65 rated) makes the Erskine Series suitable for a wide range of internal and external environments. Key features include:
Contemporary Design for Versatile Applications: A discreet, modern polycarbonate housing (IP65 rated) makes the Erskine Series suitable for a wide range of internal and external environments.
Automatic or Remote Testing Options: Available with Remote Test or DALI Self-Test functionality, the Erskine Series supports traditional manual testing, autonomous operation, or seamless integration with emergency lighting monitoring systems.
Effortless Installation: Surface mountable on walls or ceilings, reducing installation complexity and minimising inventory needs.
Fewer Fittings, Consistent Compliance: High efficacy LEDs and a translucent polycarbonate cover deliver 350 lumens for 3 hours, ensuring compliant emergency light levels with fewer luminaires.
Low Maintenance, Long Life: Uses LiFePO₄ battery cells with integrated Deep Discharge Protection (DDP) for extended lifespan and reduced maintenance costs.

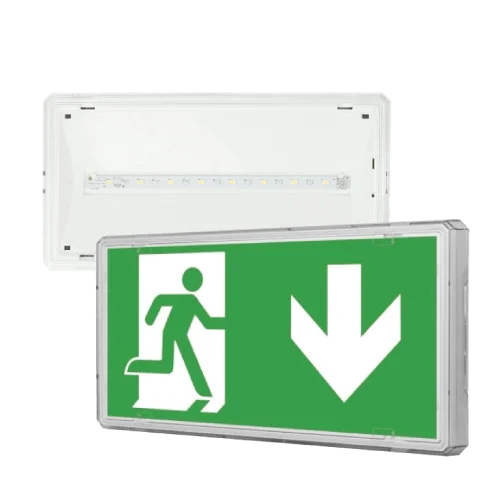

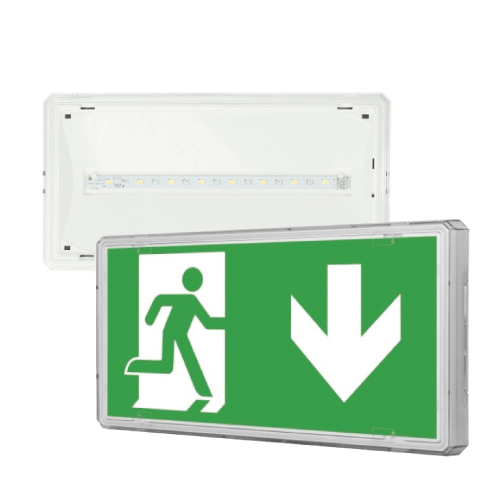

Flexible Signage Conversion: Optional ISO standard adhesive exit legends enable quick conversion from an emergency light to a compliant exit sign.
Specifications
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.
| Chip, Brand & Model | Samsung |
|---|---|
| Light Emission | Direct |
| Lens Opacity | Clear |
| Ingress Rating | IP65 |
|---|---|
| Ambient Usage Tolerance | -0° to 25°C |
| Input Voltage | 220-240VAC |
|---|---|
| Input Frequency (VAC) | 50-60Hz |
| Deep Discharge Protection (DDP) | Yes |
| Recharge Period | 12 Hours |
| Battery Current Limit | 1000mA |
| Charge Current | Dual Rate Charge 0-400mA |
| Electrical Connection | Terminal Block |
|---|---|
| Fixture Primary Materials | Polycarbonate |
| Lens(es) Material | UV Stabilised Polycarbonate |
| Mounting Styles | Surface Mount, Recessed (Wall or Ceiling), Pendant (Ceiling) |
|---|---|
| Miscellaneous Accessories | Adhesive Legend Kit: Arrow Up, Down, Left, Right |
Standards
CE
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
