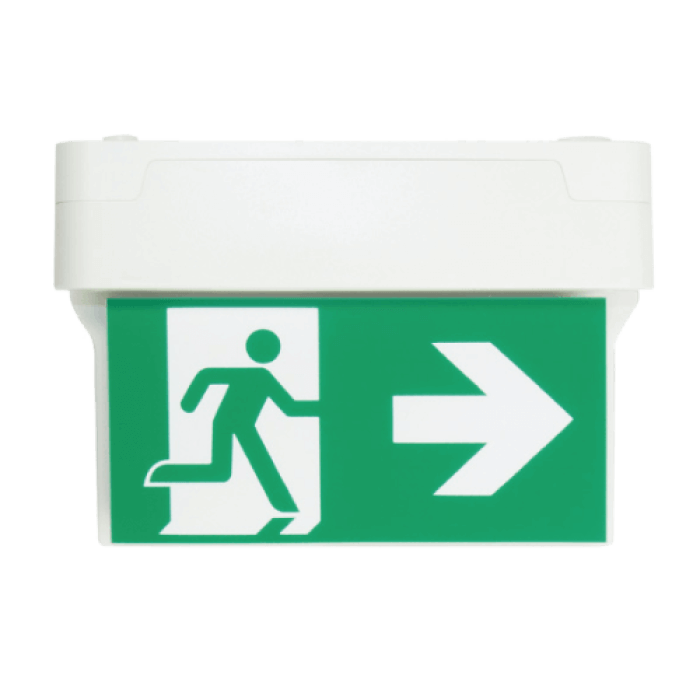

Double Sided LED Emergency Fire Exit Sign

DOUBLE SIDED EXIT SIGN. AVAILABLE IN SWITCHABLE MAINTAINED/NON-MAINTAINED OR DALI SELF-TEST

Ce3yearsEmergencyLedLifepo4
  • Technical Brochure
  • Packaging & Delivery

Key difference: surface or suspension mount version

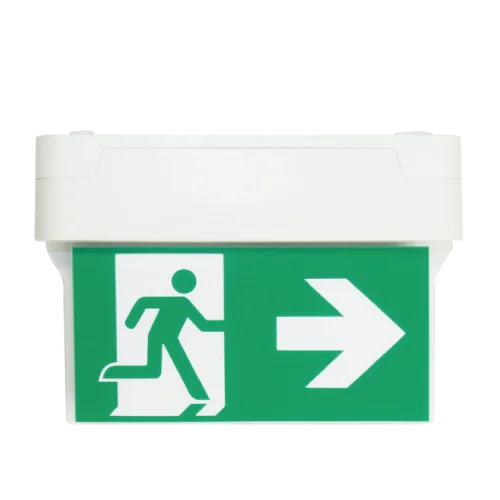

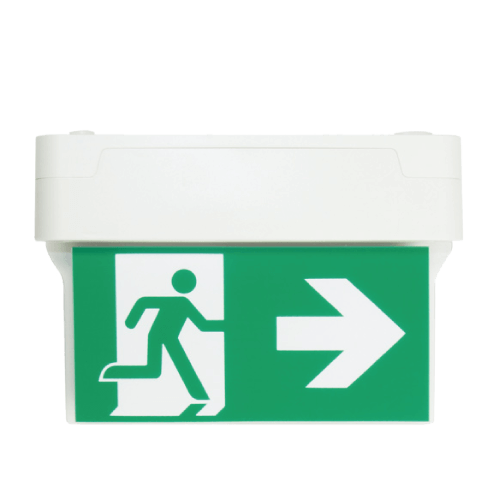

The Ewing Series is a slimline double sided LED Exit Sign bulkhead luminaire suitable for recessed or surface mounting. Lithium Iron Phosphate Batteries provide long term reliability while the Samsung LED light sources allow for a 25m viewing distance.

Our team is here to help you find the best emergency lighting for your project. You can enquire about the Ewing double sided exit sign via the "Request a Quote" link. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSamsung
Light EmissionDirect
Lens OpacityN/A - Emergency Legend Plate
Environmental
Ingress RatingIP41
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Deep Discharge Protection (DDP)Yes
Recharge Period12 Hours
Battery Current Limit700mA, 350mA
Charge Current0-400mA Float, 0-150mA Float
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialPolycarbonate, Plexi Glass
Options/Accessories
Mounting StylesSurface Mount
  • 2W / 3W
  • Surface mounting
  • White Polycarbonate body
  • Translucent Polycarbonate Cover
  • Extra Long Life LiFePO4 cells
  • Ingress Protection Rating - IP41
  • 25m viewing distance
  • ISO legends as standard
  • DDP (Deep Discharge Protection)
  • Samsung LEDs

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

  • Technical Brochure
  • Packaging & Delivery

Key difference: recess mount version

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelSamsung
Light EmissionDirect
Lens OpacityN/A - Emergency Legend Plate
Environmental
Ingress RatingIP41
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Deep Discharge Protection (DDP)Yes
Recharge Period12 Hours
Battery Current Limit700mA, 350mA
Charge Current0-400mA Float, 0-150mA Float
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialPolycarbonate, Plexi Glass
Options/Accessories
Mounting StylesRecessed Mount
  • 2W / 3W
  • Recessed mount
  • White Polycarbonate body
  • Translucent Polycarbonate Cover
  • Extra Long Life LiFePO4 cells
  • Ingress Protection Rating - IP41
  • 25m viewing distance
  • ISO legends as standard
  • DDP (Deep Discharge Protection)
  • Samsung LEDs

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeEWI
Duration3 Hours
Test-TypeRemote-Test or DALI Self-Test
MountingSurface or Recessed
OperationMaintained or Non-Maintained
Power2W or 3W
Battery6.4V 2.0Ah LiFePO4 Cells or 9.6V 1.5Ah LiFePO4 Cells
Warranty3 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

Emergency light designed for

PURPOSE

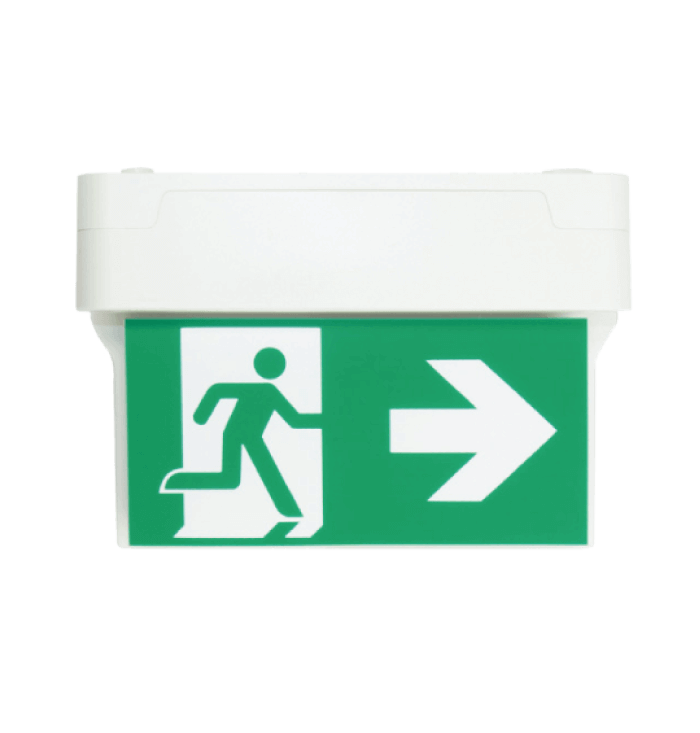

The Ewing Series are available in Up, Down, Left and Right directional arrow variants. A variety of switching options provide additional flexibility, making the Ewing Series a great choice for the majority of double sided exit sign applications.

TYPICAL

APPLICATIONS

  • Offices
  • Schools
  • Hotels
  • Retail
