emergency

ENNIS
SERIES

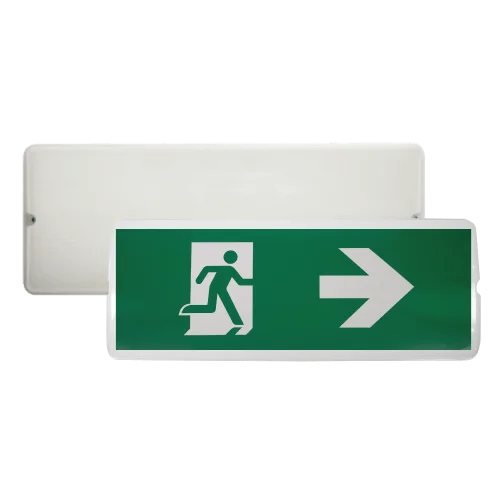

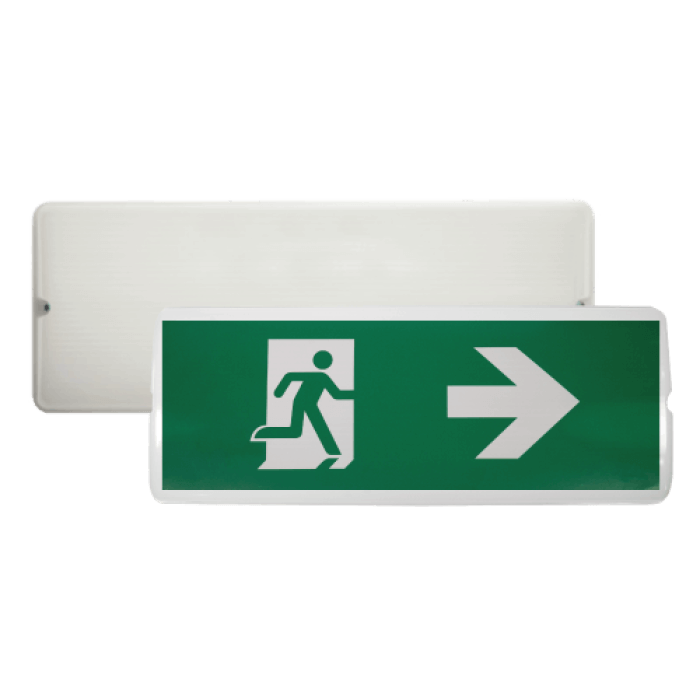

High Output LED Emergency Bulkhead Light

HIGH OUTPUT EMERGENCY BULKHEAD, PROVIDES 950LM IN MAINS AND 650LM IN EMERGENCY MODE

Ce3yearsIp65EmergencyLed
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

The powerful, high output Ennis series bulkheads are designed to for high mounting heights and to allow for a reduction in fitting quantities, providing reduced installation and maintenance costs.

Our team is here to help you find the best emergency lighting fittings for your project. You can enquire about the Ennis series via the on-page link. Alternatively feel free to speak to a member of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip, Brand & ModelHelvar LS-282-840
Light EmissionDirect
CCT4000K
Asymmetric Light Distribution125x117°
Lens OpacityDiffuser With High LOR
Environmental
Ingress RatingIP65
Ambient Usage Tolerance-0° to 25°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesSurface Mount
Miscellaneous Accessories

Adhesive Legend Kit: Arrow Up, Down, Left, Right. Semi Recessing Kit

  • 6W
  • IP65 Ingress Protection
  • Standard and DALI Self-Test Options Available
  • 950 Lumen in Mains Operation
  • 650 Lumen in Emergency Operation
  • Suitable for High Ceilings
  • Special Diffuser with High LOR

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeENN
Duration3 Hours
Test-TypeRemote-Test, DALI Self-Test
OperationMaintained or Non-Maintained
Power3W or 6W
Warranty3 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

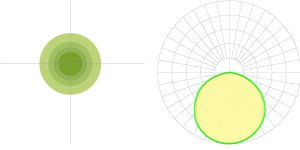

Ennis Series Photometrics

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

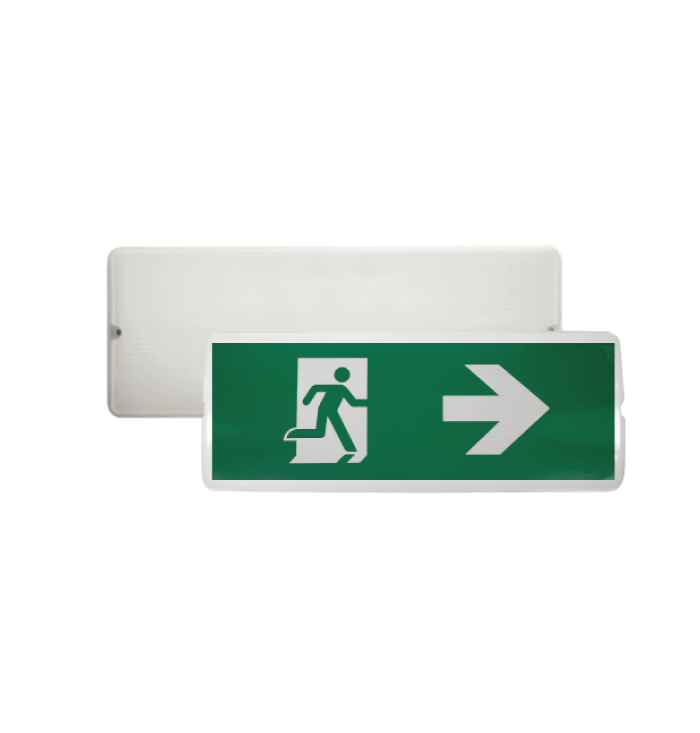

Emergency light designed for

PURPOSE

The IP65 rating ensures suitability in wet locations, while the optional semi-recessing kit and variety of switching options make the Ennis series an excellent choice for most applications. With an output of 650 lumens, there are few rival products which can offer a more cost effective emergency lighting solution.

TYPICAL

APPLICATIONS

  • Factories
  • BIG BOX RETAIL
  • Sports Halls
  • Storage Areas
  • Hangars
