Emergency Wireless Lighting Controls

Ennis 2 Series - Wireless

A multi-purpose led emergency bulkhead and exit light with integrated DALI self-test, wireless monitoring, and status reporting

Wireless Emergency Lighting Control - Ennis Series
Ce3yearsIp65WirelessEmergencyLifepo4

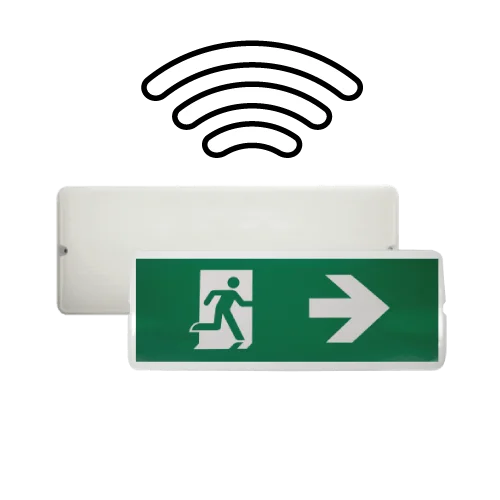

The Ennis 2 Wireless is a high-performance, multi-purpose LED emergency bulkhead, suitable for escape-route lighting, general emergency area illumination, and use as an illuminated exit sign.

Its status can be monitored via any desktop or laptop, with automatic fault notifications emailed directly to management for efficient maintenance.

The unit features DALI self-testing, including scheduled monthly function tests to assess battery discharge current, and an annual 3-hour duration test to evaluate both battery voltage and discharge performance.

Long-term cost efficiency is achieved through the use of robust LiFePO4 batteries and a durable IP65-rated housing.

Kellwood Lighting is here to help you find the best product for your project. You can enquire about this Wireless Monitoring Emergency Bulkhead via the link above the Performance Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series CodeENN2-LIP
Compatible WithWireless Pro - Wireless Lighting Controls
Power Options2W, 5W
Communication868MHz
Compliant StandardsBS 5266 (paired with DALI Self-test)
Input230VAC 50Hz permanent supply
Warranty5 Years (component), 4 Years (LiFePO4 Battery)
Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

WHAT's GREAT ABOUT remote monitoring of emergency lights?

  • Automate - Emergency light testing is automated and meets your compliance obligations
  • Alerts - receive email alerts to your computer or mobile phone when faults (e.g. from batteries, loss of mains power, and fitting failures) are automatically identified
  • Save Time - Labour-intensive manual testing is a thing of the past. You no longer need to walk round site, recording the status of potentially hundreds of fittings
  • Wireless reporting - a simple "smart" solution that doesn't require secondary communication wiring
  • Digital Records - reports are logged for future reference
  • Scalable - add additional emergency fittings to the system at any time
  • Compatible - the wireless system can also be used for energy monitoring and control of general lighting

Other parts that can be included in the wireless control system include:

Collator

Wireless nodes

Wireless Photocells

Tablet and Software

Wireless Scene Switches

Wireless Occupancy Sensors

Wireless Lighting Controls Emergency Monitoring Diagram

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
CCT4000K
Asymmetric Light Distribution125x117°
Lens OpacityDiffuser With High LOR
Environmental
Ingress RatingIP65
Ambient Usage Tolerance-0° to 25°C
Electrical
Input Voltage230-240VAC
Input Frequency (VAC)50-60Hz
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesSurface Mount
Miscellaneous Accessories

Adhesive Legend Kit: Arrow Up, Down, Left, Right. Semi Recessing Kit

Standards

Wireless Control System:

  • Radio Equipment Directive, RED 2014/53/EU
  • Luminaire Standard BS EN 60598
  • Emergency functionality in accordance with BS 5266
