Grain store variant
Stanford
Series
Designed for environments requiring glass-free components, and protection against potentially combustible dusts

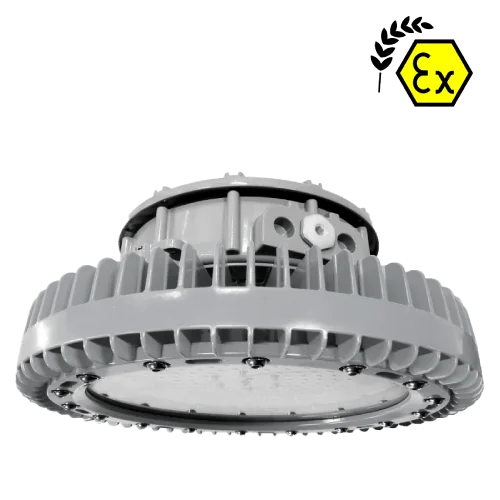

Kellwood's Stanford Series Grain Store variant is a purpose-built lighting solution for Zone 1 and Zone 2 hazardous areas, ideal for grain stores, food production, and other dust-prone environments where glass-free, explosion-proof lighting is essential.
With its robust polycarbonate diffuser and aluminium enclosure, the grain store variant removes the risk of glass contamination while delivering reliable performance in demanding conditions. Available in Standard and 3hr Maintained Emergency versions, it supports safety during both routine operations and unexpected power loss.
Offering a range of lumen outputs, optics, and mounting options, the Stanford Grain Store variant adapts easily to both targeted tasks and wide-area lighting. Wire-in-wire-out configurations, optional DALI dimming, and integrated emergency gear ensure a flexible, cost-effective solution for hazardous sites requiring dependable, compliant illumination.
The team at Kellwood Lighting is here to help you find the best product for your project. You can enquire about the Stanford Series Light via the link above the Performance Summary table. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.
| Series Code | STA |
|---|---|
| Nominal Power (Range) | 30W - 300W |
| Diffuser Material | Polycarbonate (PC Variant) |
| Luminaire Efficacy @ CRI>70 5700K CCT | 118 - 128lm/W |
| Lumen Output @ CRI>70 5700K CCT | 3840 - 35,400lm |
| Key Options | 3hr Remote-Test Maintained Emergency |
| Primary Conformities | CE, RoHS, ATEX |
| Warranty | 5 Years |
Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

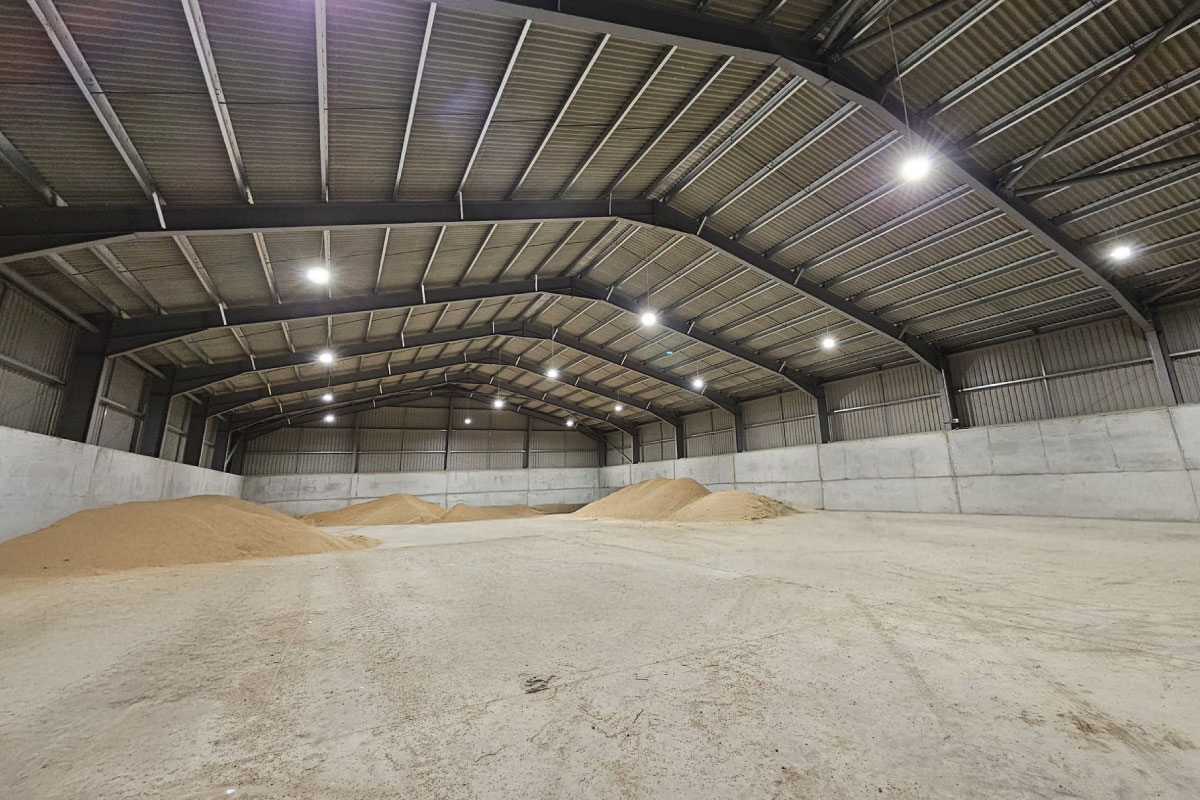

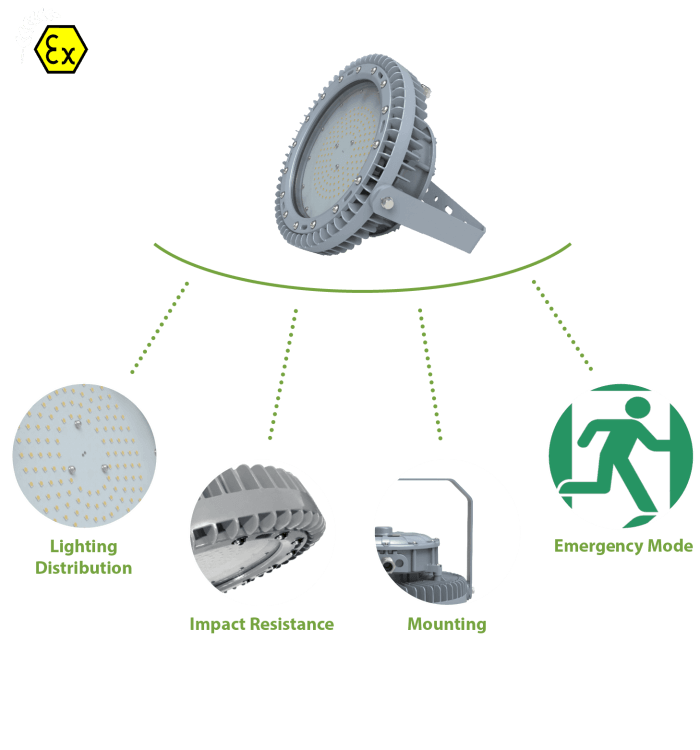

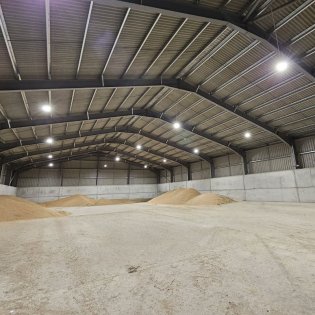

The Stanford Series Grain Store variant has a selection of features that are of particular benefit for grain store, flour mills, and general food production applications:
Glass-Free Construction: Built without glass components, reducing the risk of shattering and contamination in food-sensitive environments like grain storage areas.
Ingress Protection (IP) Rating: Its high, IP66 rating, ensures dust-tight performance, essential in grain storage areas and mills.
Corrosion-Resistant Housing: Constructed from robust, corrosion-resistant materials such as stainless steel or coated aluminium.
ATEX/IECEx Certified: Certified for use in hazardous areas (Zone 2/22), making it compliant with safety regulations for explosive dust atmospheres typically present in grain handling facilities.
Impact-Resistant Diffuser: Utilises polycarbonate, shatter-resistant materials for the diffuser, ensuring durability and safety during operation or maintenance.
Optimised Light Distribution: Designed to provide wide and even light coverage, reducing shadows and improving visibility across large open areas like grain bins or silos.
Integrated Emergency: Optional Remote-test 3hr emergency provides back-up illumination in the event of a power failure, allowing operatives to safely exit the area.
Specifications
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads Section) for further details.
| Series Code | STA |
|---|---|
| Nominal Power (Range) | 30W - 300W |
| Luminaire Efficacy @ CRI>70 5700K CCT | 118 - 128lm/W |
| Lumen Output @ CRI>70 5700K CCT | 3840 - 35,400lm |
| Key Options | 3hr Remote-Test Maintained Emergency |
| Primary Conformities | CE, RoHS, ATEX |
| Warranty | 5 Years |
| Chip Brand, & Model | Lumiled Luxeon 5050 |
|---|---|
| Light Emission | Direct |
| CCT | 5700K, (3000K, 4000K, 5000K optional) |
| CRI | ≥70, (≥80 optional) |
| Symmetric Light Distribution | 60°, 80°, 120° |
| Asymmetric Light Distribution | N/A |
| Lens Opacity | Clear |
| Ingress Rating | IP66 |
|---|---|
| Impact Resistance | IK10 |
| Ambient Usage Tolerance | -40° to 55°C |
| Ambient Humidity Tolerance | 0% to 90% RH |
| Ambient Storage Tolerance | -20° to 55°C |
| Input Voltage | 100-277VAC, 220-240VAC (Emergency) |
|---|---|
| Input Frequency (VAC) | 50-60Hz |
| Power Factor | >0.98 |
| THD | <10% |
| Surge Protection | 5KV |
| Electrical Connection | Internal Terminal Block - Wire-in-wire-out optional |
|---|---|
| Inlet Thread | M25, M20, NPT3/4" |
| Fixture Primary Materials | Aluminium Alloy |
| Fixture Finish | Powder Coated |
| Lens(es) Material | UV Stabilised Polycarbonate |
| Dimming Options | Non-dimming, DALI |
|---|---|
| Built-in Controls | N/A |
| Mounting Styles | Universal Bracket, Eyebolt, Slip-fit |
|---|---|
| Available Product Colours | Grey (RAL7040) |
| Miscellaneous Accessories | Wire Guard |
Standards
ATEX: Ex II 2 G D
IECEx
UL version available
CE
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
