Explosion Proof Emergency Exit Lights

HAZARDOUS AREA EMERGENCY EXIT LIGHTING SYSTEMS

Explosion Proof Emergency Exit Luminaire
CeEx GrIecex GrZone 1 21 Gr3yearsIk08Ip66Temp 55cEmergencyLed Gr
Shepherd Image

SHE2

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureShepherd Data Sheet
  • Packaging & DeliveryShepherd Series Weights and Packaging

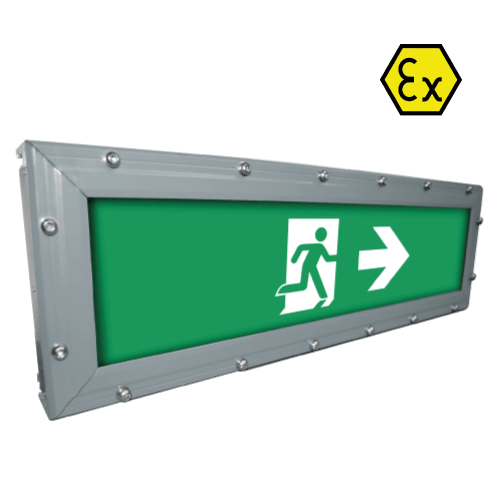

The Shepherd Series is an ATEX rated, emergency exit sign, available in a variety of emergency exit legends and configurable options. The linear luminaire offers an 18W maintained output and a 5W emergency output from battery operation.

A high Ingress Protection rating of IP66 means that the Shepherd Series is suitable for both internal and external areas.

The team at Kellwood Lighting is here to help you find the best product for your project. You can enquire about the Shepherd Series via the on page link. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelJufei LED Chips
Light EmissionDirect
CCT6000K
CRI>80
Symmetric Light Distribution150°
Asymmetric Light DistributionN/A
Lens OpacityClear With Emergency Graphic
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08
Ambient Usage Tolerance-20° to 55°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-20° to 55°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Twin Eyebolts, Twin Pipe Clamp Mount, Stanchion Mount, Clamp Mount
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous Accessories3Hr Emergency (Remote-Testing) ArrowDown/Arrow Left/Arrow Right
Emergency
Duration3 Hours
Testing TypeRemote-Test
OperationMaintained, Non-Maintained
Output Wattage5W
HousingInternal
Battery TypeNiCd
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years
  • ATEX Rated - Group II, Zone I
  • 18W Power (Mains) and 5W (Emergency)
  • L70 ≥54,000 Hours
  • A variety of emergency exit legends & configurable options
  • IP66

ATEX: Ex II 2 G D

  • Ex d eb op is IIB T6 Gb
  • Ex tb op is IIIC T80°C Db

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeSHE2
Nominal Power18W (Mains) / 5W (Emergency)
Emergency LegendsArrow Left, Arrow Right, Arrow Down, EXIT
Lumen Maintenance (TM21 Calculated)L80B10 >73,000 hours
Primary ConformitiesATEX, CE
Warranty3 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

ATEX Lights designed for

PURPOSE

Created for hazardous areas, the Shepherd series is an Atex rated linear luminaire, aesthetically similar to the Stephenson Series, however, specifically designed for fire escapes and emergency exits.

  1. Emergency & Legend: It has integrated 3 hours 5W maintained emergency with remote testing. There is three available legend options ; arrow left, arrow right, arrow down each having the emergency running man symbol.
  2. Impact Resistance: Risk of early failure is mitigated by using a shock and vibration-resistant copper free aluminium alloy housing capable of withstanding an impact of up to 10 Joules (IK10). A tempered glass lens provides impact resistance up to IK08. An optional stainless steel guard increases this to IK10.
  3. Mounting: The Shepherd Series is available with a range of mounting options; twin surface mounting brackets, twin eye bolts, twin pipe clamp mount, stachion mount, clamp mount.
  4. Thermal Performance: Careful PCB design ensures effective heat dissipation from the LED chips. This lowers the junction temperatures, improving lumen maintenance and increasing the lifespan to the product.

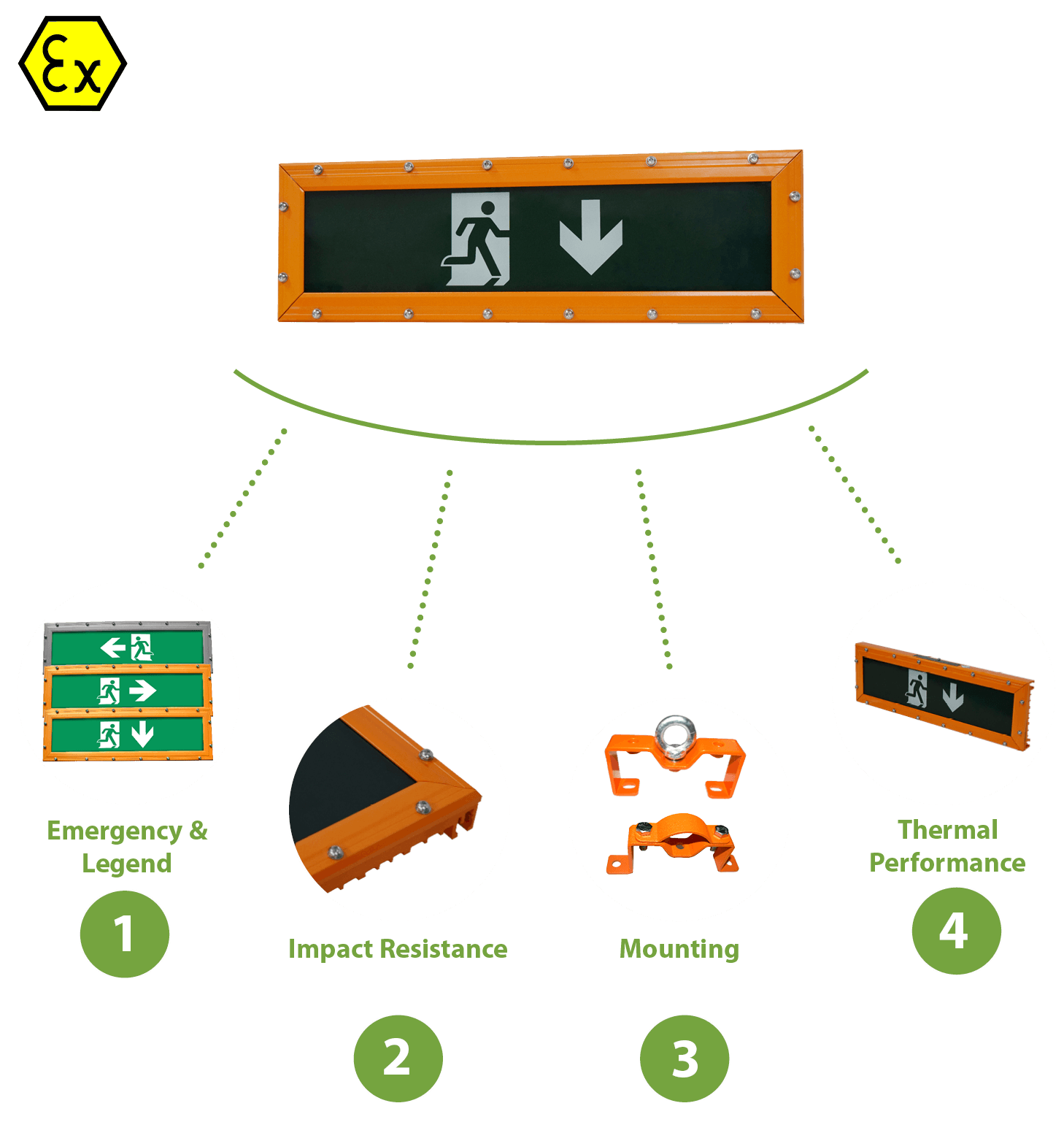

Shepherd Series Explosion Prrof Emergency Bulkhead Designed for Purpose Diagram

TYPICAL

APPLICATIONS

  • Petroleum Industry
  • Petrochemical Industry
  • Power Generation
  • Power Transmission
  • Machine Manufacturing
  • pump rooms
