Hazardous Area

ATEX Zone 1

Stirling 3 Portable
Series

Portable Explosion Proof Task Lights

Hazardous Area Portable ATEX Lighting System

Portable Explosion Proof Lamp
CeEx 2Iecex GrZone 1 21 Gr130lm5yearsIk10 Ik08Ip66Temp 55cLed Gr

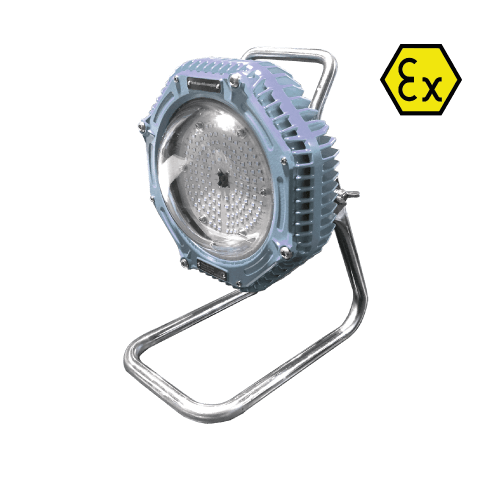

The Stirling Series Portable luminaires are ATEX-certified floodlights, work lights, and task lights. Supplied with a power-cable and compatible with a range of input voltages, they provide a high-powered lighting solution, allowing for continuous operation without the need for battery charging.

It is designed to be a robust, yet light-weight solution for illuminating internal & external jobs in the oil & gas, petrochemical, marine & offshore, & heavy industry sectors.

The floor stand allows for quick positioning on any horizontal flat surface, while the magnetic stand gives alternative flexibility for quick attachment to any ferrous surface, e.g. ship hulls, or structural steelwork.

Our team is here to help you find the best product for your project. You can enquire about this specific product via the link above. Alternatively feel free to speak to one of our lighting design team on +44 (0)1387 255816.

Performance Summary
Series CodeSTI3 (Portable)
Nominal Power (Range)30W, 45W, or 60W
Luminaire Efficacy @ CRI>70 5700K CCT127 to 128 lm/W
Lumen Output @ CRI>70 5700K CCT3,810 to 7,680 lm
Lumen Maintenance (TM21 Calculated)L80B10 ≥86,468 hours
Primary ConformitiesATEX, IECEx, CE
Warranty5 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

H1V1-15° H1V1-15°
H5V5-80° H5V5-80°
H6V6-120° H6V6-120°

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

ATEX Lights designed for
PURPOSE

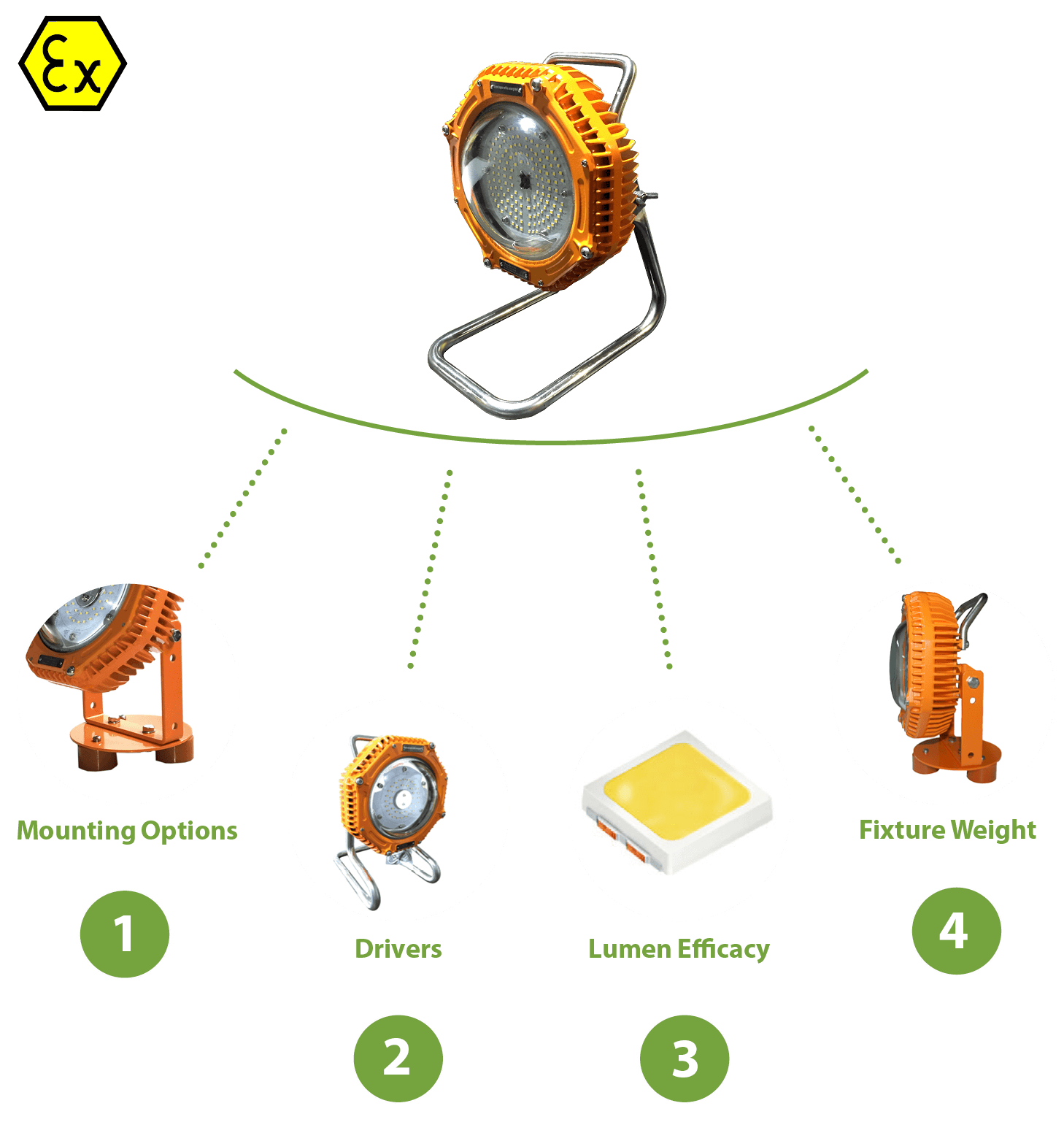

The Stirling 3 Portable's design goal was to offer users flexible mounting and excellent illumination levels in a convenient, lightweight package. Two stand types, floor and magnetic, are available.

  1. Two Mounting Options - The Stirling 3 Portable offers Floor Stand and Magnetic Stand. It is able to rotate 270° within the cradle, easy illumination for nearly any temporary usage.
  2. Input Voltage - Three options are available for input voltage to give you flexibility in each area of work. Input Voltage Ranges: 100-277VAC, 24-48VAC/DC, 10-30VDC.
  3. Lumen Performance - The Luxeon 5050 LED chip delivers 130lm/W and a stable lumen-maintenance of L70 ≥120,000 Hours. Combing this efficacy with three power options (30W to 60W), ensures that one of the three output options will meet the application requirements.
  4. Fixture Weight - At a low 5kg fixture weight ensures it is a portable light fitting in hazardous area environments.
  5. Zone 1 - Designed to meet the stricter Zone 1 requirements, ensures the light can be used for either Zone 1 or Zone 2.

NOTE: The Stirling Portable is also available with a rechargeable, integrated battery - see also our Sinclair Series. For low-bay and pendant applications - see Stirling and Stirling 3 Series.

Stirling 2 Portable Series Designed for Purpose

TYPICAL

APPLICATIONS

  • Task Lighting
  • Work Lighting
  • Maintenance Lighting
Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelLuxeon 5050
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70
Symmetric Light Distribution15°, 80°, 120°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-277VAC, 24-48VAC/DC, 10-30VDC - see data sheet
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection6KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, NPT3/4"
Fixture Primary MaterialsAluminium Alloy, Stainless Steel
Fixture FinishPowder Coated, Electrolytically Polished Steel
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesFloor Stand, Magnetic Stand
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard

Standards

ATEX: Ex II 2 G D

  • Ex db op is IIC T* Gb
  • Ex tb op is IIIC T* Db

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
