ATEX ZONE 1

SINCLAIR
SERIES

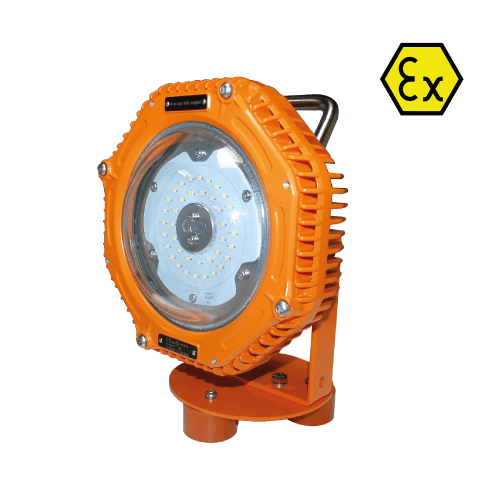

Hazardous Area Battery Powered Work Light

EXPLOSION PROOF PORTABLE ATEX LIGHTING SYSTEMS

CeEx GrZone 1 21 Gr125lm3yearsIk10 Ik08Ip66Temp 55cLed Gr
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

A portable battery powered work light for use in explosive environments; the ideal companion for regular maintenance work in the oil and gas, petro-chemical and marine sectors. The Sinclair Series is powered through a rechargeable battery and can be mounted on an adjustable magnetic floor stand or surface mounted.

Kellwood Lighting is here to help you find the best product for your project. You can enquire about the Sinclair Series Portable Task Light product via the link on this page. Alternatively feel free to speak to one of our Lighting Design Consultants team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelOsram Duris S5
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>80*
Symmetric Light Distribution120°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-20° to 55°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-20° to 55°C
Electrical
Driver TypeBattery 18VDC
Input Voltage100-277VAC
Running Time (Fully Charged)10 Hours
Charging Time (Fully Discharged)7 Hours
Lifespan (Charge Cycles)500
Input Frequency (VAC)50-60Hz
Power Factor>0.90
THD<10%
Physical/Mechanical
Fixture Primary MaterialsAluminium Alloy, Stainless Steel
Fixture FinishPowder Coated, Electrolytically Polished Steel
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesFloor Stand, Magnetic Stand
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • ATEX Rated - Group 2, Zone 2
  • 10W
  • L70B50 ≥54,000 hours
  • 2no. Mounting Options
  • IP66

ATEX: Ex II 2 G D

  • Ex db op is IIC T* Gb
  • Ex tb op is IIIC T* Db

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeSIN2
Nominal Power (Range)10W
Luminaire Efficacy @ CRI>70 6000K CCT126 lm/W
Lumen Output @ CRI>70 6000K CCT1,260 lumens
Lumen Maintenance (TM21 Calculated)L80B10 ≥76,685 hours
Primary ConformitiesATEX, CE
Warranty3 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

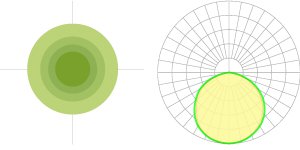

LIGHT DISTRIBUTION OPTIONS

120° Optic

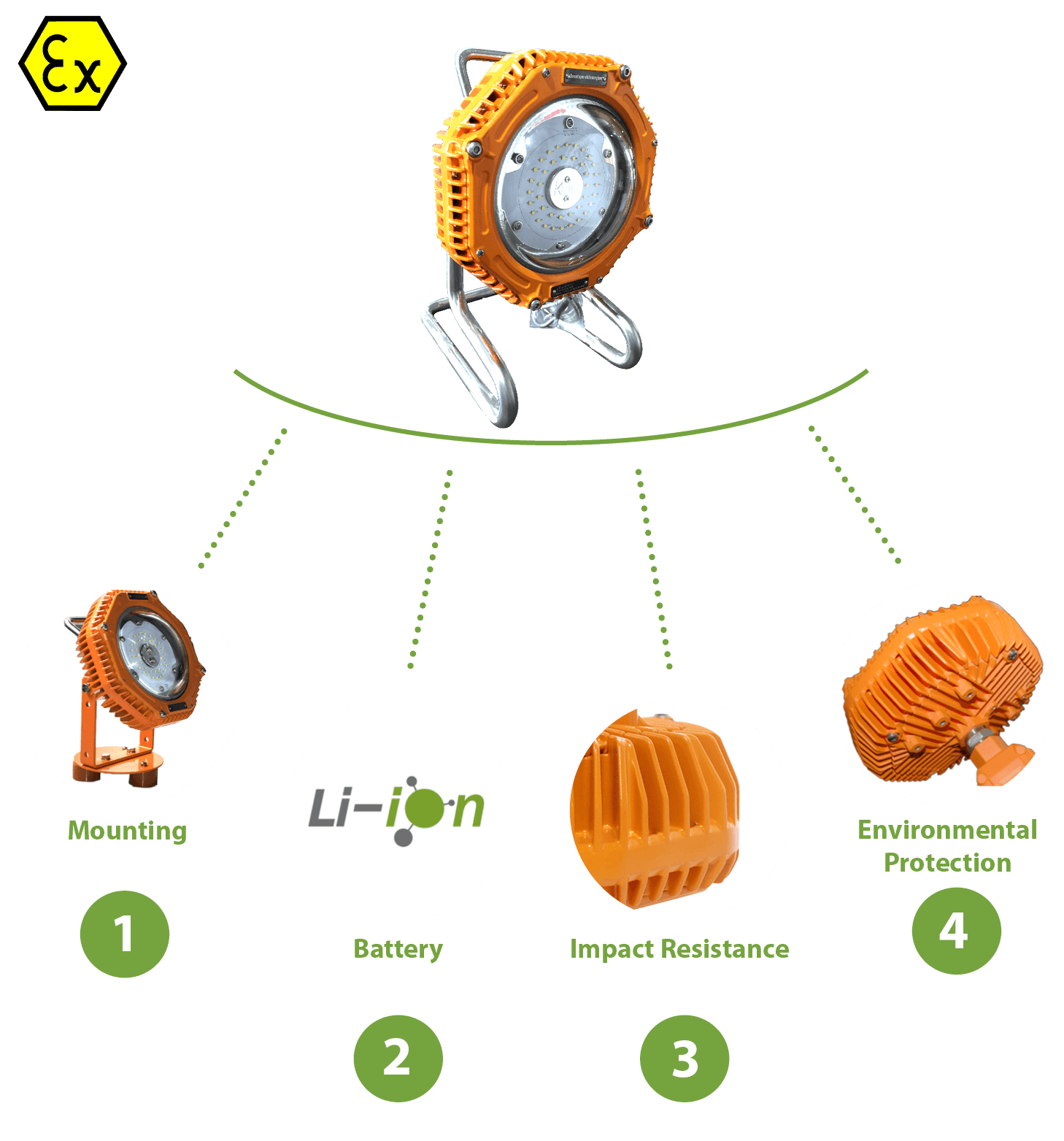

ATEX Lights designed for

PURPOSE

The Sinclair Series has a 10W output and is supplied with 130lm/W high efficacy Seoul LED chips. This combination provides a portable lighting product with an 1300 lumen output. High ingress and impact protection (IK10 with the optional wire guard accessory) ensures product suitability across multiple work areas.

  1. Mounting: The Sinclair Series offers two mounting options; floor stand and magnetic stand (magnetic stand attaches securely to ferrous materials >3mm thick).
  2. Battery: The Lithium-Ion battery has a charging time of 7 hours, and provides a running time of 10 hours, allowing for daily use.

  3. Impact Resistance: Risk of early failure is significantly lowered through the use of a shock and vibration-resistant tempered glass lens and industrial aluminium alloy housing. Which can withstand up to 20J of force.

  4. Environmental Protection: It offers IP66 protection by using aluminium body that comes with corrosion resistant paint finish - Salt spray testing reports available.

TYPICAL

APPLICATIONS

  • Task Lighting
  • Work Lighting
  • Maintenance Lighting
