Explosion Proof LED Low Bay Lighting

HAZARDOUS AREA LOW BAY LIGHT SYSTEMS

Explosion Proof Low Bay LEDs
CeEx 2Iecex GrZone 1 21 Gr135lm5yearsIk10 Ik08Ip66Temp 55cLed Gr

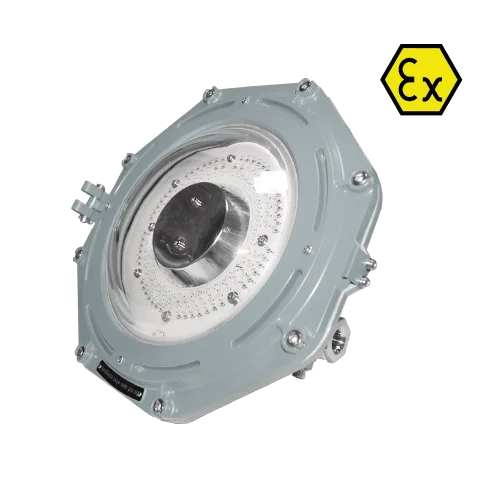

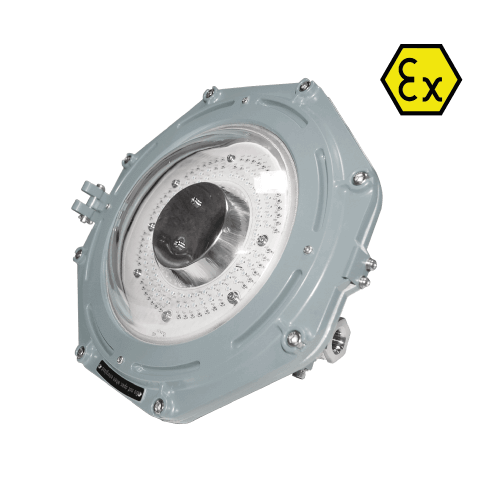

Rankine 1 Series Product Shot

RAN1

Rankine 2 Atex Lighting

RAN2

Rankine 3 Series Data Sheet

RAN3

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureRankine 1 Series Data Sheet
  • Photometric FilesRanking 1 Series Photometric Files
  • Packaging & DeliveryRankine 1 Series Weights and Packaging

Key difference: Available with 15° optic

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelOsram Oslon SSL
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light Distribution15°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesSurface Mount Brackets, Eyebolts, Pipe Clamp Mount, Stanchion Mount
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • Low Power, Explosion Proof LED Low Bay
  • ATEX Rated - Group II, Zone 1
  • Series Power Range 30W - 60W
  • L70 120,000 Hours
  • 1no. Installation Options

ATEX: Ex II 2 G D

  • Ex d IIB T5 or T6 Gb
  • Ex t IIIC T95°C or T80°C Db IP66

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureRankine 2 Series Data Sheets
  • Photometric FilesRankine 2 Series Photometric Files
  • Packaging & DeliveryRankine 2 Series Packaging & Delivery

Key difference: Available with 120° optic

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelOsram Duris S5
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light Distribution120°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishEpoxy Powder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesSurface Mount Brackets, Eyebolts, Pipe Clamp Mount, Stanchion Mount
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • Low Power, Explosion Proof LED Low Bay
  • ATEX Rated - Group II, Zone 1
  • Series Power Range 30W - 60W
  • L70 120,000 Hours
  • 4no. Installation Options

ATEX: Ex II 2 G D

  • Ex d IIB T5 or T6 Gb
  • Ex t IIIC T95°C or T80°C Db IP66

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

DownloadsOverviewKey FeaturesSpecificationsStandards
  • Technical BrochureRankine 3 Series Data Sheet
  • Photometric FilesRankine 3 Series Photometric Files
  • Packaging & DeliveryRankine 3 Series Packaging and Delievery

Key difference: available with symmetric optics only

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelLuxeon 5050
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light Distribution15°, 80°
Asymmetric Light DistributionN/A
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesSurface Mount Brackets, Eyebolts, Pipe Clamp Mount, Stanchion Mount
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • Low Power, Explosion Proof LED Low Bay
  • ATEX Rated - Group II, Zone 1
  • Series Power Range 30W - 60W
  • L70 120,000 Hours
  • 4no. Installation Options

ATEX: Ex II 2 G D

  • Ex d IIB T5 or T6 Gb
  • Ex t IIIC T95°C or T80°C Db IP66

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeRANRAN2RAN3
Nominal Power (Range)30W or 60W30W or 60W30W or 60W
Luminaire Efficacy @ CRI>70 5700K CCT99 to 103 lm/W132 to 139 lm/W125 to 130 lm/W
Lumen Output @ CRI>70 5700K CCT3,090 to 5,940 lm3,960 to 7,920 lm3,900 to 7,500 lm
Lumen Maintenance (TM21 Calculated)L80B10 ≥70,000 hoursL80B10 ≥76,685 hoursL80B10 ≥86,468 hours
Primary ConformitiesATEX, IECEx, CEATEX, IECEx, CEATEX, IECEx, CE
Warranty5 Years5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

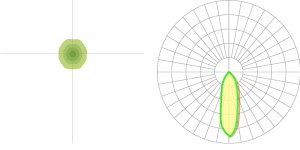

S-15º S-15º

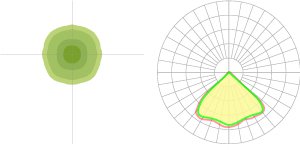

B-80º B-80º
120º Optic 120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

ATEX lights designed FOR
PURPOSE

Mounting options including surface mounting brackets, universal mounting bracket, hook loop, and pipe clamp. High temperature tolerance range of -40°C to 55°C makes the Rankine Series a great choice for working environments with temperature extremes.

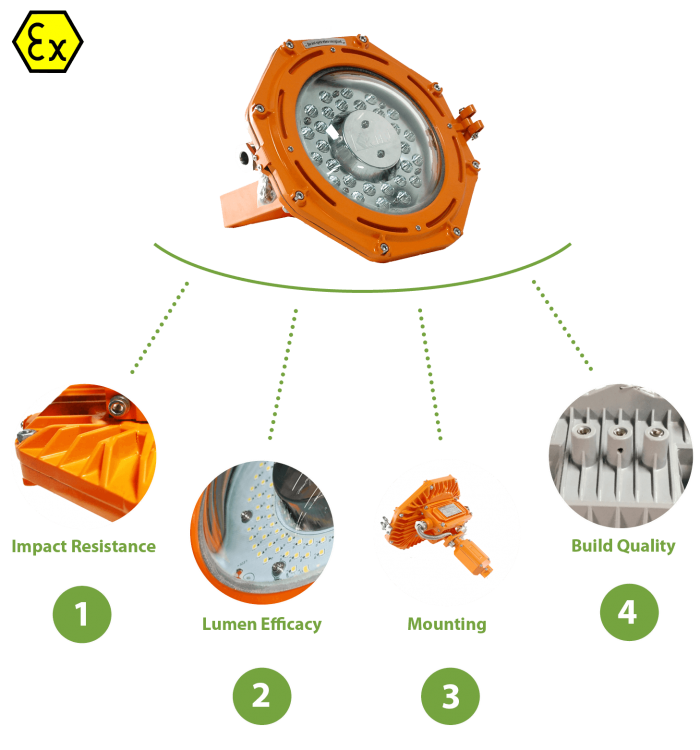

  1. Impact Resistance - Risk of early failure is significantly lowered through the use of a shock and vibration-resistant tempered glass lens and industrial copper free aluminium alloy housing. Which can withstand up to 20J of force.
  2. Lumen Efficacy - The Rankine Series is a low wattage hazardous area light fitting with a luminaire efficacy up to 139lm/W at CRI>70 and 5700K CCT.
  3. Mounting - The Rankine Series offers multiple mounting solutions:
    Eyebolt mounting (Eyebolt loop is designed to prevent it being screwed off through general use), Universal Bracket, Surface mount and Pipe clamp mount
  4. Build Quality - The terminal compartment is isolated from the LED light source, this is to ensure safety, easy connectivity and maintenance
Rankine Designed for Purpose Diagram

TYPICAL
APPLICATIONS


  • Petroleum Industry
  • Power Generation
  • Power Transmission
  • Machine Manufacturing
