ATEX ZONE 1

SUTHERLAND SERIES

Explosion Proof LED High Bay Lighting

HAZARDOUS AREA FLOODLIGHT SYSTEM

CeEx GrIecex GrZone 1 21 Gr130lmIk10 Ik08Ip66Temp 55cLed Gr
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Key difference: recommended if asymmetric optics are required, otherwise, consider Sutherland 2 or 3 Series

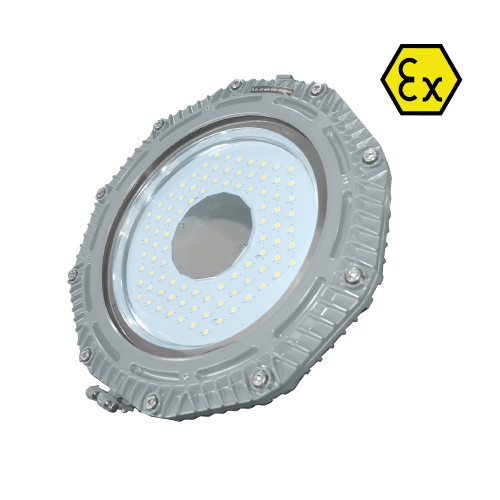

As one of our range of well-priced explosion proof lighting products, the group II, zone 1, Sutherland Series is an ATEX-certified light fitting, originally designed for high-install requirements.

Developed as lighting for hazardous locations, the Sutherland's value extends far beyond this basic application. 6 acute and wide-dispersion lens variants are available in symmetric and asymmetric configurations.

Here at Kellwood Lighting, our team is here to help you find the best light fittings for your project. You can enquire about the Sutherland Series via the link on the page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelOsram Oslon SSL
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light DistributionN/A
Asymmetric Light Distribution120x100° With Forward Throw
Lens OpacityClear, Polycarbonate Diffuser
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-277VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, G3/4", NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesSurface Mount Bracket, Slip Fit, Universal Bracket, Eye Bolt, In-Line Pipe Connector
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • ATEX Rated - Group II, Zone 1
  • Series Wattage Range 120W, 150W
  • L70 ≥120,000 Hours
  • 5no. Mounting Options
  • IP66

ATEX: Ex II 2 G D

  • Ex db eb IIB T6 or T5 Gb
  • Ex tb IIIC T80°C or T95°C Db

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Key difference: More efficient than Sutherland Series - available with symmetric optics only

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelLuxeon 5050
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 5700K
CRI>70, >80*
Symmetric Light Distribution15°, 40°, 60°, 80°, 120°
Asymmetric Light DistributionN/A
Lens OpacityClear, Polycarbonate Diffuser
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-277VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical
Electrical ConnectionTerminal Block
Inlet ThreadM25, G3/4", NPT3/4", M20
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesSurface Mount Bracket, Slip Fit, Universal Bracket, Eye Bolt, In-Line Pipe Connector
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • ATEX Rated - Group II, Zone 1
  • Series Wattage Range 120W, 150W
  • L70 ≥72,000 Hours
  • 5no. Mounting Options
  • IP66

ATEX: Ex II 2 G D

  • Ex db eb IIB T6 or T5 Gb
  • Ex tb IIIC T80°C or T95°C Db

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeSUTSUT3
Nominal Power (Range)120W to 150W120W to 150W
Luminaire Efficacy @ CRI>70 5700K CCT99 to 102 lm/W128 to 129 lm/W
Lumen Output @ CRI>70 5700K CCT12,276 to 14,850 lm15,360 to 19,350 lm
Lumen Maintenance (TM21 Calculated)L80B10 ≥70,000 hoursL80B10 ≥86,468 hours
Primary ConformitiesATEX, IECEx, CEATEX, IECEx, CE
Warranty5 Years5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

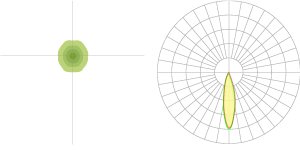

H1V1-15º

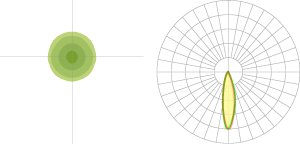

H3V3-40º

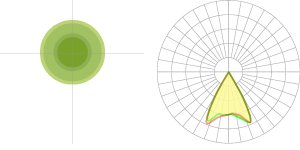

H4V4-60º

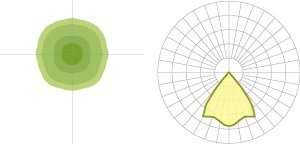

H5V5-80º

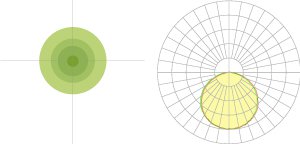

H6V6-120º

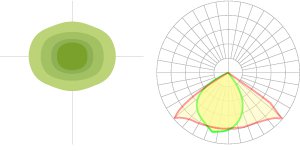

FW-110ºx120º

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

ATEX Lights designed for

PURPOSE

Ideal as lighting in the petrochemical industry but also suitable in animal feed warehouses and in engineering facilities, a stainless steel impact-grill is available for specification should the client be concerned by flying debris or mobile plant and equipment.

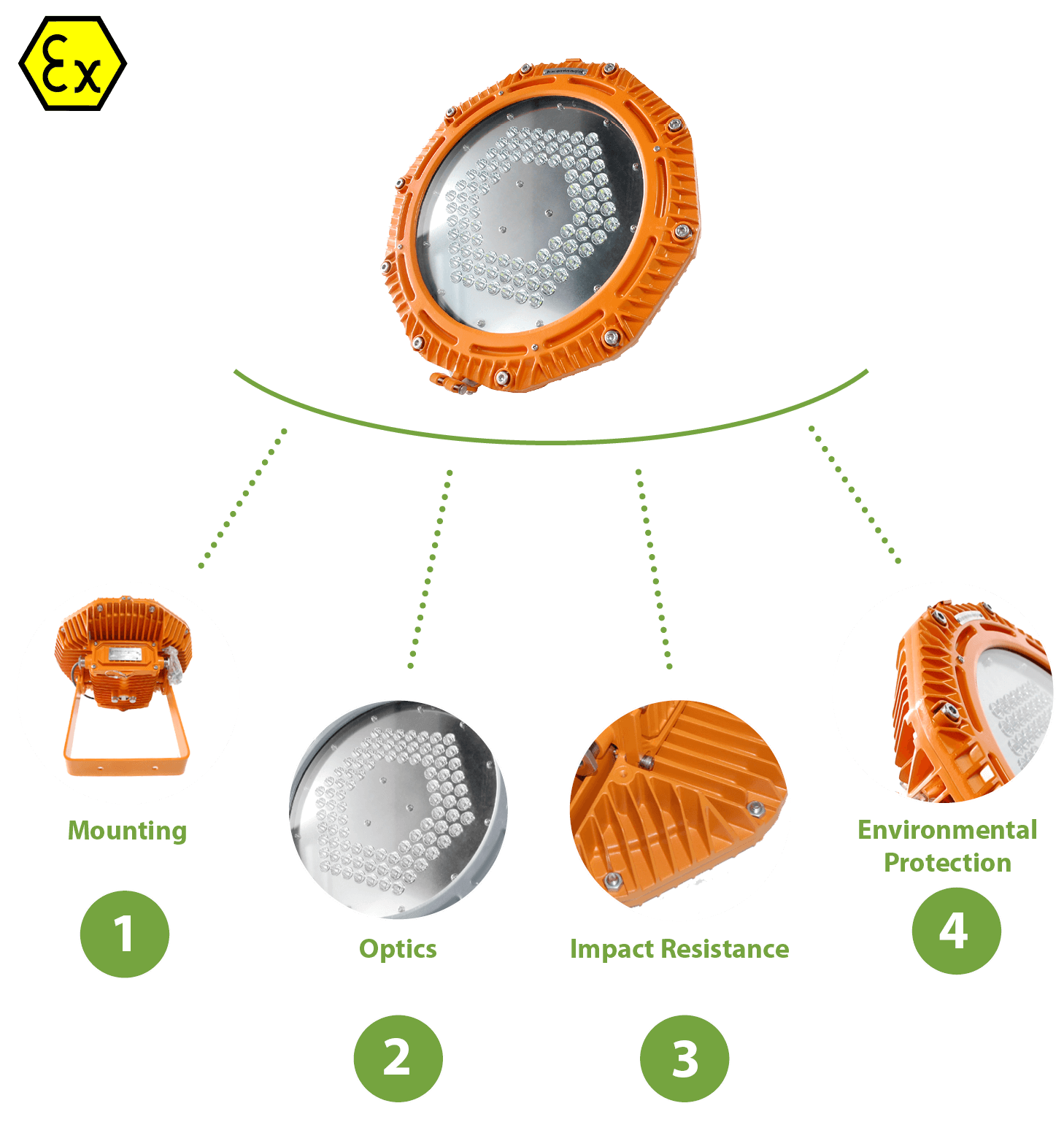

  1. Mounting: The Sutherland Series has 5 different installation options; universal bracket, surface mount bracket, eye bolt, in-line pipe connector and slip fit. These 5 separate mounting systems effortlessly widens its role to cover floodlighting and street lighting applications.
  2. Optics: There is 5 symmetric and a asymmetric optics offered across the Sutherland Series making it a versatile hazardous area light fitting.
  3. Impact Resistance: Risk of early failure is significantly lowered through the use of a shock and vibration-resistant tempered glass lens and industrial copper free aluminium alloy housing. Which can withstand up to 20J of force.
  4. Environmental Protection: It offers IP66 protection by using aluminium body that comes with corrosion resistant paint finish - Salt spray testing reports available.

TYPICAL

APPLICATIONS

  • Engineering Facilities
  • Petrochemical Zones
  • Petroleum Industry
  • Animal Feed Warehouses

Our lights are used by
