Leweston School

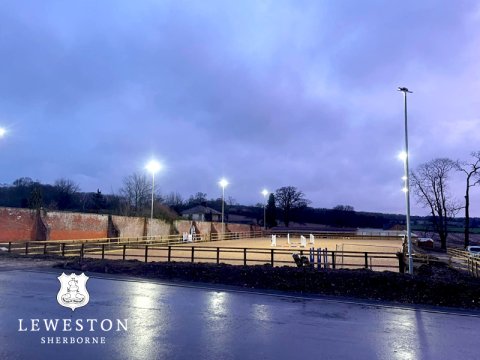

Kellwood Lighting designed and supplied the lighting to meet competition riding standards for Leweston School.
Sports Flood Light
Nicholson 2 Series
The Nicholson 2 Series LED sports flood lights have been developed to offer a comprehensive solution for commercial, semi-professional, and local club sports pitches and courts. Available in 400W to 1800W (up to 270,000lm), it is suitable for mid-to-high-level installation (e.g. >8m), and can deliver lux levels, uniformity, and low glare to meet Class 1, Class 2, and Class 3 standards.
The Nicholson 2 Series housing is designed to minimise weight, without compromising on thermal performance and longevity, maximising its potential for use on existing poles, masts, and brackets. On-board and remote driver options provide further flexibility for installation on existing infrastructure.
7no. optic variations and glare shields ensure high specifications can be achieved.
The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Nicholson 2 Series High Mast Sports Light via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816:
Series Code | NIC2 |
---|---|
Nominal Power (Range) | 400W to 1800W |
Luminaire Efficacy @ CRI>70 5000K CCT | 150lm/W |
Lumen Output @ CRI>70 5000K CCT | 60,000lm to 270,000lm |
Lumen Maintenance (TM21) | L80B50>118,000 hours |
Primary Conformities | CE, RoHS |
Warranty | 5 Years |
Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.
Specifications
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.
Chip Brand, & Model | Samsung 5050, Osram 3737 |
---|---|
Light Emission | Direct |
CCT | 5700K (3000K, 4000K optional) |
CRI | ≥70, (≥80, ≥90 optional) |
Symmetric Light Distribution | 23°, 30°, 45°, 60° |
Asymmetric Light Distribution | F1, F2, F3 Forward Throw |
Lens Opacity | Clear |
Ingress Rating | IP66 |
---|---|
Impact Resistance | IK08 |
Ambient Usage Tolerance | -30°C to 50°C |
Input Voltage | 220-240VAC |
---|---|
Driver Brand(s) | Done, Inventronics, US |
Input Frequency (VAC) | 220-240VAC |
Power Factor | >0.9 |
Electrical Connection | Terminal Block |
---|---|
Fixture Primary Materials | Aluminium Alloy |
Fixture Finish | Powder Coating |
Lens(es) Material | UV Stabilised Glass and Polycarbonate |
Dimming Options | DALI |
---|---|
Built-in Controls | Wireless Lighting Controls and Monitoring |
Mounting Styles | Universal Bracket |
---|---|
Available Product Colours | Black |
Miscellaneous Accessories | Glare Shield, Remote Driver Assembly |
Standards
CE
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
