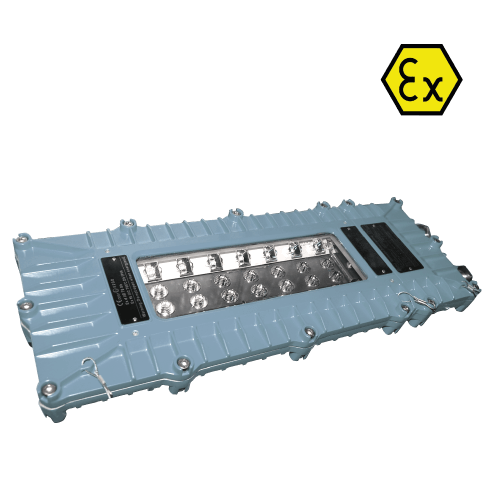

Explosion Proof ATEX Rated LED Bulkhead

HAZARDOUS AREA LIGHTING SYSTEM

CeEx GrIecex GrZone 1 21 Gr110lm5yearsIk10 Ik08Ip66Temp 55cLed Gr
  • Technical Brochure
  • Photometric Files
  • Packaging & Delivery

Used to provide lighting in hazardous areas, the Trevithick Series ATEX rated LED bulkhead lights fulfill a wide variety of project requirements. Typically, this series is used to facilitate staff circulation and congregation throughout a hazardous area or facility.

The Trevithick family's low-profile, clam-shell design is perhaps its most interesting design feature. Triple-hinged safety wiring and dual cable inlets allow efficient installation on site and easy long-term maintenance.

Our team is here to help you find the most appropriate led light fittings for your project. You can enquire about this ATEX rated LED bulkhead via the link on the page. Alternatively feel free to speak to one of our team at Kellwood Lighting on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters
Chip Brand, & ModelOsram Oslon SSL
Light EmissionDirect
CCT3000K*, 4000K, 5000K, 6000K
CRI>70, >82*
Symmetric Light DistributionN/A
Asymmetric Light Distribution160/120°
Lens OpacityClear
Environmental
Ingress RatingIP66
Impact ResistanceIK10/IK08 or IK10/IK10 - see data sheet
Ambient Usage Tolerance-40° to 55°C
Ambient Humidity Tolerance0% to 90% RH
Ambient Storage Tolerance-40° to 55°C
Electrical
Input Voltage100-240VAC
Input Frequency (VAC)50-60Hz
Power Factor>0.98
THD<10%
Surge Protection5KV
Physical/Mechanical

Dimensions (mm) / Weight

(Excl. Brackets/Accessories - see Weights and Packaging Sheet)

840mm x 180mm x 62mm / 4.7kg
Weight

4.7kg +

Electrical ConnectionTerminal Block
Inlet ThreadM25, G3/4", NPT3/4"
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated
Lens(es) MaterialTempered Glass
Dimming/Controls
Dimming OptionsN/A
Built-in ControlsN/A
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Twin Eyebolts, Twin Pipe Clamp Mount
Available Product ColoursOrange (RAL2011), Grey (RAL7040)
Miscellaneous AccessoriesWire Guard
  • ATEX Rated - Group II, Zone 1
  • Series Wattage Range 18W - 30W
  • L70 ≥ 120,000 Hours
  • 3no. Mounting Options
  • IP66

ATEX: Ex II 2 G D

  • Ex d IIB T6 Gb
  • Ex tb IIIC T80°C Db IP66

IECEx

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeTRE
Nominal Power (Range)18W or 30W
Luminaire Efficacy @ CRI>70 5000K CCT105 to 114 lm/W
Lumen Output @ CRI>70 5000K CCT1,890 to 3,420 lumens
Lumen Maintenance (TM21 Calculated)L80B10 >70,000 hours
Primary ConformitiesATEX, IECEx, CE
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

120º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

ATEX Lights designed for

PURPOSE

IECEx and ATEX rated by third-party, European testing houses and featuring a market-dominating product lifetime, this explosion proof hazardous area bulkhead is an energy efficient, minimal maintenance, hazardous area lighting solution that is ideally suited to deliver cost effective lighting in petrochemical industry, power transmission & power generation that can be relied upon for years to come.

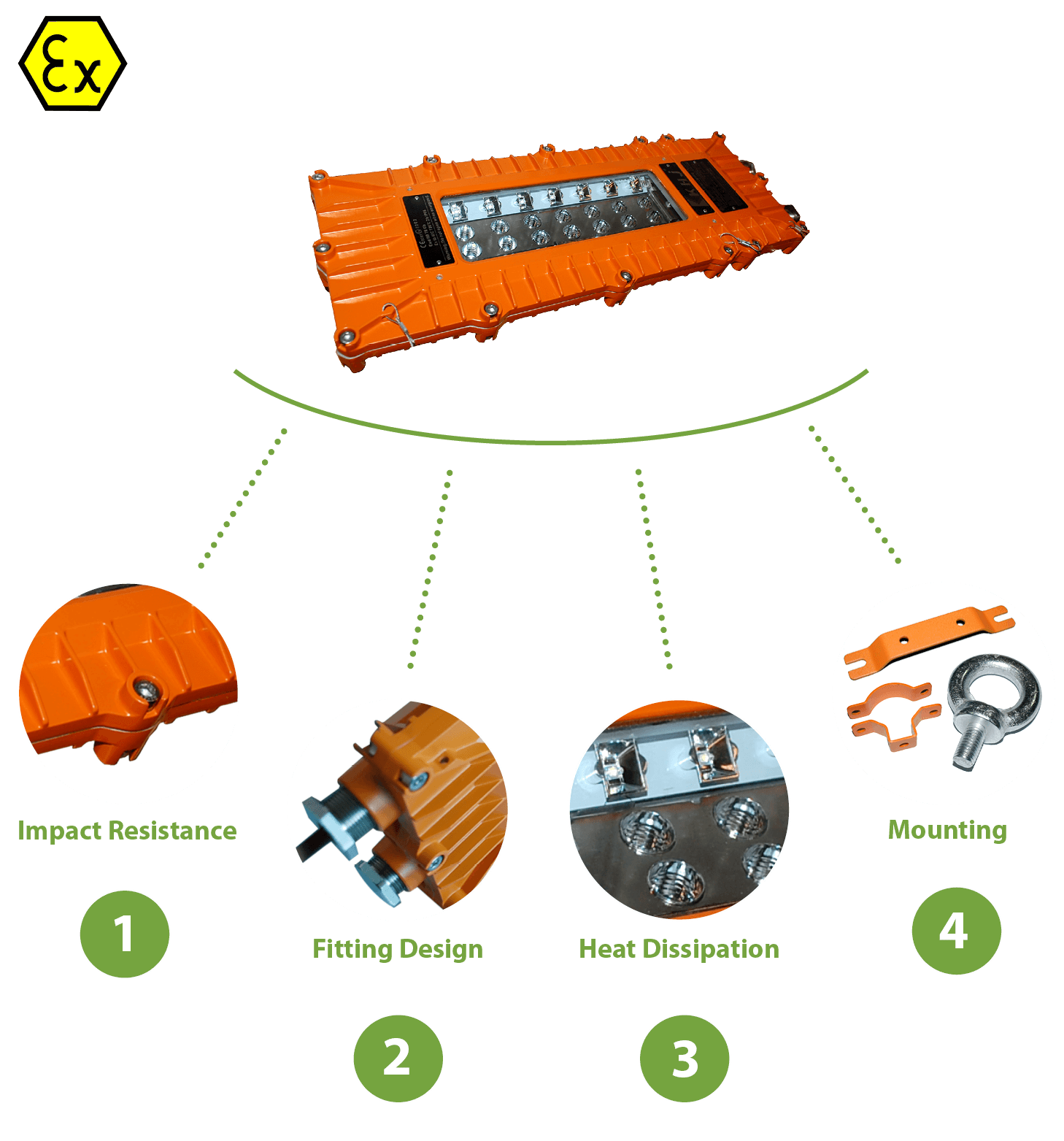

  1. Impact Resistance: Risk of early failure is mitigated by using a shock and vibration-resistant aluminium alloy housing capable of withstanding an impact of up to 20 Joules (IK10). A tempered glass lens provides impact resistance up to IK08. An optional stainless steel guard increases this to IK10.

  2. Fitting Design: The Trevithick series has a low profile, clam shell design with dual cable inlets to allow efficient installation on site and easy long-term maintenance.

  3. Heat Dissipation: Recessed & spaced light engines also allow for excellent heat dissipation & low junction temperature. Which increases the luminaire life span and has a Lumen Maintenance rating of L70B50>120,000 Hours.

  4. Mounting: The Trevithick series is available with a varied array of mounting options; twin pipe clamp, twin surface bracket and twin eye bolt mount.

TYPICAL

APPLICATIONS

  • Petrochemical Industry
  • Power Generation
  • Power Transmission
  • GANTRIES and TOWERS
