Emergency bulkhead

Emmerson series

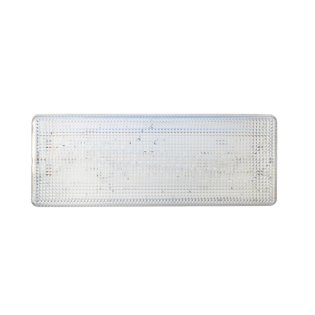

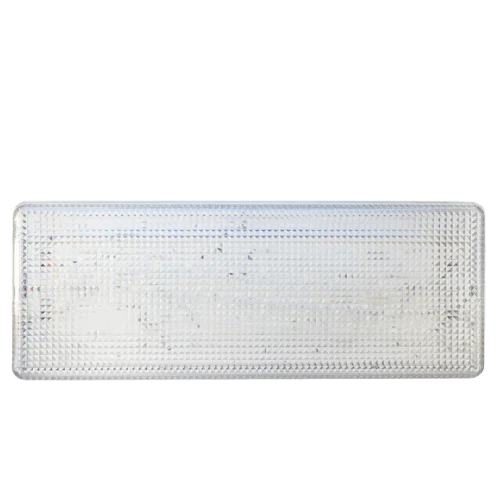

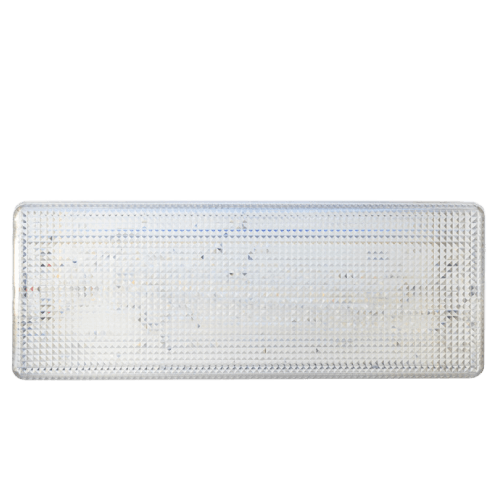

High mount, Maintained or non-maintained LED Emergency Bulkhead Light

The Emmerson Series Emergency Bulkhead balances performance, reliability, and efficiency in one robust package. Designed for use both indoors and outdoors, it provides strong, dependable illumination during normal operation and in emergency conditions.

With its high-output LED design, the Emmerson Series delivers clear, effective light even in larger spaces. Its tough IP66 and IK10 ratings mean it stands up to challenging environments, while long-life LiFePO4 batteries ensure consistent 3-hour emergency backup when it matters most.

Available with standard, DALI self-test, and Wireless control options, the Emmerson Series makes compliance and maintenance straightforward. Compact, durable, and built for longevity, it’s a versatile solution for anyone seeking reliable emergency lighting with proven performance.

Our team is here to help you find the best emergency lighting fittings for your project. You can enquire about the Emmerson Series via the on-page link. Alternatively feel free to speak to a member of our team on +44 (0)1387 255816.

Performance Summary
Series Code	EMM
Duration	3 Hours
Application Height	High Mounting Heights - 4m to 20m
Test-Type	Remote-Test, DALI Self-Test
Operation	Maintained or Non-Maintained
Power	5W (Emergency), 8W (Mains - Maintained)
Warranty	4 Years

Downloads

Optic Distribution Design Features Typical Applications Case Studies Gallery Related Products

LIGHT DISTRIBUTION OPTIONS

Ennis Series Photometrics

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Emergency bulkheads designed for
PURPOSE

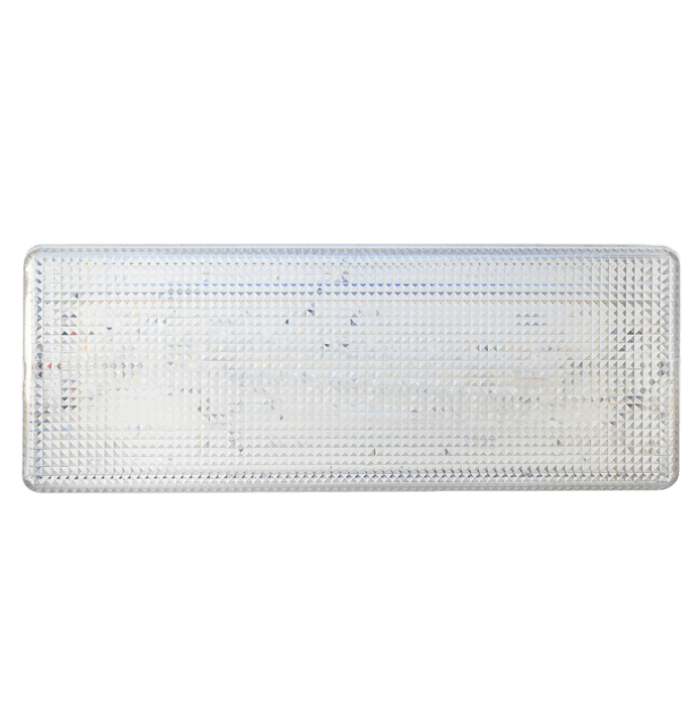

The Emmerson Series is a high-output emergency bulkhead providing strong light output for demanding applications. Key features include:

High-Performance Illumination: Equipped with a High-Output LED strip, the Emmerson delivers 1316 lumens in mains operation and up to 1001 lumens in emergency mode, providing effective coverage in larger or higher-ceiling spaces.

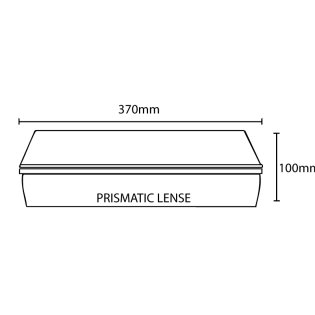

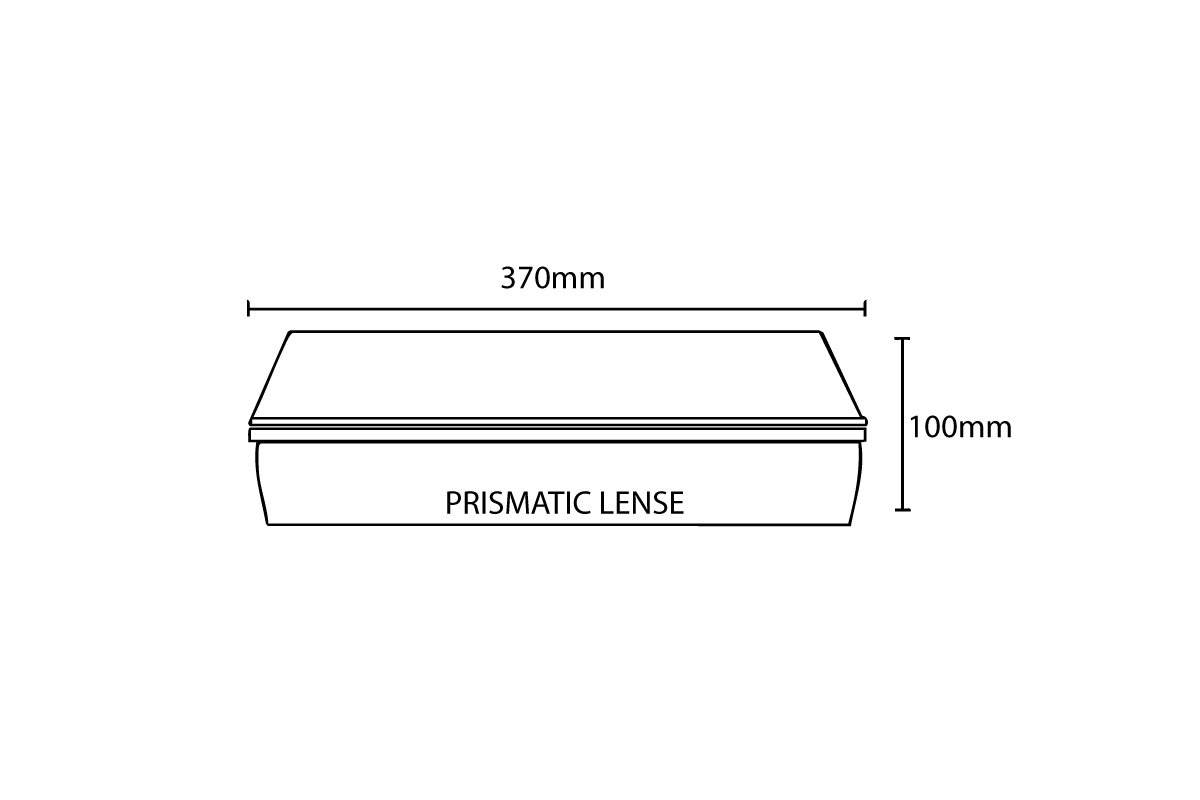

Durable and Robust Design: Built to withstand harsh conditions, the Emmerson achieves IP66 ingress protection and IK10 impact resistance. A prismatic diffuser ensures focused and uniform light distribution.
Supports All Standard Operating Modes: Available with or without an integrated driver, the Emmerson can operate in maintained mode (continuous illumination) or non-maintained mode (emergency-only). It supports traditional remote testing, DALI self-testing for automated compliance checks, and a Wireless Pro variant for integration with Kellwood’s emergency monitoring control systems.

Reliable Emergency Backup: Extra-long-life LiFePO4 batteries provide a dependable 3-hour emergency duration with a 24-hour recharge time, ensuring illumination is available when most needed.

Emmerson High Mount Bulkhead Designed for Purpose

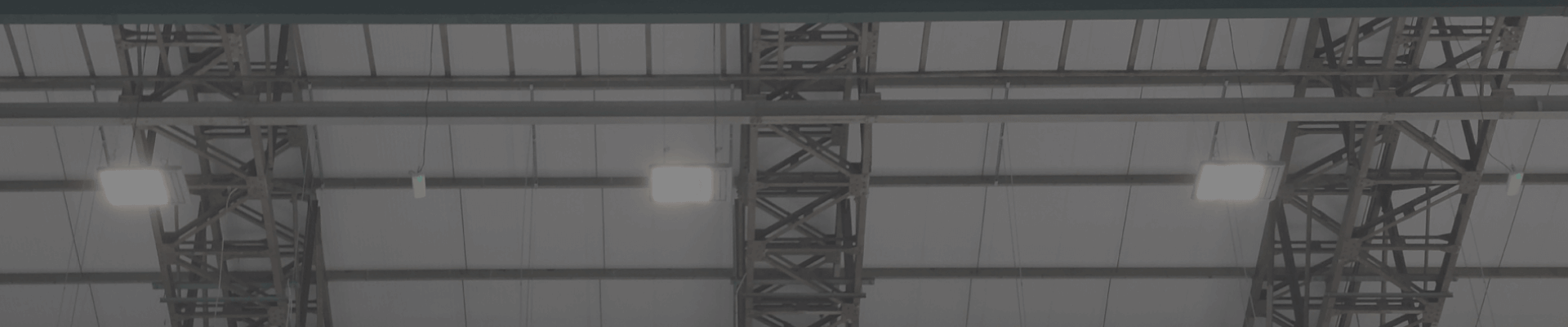

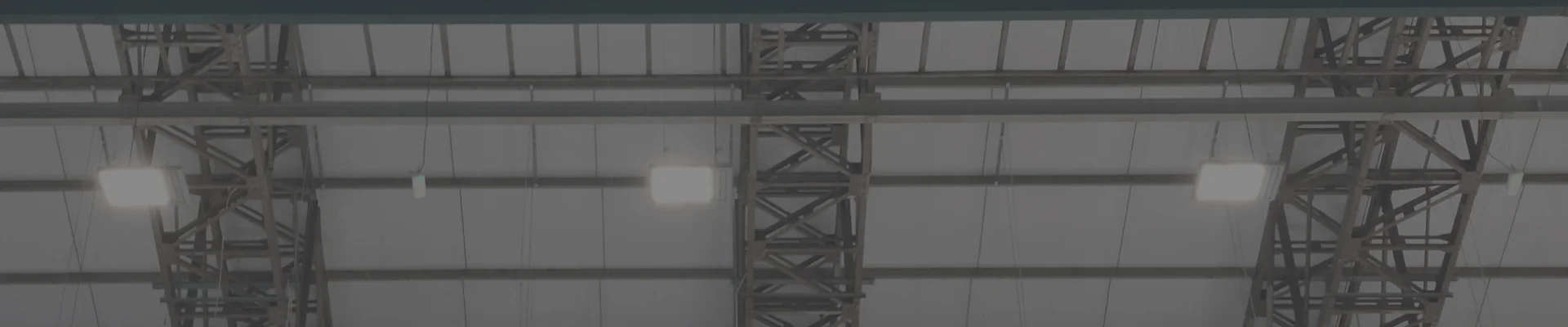

TYPICAL
APPLICATIONS

Factories
BIG BOX RETAIL
Sports Halls
Storage Areas
Hangars

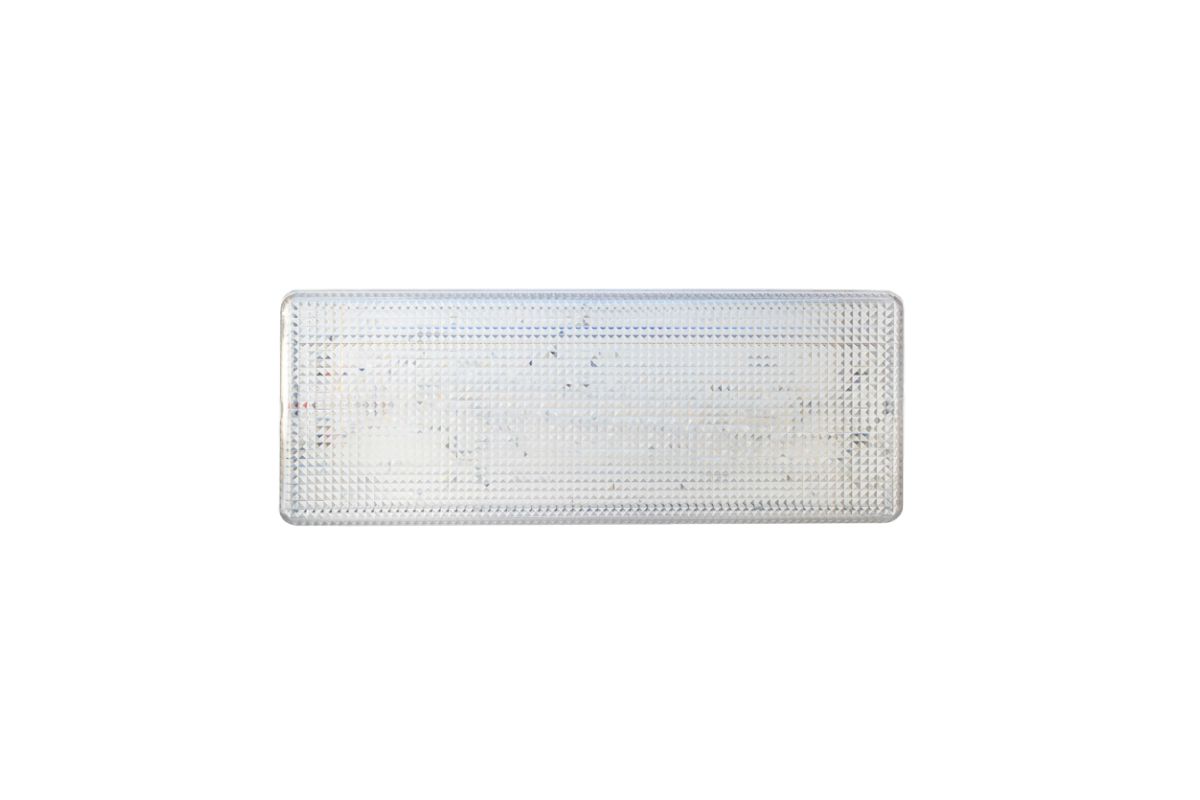

Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters
Light Emission	Direct
CCT	4000K
Asymmetric Light Distribution	60°x55°
Lens Opacity	Diffuser With High LOR

Environmental
Ingress Rating	IP66
Ambient Usage Tolerance	5° to 35°C

Electrical
Input Voltage	230-240VAC
Input Frequency (VAC)	50-60Hz

Physical/Mechanical
Electrical Connection	Terminal Block
Fixture Primary Materials	Polycarbonate
Lens(es) Material	UV Stabilised Polycarbonate

Options/Accessories
Mounting Styles	Surface Mount

Standards

LVD (Directive 2014/35/EU)
EMC (Directive 2014/30/EU)
RoHS (Directive 2011/65/EU)
ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
