INDUSTRIAL LINEAR

Dunlop Series

High power temperature-resistant linear lights

Ce125lm5yearsIk10Ip67Temp 55cEmergencyMarine Grade
  • Technical Brochure
  • Packaging & Delivery

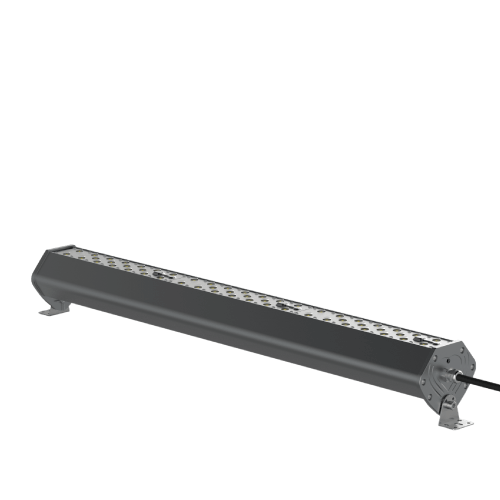

The Dunlop Series is an efficient and durable range of linear LED lighting suitable for use in a wide range of industrial, commercial and sporting applications. High ingress and impact protection combined with premium components and build quality ensure that the Dunlop Series of linear fittings provide excellent and long-lasting performance.

Our team at Kellwood Lighting is here to help you find the best light fitting for your project. You can enquire about the Dunlop Series via the link on this page. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelLuxeon 5050
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI≥70, ≥80, ≥90
Lens OpacityClear, Frosted
Environmental
Ingress RatingIP67
Impact ResistanceIK10
Ambient Usage Tolerance-40°C to 50°C
Ambient Storage Tolerance-40°C to 50°C
Electrical
Input Voltage220-240VAC, 120-277VAC
Driver Brand(s)Philips
Input Frequency (VAC)50-60Hz
Power Factor>0.95
THD<20%
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesTwin Surface Mount Brackets, Cable Suspension
Miscellaneous AccessoriesLinkable Variant, Backspill Guard, Maintained Emergency Pack
  • Smooth Easy-Clean Profile: hexagonal smooth housing allows for easy cleaning.
  • 55°C Temperature Tolerance: "DUN2A" 30W module versions (90W, 120W, 150W) are resistant up to 55°C.
  • High Efficacy: producing high lumen output across all product range wattages.
  • Mounting Options: twin surface mount brackets or cable suspension.
  • 3 Hour Emergency: a maintained solution for general and emergency lighting
  • >13 Optics: including dedicated forward throw, and "milk" diffusers.
  • AkzoNoble Surface Finish: upgrade to a marine grade finish for corrosive environments.
  • IK10 Impact rating: designed for hostile environments.
  • Optional Fitting Colours: Grey RAL 7004, Black RAL 9011, Bronze
    RAL 8014, White RAL 9010, Custom availability subject to MOQ.

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeDUN2
Nominal Power (Range)90W to 250W
Luminaire Efficacy @ CRI>70 5000K CCT124lm/W to 150lm/W
Lumen Output @ CRI>70 5000K CCT13,230 to 31,000 lumens
Lumen MaintenaceL90B50 >60,000 hours
Lumen MaintenanceL70B50 >200,000 hours
Primary ConformitiesCE
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

Light Distribution Options

25° Optic
40° Optic
60° Optic
90° Optic
120° Optic
150° Optic

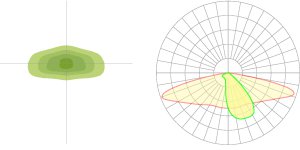

IESNA Type 2 Medium

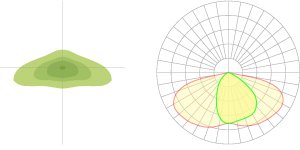

IESNA Type 3 Medium

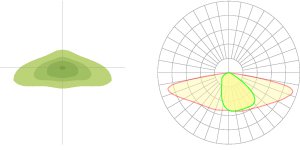

IESNA Type 3 Long

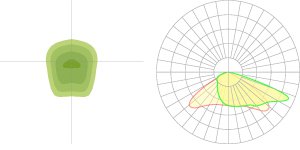

IESNA Type 4 Short

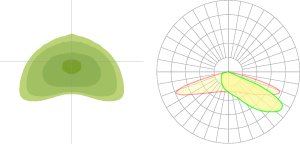

IESNA Type 4 Medium
Backspill Guard

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

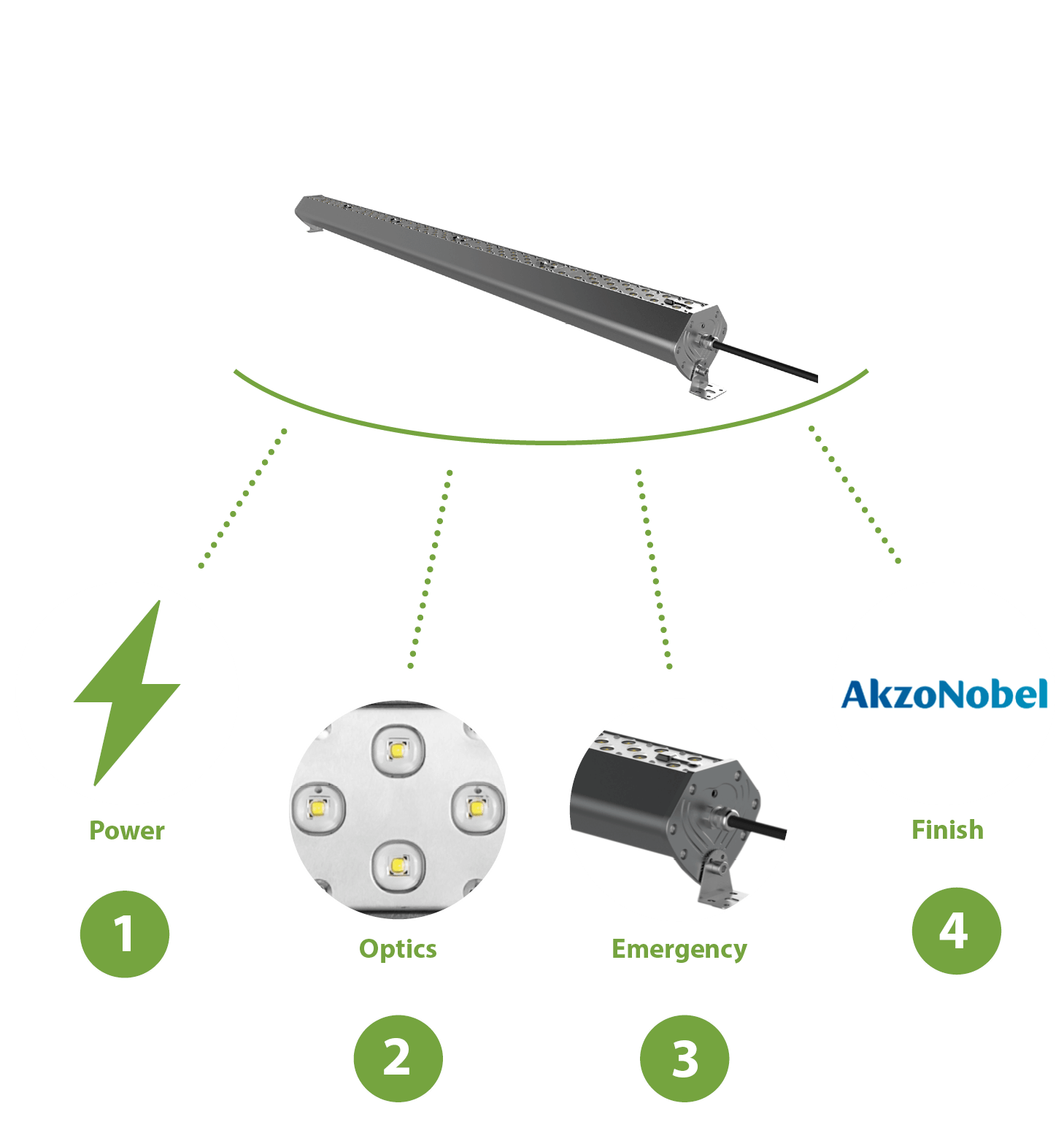

Linear lights designed for

PURPOSE

  1. Power: The Dunlop Series has three module wattages (30W, 40W, and 50W), resulting in a range of luminaire wattages from 90W to 250W. With efficacy increasing for low power modules, lux requirements can be met at reduced running cost. The Dunlop Series is designed to compliment Kellwood's lower powered Drummond Series premium linear lights (30-120W).
  2. Optics: There are a wide range of Asymmetric and Symmetric optics available, with the option of a frosted diffuser; direct light where you need it.
  3. Protection: The Dunlop Series is designed with protection in mind for tough environments. Product damage is minimised through the IK10 protection, providing resistance against impacts up to 20J.
  4. Finish and Housing Profile: The Dunlop Series offers an upgraded AkzoNobel polyester powder coat for increased salt (Sodium Chloride) corrosion resistance. Its smooth hexagonal profile, allows for easy cleaning.
  5. 55°C Ambient Temperature Tolerance: The enlarged chassis, enhances thermal performance, allowing for superior fault-free operation in temperatures up to 55°C (DUN2A) and 50°C (DUN2B and DUN2C).

TYPICAL

APPLICATIONS

  • CLEAN AREA Production
  • HIGH and LoW TEMPERATURE
  • Indoor Sports Facilities
  • HOSTILE
