IP40 LED Downlight

Wallace
Series

IP40 Downlights Wallace Series

A stylish IP20/IP40 downlight with recessed glare-reducing diffuser

Wallace Downlight
Ce90lmTemp 40cDimmableEmergencyLed

The Wallace Series LED downlight is designed for commercial applications requiring a budget-friendly luminaire with many of the features of specification-grade downlights.

Available in a range of outputs from 1,000lm to 2,730lm and housings to suit most common cut-out sizes, the Wallace Series a flexible solution for most retrofit and new-build projects.

3hr Emergency (remote-test or DALI self-test) mitigate the need or cost of additional non-maintained emergency fittings, while dimmable driver options (1-10V, DALI and Main-Dimming) can be supplied to allow simple integration into compatible lighting controls.

Where stylistic designs are appreciated, bespoke bezel colours can be offered to compliment internal and external architecture.

We are here to help you find the best LED Light Fitting for your project. You can enquire about the Wallace Series via the on-page link. Alternatively feel free to speak to a member of the Kellwood Lighting team on +44 (0)1387 255816.

Performance Summary
Series CodeWALL
Nominal Power (Range)11W to 30W
Cut-out Size90mm (B), 125mm (C), 160mm (D), 200mm (E)
Luminaire Efficacy @ CRI>80 4000K CCT91 lm/W
Lumen Output @ CRI>80 4000K CCT1,000 to 2,730 lumens
Lumen Maintenance (TM21)L70B50 >50,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years

Downloads

Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

LIGHT DISTRIBUTION OPTIONS

90º Optic 90º Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Downlights designed for
PURPOSE

The Wallace Series LED downlight is assembled with premium components including Epistar 2835 & 5630 LED chips. Ideal for those that are looking for a functional, high quality but budget-conscious downlight.

  1. Glare: The Wallace series is designed with reduce glare in mind. It uses a frosted diffuser and recessed light source to produce low glare rating, making it suited for commercial and industrial lighting applications.
  2. Dimmable Options: 1-10V, Triac, and DALI dimmable drivers are available for integration into compatible control systems.

  3. Lumen Maintenance: Premium components and patented heat sink design system prolongs luminaire lifespan to L70B50 >50,000 hours.

  4. Emergency: 3 hour maintained emergency kit or pack with DALI self-test or remote testing. Supplied with LiFePO4 batteries, providing double the lifespan of conventional NiCd batteries, and very low self discharge and power consumption under use.

  5. Flexibilty for Retrofit and New-Build: 11W - 30W models are available in a range of housings diameters, designed to fit common cut-outs from 90mm to 200mm.

  6. Bespoke Colours: the front bezel can be surface-finished to a bespoke colour - commercial viability subject to order quantity.

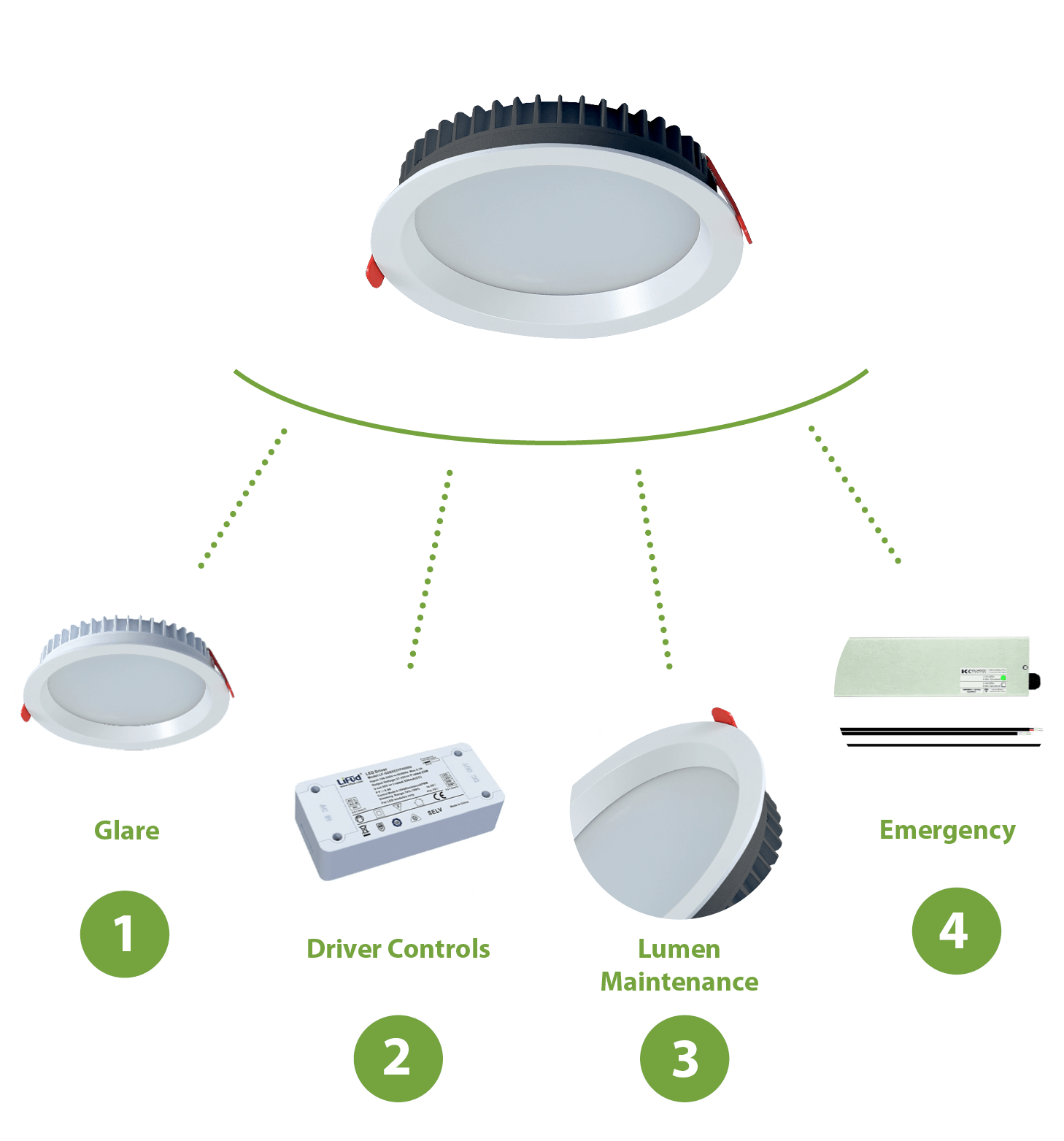

Wallace Series Premium Budget Conscious Downlight Designed for Purpose Diagram

TYPICAL
APPLICATIONS

Gallery

Specifications

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelEpistar 2835 SMD, Epistar 5630 SMD
Light EmissionDirect
CCT2700K, 3000K, 4000K, 6000K
CRI≥80, ≥90
Lens OpacityFrosted
Environmental
Ingress RatingIP20/IP40
Ambient Usage Tolerance-20° to 40°C
Ambient Humidity Tolerance10% to 90% RH
Ambient Storage Tolerance-30° to 60°C
Electrical
Input Voltage220-240VAC
Driver Brand(s)Lifud, Osram
Input Frequency (VAC)50-60Hz
Power Factor≥0.90
THD<15%
Physical/Mechanical
Electrical Connection125mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPainted
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Options/Accessories
Mounting StylesRecessed
Available Product ColoursWhite, Black
Miscellaneous AccessoriesEmergency Maintained Pack/Kit
Emergency
Duration3 Hours
Testing TypeRemote-Test, DALI Self-Test
OperationMaintained
Output Wattage2.8W
HousingExternal pack
Battery TypeNiCd or LiFePO4
Temperature Tolerance25°C (unless otherwise agreed)
Warranty3 Years

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
