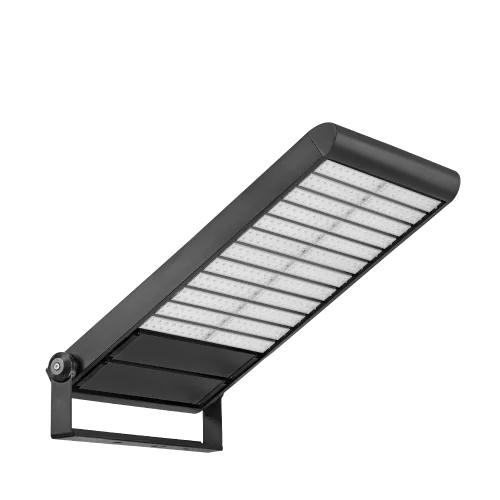

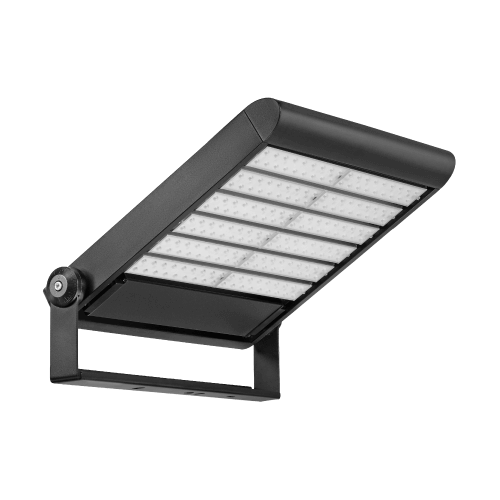

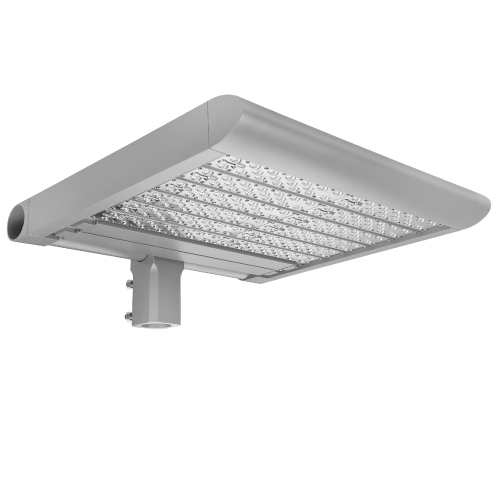

Kellwood Lighting's high mast lighting system has been developed to compete with the best-quality, high-install floodlighting options on the market.

Forming part of our range of premium LED light fittings and with over 15no. optic variants and 3no. mounting options, this tower lighting series can be tailored to suit a vast array of environments.

The team at Kellwood Lighting is here to help you find the most suitable light fitting for your project. You can enquire about the Ayrton Series LED High Mast Floodlight via the link below. Alternatively feel free to speak to one of our Lighting Designers on +44 (0)1387 255816:

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelNichia 3535 NVSL219C
Light EmissionDirect
CCT3000K, 4000K, 5000K, 5700K
CRI>70, >80
Symmetric Light Distribution10°, 25°, 40°, 60°, 90°, 120°, 150°
Asymmetric Light Distribution1M, 2M, 3M, 3L, 4S, 4M
Lens OpacityClear, Frosted
Optical AccessoriesBackspill Guard
Environmental
Ingress RatingIP67
Impact ResistanceIK10
Ambient Usage Tolerance-40° to 50°C
Ambient Humidity Tolerance15% to 90% RH
Ambient Storage Tolerance-40° to 80°C
Electrical
Input Voltage220-240VAC, 120-277VAC, 374-480VAC
Driver Brand(s)Philips Xitanium
Input Frequency (VAC)50-60Hz
Power Factor≥0.95
THD<20%
Surge Protection10kV, 20kV
Physical/Mechanical
Electrical ConnectionTerminal Block or 1000mm Cable
Fixture Primary MaterialsAluminium Alloy
Fixture FinishPowder Coated - AkzoNobel Standard, AkzoNobel Marine Grade
Lens(es) MaterialUV Stabilised Polycarbonate
Dimming/Controls
Dimming Options1-10V, DALI
Built-in ControlsPhotocell, NEMA Socket and Cap
Options/Accessories
Mounting StylesUniversal Bracket, Slip Fit, Cable Suspension
Available Product ColoursGrey (RAL 7004), Black (RAL 9011), White (RAL (9010)
Miscellaneous AccessoriesBird Spikes
  • 490W - 920W power range
  • Slip-fit or universal bracket mounting options
  • Low profile/windage
  • 3G vibration tolerance as per ANSI C136.31-2010
  • Optional Fitting Colours: Grey RAL:7004, black RAL:9001, white RAL:9010, bronze RAL:8014, custom (subject to MOQ)
  • Integrated spirit level, and indexed mounting angle adjuster ensures easy and accurate installation
  • 13 unique optics (including specialist forward throw variants) and optional individual-lens back-spill guards
  • Clip-on bird spikes
  • IP67 & marine-grade AkzoNobel corrosion protection options
  • 10kVA surge protection as standard with optional 20kVA
  • Intelligent controls available

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

DCL

UL

CB

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeAYR3
Nominal Power (Range)460W to 920W
Luminaire Efficacy @ CRI>70 5000K CCT121 to 127 lm/W
Lumen Output @ CRI>70 5000K CCT58,420 to 116,840 lumens
Lumen Maintenance (TM21 Reported)L90B10 >80,000 hours
Primary ConformitiesCE (EMC, LVD, RoHS, ErP)
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

10º Optic 10º Optic
25º Optic 25º Optic
40º Optic 40º Optic
60º Optic 60º Optic
90º Optic 90º Optic
120º Optic 120º Optic
150º Optic 150º Optic

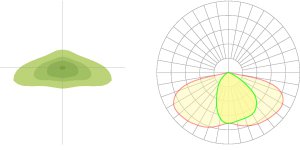

IESNA Type 1 Medium IESNA Type 1 Medium
