Legacy Product - Eckert Series

This product is no longer part of our core range. We may still hold some stock, or be able to manufacture it as a "special", but you might want to consider the alternatives below:

Alternatively, please contact us on:

lightingsales@kellwood.co.uk

+44 (0)1387255816

Emergency Lights

emergency

ECKERT
SERIES

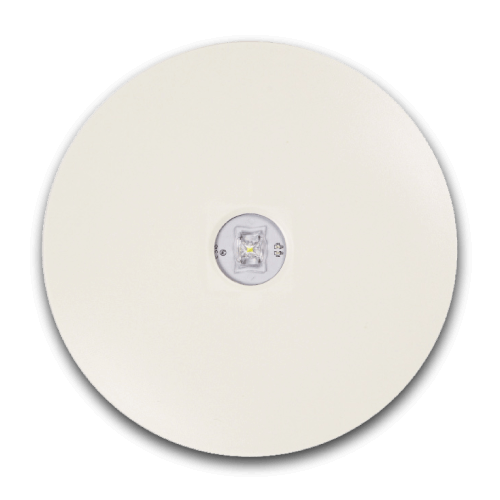

LED Emergency Bulkhead Light (High & Low Install)

A CIRCULAR IP65 COMPACT 3 WATT OR 6 WATT SURFACE MOUNT LED BULKHEAD WITH LiFePO4 BATTERY TECHNOLOGY

Eckert Emergency Bulkhead Lights
CeIp65EmergencyLedLifepo4
  • Technical BrochureEckert Series Data Sheets
  • Photometric FilesEckert Series Photometric Files
  • Packaging & DeliveryEckert Weights & Packaging

The Eckert Series circular emergency bulkhead are suitable for a wide variety of emergency lighting applications. A choice of lumen outputs and switching options make it suitable for both warehouse and office mounting while the IP65 rating prevents damage from moisture or dust.

At Kellwood we have a wide range of emergency lights, our team is here to help you find the best product for your project. You can enquire about this specific product via the "Request a Quote" link. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Chip Brand, & ModelCree
Light EmissionDirect
Lens OpacityClear
Environmental
Ingress RatingIP65
Impact ResistanceIK08
Ambient Usage Tolerance-0° to 25°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Deep Discharge Protection (DDP)Yes
Recharge Period12 Hours
Battery Current Limit1000mA
Charge Current0-400mA Float
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesSurface Mount
Miscellaneous AccessoriesN/A
  • 3W or 6W
  • Surface Mount (Ceiling)
  • White Polycarbonate body
  • Translucent Polycarbonate Cover
  • Extra Long Life LiFeP04 cells
  • Ingress Protection Rating - IP65
  • DDP (Deep Discharge Protection)
  • Cree LEDs
  • Perfect for Warehouse Applications

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeECK
Duration3 Hours
Test-TypeRemote-Test, DALI Self-Test
OperationMaintained or Non-Maintained
Power3W or 6W
Battery6.4V 3.0Ah LiFePO4
Warranty4 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

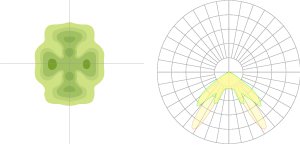

LIGHT DISTRIBUTION OPTIONS

Eckert Series Photometrics Eckert Series Photometrics

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Emergency light designed for

PURPOSE

Using the latest Lithium Iron Phosphate battery technology combined with industry leading CREE chips, minimal maintenance is assured. The high output compared to traditional equivalents necessitates fewer fittings to meet guidelines, helping to reduce installation costs.

Eckert High and Low Emergency Bulkhead

TYPICAL

APPLICATIONS

  • Factories
  • BIG BOX RETAIL
  • Sports Halls
  • Storage Areas
  • Hangars
