This product is no longer part of our core range. We may still hold some stock, or be able to manufacture it as a "special", but you might want to consider the alternatives below:
Alternatively, please contact us on:
lightingsales@kellwood.co.uk
+44 (0)1387255816

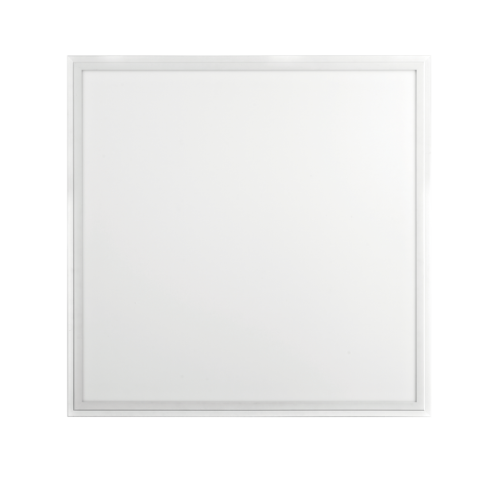

PANEL
McMillan
Series
A BUDGET-FOCUSED SOLUTION WITH HIGH-OUTPUT PERFORMANCE & SUPERIOR UNIT LIFETIME

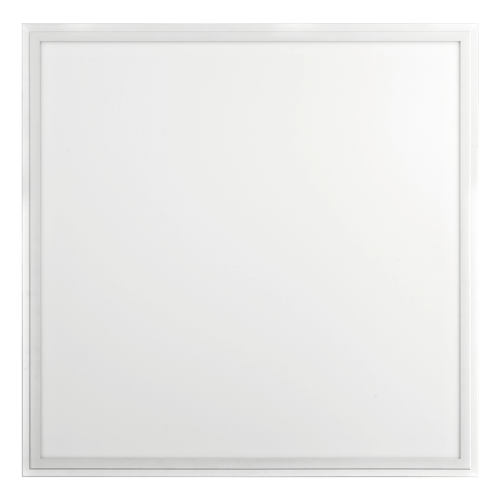

Key difference: High quality budget LED chip - more economic than the Matlock 2 Series
Kellwood's McMillan Series is a premium built recessed panel benefitting from lower up-front costs. Components from quality, lesser known suppliers make this panel ideal for budget-focussed projects. Typical frame shadowing, commonly found in edge-lit panels is minimised through specialized diffusers.
Our team is here to help you find the best product for your project. You can enquire about the McMillan Series via the link on this page. Alternatively feel free to speak to one of our Lighting Design Consultants on +44 (0)1387 255816.
A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads section) for further details.
| Chip Brand, & Model | Runlite 4014 |
|---|---|
| Light Emission | Direct |
| CCT | 3000K, 4000K, 5000K, 6000K |
| CRI | >80, >90 |
| Lens Opacity | Micro-prismatic |
| SDCM | ≤3 |
| UGR | <21 |
| Ingress Rating | IP20 (Front Face) |
|---|---|
| Impact Resistance | IK05 |
| Ambient Usage Tolerance | -20° to 40°C |
| Ambient Humidity Tolerance | 20% to 85% RH |
| Ambient Storage Tolerance | -40° to 85°C |
| Input Voltage | 220-240VAC |
|---|---|
| Driver Brand(s) | Lifud |
| Input Frequency (VAC) | 50-60Hz |
| Power Factor | ≥0.90 |
| THD | <20% |
| Electrical Connection | 350mm Cable |
|---|---|
| Fixture Primary Materials | Aluminium |
| Fixture Finish | Painted |
| Lens(es) Material | PMMA, Light Guide Plate, Polystyrene |
| Dimming Options | 1-10V, DALI |
|---|
| Mounting Styles | Suspended Ceiling, Surface Mount Kit |
|---|---|
| Miscellaneous Accessories | Safety Cable |
| Duration | 3 Hours |
|---|---|
| Testing Type | Remote-Test, DALI Self-Test |
| Operation | Maintained |
| Output Wattage | 2.8W or 5.6W |
| Housing | External pack |
| Battery Type | NiCd (2.8W or 5.6W) or LiFePO4 (2.8W) |
| Temperature Tolerance | 25°C (unless otherwise agreed) |
| Warranty | 3 Years |
CE
Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
| Series Code | MCM |
|---|---|
| Nominal Power (Range) | 26W to 72W |
| Cut-out Size | 595x595mm (A), 295x1195mm (B), 595-1195mm (C) |
| Luminaire Efficacy @ CRI>80 4000K CCT | 113-130 lm/W |
| Lumen Output @ CRI>80 4000K CCT | 3,198 to 9,360 lumens |
| Lumen Maintenance (TM21) | L70B50 >69,000 hours |
| Primary Conformities | CE (EMC, LVD, RoHS, ErP) |
| Warranty | 5 Years |

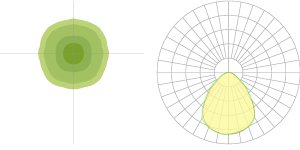

LIGHT DISTRIBUTION OPTIONS
Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.
Suitable for surface mounting as well as standard suspended ceiling installations. Optional Emergency modifications and Intelligent Controls available as well as multiple colour temperature variations. Electrophoresis painted finish maintains product appearance and protects against age-related wear and tear.
