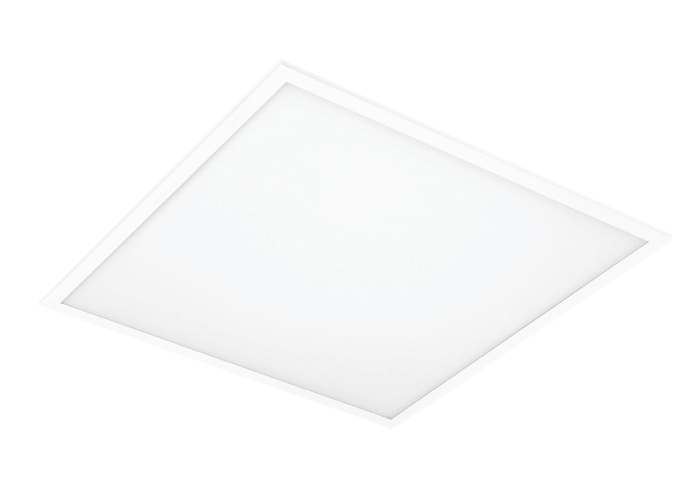

Marshall Series

TPA fire rated led PANELs

Ce135lm5yearsTemp 40cTpaTpbUgr 19DimmableEmergency
  • Technical Brochure
  • Photometric Files

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
CCT3000K, 4000K, 6500K
CRI>80
Lens OpacityFrosted Micro-Prism
SDCM<4
UGR<19
Environmental
Ingress RatingIP20
Ambient Usage Tolerance-20°C to 40°C
Ambient Humidity Tolerance0 to 70%
Electrical
Rated Input Voltage220-240VAC
Driver Brand(s)Tridonic
Input Frequency (VAC)50-60Hz
Power Factor>0.9
THD<20%
Physical/Mechanical
Electrical Connection350mm Cable
Fixture Primary MaterialsAluminium
Fixture FinishWhite Powder Coated
Lens(es) MaterialPolycarbonate
Dimming/Controls
Dimming OptionsDALI
Options/Accessories
Mounting StylesCable Suspension, Surface Mounting
Miscellaneous AccessoriesEmergency Kit/Pack

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.

Performance Summary
Series CodeMAR
Nominal Power (Range)23W to 36W
Size600 x 600mm
Luminaire Efficacy @ CRI>80 4000K CCT107lm/W to 137lm/W
Lumen Output @ CRI>80 4000K CCT2,930lm to 4,640lm
Lumen Maintenance (TM21)50,000 hours
Primary ConformitiesCE
Warranty5 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

90° Optic

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

TYPICAL

APPLICATIONS

  • Offices
  • Schools
  • Healthcare
