Emergency Lights

3hr Emergency Packs and Kits

Emergency
Packs and kits

Maintained and non-maintained DALI Self-test and Remote-test for products with external drivers - including ingress protection up to IP65

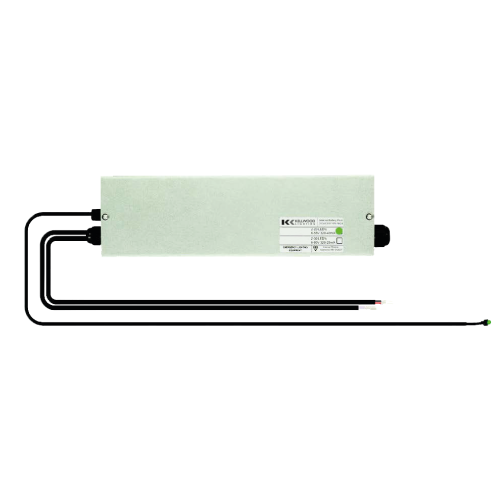

Emergency Packs
Ce3yearsIp54DimmableEmergency

Kellwood can offer a wide range of 3hr emergency packs and pre-assembled emergency conversion kits for the majority of our general lighting products.

Best suited for luminaires where there is insufficient space for integrated emergency components, our emergency packs and kits operate with the latest LiFePO4 batteries for remote mounting alongside the luminaire.

Testing options include traditional remote-test (typically via wall-mounted emergency key test switches), and DALI2 Self-test (automatically running regular function tests and annual duration tests).

Emergency packs house drivers and emergency components within an enclosure (typically IP65), whereas assembled emergency kits have integrated strain-relief. These two options deliver a cost-optimised solution for general purpose areas or environments requiring high ingress protection.

The light fittings listed below are all available as maintained emergency light fittings. Please refer to each light's individual data sheet for further details.

At Kellwood Lighting, we aim to help you find the best light fitting for your project from our extensive range of LED lights. You can enquire about the LED emergency lighting pack via the link above the Product Summary table. Alternatively feel free to speak to one of our team on +44 (0)1387 255816.

Performance Summary
Series Code(Refer to an Individual Product Series' Data Sheet)
Duration3 Hours
Test-TypeRemote-Test or DALI Self-Test
OperationMaintained or Non-Maintained
Power2.8W or 5.6W
BatteryLiFePO4
Ingress ProtectionIP40 or IP65
Warranty4 Years
Optic DistributionDesign FeaturesTypical ApplicationsCase StudiesGallery Related Products

Emergency packs DESIGNED FOR PURPOSE

Our emergency packs and kits are designed to work with a diverse range of light fittings, and be suitable for installation in a variety of environments. Design Considerations include:

  1. Fast installation to minimise disruption on-site: emergency packs and kits are supplied pre-wired for plug-and-play installation. Or, where initial cost is the most important factor, Kellwood can supply enclosure-free kits with UK-compliant strain relief to be assembled on site by the contrator.
  2. Remote-Test and DALI2 Self-Test: remote-test versions are designed to work with traditional key switches, whereas self-test versions automatically perform weekly or monthly function tests, and annual duration tests.
  3. Regulatory Compliance: the emergency control gear automatically adjusts its output to suit the connected LED load, ensuring it delivers 3 hours of continuous light output in the event of a power failure.
  4. Suit a variety of mounting heights: emergency output ranges from 2.8W - 5.6W, offering flexibility to pair an output with a mounting height.
  5. IP40 kits and IP65 packs: ingress protection of both emergency packs and kits are assembled to ensure that enclosures reflect the environmental requirements, without unncessary additional cost.
  6. Minimising Lifetime Cost: LiFePO4 batteries, meeting the latest temperature-based regulatory requirements, have low self-discharge and long lifetime.
  7. Emergency Monitoring: the DALI Self-Test is compatible with Kellwood's Wireless Pro emergency monitoring control system.
Lighting emergency packs

TYPICAL
APPLICATIONS


  • Offices
  • Schools
  • Hotels
  • Retail
Bunzl Greenham

Bunzl Greenham

Bunzl Greenham is the UK’s leading safety and workplace supplier, part of Bunzl plc, a global FTSE 100 company. Kellwood Lighting were tasked with upgrading one of Bunzl Greenham's premier trade warehouse and office complexes.

Read More about our Bunzl Greenham work

HMP Perth

HMP Perth

The Scottish Prison Service selected The Kellwood Group’s turnkey, vertically integrated project solution ahead of stiff competition. Kellwood’s Electrical, Lighting and Engineering divisions worked together to complete this project on schedule and within budget.

Read More about our HMP Perth work

Spar Retail

Spar Retail

Spar is a Dutch multinational retail chain and franchise. Kellwood facilitated the upgrade of several small independent Spar shops across the UK

Read More about our Spar Retail work

Standards

CE

  • LVD (Directive 2014/35/EU)
  • EMC (Directive 2014/30/EU)
  • RoHS (Directive 2011/65/EU)
  • ErP (Directive 2009/125/EC)

Please refer to the Declaration of Conformity (DoC) and/or product data sheets for individual standards, or contact our Technical Team for further clarification on certification and compliance.
