Multi-Purpose LED Emergency Bulkhead Light

AN EMERGENCY LED BULKHEAD CAPABLE OF PROVIDING OVER 390LM IN BOTH MAINS & EMERGENCY OPERATION

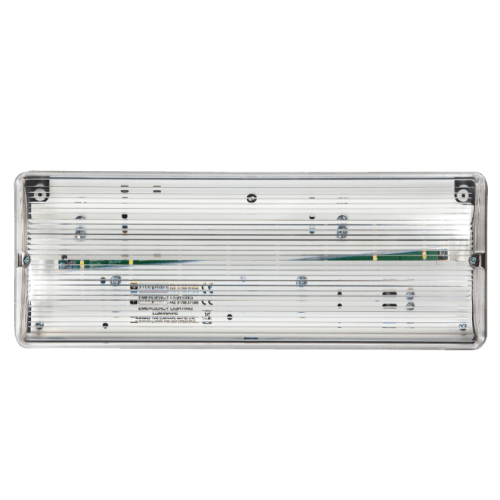

Edwards Emergency Bulkhead Light
Ce155lm3yearsIp65Led
  • Technical BrochureEdwards Series Data Sheets
  • Photometric FilesEdwards Series Photometric Files
  • Packaging & DeliveryEdwards Weights & Packaging

The EDW is a high output emergency LED bulkhead which is designed for high ceiling applications. The high output LED strip use in this fitting provides 444 & 395 lumens after the diffuser in both mains and emergency operation respectively.

You can enquire about the Edwards emergency bulkhead via the link below. Alternatively feel free to speak to one of our team on +44 (0)1387 255816. Kellwood Lighting is here to help you find the best product for your project.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
CCT6000K
Asymmetric Light Distribution125x117°
Lens OpacityFresnell Diffuser
Environmental
Ingress RatingIP65
Ambient Usage Tolerance-0° to 25°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesSurface Mount
Miscellaneous Accessories

Adhesive Legend Kit: Arrow Up, Down, Left, Right. Semi Recessing Kit

  • 4W
  • IP65 Ingress Protection
  • Standard and DALI Self-Test Options Available
  • 444 Lumen in Mains Operation
  • 395 Lumen in Emergency Operation
  • Hinged Geartray for Simple Installation
  • Fresnell Diffuser
  • Technical BrochureEdwards 2 Series Data Sheet
  • Photometric FilesEdwards 2 Series Photometrics Files
  • Packaging & DeliveryEdwards 2 Weights & Packaging

The EDW2 is a high output DALI self test emergency LED bulkhead which is designed for high ceiling applications. The high output LED strip use in this
fitting provides 310 & 288 lumens after the diffuser in both mains and emergency operation respectively.

A summary of the light's specifications is shown below. Please refer to the product data sheets (available in the Downloads tab) for further details.

Light Source and Photometric Parameters

Light EmissionDirect
CCT4000K
Asymmetric Light Distribution125x117°
Lens OpacityFresnell Diffuser
Environmental
Ingress RatingIP65
Ambient Usage Tolerance-0° to 25°C
Electrical
Input Voltage220-240VAC
Input Frequency (VAC)50-60Hz
Physical/Mechanical
Electrical ConnectionTerminal Block
Fixture Primary MaterialsPolycarbonate
Lens(es) MaterialUV Stabilised Polycarbonate
Options/Accessories
Mounting StylesSurface Mount
Miscellaneous Accessories

Adhesive Legend Kit: Arrow Up, Down, Left, Right. Semi Recessing Kit

  • 3W
  • IP65 Ingress Protection
  • Standard and DALI Self-Test Options Available
  • 310 Lumen in Mains Operation
  • 288 Lumen in Emergency Operation
  • Hinged Geartray for Simple Installation
  • Fresnell Diffuser

Performance Summary
Series CodeEDWEDW2
Duration3 Hours3 Hours
Test-TypeRemote-TestDALI Self-Test
OperationMaintained or Non-MaintainedMaintained or Non-Maintained
Power4W3W
Battery4.8V 4.5Ah NiCd9.6V 1.5Ah LifePO4
Warranty3 Years4 Years
Optic DistributionDesign FeaturesTypical ApplicationsGallery & Case StudiesRelated Products

LIGHT DISTRIBUTION OPTIONS

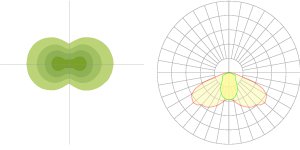

Edward Series Photometrics Edward Series Photometrics

Please note - images shown are intended to be illustrative only.
For exact data, please refer to specific product photometry, available in the above download section.

Emergency light designed for

PURPOSE

Easy installation is facilitated through a hinged Geartray and an IP65 rating helps prevent damage from moisture or dust. These features all combine to make the Edwards series an excellent choice to use throughout a lighting project.

Edwards Series Utility Emergency Bulkhead

TYPICAL

APPLICATIONS

  • Offices
  • Schools
  • Retail
